StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps SuperSpeed PCI Express 3.0 x4 Controller Card, USB Type-C Adapter Card, Data Only, Windows/macOS/Linux, TAA
Stock: 591 units
StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps SuperSp...
Description
Description
Product overview

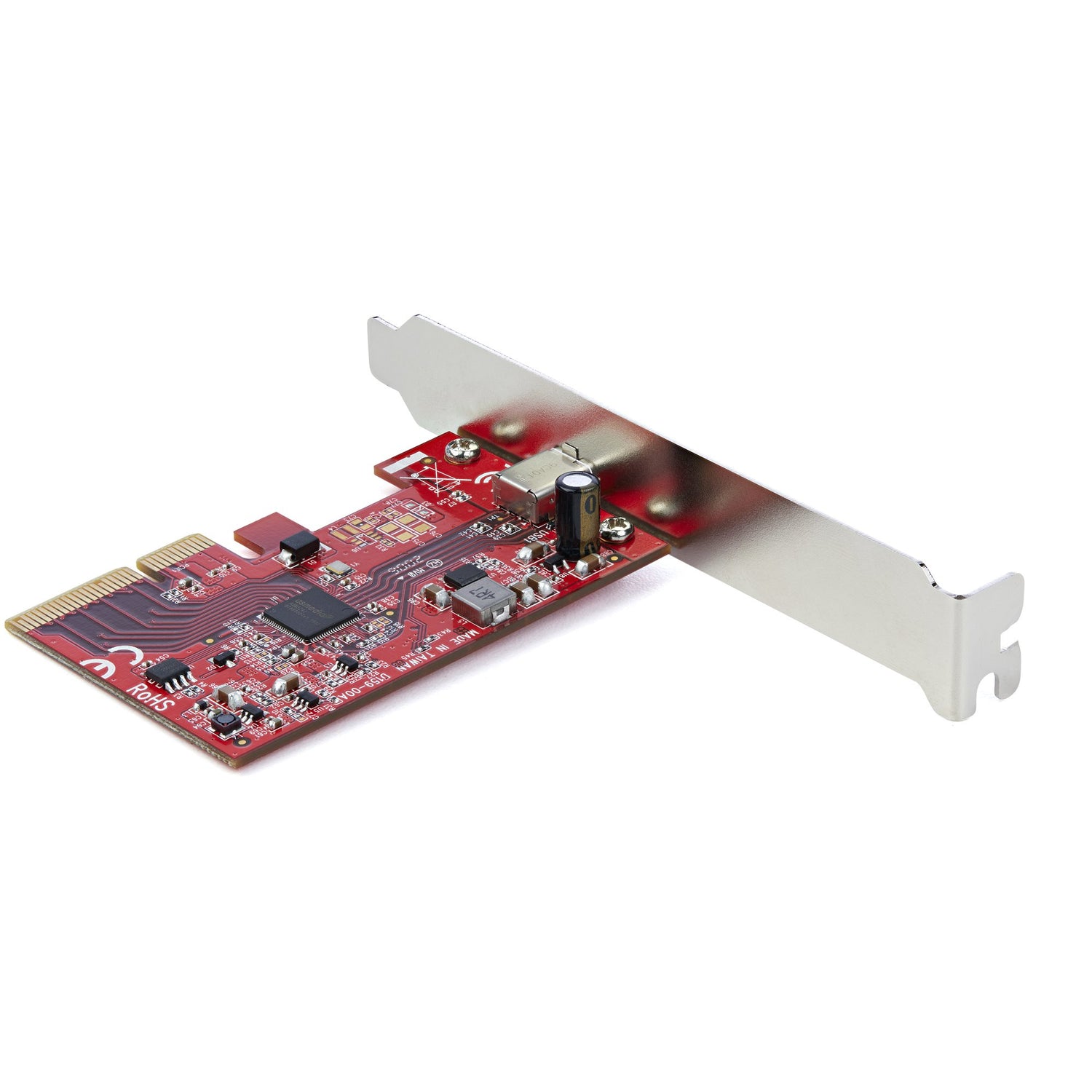

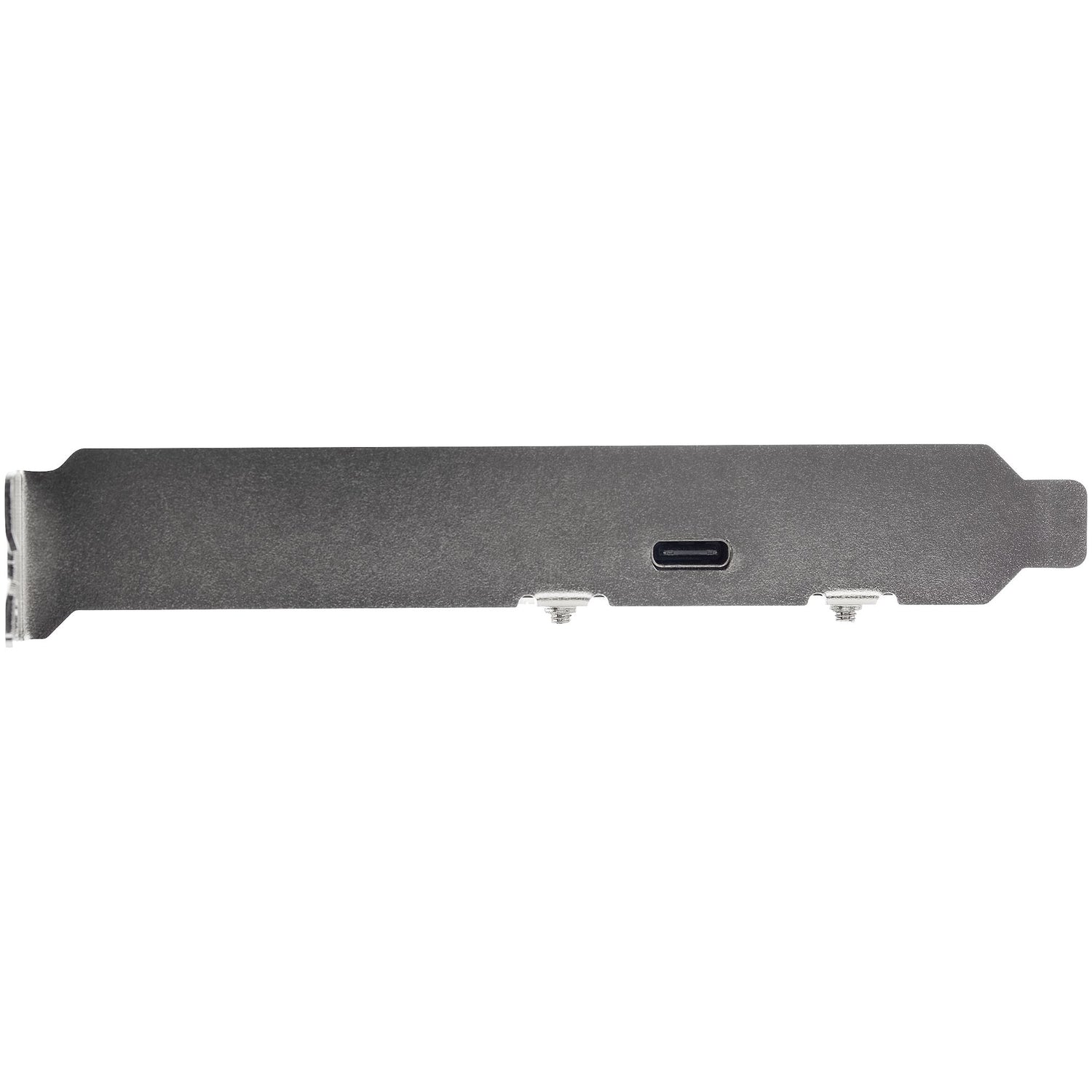

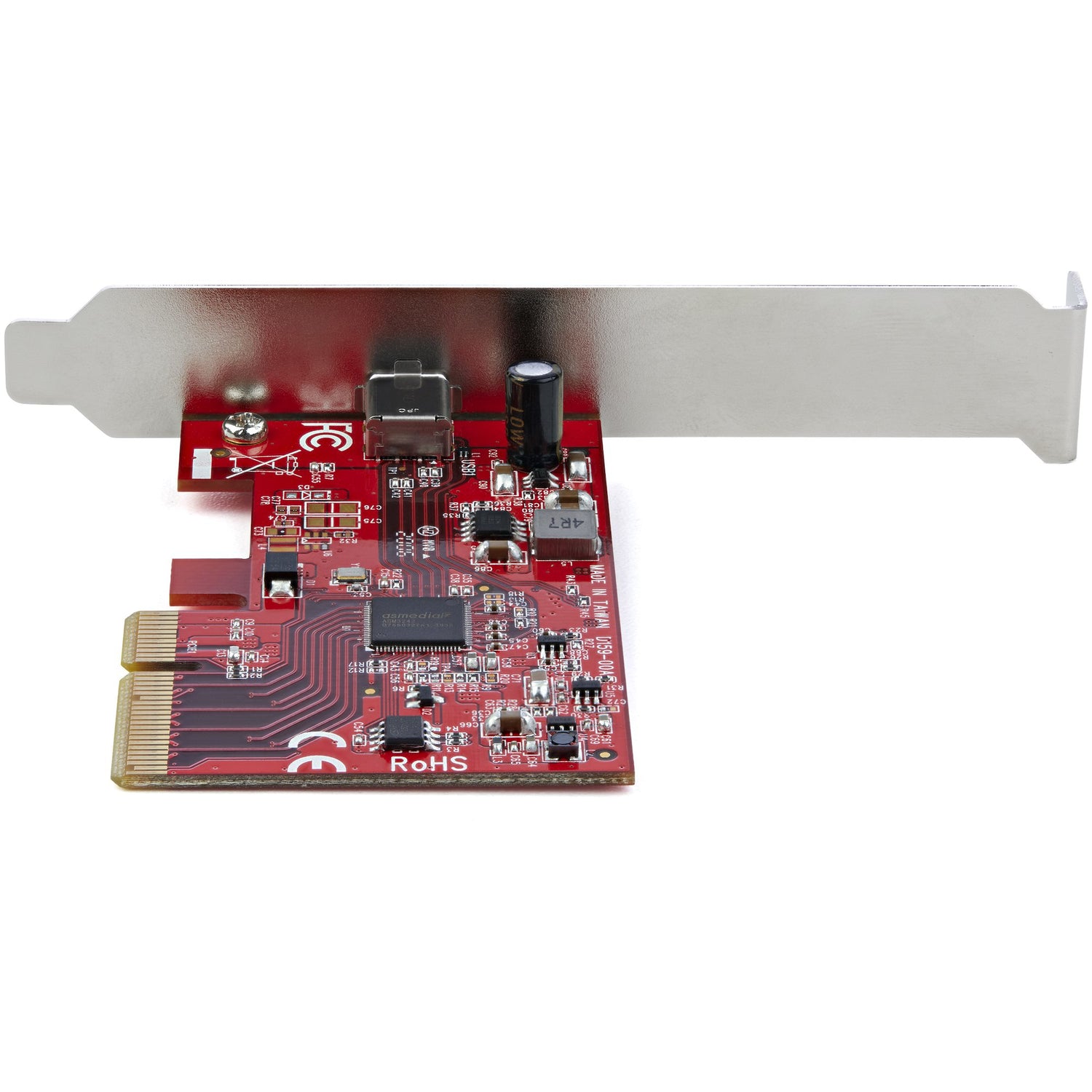

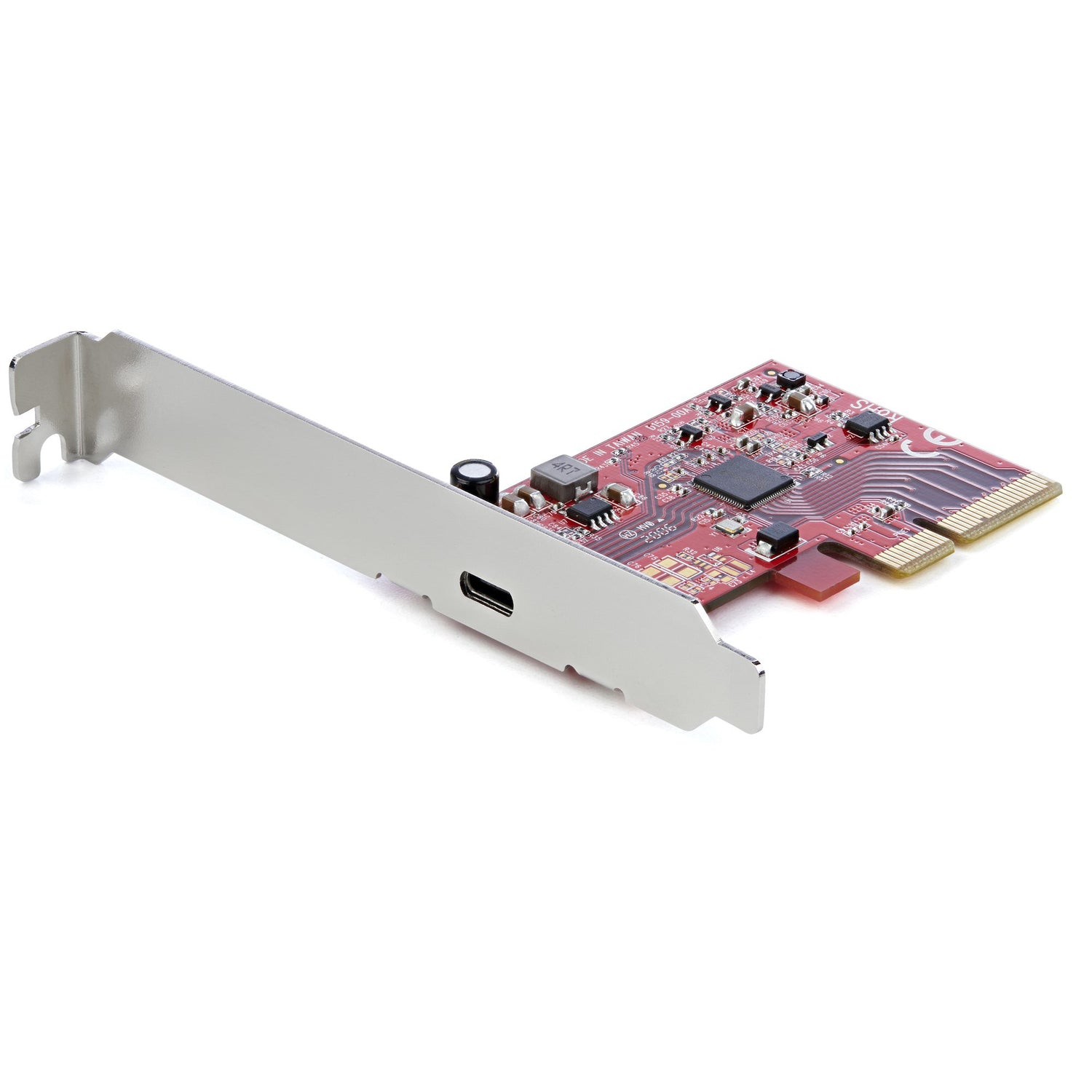

USB 3.2 Gen 2x2 (20 Gbps) | PCI-Express 3.0 | PCIe x4 Slot | USB Type-C This PCIe USB 3.2 Gen 2x2 controller card installs into an available PCI-Express x4 slot in your computer and enables you to upgrade your current system by adding a USB-C™ (20Gbps) port. Add a 20 Gbps USB Type-C Port to Your Desktop Computer The controller card enables you to connect USB-C Gen 2x2 (20 Gbps) devices to your desktop computer. The USB-C port is ideal for connecting USB devices such as external hard drives and solid state drives or charging and syncing your mobile devices. The USB-C port provides up to 15W (5V/3A) of power and is backward compatible with USB 3.2 Gen 2 (10 Gbps) and USB 3.2 Gen 1 (5 Gbps) devices. Note: USB 3.2 Gen 2 (10 Gbps) is also know as USB 3.1 Gen 2 (10 Gbps), and USB 3.2 Gen 1 (5 Gbps) is also know as USB 3.1 Gen 1 and USB 3.0 (5 Gbps). SuperSpeed USB 3.2 Gen 2x2 (20 Gbps) Performance The USB 3.2 Gen 2x2 card features an ASMedia ASM3242 host controller that utilizes x4 lanes of the PCIe 3.0 bus, making the card capable of speeds up to 20Gbps and enabling fast access to high-performance devices like NVMe drives and SSDs. The controller card supports Multiple INs to reduce bandwidth loss when multiple devices are connected through a USB Hub (Note: The USB hub must also support this feature). The card also supports UASP for improved performance with storage devices. Wide Installation Compatibility This add-on card includes both full-profile and low-profile installation brackets ensuring you can install it into either a full or low-profile PCIe 3.0 x4 slot (backward...
Why choose the StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps...?
The StarTech.com 1-Port USB 3.2 Gen 2x2 PCIe Card, USB-C 20Gbps... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: USB 3.2 Gen 2 (3.1 Gen 2); Expansion card standard: PCIe 3.0. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | USB 3.2 Gen 2 (3.1 Gen 2) |
| Expansion card standard | PCIe 3.0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 3126209 h |
| Chipset | ASMedia - ASM3242 |
| Data transfer rate (max) | 20 Gbit/s |
| UASP support | Yes |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -25 - 85 °C |
| Operating relative humidity (H-H) | 15 - 90% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Mac operating systems supported | Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | CE, RoHS |
| Width | 80 mm |
| Depth | 51 mm |
| Height | 22 mm |
| Weight | 37 g |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Package width | 142 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 101 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 60 pc(s) |
| Master (outer) case width | 514 mm |
| Master (outer) case length | 394 mm |
| Master (outer) case height | 324 mm |
| Brand | StarTech.com |
| Manufacturer part number | PEXUSB321C |
| GTIN / UPC | ['0065030891264', '065030891264'] |
