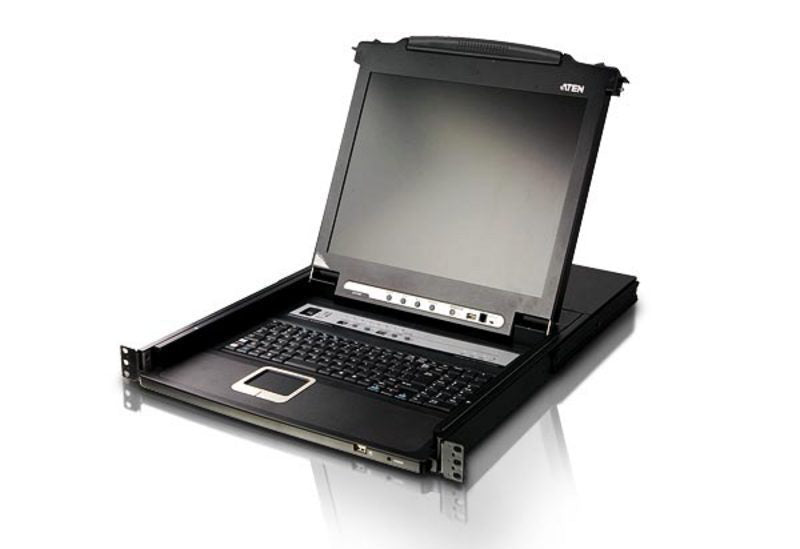

ATEN CL5716N KVM switch Rack mounting Black
Stock: 0 units
Description
Description
Product overview

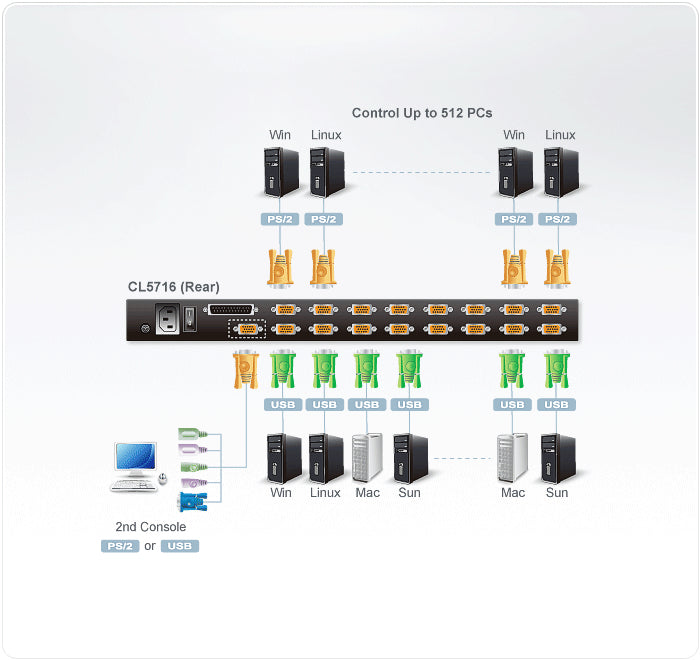

Features - Integrated KVM console with 19" LCD monitor in a Slideaway™ housing - Available with or without Fingerprint Identification Reader** - Space saving technology - up to two consoles (one bus) control up to 16 computers - Daisy-chain up to 31 additional units - control up to 512 computers from a single console (With compatible KVM Swithces: ACS1208A, ACS1216A, CS1708A,CS1716A) - Dual Interface - supports computers and console with PS/2 or USB keyboards and mice - LCD module USB port allows each computer to access USB peripherals* - LCD module rotates up to 115 degrees for a more comfortable viewing angle - Multiplatform support – Windows, Linux, Mac, and Sun - Supports multimedia USB keyboards for PC, Mac and Sun - Auto PS/2 and USB interface detection - Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere - Supports external USB mouse - Superior video quality - supports resolutions up to 1280 x 1024 @ 75 Hz - No software required - convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus - Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel led indicates station's position - Port names automatically reconfigured when station sequence is changed - Two level password security - only authorized users can view and control computers - Supports one administrator and four user accounts with separate profiles - Auto Scan mode enables continuous monitoring of...
Why choose the ATEN CL5716N KVM switch Rack mounting Black?
The ATEN CL5716N KVM switch Rack mounting Black is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 16; Mouse port type: USB; USB 2.0 ports quantity: 2. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 16 |
| Mouse port type | USB |
| USB 2.0 ports quantity | 2 |
| Console port | RS-232 |
| DC-in jack | Yes |
| Maximum resolution | 1280 x 1024 pixels |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Certification | Windows 7 CN ZL 200610081929.7 (19), CN ZL 200710181531.5, TW I339467, TW I340311 (19), US 6564275, US 7505255 (19), US 7585176 |
| Built-in display | Yes |
| Display | LCD |
| Input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 21.2 W |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 480 mm |
| Depth | 634 mm |
| Height | 44 mm |
| Weight | 14.7 kg |
| Package dimensions (WxDxH) | 654 x 327.7 x 136.5 mm |
| Package weight | 15.4 kg |
| Cables included | AC, KVM |
| Manual | Yes |
| Connectivity technology | Wired |
| Brand | ATEN |
| Manufacturer part number | DCP3020 |
| GTIN / UPC | ['0672792398124', '672792398124', '4710423776197'] |
