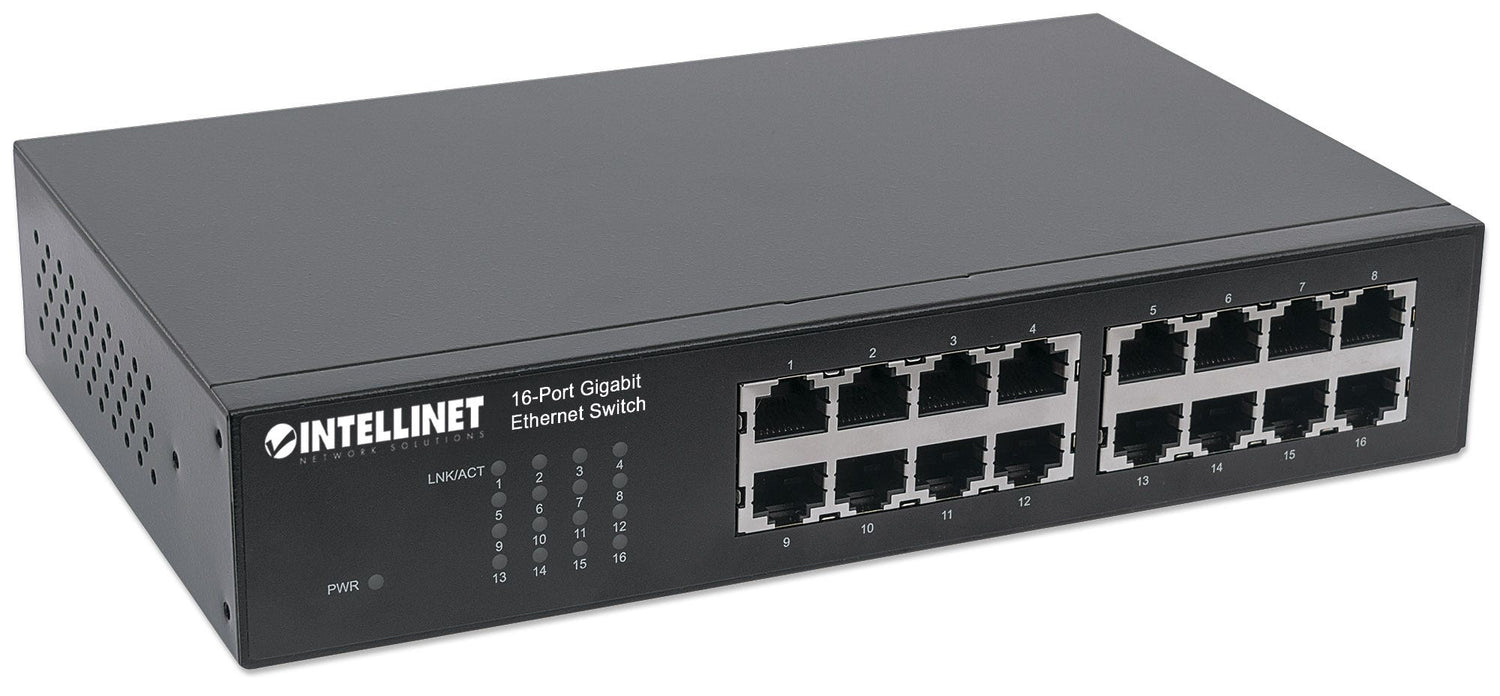

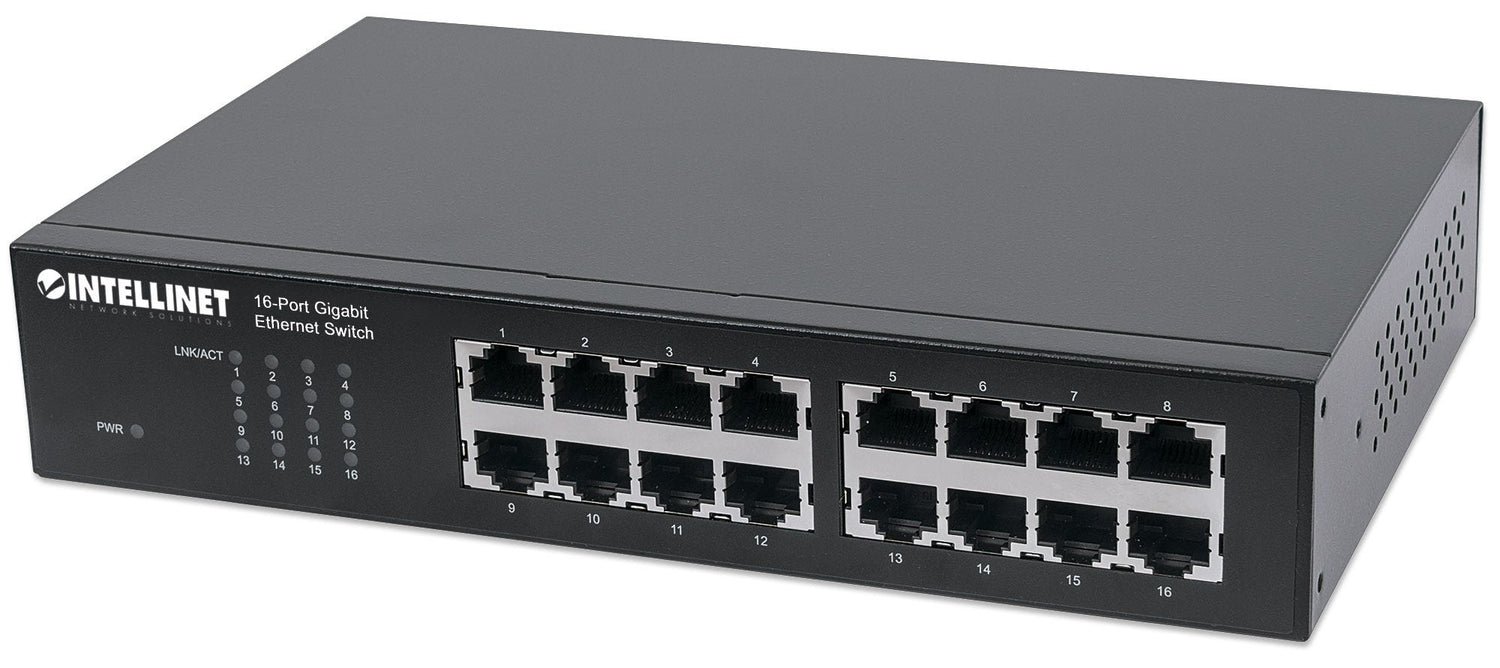

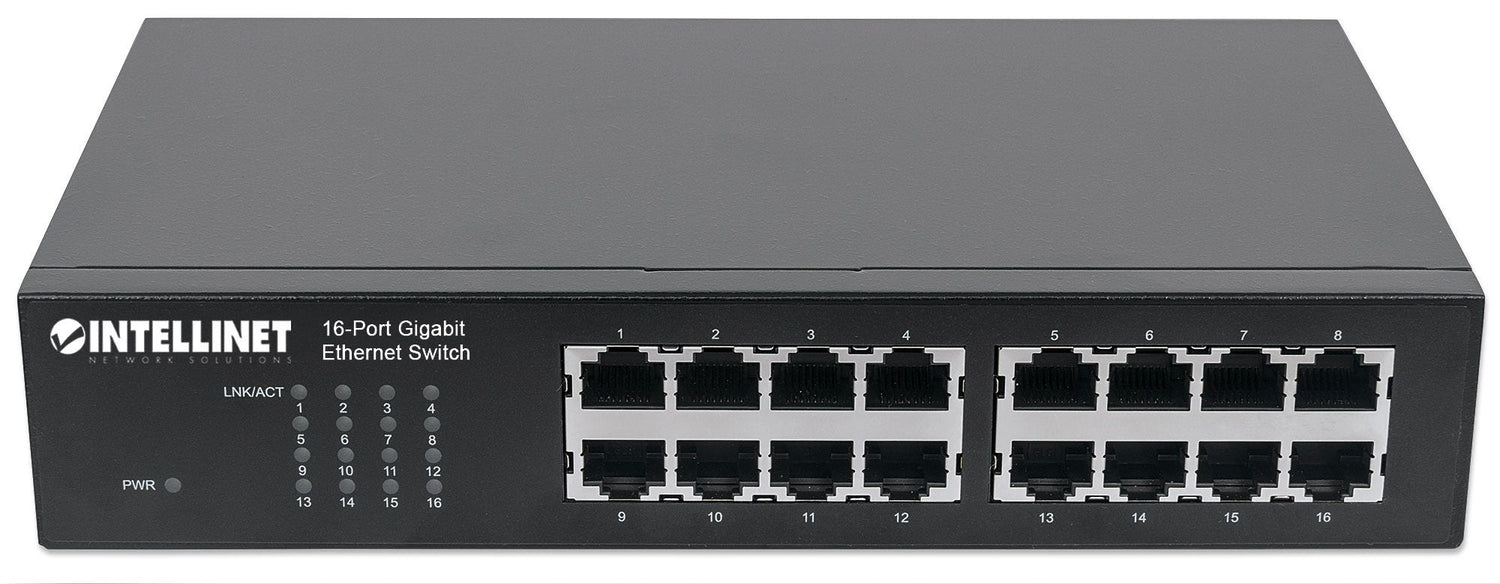

Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000 Mbps, IEEE 802.3az Energy Efficient Ethernet, Desktop, 19" Rackmount
Stock: 0 units
Description
Description
Product overview
Boost your network speed. The Intellinet Network Solutions Gigabit Ethernet Switch offers an array of features while providing superior network throughput. Extreme Flexibility. Sixteen 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds. Extreme Throughput. With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices.
Why choose the Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45...?
The Intellinet 16-Port Gigabit Ethernet Switch, 16-Port RJ45 10/100/1000... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Switch layer: L2; Basic switching RJ-45 Ethernet ports quantity: 16. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-sensing | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 1.488 Mpps |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |

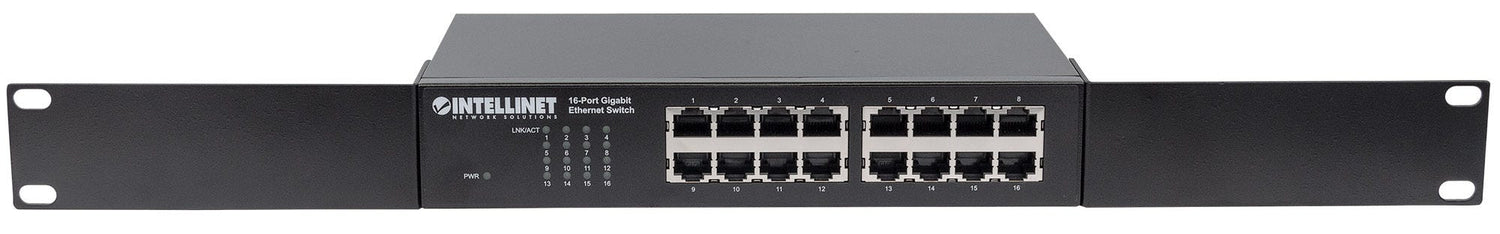

| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |

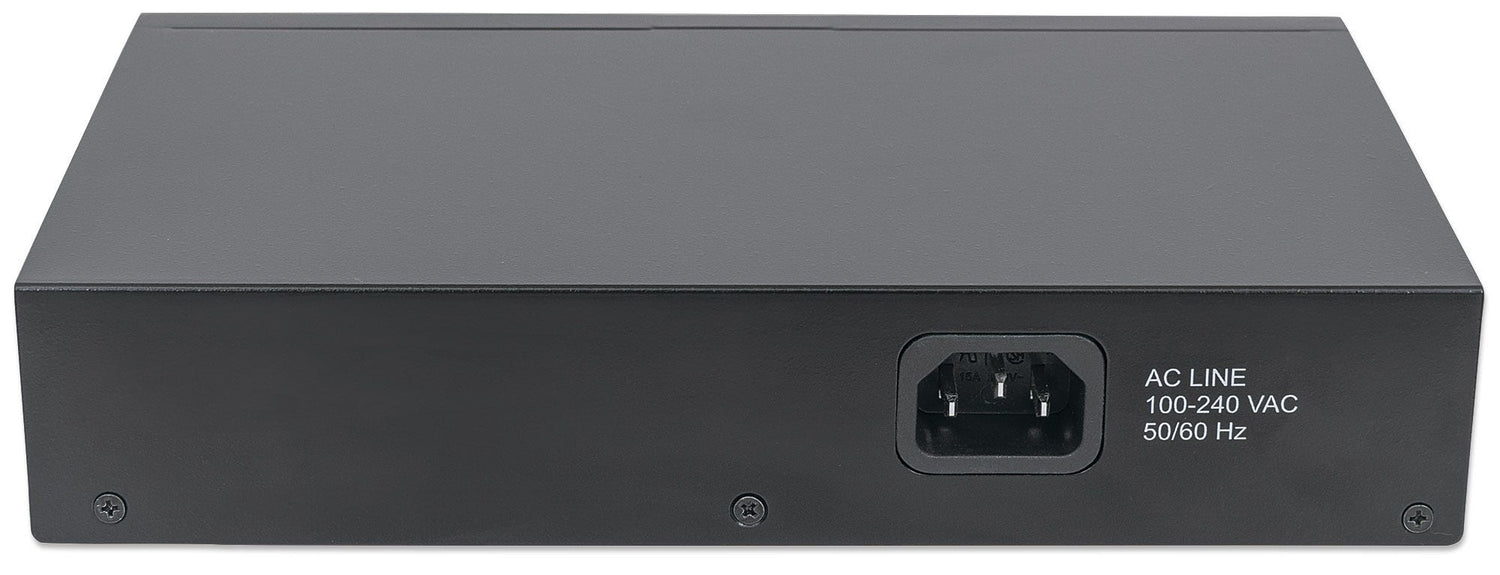

| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 9.1 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 215 mm |
| Depth | 133 mm |
| Height | 44 mm |
| Weight | 940 g |
| Cables included | AC |
| Manual | Yes |
| Rack mount kit | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Brand | Intellinet |
| Manufacturer part number | 561068 |
| GTIN / UPC | ['0766623561068', '766623561068'] |
