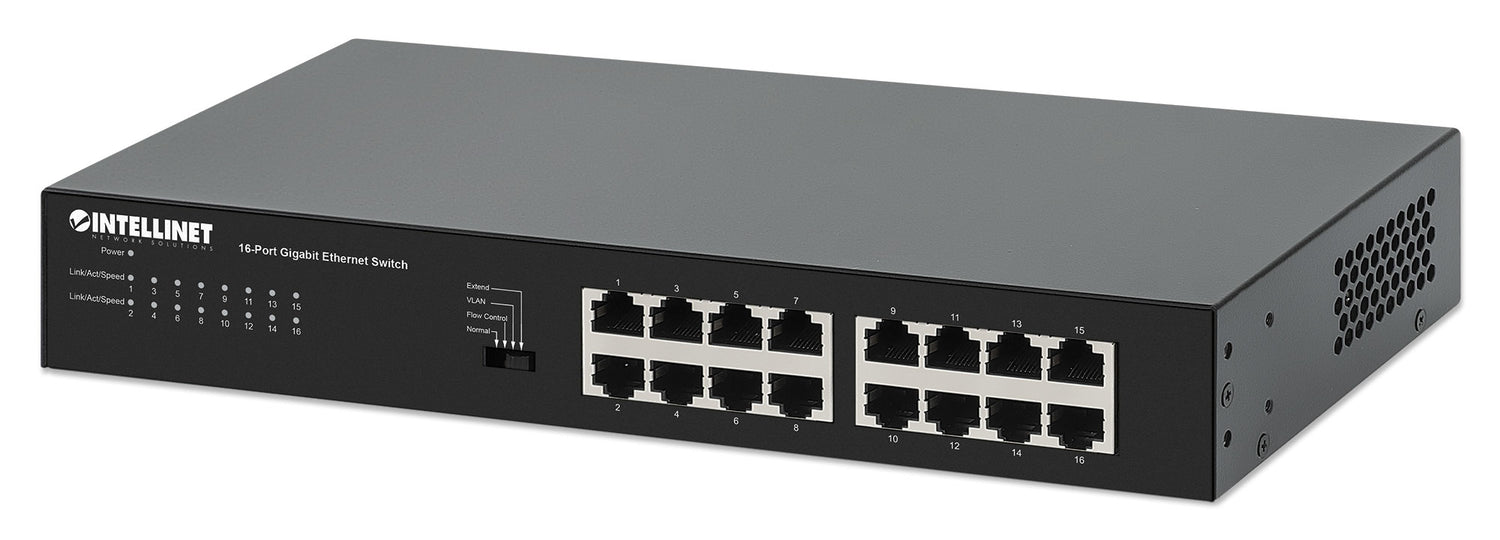

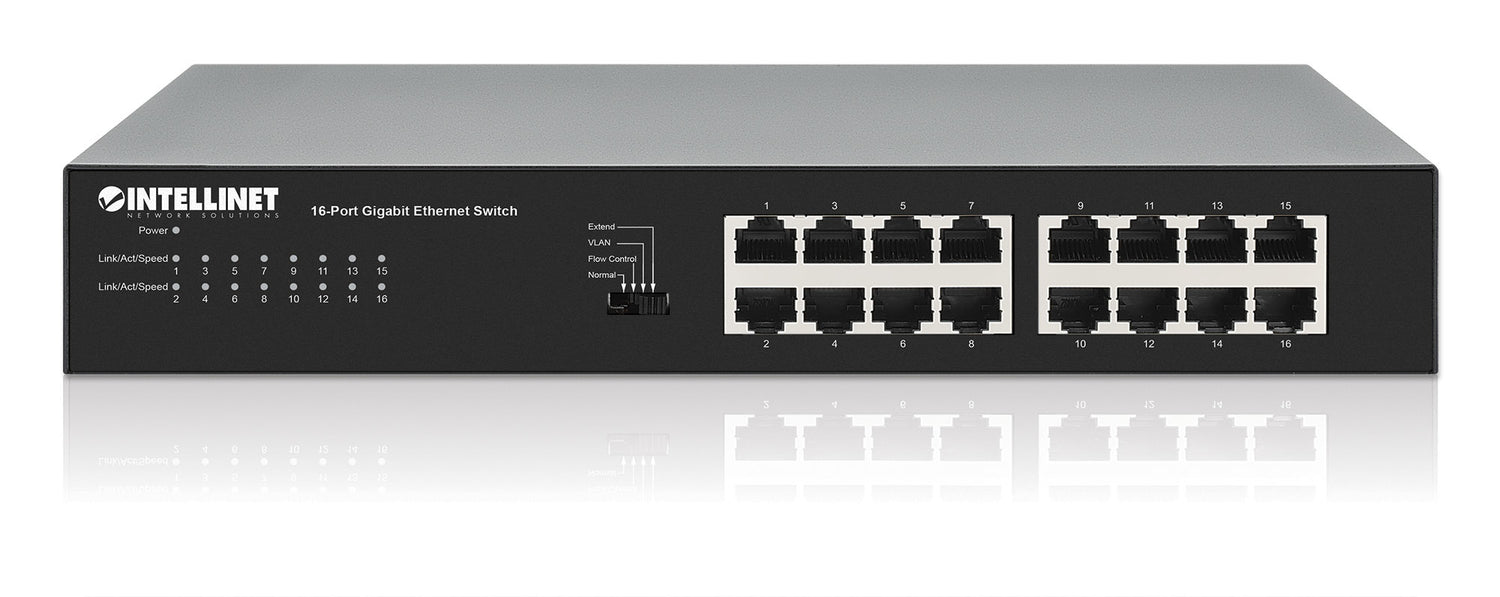

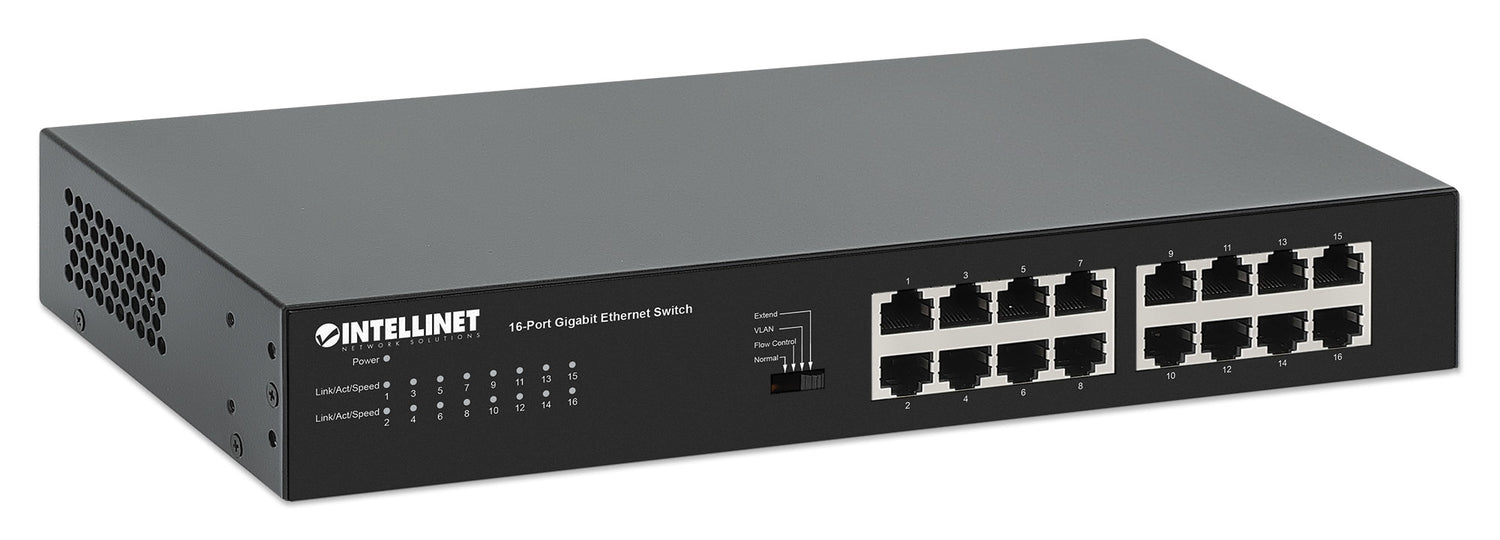

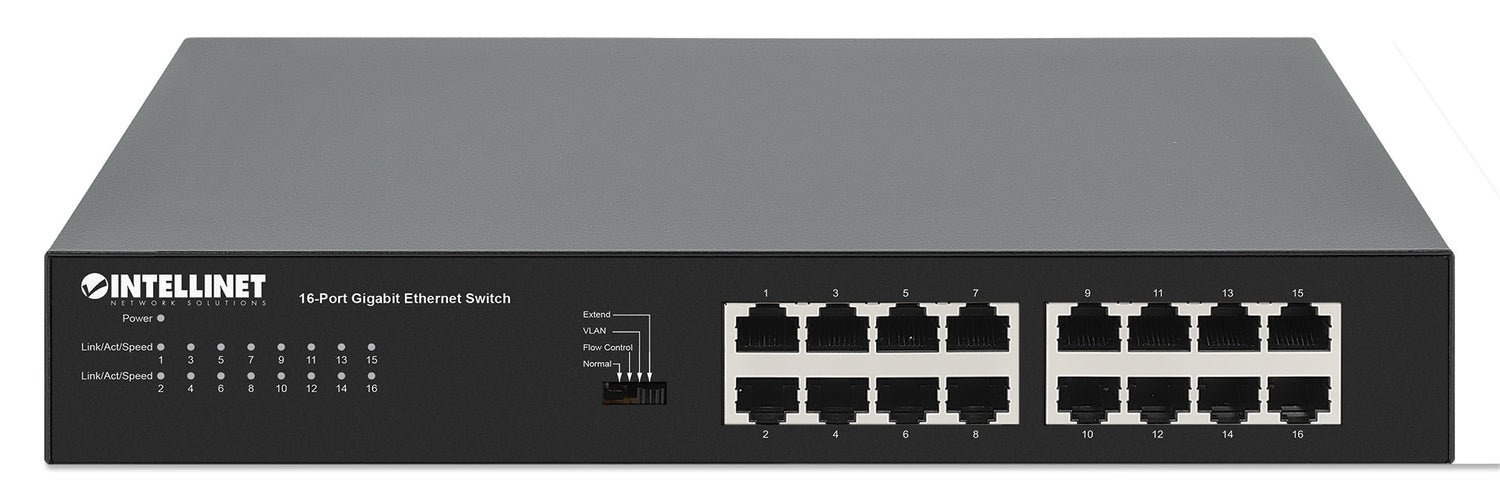

Intellinet 16-Port Gigabit Ethernet Switch 16 x 10/100/1000 Mbps RJ45 Ports, Green Ethernet / IEEE 802.3az Energy Efficient Ethernet, Desktop Format, Includes Optional 19" Rackmount Brackets
Stock: 0 units
Description
Description
Product overview
Boost your network speed. The Intellinet Network Solutions Gigabit Ethernet Switch offers an array of features while providing superior network throughput. Auto Features. This Gigabit LAN switch includes many automatic features that make it easy to use. No configuration is required, so installation is Plug and Play and hassle-free. Auto-MDI/MDI-X crossover on all ports eliminates the need for any crossover cables. Each of the 16 ports automatically senses the link speed of the connected network device and adjusts to 10, 100 or 1000 Mbps for compatibility and maximum performance. Extreme Throughput. With a backplane speed of 32 Gbps, there is plenty of performance available for your computers, servers and other networking devices. Reliable Operation. This network switch supports flow control when operating in half-duplex mode and IEEE 802.3ab in full duplex mode to ensure that data transfer and network connectivity run smoothly and uninterrupted. In conjunction with the broadcast storm control and the store-and-forward switching method, full- and half-duplex modes further ensure that your connections remain active even under extremely busy conditions. Green Ethernet Technology. More often than not, a network switch does not utilize all its ports at all times. Normally, when a computer, notebook, network printer or other network-connected device is powered down, the switch continues to consume the same amount of power as if it were active. Thanks to the energy-efficient IEEE 802.3az technology, the Intellinet Network Solutions 16-Port Gigabit Switch detects link status to...
Why choose the Intellinet 16-Port Gigabit Ethernet Switch 16 x 10/100/1000...?
The Intellinet 16-Port Gigabit Ethernet Switch 16 x 10/100/1000 Mbps RJ45... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Basic switching RJ-45 Ethernet ports quantity: 16; Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000); Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6, Cat6a |
| Flow control support | Yes |
| VLAN support | Yes |
| MAC address table | 8192 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Rack mounting | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 10.1 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Width | 280 mm |
| Depth | 126 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Cables included | AC |
| Manual | Yes |

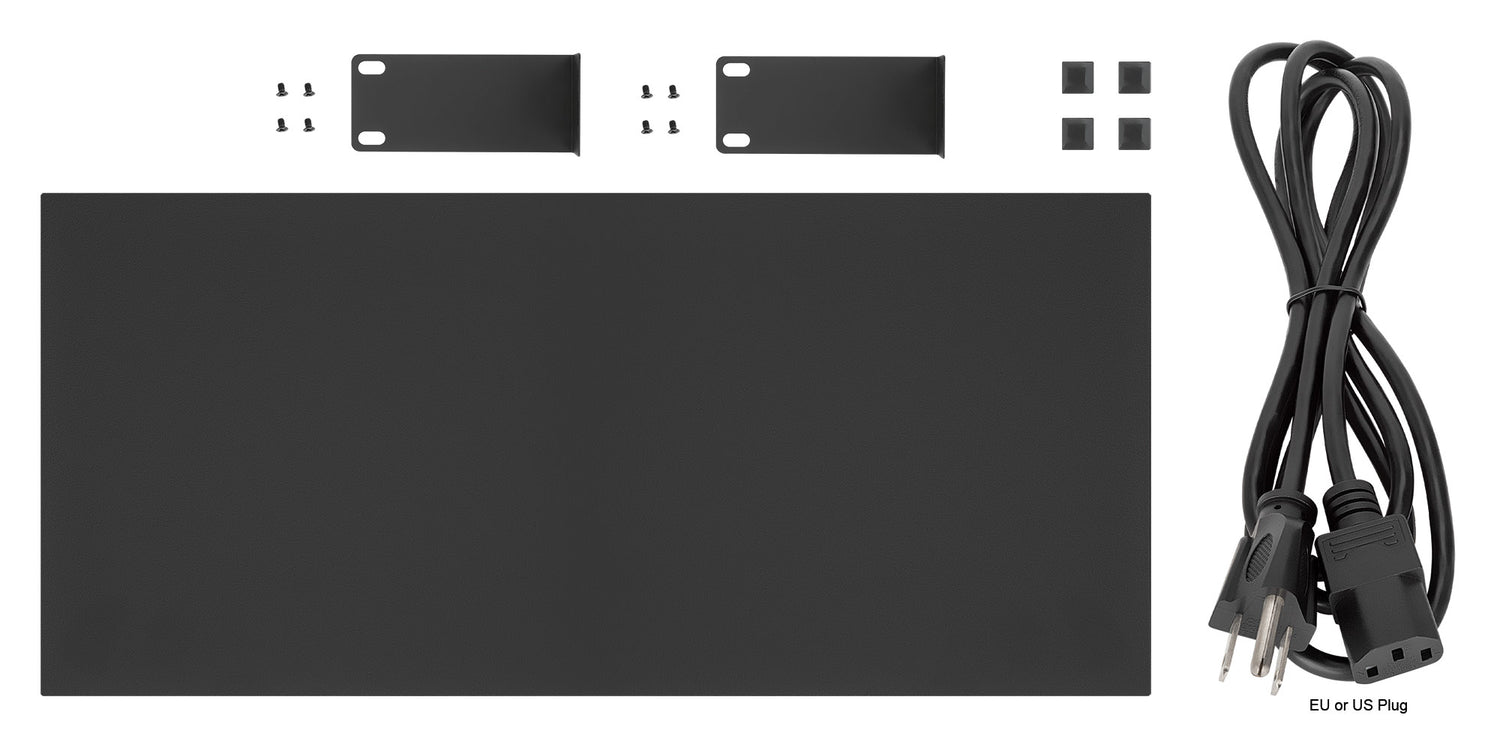

| Rack mount kit | Yes |
| Package weight | 1.6 kg |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE, UKCA, NDAA |
| Brand | Intellinet |
| Manufacturer part number | 561815 |
| GTIN / UPC | ['0766623561815', '766623561815'] |
