ATEN 1U Short Depth USB VGA Single Rail LCD
Stock: 3 units
ATEN 1U Short Depth USB VGA Single Rail LCD
Description
Description
Product overview

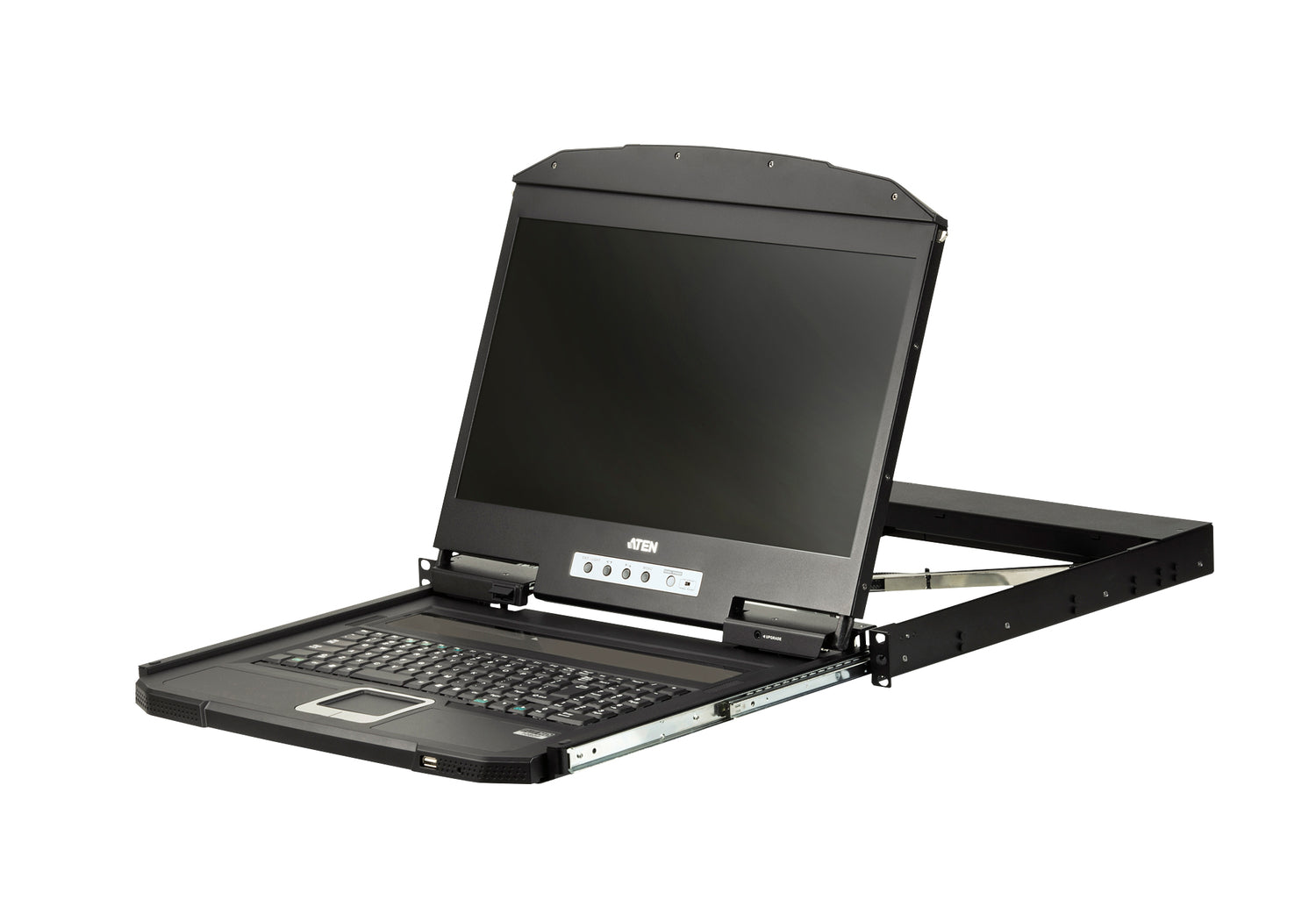

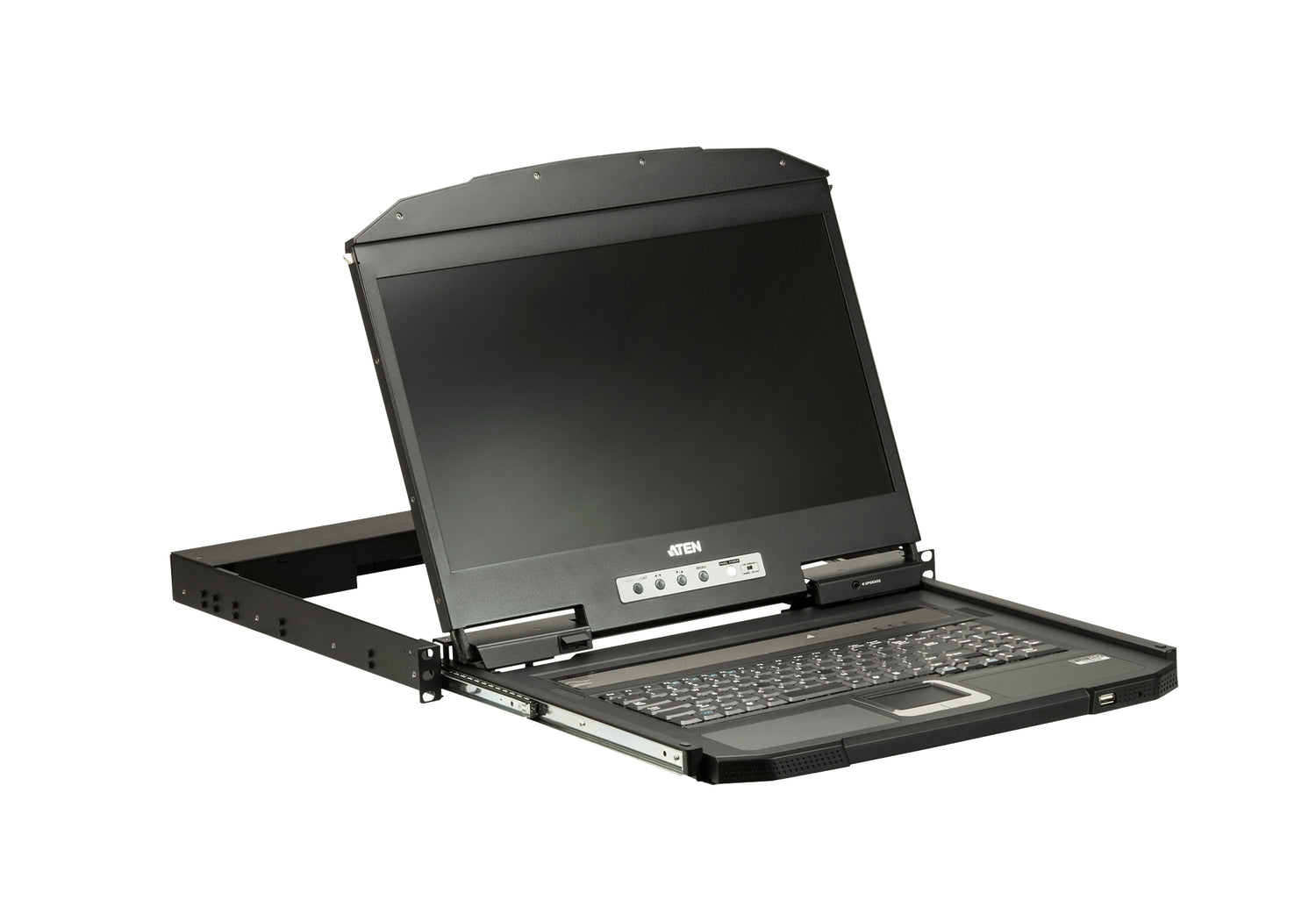

The CL3100 USB VGA LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3100 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms. 1x CL3100 LCD KVM Console with Standard Rack Mount Kit 1x LIN5-23X5-X1BG USB VGA KVM Cable (VGA, USB, Audio; 1.8 m/6 ft) 1x LIN5-04A2-J15G Firmware Upgrade Cable 1x LIN2-418K-E12G Power Cord 1x User Instructions
Why choose the ATEN 1U Short Depth USB VGA Single Rail LCD?
The ATEN 1U Short Depth USB VGA Single Rail LCD is a rack consoles from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Display diagonal: 47 cm (18.5") "; Display resolution: 1366 x 768 pixels; Display: TFT-LCD. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Display diagonal | 47 cm (18.5") " |
| Display resolution | 1366 x 768 pixels |
| Display | TFT-LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.3 x 0.3 mm |
| Aspect ratio | 16:9 |
| Display type | LCD |
| Response time | 5 ms |
| Display number of colours | 16.78 million colours |
| Material | Metal, Plastic |
| Product colour | Black |
| Hot-Plug support | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Built-in KVM switch | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Rack mounting | Yes |
| Key lock | Yes |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| I/O ports | 3.5 mm Audio Jack, SPHD |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 3 |
| Keyboard number of keys | 105 |
| Built-in touchpad | Yes |
| Keyboard language | US English |
| Keyboard layout | QWERTY |
| Hot keys | Yes |
| Certification | UL 60950-1, CAN/CSA |
| Power supply type | AC |
| Power consumption (typical) | 14.1 W |
| AC adapter input voltage | 100 - 240 V |
| Brand | ATEN |
| Manufacturer part number | CL3100NX-ATA-AG |
| GTIN / UPC | ['4719264646812', '0672792008771', '672792008771'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
