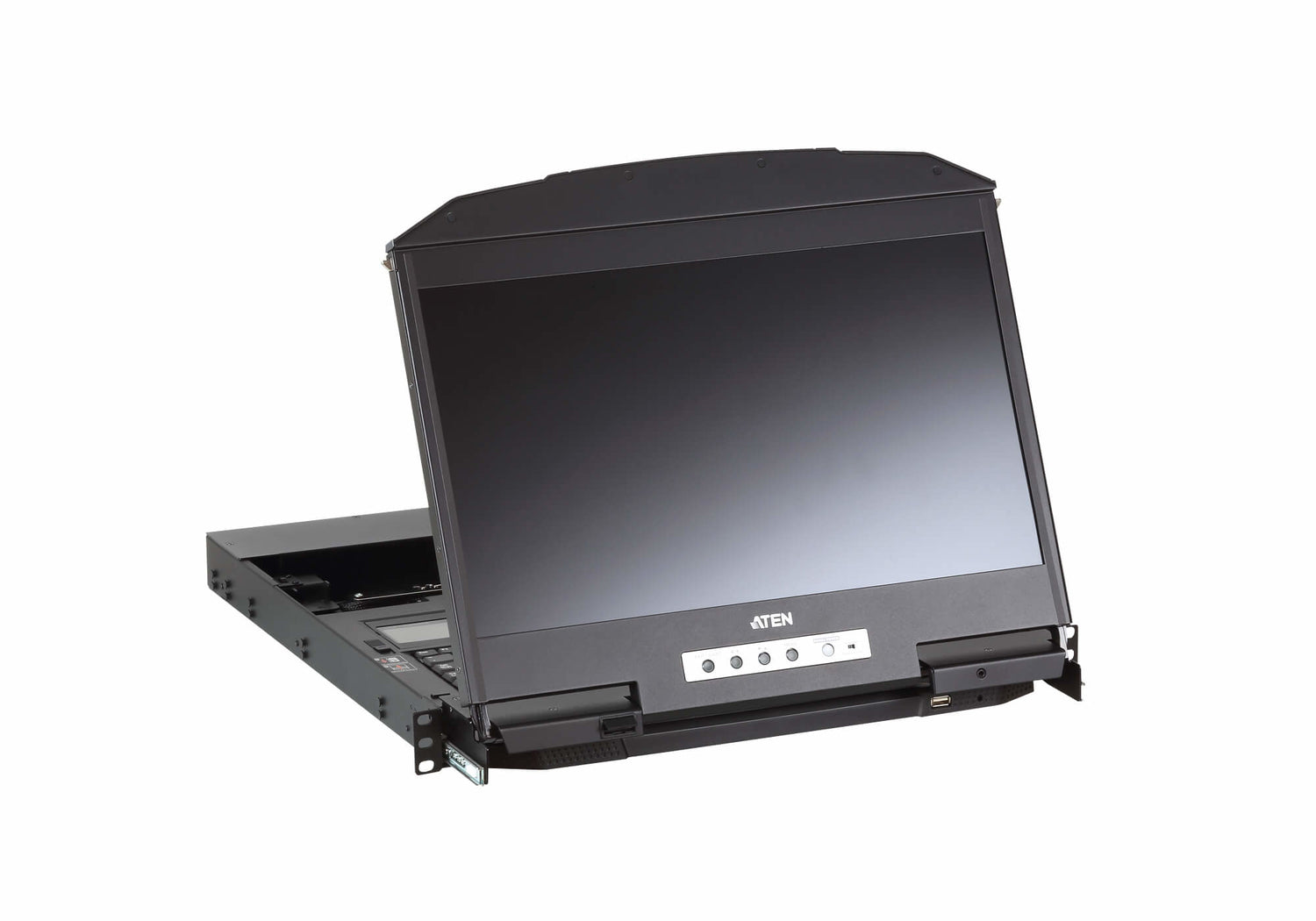

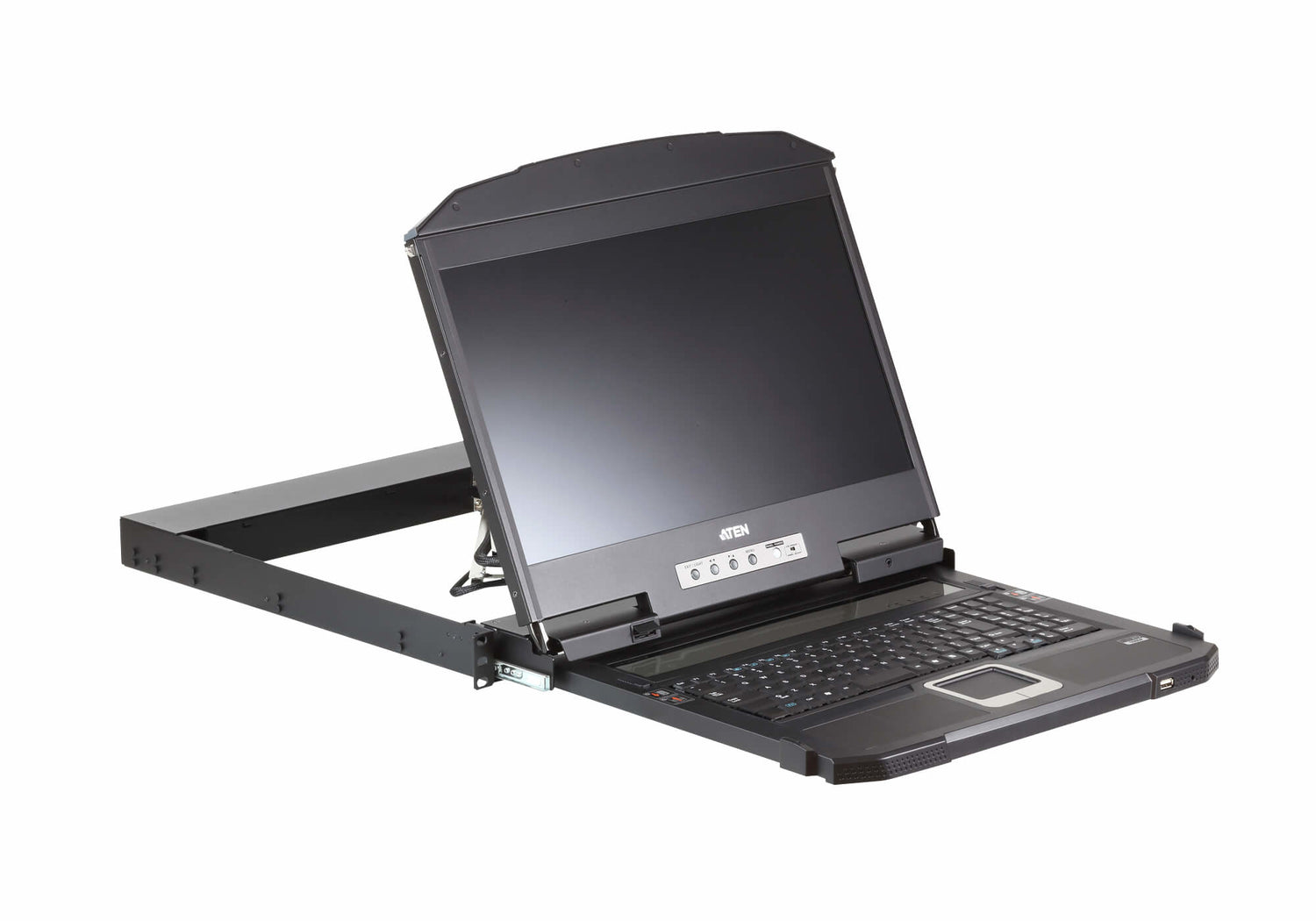

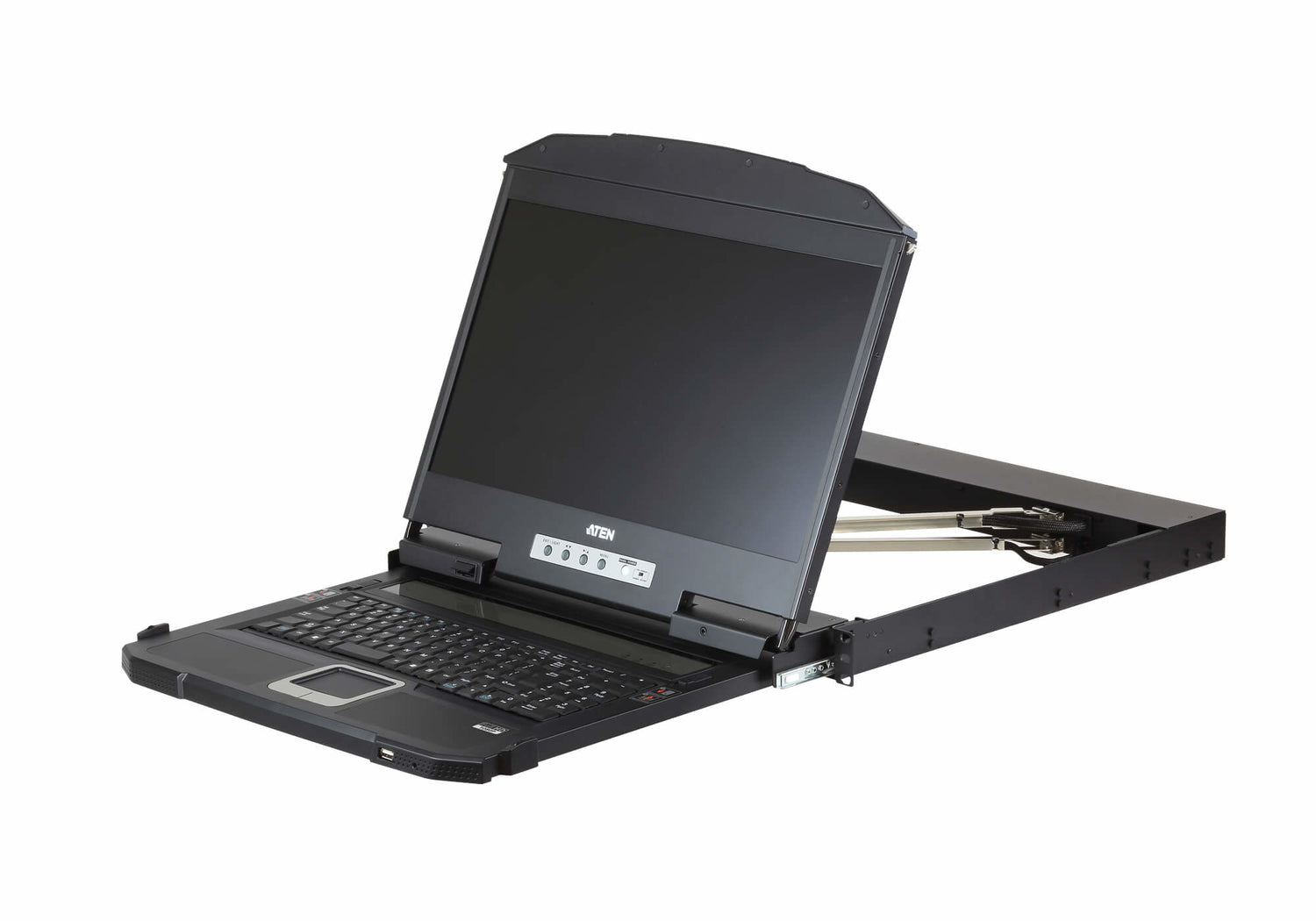

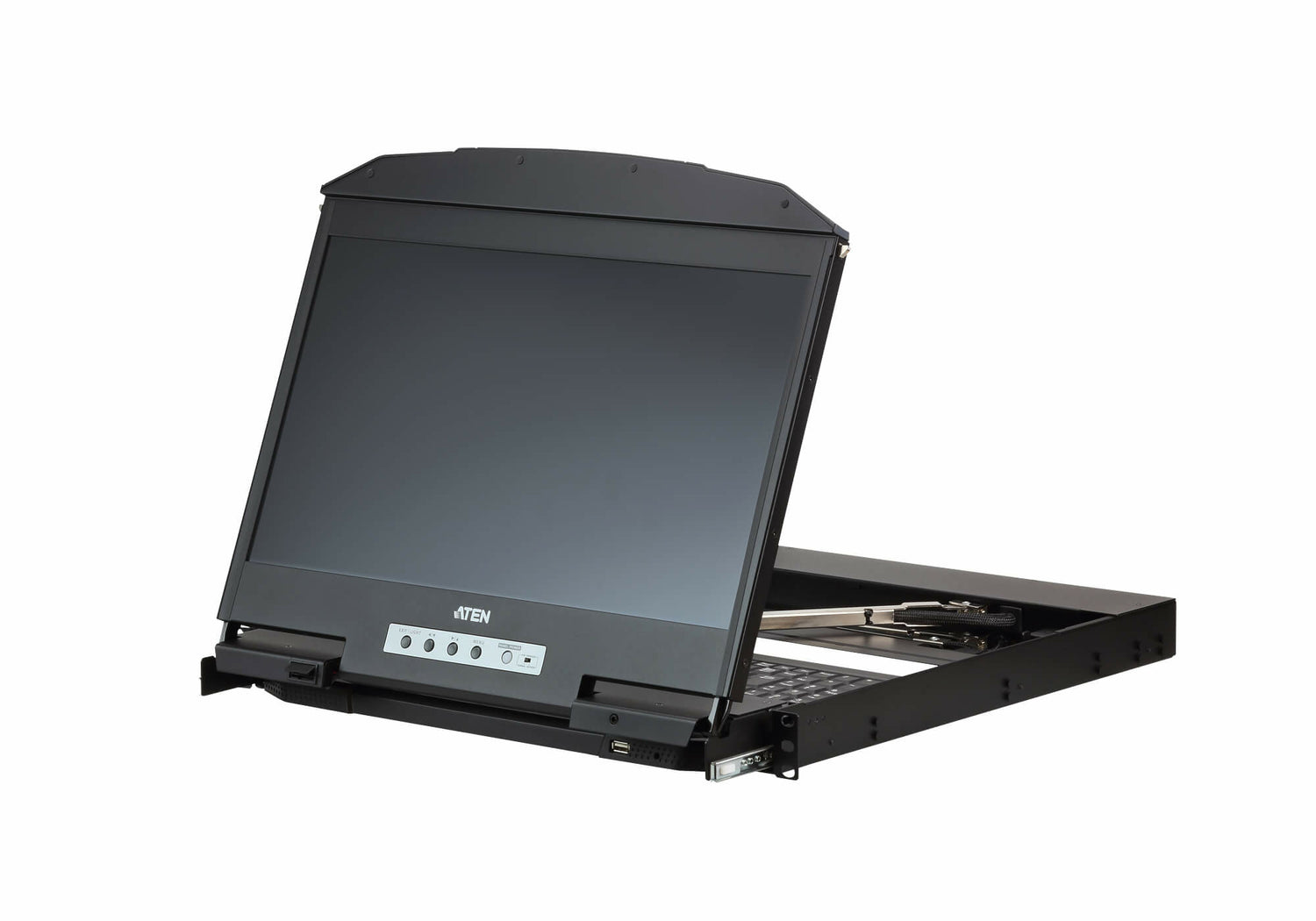

ATEN CL3800NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal, Plastic Black 1U
Stock: 0 units
Description
Description
Product overview

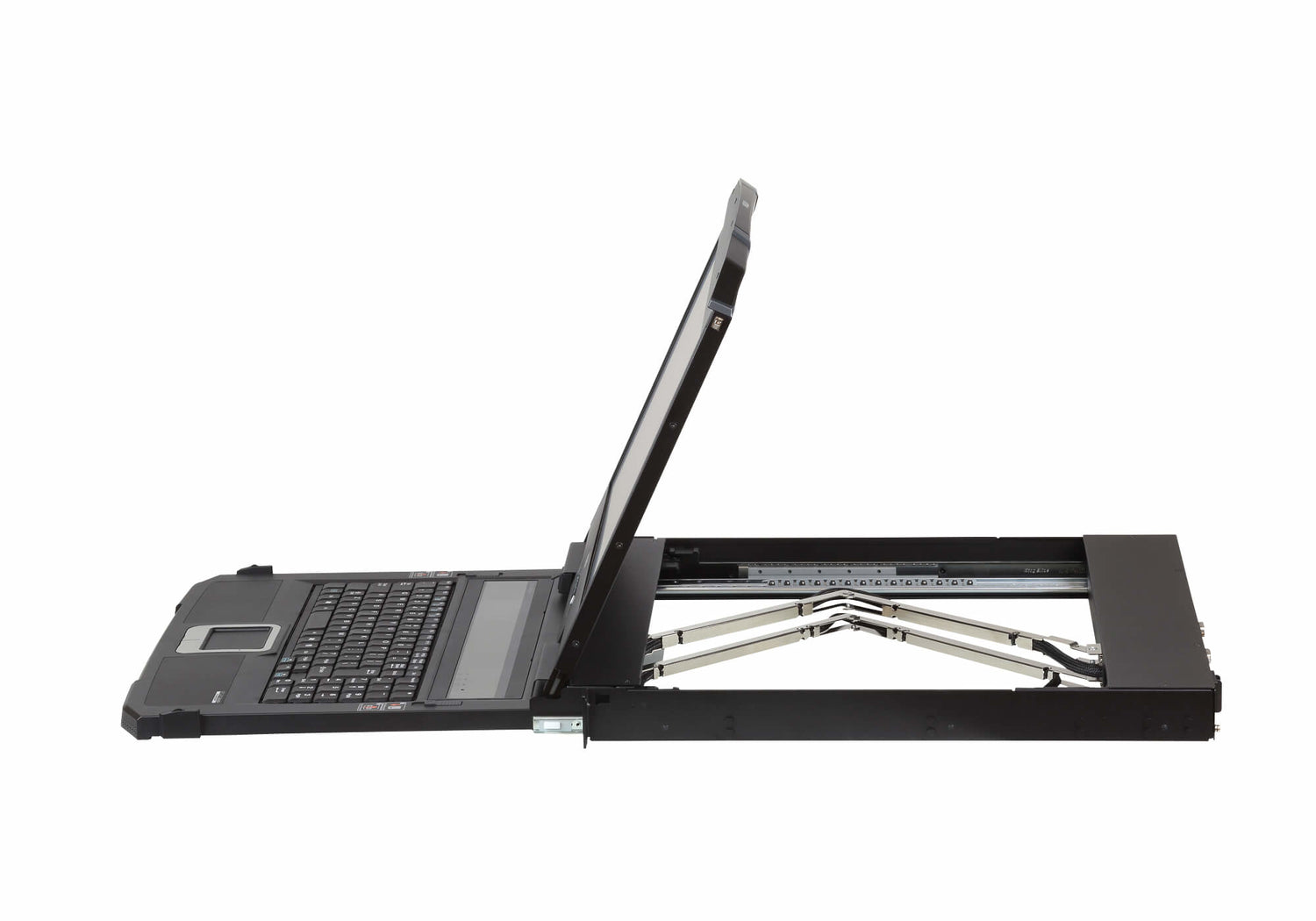

The CL3800 USB HDMI DVI VGA LCD Console is a short depth dual rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. In addition to saving valuable space on the rack, the CL3800 also provides a space-saving solution for special environments, such as outside broadcast vans (OB vans) and compact control rooms. The CL3800 supports three types of video input – HDMI, DVI, and VGA – and provides the ultimate in installation flexibility by allowing users to connect the console and the computer via any of the three types of video source. The CL3800NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. Furthermore, the dual rail design enables the LCD monitor, keyboard and touchpad to operate independently of each other. To maximize space utilization, the keyboard and touchpad modules can slide back to "hideaway" when not in use, while the thin profile LCD monitor rotates back, flush against the rack, to allow the convenient monitoring of computer activity. For added convenience, users can choose to manage the computer from an external console. The CL3800 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI, DVI, or VGA monitor) are provided on the rear panel. The CL3800 also includes two mini stereo ports for connecting audio speakers. With a rich feature set, the CL3800 is designed to exceed...
Why choose the ATEN CL3800NW rack console 47 cm (18.5") 1920 x 1080 pixels...?
The ATEN CL3800NW rack console 47 cm (18.5") 1920 x 1080 pixels Metal... is a rack consoles from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Display diagonal: 47 cm (18.5") "; Display resolution: 1920 x 1080 pixels; Display brightness: 350 cd/m². Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Conference and boardroom installs
- Classroom and training rooms
- Retail and hospitality displays
- Workstation ergonomics programs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Display diagonal | 47 cm (18.5") " |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 350 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.213 x 0.213 mm |
| Display type | LED |
| Response time | 20 ms |
| Number of OSD languages | 15 |
| Display number of colours | 16.78 million colours |
| Material | Metal, Plastic |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Rack mounting | Yes |

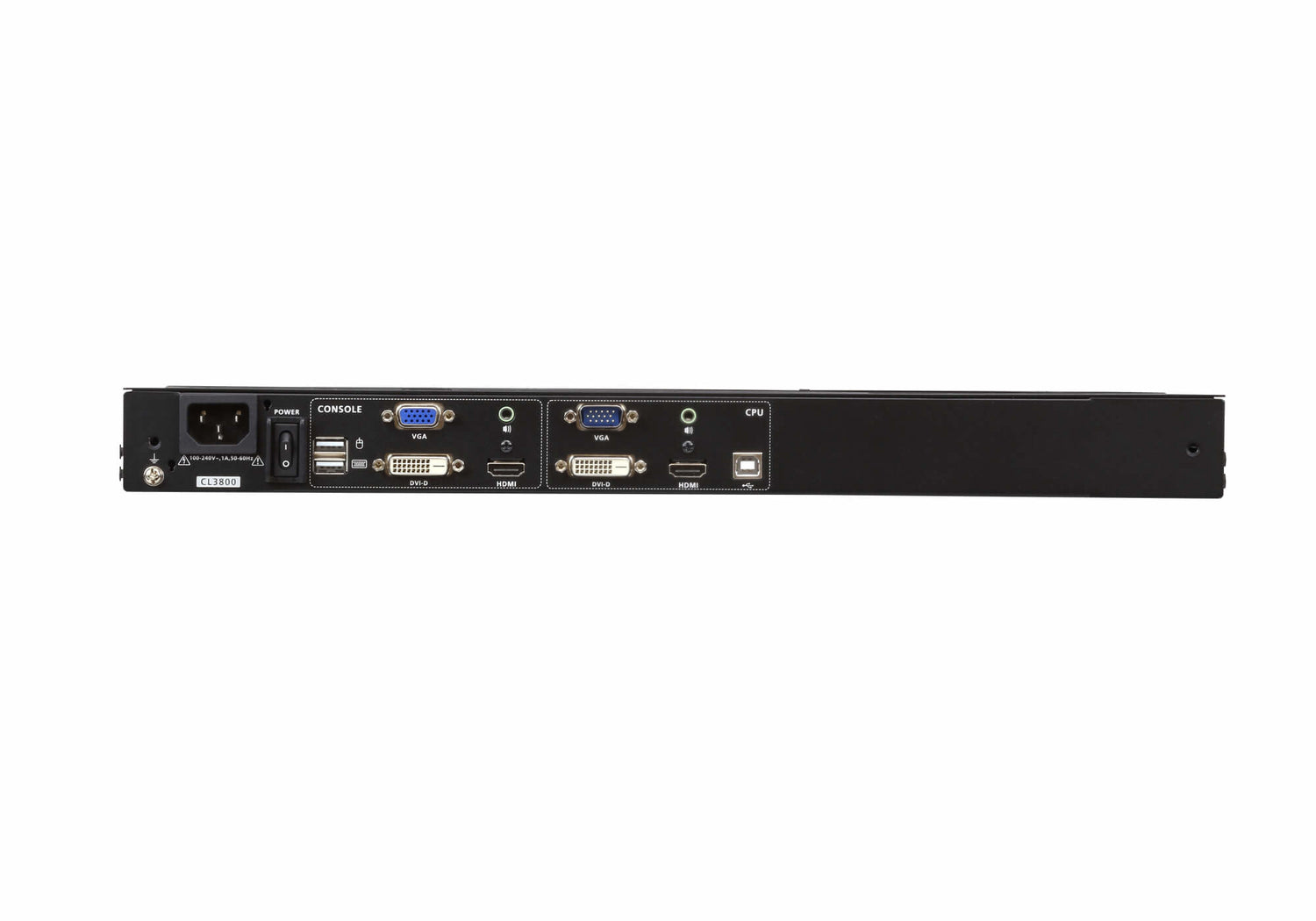

| Console port | HDMI/VGA/DVI/USB/3.5mm |
| LED indicators | Yes |
| Compliance certificates | RoHS |
| Rack capacity | 1U |
| 3.5 mm (1/8-inch) out | Yes |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI/HDMI/VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard number of keys | 105 |
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Certification | UL 60950-1, CAN/CSA |
| Power supply type | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Width | 480.6 mm |
| Height | 514.2 mm |
| Depth | 42.8 mm |
| Weight | 9.61 kg |
| Brand | ATEN |
| Manufacturer part number | CL3800NW |
| GTIN / UPC | ['0672792008382', '672792008382'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
