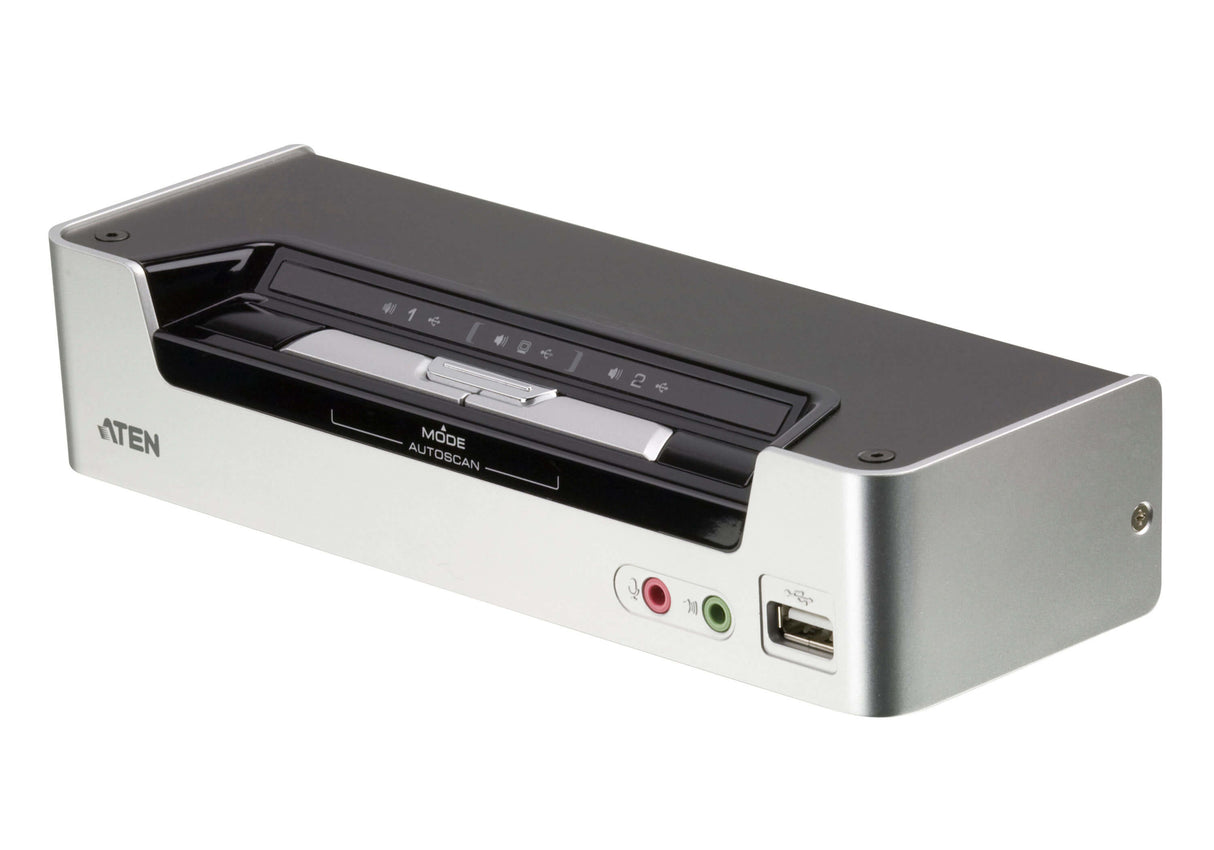

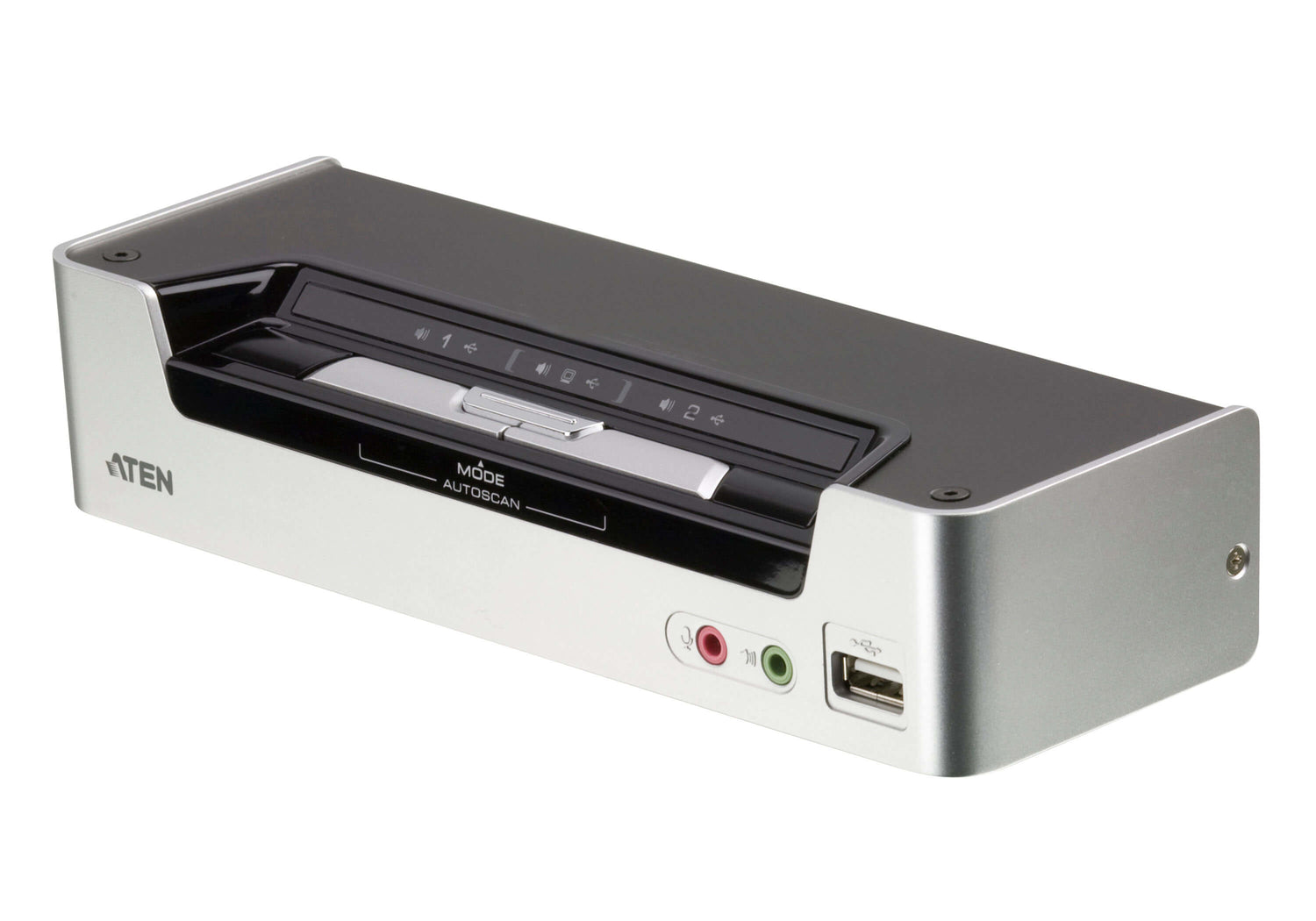

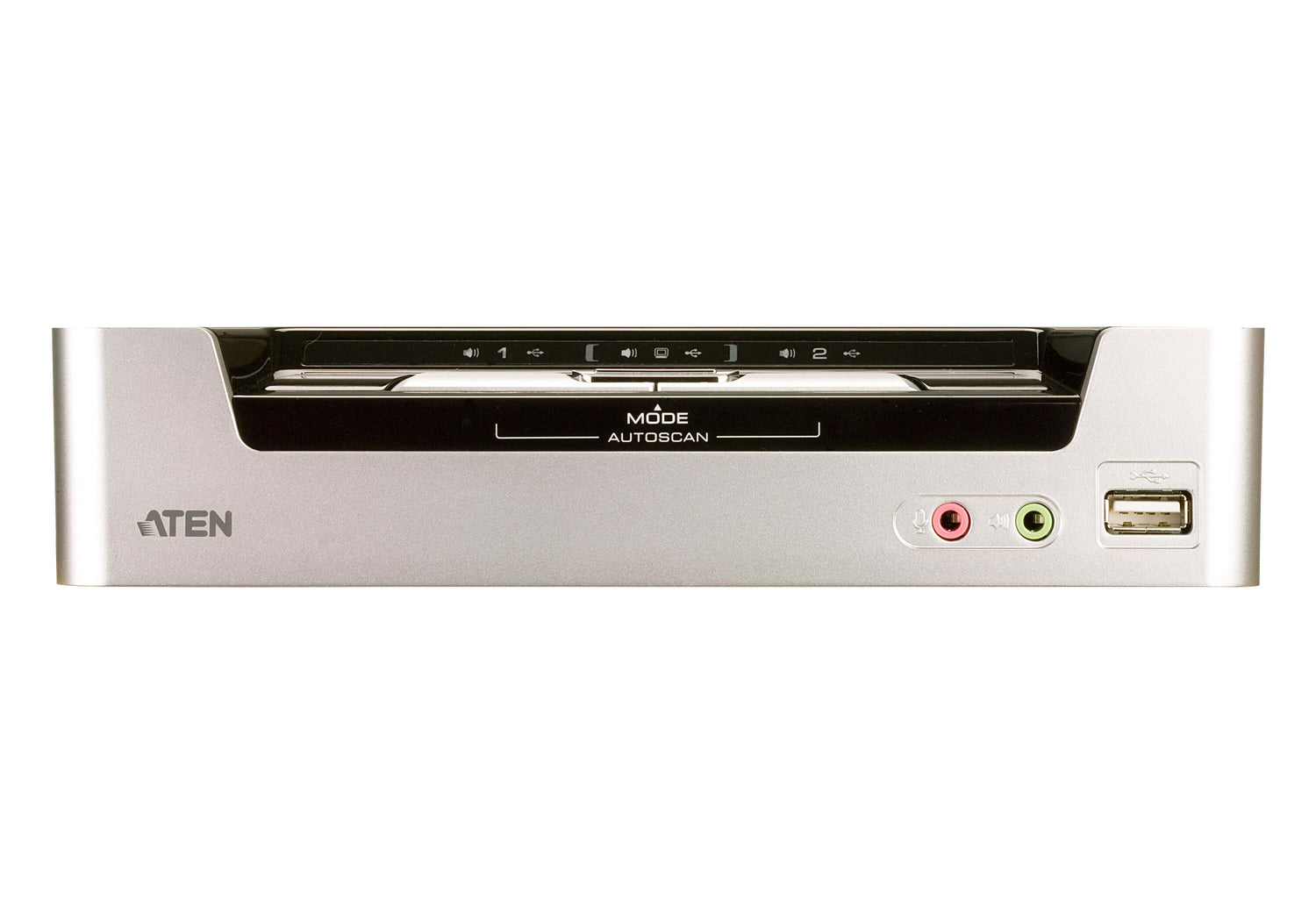

ATEN CS1792 KVM switch Rack mounting Black, Silver
Stock: 4 units
ATEN CS1792 KVM switch Rack mounting Black, Silver
Description
Description
Product overview

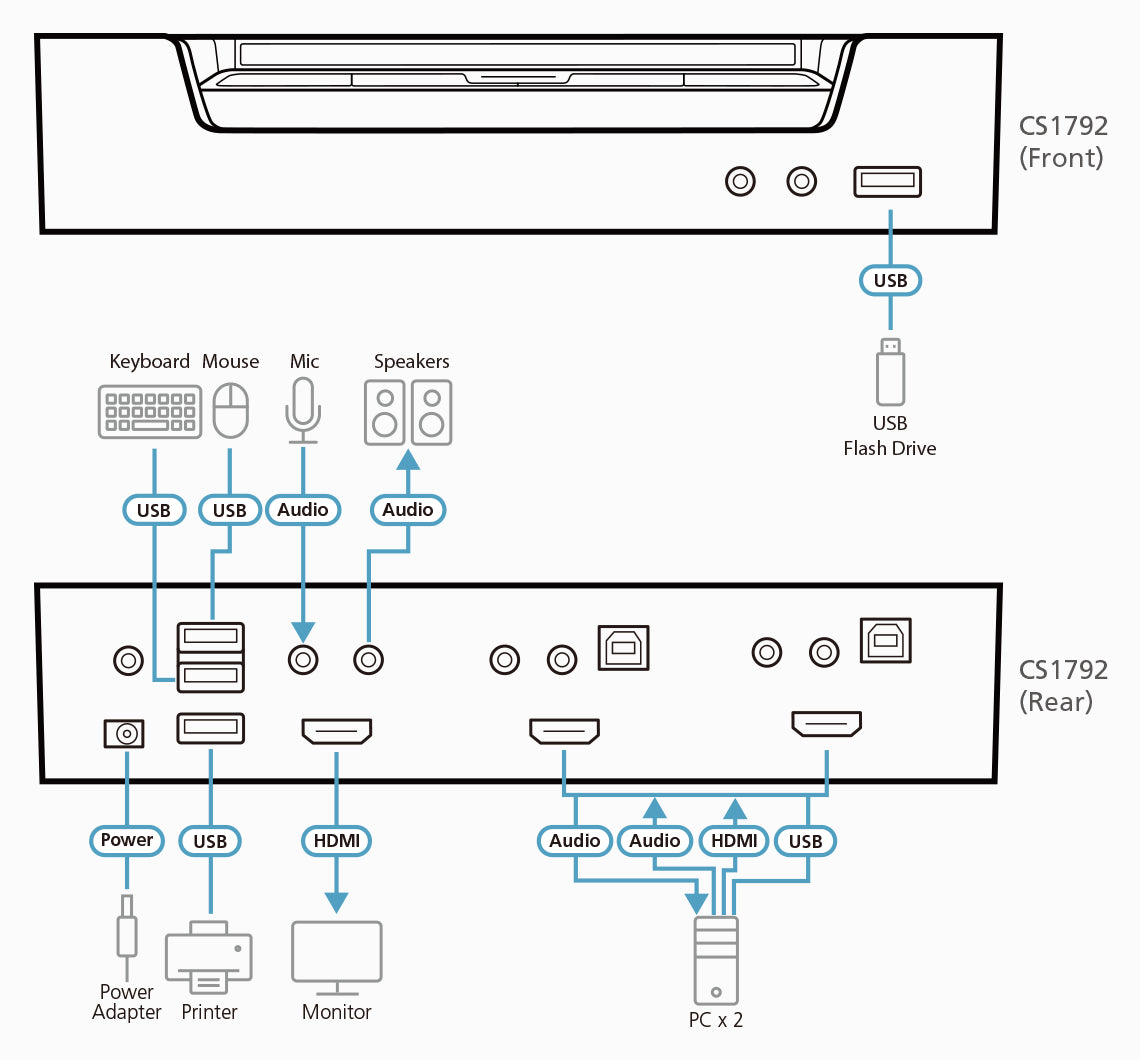

With the unique design and innovative features, the CS1792 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 2-port switch with a 2-port USB 2.0 hub, the CS1792 provides seamless HDMI signal switching between 2 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1792 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1792 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the office, the CS1792 offers the ultimate in space-saving, streamlined KVM technology for the desktop.
Why choose the ATEN CS1792 KVM switch Rack mounting Black, Silver?
The ATEN CS1792 KVM switch Rack mounting Black, Silver is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 2; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 3 |

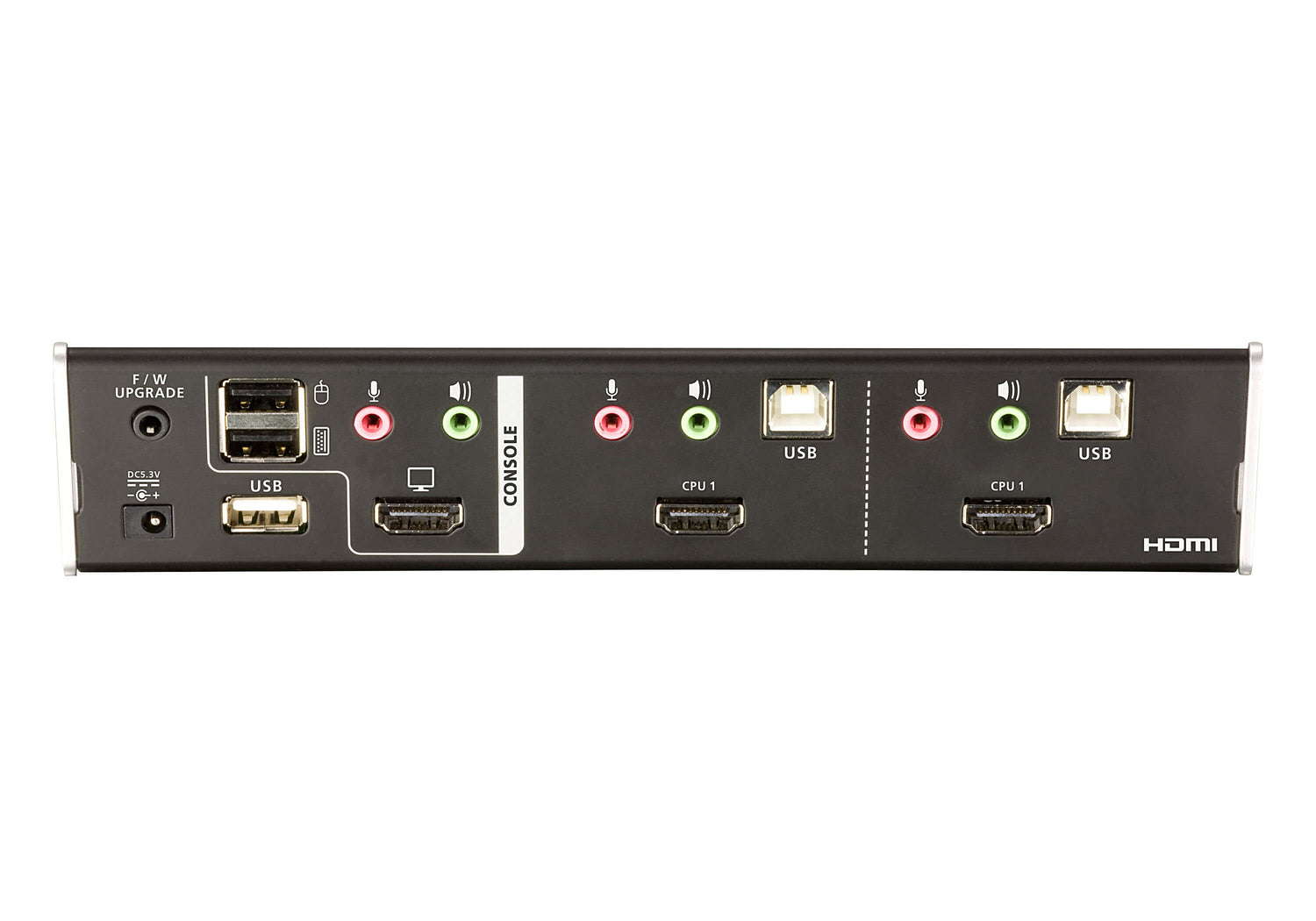

| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 1 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 2 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Scan interval | 1,99 s |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black, Silver |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Power source | AC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 3.2 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 206.3 mm |
| Depth | 72.4 mm |
| Height | 44 mm |
| Weight | 420 g |
| Cables included | KVM |
| Manual | Yes |
| Brand | ATEN |
| Manufacturer part number | CS1792 |
| GTIN / UPC | ['0672792398131', '672792398131', '6727923981318', '5055309625619', '4016032914013', '2050001027641'] |
