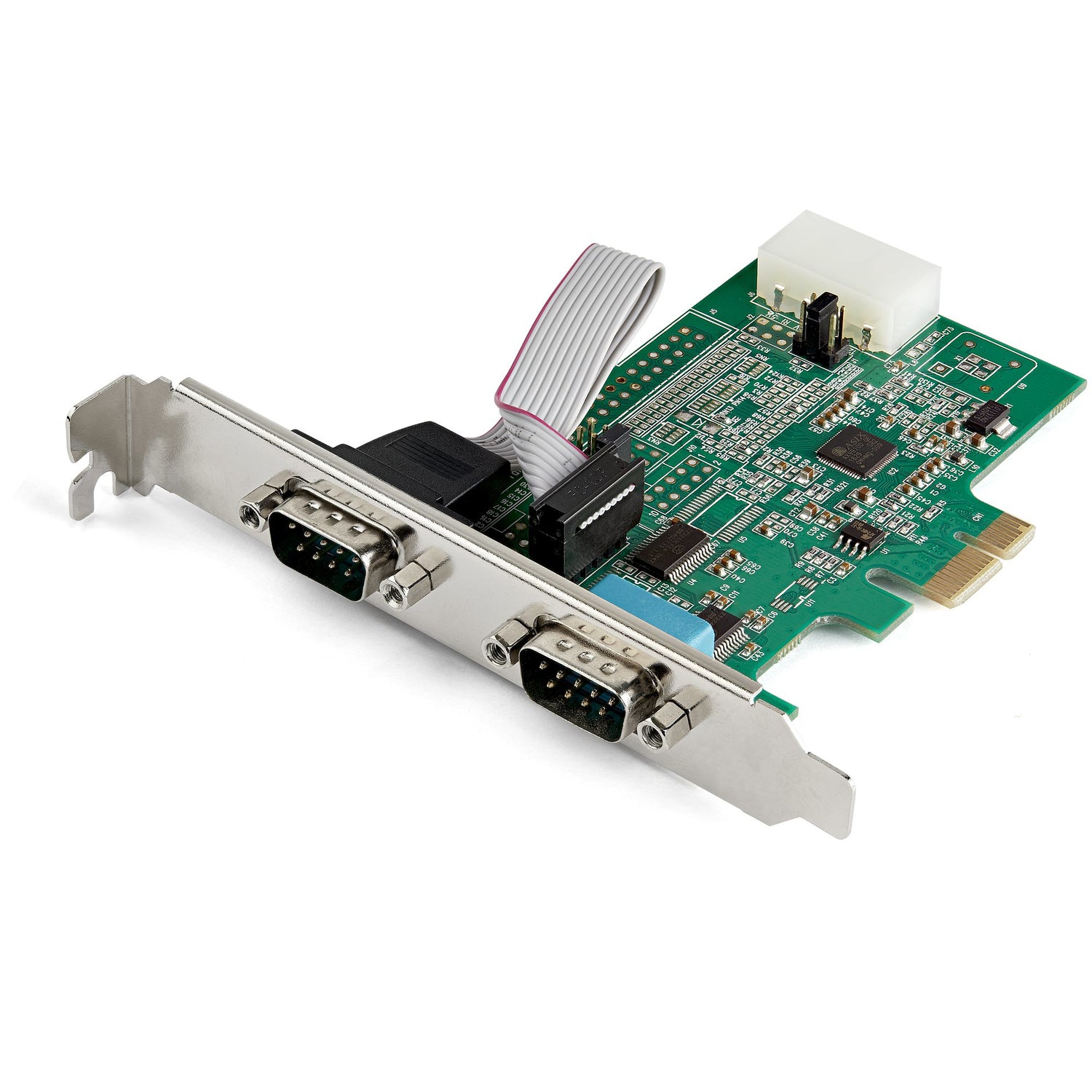

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Dual Serial DB9 Card - 16950 UART - Expansion Card - Windows & Linux - TAA
Stock: 2168 units
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS...
Description
Description
Product overview

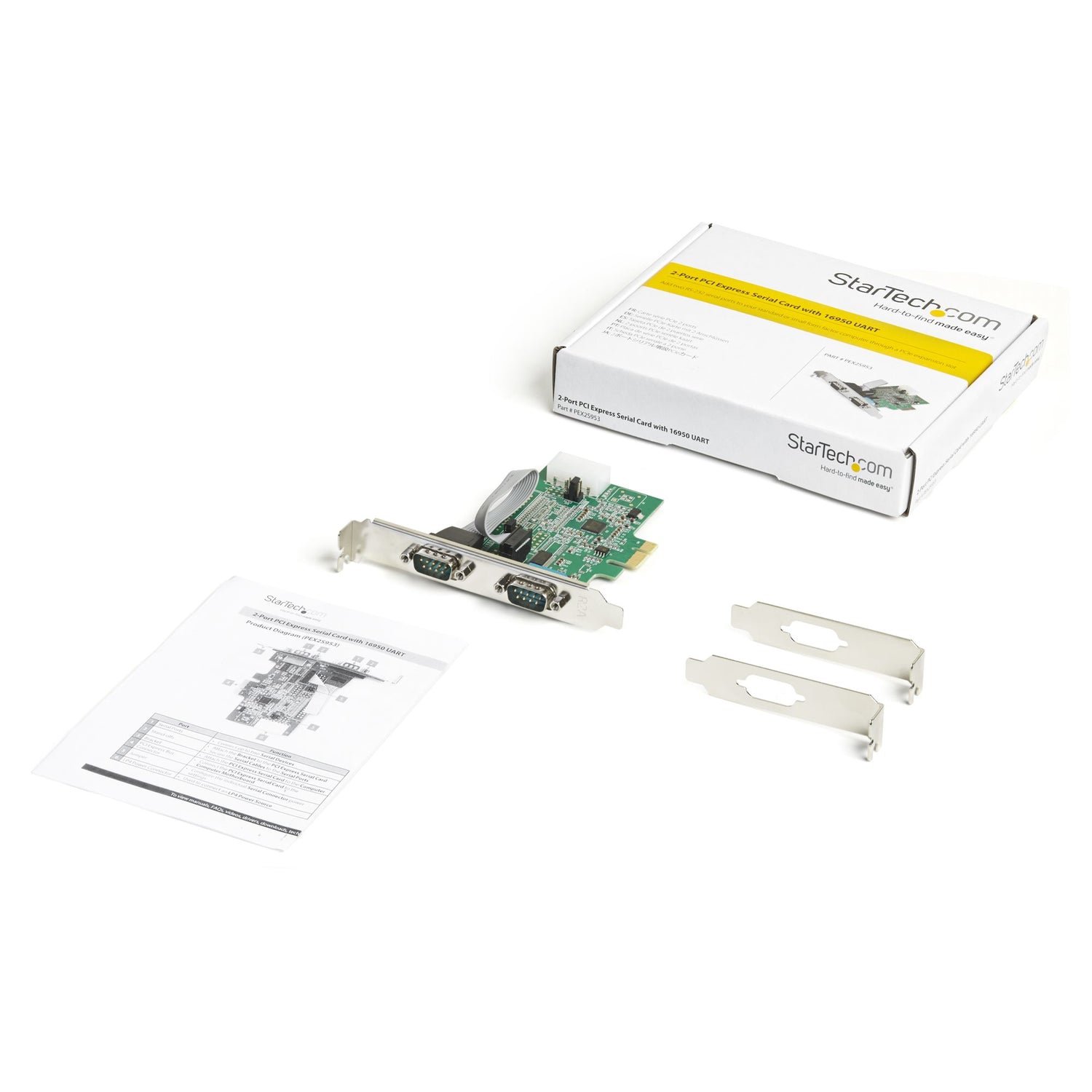

PCI Express to Serial Adapter | 921.6Kbps | Windows® and Linux® Compatible This multiport PCI Express RS232 serial adapter card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot, as if they were native serial ports. The dual port PCIe serial card enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.6Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this 2 port PCI E serial card is easy to integrate into mixed environments. The card comes pre-configured with a full-profile bracket, and includes optional low-profile brackets, so installation is easy regardless of the case form factor. This card is a direct replacement for PEX2S952 . Experience Optimal Technology This PCIe to serial adapter supports the following features: • Industry standard 16950 UART compatible • Supports max baud rate of up-to 921.6Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO cache per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits (one per port) • Asix AX99100 chipset • Base PCI Express 1.1 compliant • Low and full-profile brackets included The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to...
Why choose the StarTech.com 2-port PCI Express RS232 Serial Adapter Card...?
The StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: Serial; Expansion card standard: PCIe 1.1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Internal | Yes |
| Product colour | Green |
| Mean time between failures (MTBF) | 222366 h |
| Chipset | Asix AX99100 |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | -10 - 80 °C |
| Storage temperature (T-T) | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Width | 63 mm |
| Depth | 75 mm |
| Height | 15 mm |
| Weight | 56 g |
| Quantity | 1 |
| Quick installation guide | Yes |
| Package width | 144 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 136 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 75 pc(s) |
| Master (outer) case width | 359 mm |
| Master (outer) case length | 690 mm |
| Master (outer) case height | 310 mm |
| Brand | StarTech.com |
| Manufacturer part number | PEX2S953 |
| GTIN / UPC | ['0065030888332', '065030888332'] |
