ATEN 2-Port USB HDMI KVM Switch with Audio
Stock: 20 units
ATEN 2-Port USB HDMI KVM Switch with Audio
Description
Description
Product overview

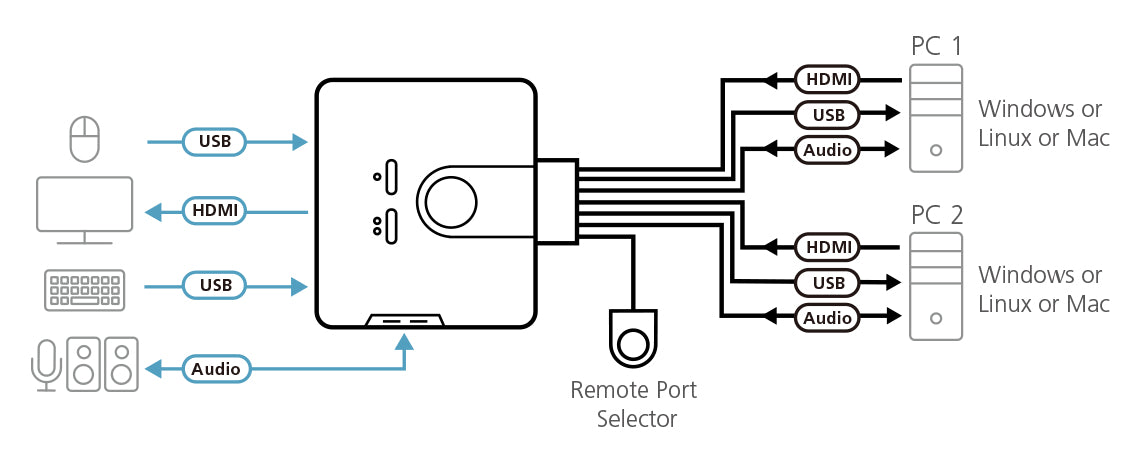

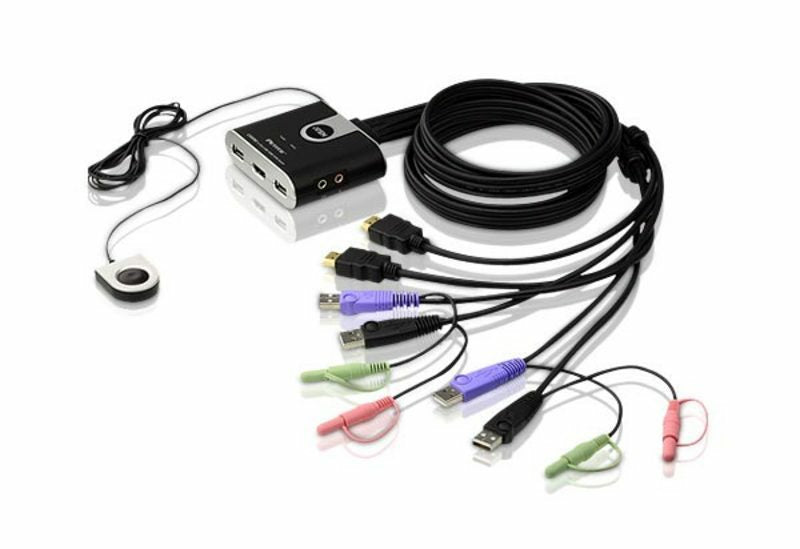

The CS692 2-Port USB HDMI/Audio Cable KVM Switch links two HDMI-enabled PCs or devices to a single USB keyboard, USB mouse, and HD display console. The CS692 Switch takes a giant step forward from prior cable KVM models in the Petite series, by offering full HDMI functionality, USB 2.0 peripheral sharing (via a USB hub attached to the USB mouse port), and a firmware upgrade function that allows you to keep up with latest available versions. 1x CS692 2-Port USB HDMI/Audio Cable KVM Switch with Remote Port Selector 1x User Instructions 2x Hotkey Stickers
Why choose the ATEN 2-Port USB HDMI KVM Switch with Audio?
The ATEN 2-Port USB HDMI KVM Switch with Audio is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 2; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 3 |
| Number of microphone inputs | 3 |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 3,5,10,20 s |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 0.72 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 82.4 mm |
| Depth | 66.5 mm |
| Height | 25.2 mm |
| Weight | 409 g |
| Package width | 70 mm |
| Package depth | 163 mm |
| Package height | 235 mm |
| Package weight | 550 g |
| Quick installation guide | Yes |
| Manual | Yes |
| Master (outer) case net weight | 4.09 kg |
| Harmonized System (HS) code | 85176200 |
| Brand | ATEN |
| Manufacturer part number | CS692-AT |
| GTIN / UPC | ['4710423776814', '0672792002182', '672792002182', '0763615832380', '763615832380', '6727920021826', '0953450227612', '953450227612', '0809385180402', '809385180402', '0801038395430', '801038395430', '0803982812995', '803982812995', '5054533326132', '0809185331370', '809185331370', '5054242187178', '4582380350754', '5054484326137', '0724627232742', '724627232742', '0151903026311', '151903026311', '1320010260362', '0132018255810', '132018255810', '0163121389369', '163121389369', '0172304247778', '172304247778', '0115971584258', '115971584258', '0758399155893', '758399155893'] |
