ATEN VM3250 matrix switcher Modular AV matrix switchers Built-in display
Stock: 0 units
Description
Description
Product overview

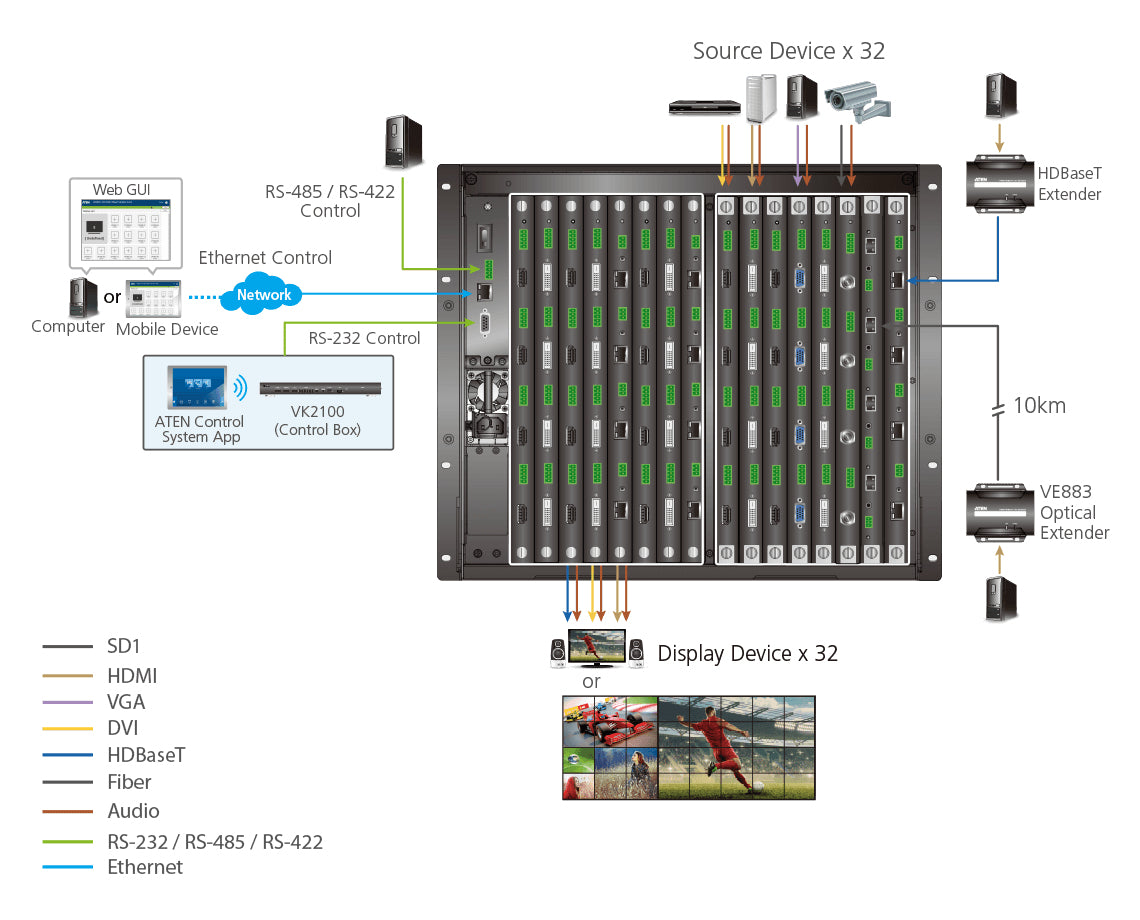

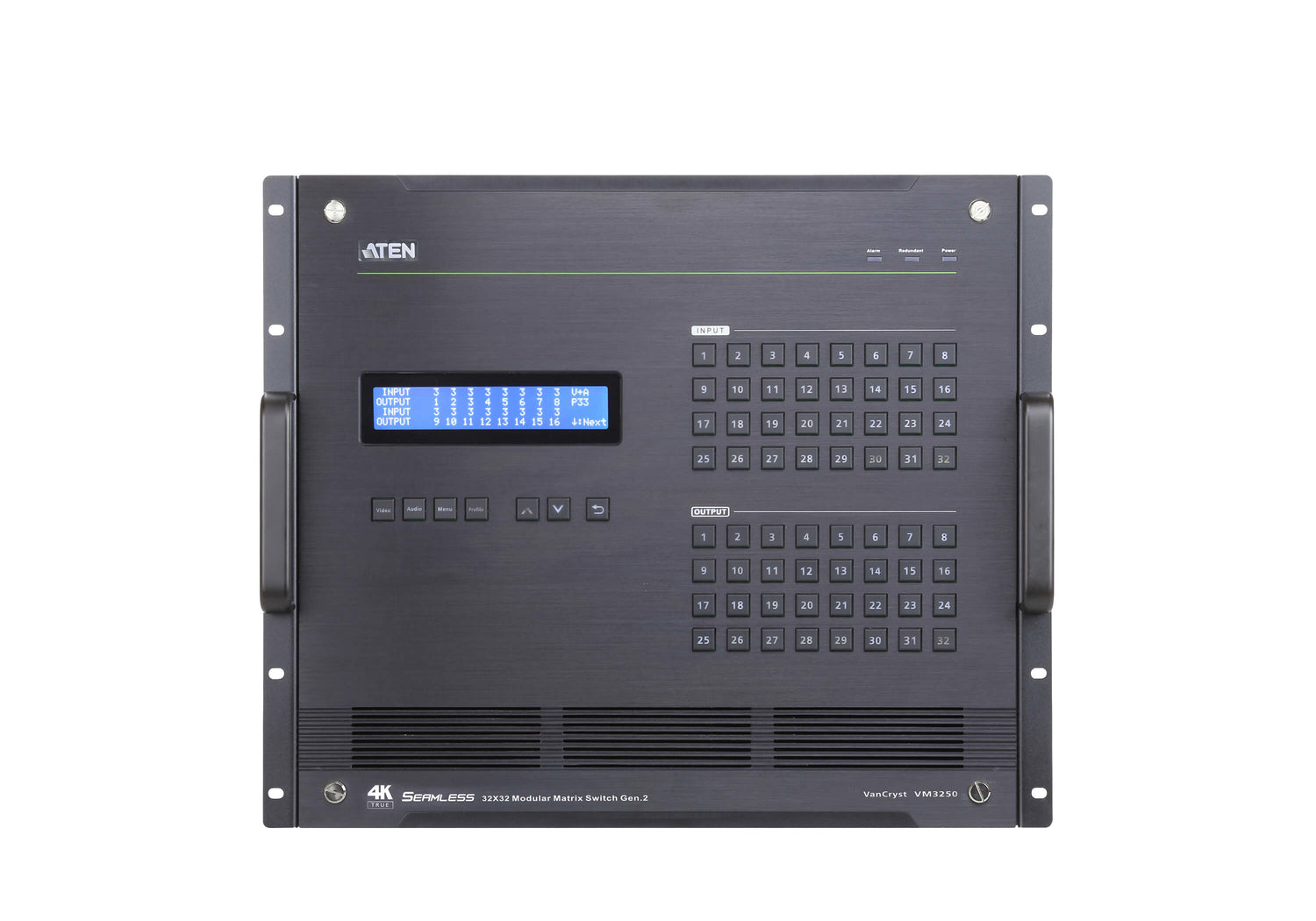

The VM3250 Modular Matrix Switch Gen. 2 offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3250 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers from the front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors. Boasting a sophisticated and reliable design that delivers the best audio/visual distribution and control, the solution also incorporates an Award-winning GUI that can be accessed from anywhere over a network or the internet. Through the intuitive web interface, video sources can be previewed in real-time via live streaming and video walls can be easily set up. A calendar-based scheduling function allows you to queue and play connection profiles via a calendar view for a set period of time, reducing related operation costs. The VM3250 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital and analog video interfaces, including Fiber Optic, HDBaseT, DisplayPort, HDMI, DVI, 3G-SDI, and VGA. The flexibility and expandability make it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control...
Why choose the ATEN VM3250 matrix switcher Modular AV matrix switchers...?
The ATEN VM3250 matrix switcher Modular AV matrix switchers Built-in... is a matrix switchers from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product type: Modular AV matrix switchers; Data transfer rate: 22.5 Gbit/s; Maximum resolution: 4096 x 2160 pixels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product type | Modular AV matrix switchers |
| Data transfer rate | 22.5 Gbit/s |
| Maximum resolution | 4096 x 2160 pixels |
| Extended display identification data (EDID) | Yes |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| Rack capacity | 9U |
| Built-in display | Yes |
| Display type | LCD |
| RJ-45 input ports | 1 |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 10 A |
| Hot-swap PSU | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 471.9 mm |
| Depth | 482 mm |
| Height | 399 mm |
| Weight | 18.2 kg |
| Cables included | AC |
| Manual | Yes |
| Brand | ATEN |
| Manufacturer part number | VM3250 |
| GTIN / UPC | ['0672792011344', '672792011344'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
