StarTech.com 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD Drives, 1x DisplayPort Video/ 2x TB3 Downstream Ports, 40Gbps, 72W Power Supply, External Hard Drive Enclosure
Stock: 146 units
StarTech.com 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD D...
Description
Description
Product overview

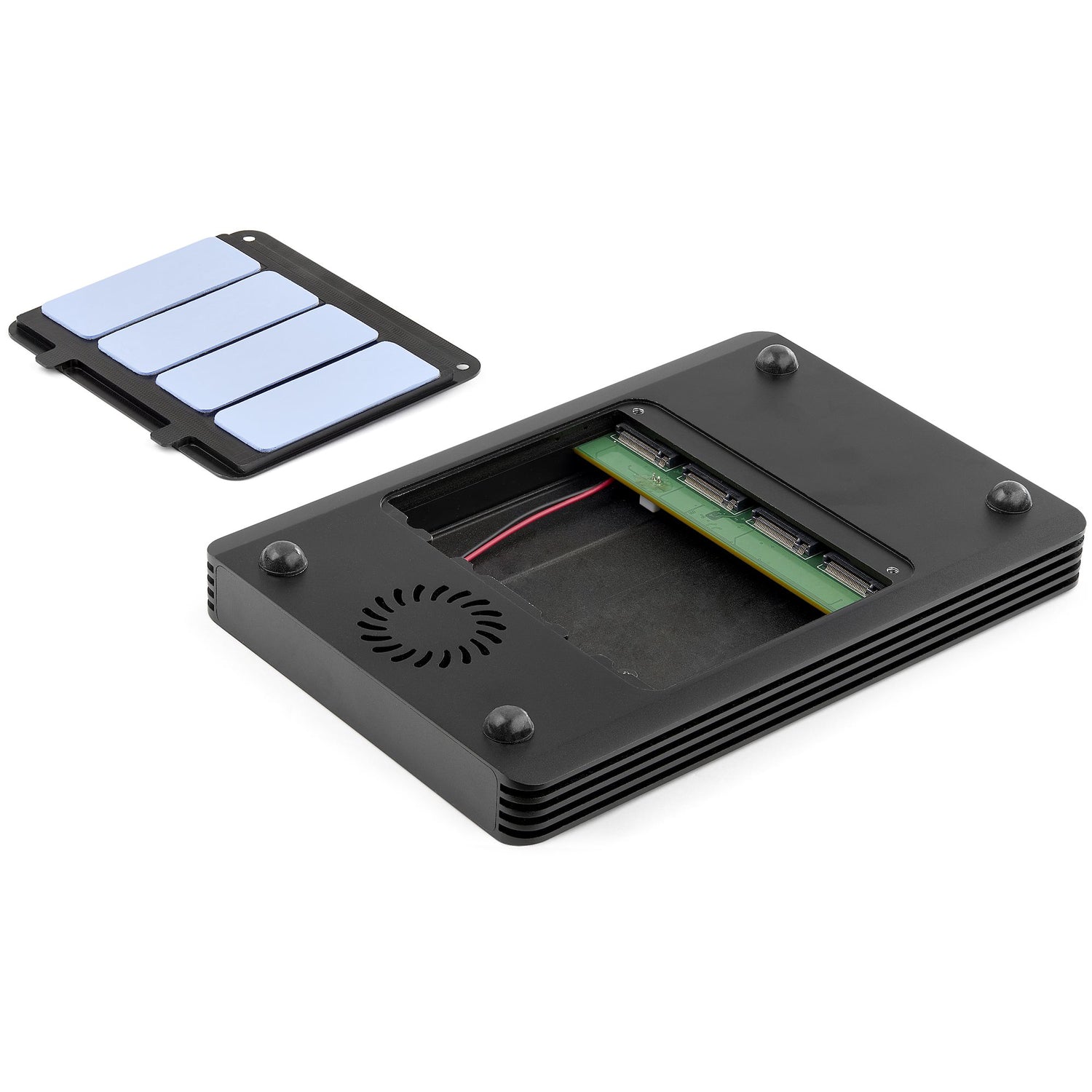

4-Drive PCIe M.2 Enclosure | Thunderbolt™ 3 | 72W EPS Power Supply & 2.3 ft (70 cm) Thunderbolt 3 Cable Included This Thunderbolt™ 3 to 4x M.2 PCIe SSD enclosure enables you to turn four M-Key PCI-Express based M.2 NVMe or AHCI solid state drives (SSDs) into a high-performance external storage solution. The SSD enclosure is self-powered with an included 72W EPS power supply that powers the enclosure, the connected drives, and provides up to 15W of power to any downstream Thunderbolt 3 devices. A 2.3 ft. (70 cm) Thunderbolt 3 Certified host cable is also included, to connect the enclosure to your computer. High Performance M.2 Storage via 40Gbps Thunderbolt 3 The enclosure is compatible with 80mm M.2 PCIe based (M-Key) single/double-sided SSDs. Create an external storage solution that utilizes the high-performance bandwidth available to your Thunderbolt 3 port, providing combined data transfer speeds of up to 40Gbps for up to four drives. The vented metal enclosure features thermal pads and a cooling fan to ensure your SSDs are operating at optimal temperatures. Dedicated 8Gbps Throughput for Each Individual Drive A single 8 Gbps PCIe lane is dedicated to each connected drive. This ensures consistent read/write performance across the entire enclosure, regardless of individual drive activity. The enclosure also supports software RAID with storage management systems like Storage Spaces (Microsoft), RAID Assistant (macOS), or mdraid/mdadm (Linux). The support for software RAID, combined with exceptional drive performance, makes this the ideal enclosure for creative...
Why choose the StarTech.com 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2...?
The StarTech.com 4 Bay Thunderbolt 3 NVMe Enclosure, For M.2 NVMe SSD... is a storage drive enclosures from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of storage drives supported: 4; Storage drive size: M.2 "; Supported storage drive interfaces: M.2. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstations and open-plan offices
- Meeting rooms and huddle spaces
- Digital signage and reception areas
- Control rooms and monitoring desks
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of storage drives supported | 4 |
| Storage drive size | M.2 " |
| Supported storage drive interfaces | M.2 |
| Supported storage drive lengths | 80 mm |
| USB connectivity | Yes |
| USB connector type | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 2 |
| DC-in jack | Yes |
| Product type | SSD enclosure |
| Product colour | Black |
| LED indicators | Activity, Power |
| Number of fans | 1 fan(s) |
| Fan diameter | 4 cm mm |
| Data transfer rate | 40 Gbit/s |
| Chipset | Intel - JHL6540, TI - TPS65983B |
| Mean time between failures (MTBF) | 50000 h |
| Noise level | 34.5 dB |
| Plug and Play | Yes |
| Compatible power plug types | AU, EU, JP, UK, US |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 2 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 6 A |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Width | 160 mm |
| Depth | 120 mm |
| Height | 20 mm |
| Weight | 610 g |
| Package width | 234 mm |
| Package depth | 157 mm |
| Package height | 132 mm |
| Package weight | 620 g |
| AC adapter included | Yes |
| Cables included | AC, Thunderbolt |
| Manual | Yes |
| Compliance certificates | CE, RoHS |
| Harmonized System (HS) code | 84733080 |
| Brand | StarTech.com |
| Manufacturer part number | M2E4BTB3 |
| GTIN / UPC | ['0065030886406', '065030886406'] |
