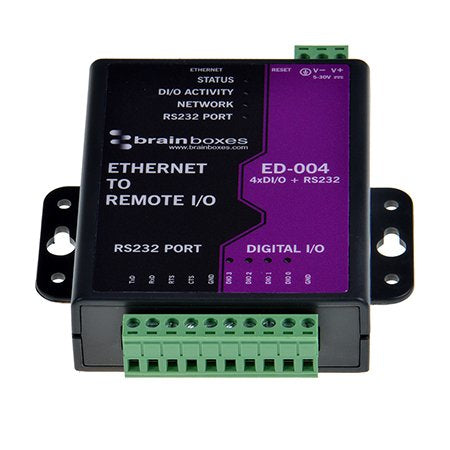

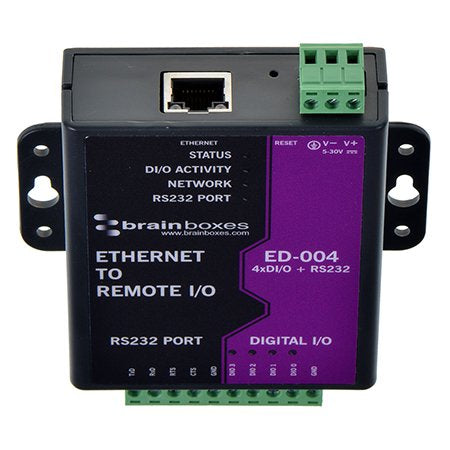

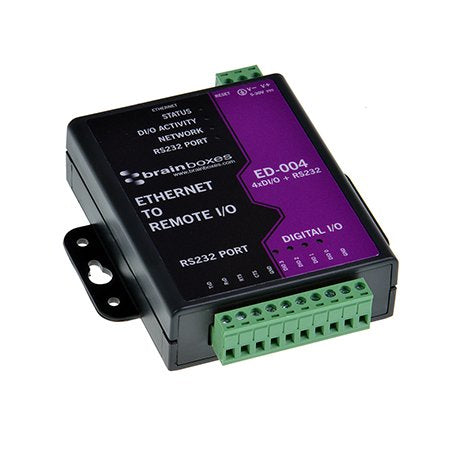

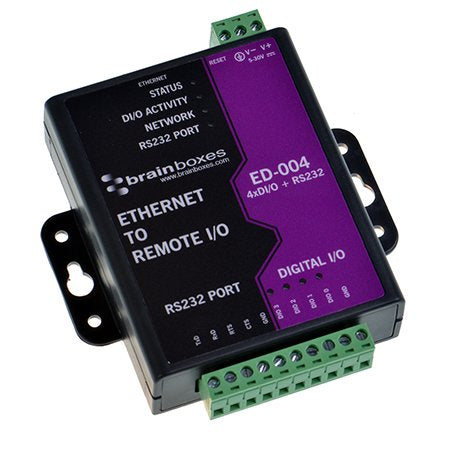

Brainboxes ED-004 digital/analogue I/O module
Stock: 0 units
Description
Description
Product overview
Ethernet to DIO device with Serial port: 4 digital input channels and 8 digital output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Why choose the Brainboxes ED-004 digital/analogue I/O module?
The Brainboxes ED-004 digital/analogue I/O module is a digital & analog i/o modules from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Module type: Digital; Signal direction: Input/output; Channels quantity: 4 channels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Module type | Digital |
| Signal direction | Input/output |
| Channels quantity | 4 channels |
| Digital input channels quantity | 4 channels |
| Digital output channels quantity | 4 channels |
| Serial interface type | RS-232 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP or DCON ASCII (over TCP or Virtual COM port) |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| Maximum output voltage | 30 V |
| Maximum output current per channel | 0.85 A |
| Maximum combined load | 3.4 A |
| Electrostatic Discharge (ESD) protection | 16 kV |
| Isolation | 1.5 kV |
| Overheat protection | Yes |
| Overheat shutdown (typical) | 175 °C |
| Overheat shutdown (min) | 150 °C |
| Short circuit protection | Yes |
| Short circuit protection up to | 36 V |
| Quick-Stop function | Yes |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X... |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012 |
| Mobile operating systems supported | Android, iOS |
| Product colour | Black, Purple |
| Power consumption | 100 mA |
| Power consumption note | 2.5W Max: 220mA @+5VDC / 36mA @+30VDC |
| DC input voltage | 5 - 30 V |
| Maximum input voltage | 35 V |
| Power supply type | 1: PW-600, 2: PW-650 |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Width | 116 mm |
| Depth | 100 mm |
| Height | 26 mm |
| Weight | 126 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Brand | Brainboxes |
| Manufacturer part number | ED-004 |
| GTIN / UPC | ['0837324009859', '837324009859'] |
