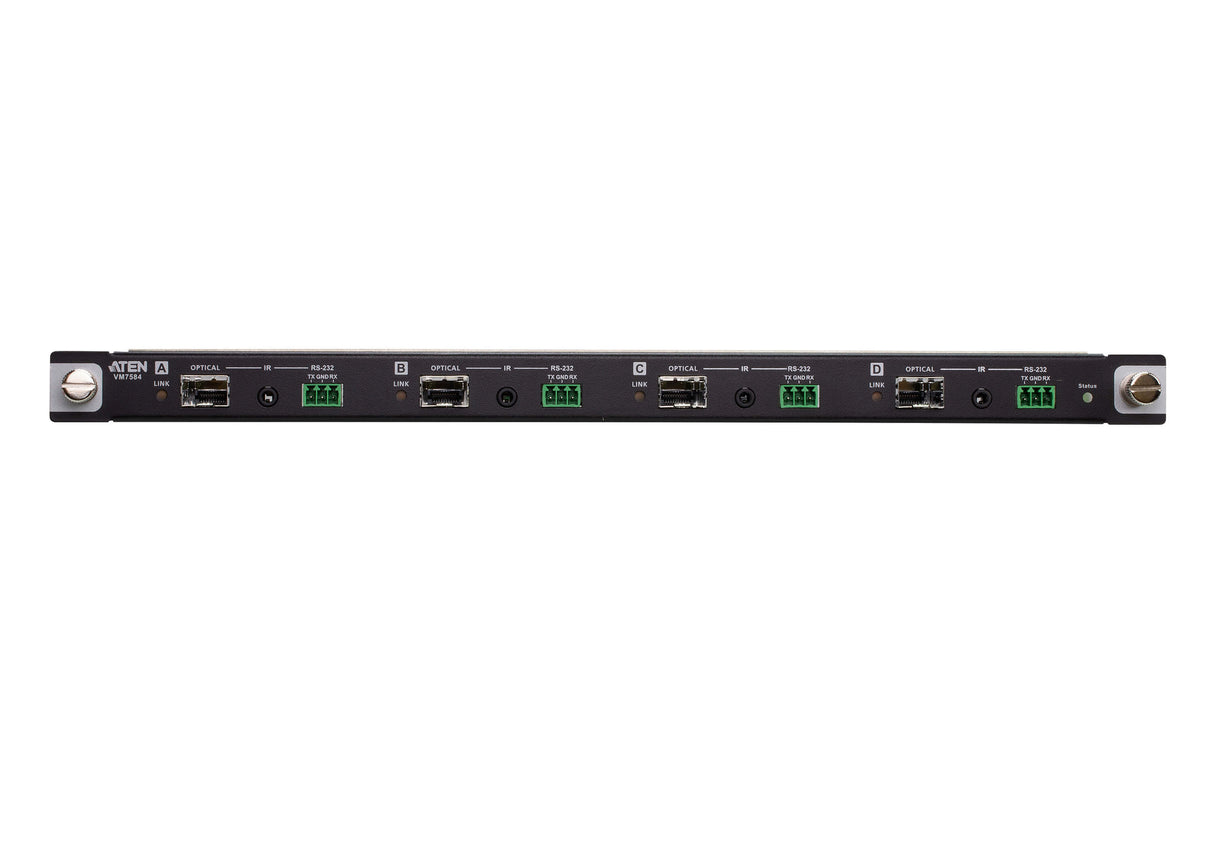

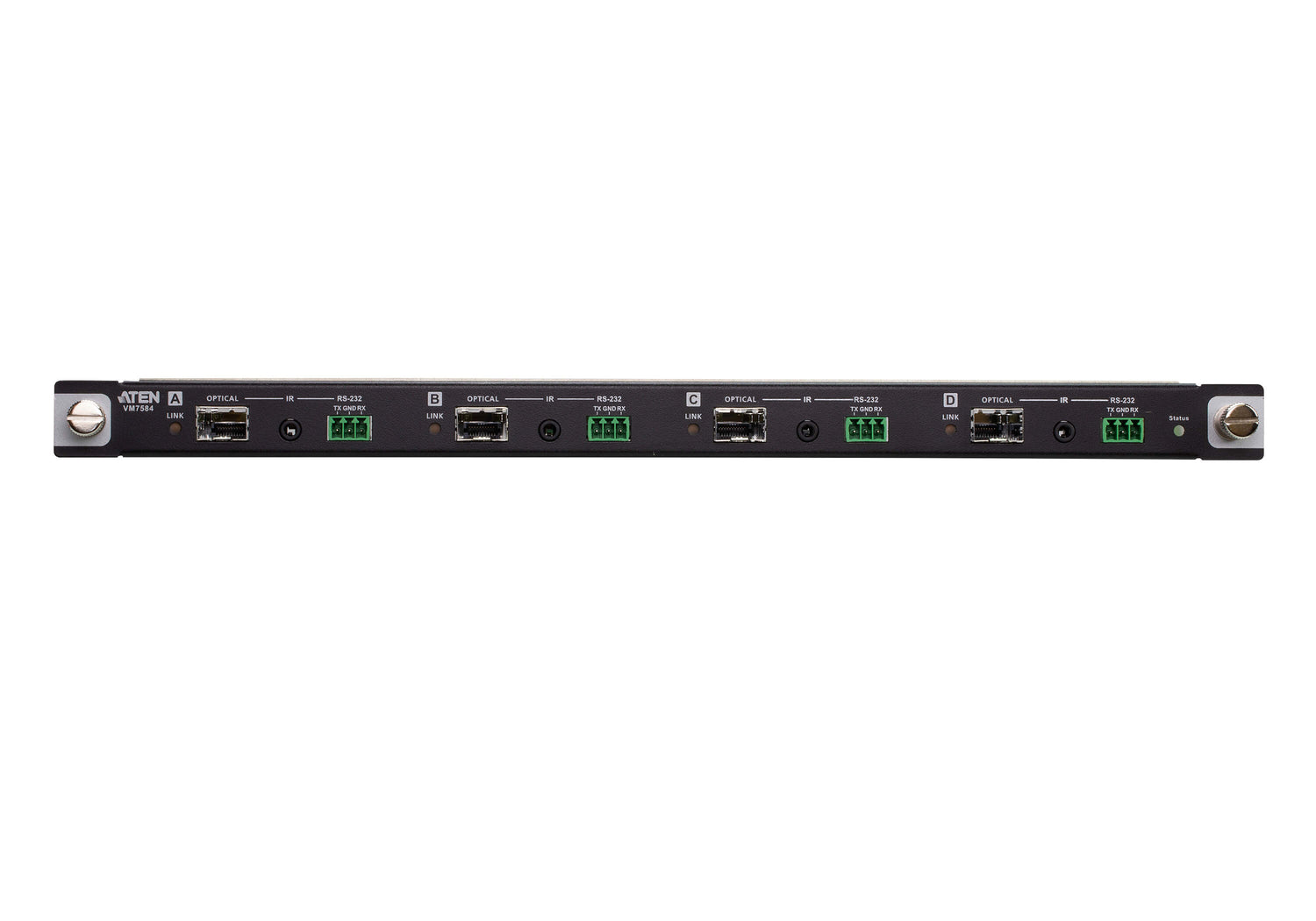

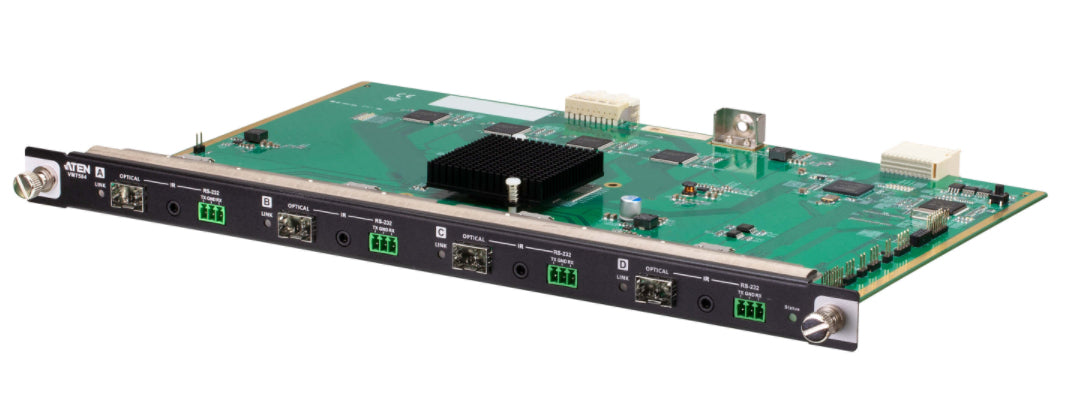

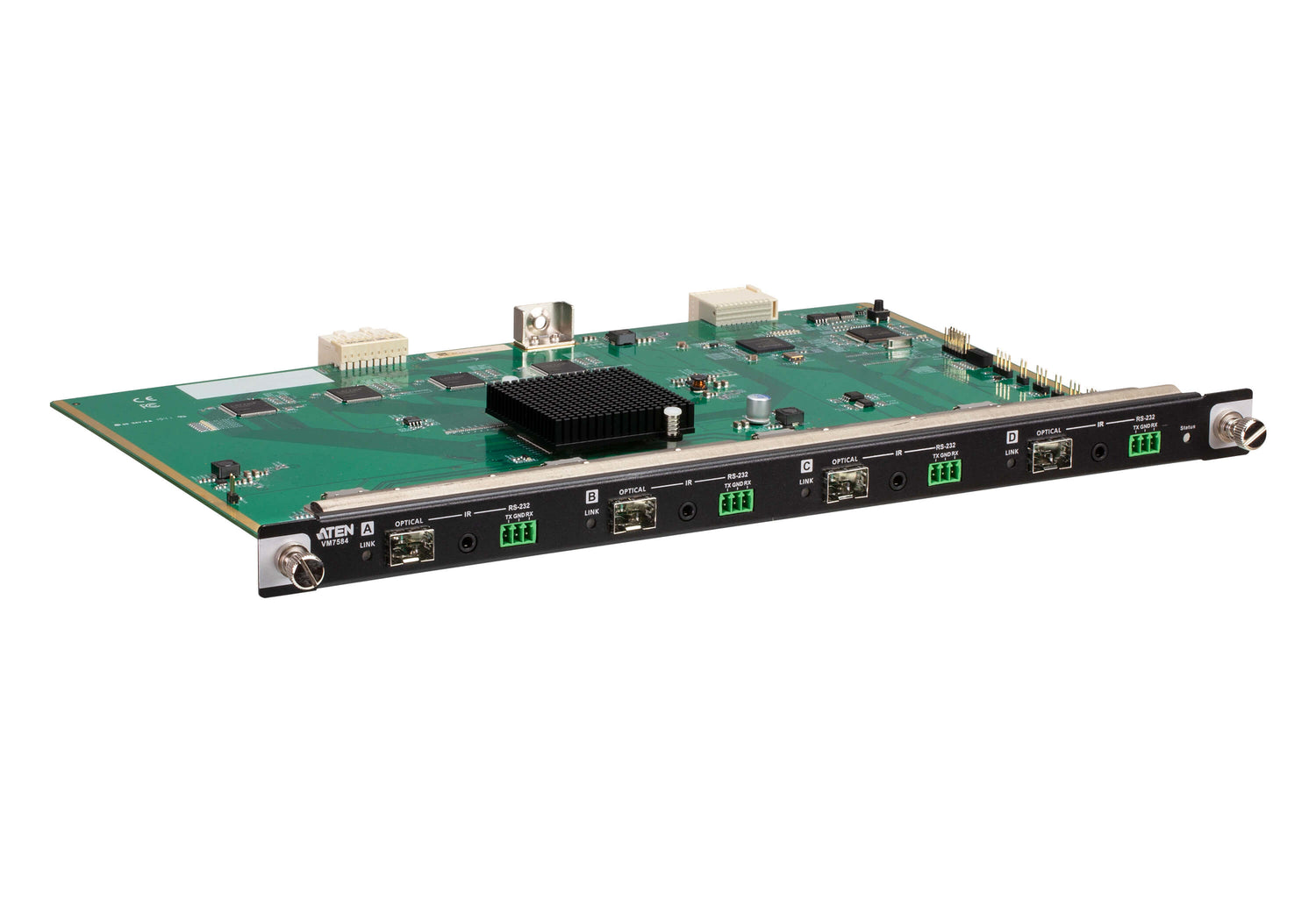

ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM))
Stock: 0 units
Description
Description
Product overview
The VM7584 4-Port 10G Optical Input Board offers an easy way to route 4 HDMI sources to HDMI displays through optical extenders, and up to 16/32 input and 16/32 output connections on an ATEN Modular Matrix Switch through various AV interfaces. Designed with fiber optics technology for long-distance transmission, the VM7584 along with its SFP+ modules extends uncompressed 4K signal up to 300 m (using VM7584K1) or 10 km (using VM7584K2) over duplex fiber optic cables. The optical fiber simplifies cabling by guaranteeing an interference-free long-haul transmission of audio, video, IR, and RS-232 control signals over one single set of duplex cables that easily connects to the SFP+ slot. Moreover, the VM7584 supports a high data rate of 10.2 Gbps and meets HDMI Specifications that include 3D, Deep Color, and 4K to ensure superior video quality. 1x VM7584 4-Port 10G Optical Input Board 4x SFP+ Modules 4x 3-Pole Terminal Blocks 1x IR Receiver 1x IR Emitter 1x User Instructions
Why choose the ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) /...?
The ATEN 4-Port 10G Optical Input Board (4K@300m (K1, MM) / 10km (K2, SM)) is a matrix switch accessories from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product type: Input board; Product colour: Black; Material: Metal. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product type | Input board |
| Product colour | Black |
| Material | Metal |
| LED indicators | Link, Status |
| Compatibility | Aten VM3250 / VM3200 / VM1600A |
| Power consumption (typical) | 10.54 W |
| Width | 352 mm |
| Depth | 238 mm |
| Height | 23.3 mm |
| Weight | 720 g |
| Package width | 285 mm |
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 1.07 kg |
| Quick start guide | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 0 - 80% |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.59 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.44 kg |
| Brand | ATEN |
| Manufacturer part number | VM7584K2-AT |
| GTIN / UPC | ['4719264649493', '0672792011245', '672792011245'] |
