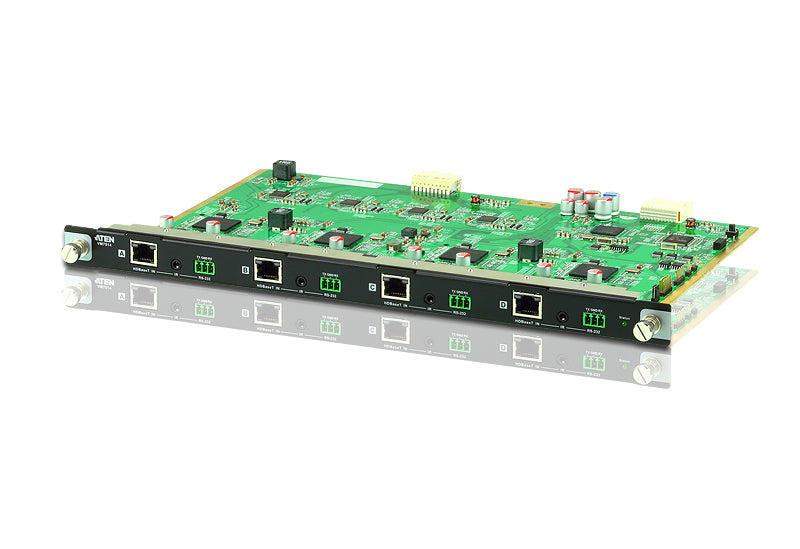

ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200
Stock: 0 units
Description
Description
Product overview
The VM7514 4-Port HDBaseT Input Board offers an easy way route 4 HDBaseT transmitters connected to HDMI sources to 4 HDBaseT receivers connected to HDMI displays, and in combination with the ATEN Modular Matrix Switch provides the ability route up to 16 input and 16 output HDBaseT connections - Compatible with the VM1600 and can be mixed with modular I/O boards of any type for optimum flexibility - Bi-directional RS-232 channel – allows you to connect to serial terminals or serial devices, such as touch screens and barcode scanners - HDBaseT Connectivity – extends 4 HDBaseT connections up to 100 meters via single Cat 5e/6 cable - HDBaseT Anti-jamming – resists signal interference during video transmission using HDBaseT technology - Bi-directional IR channel – IR transmission is processed one direction at a time - Hot-swappable design for easy integration of I/O boards
Why choose the ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200?
The ATEN 4-Port HDBaseT Input Board for VM1600 / VM3200 is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Audio (L/R) out: 4; RJ-45 input ports: 4; RS-232 ports: 4. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Audio (L/R) out | 4 |
| RJ-45 input ports | 4 |
| RS-232 ports | 4 |
| Material | Metal |
| Product colour | Black, Green |
| HDCP | Yes |
| Supported graphics resolutions | 4096 x 2160 |
| Supported video modes | 2160p |
| Bandwidth | 340 MHz |
| Maximum resolution | 4096 x 2160 pixels |
| Cable length | 1000 m |
| Power consumption (typical) | 24.5 W |
| Width | 237 mm |
| Height | 228 mm |
| Weight | 990 g |
| Length | 352 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | 1x VM7514 4-Port HDBaseT Input Board, 4x Terminal Block Connectors, 1x IR Transmitter, 1x IR Receiver, 1x User Instructions |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Brand | ATEN |
| Manufacturer part number | VM7514-AT |
| GTIN / UPC | ['0672792006234', '672792006234', '4719264642883'] |
