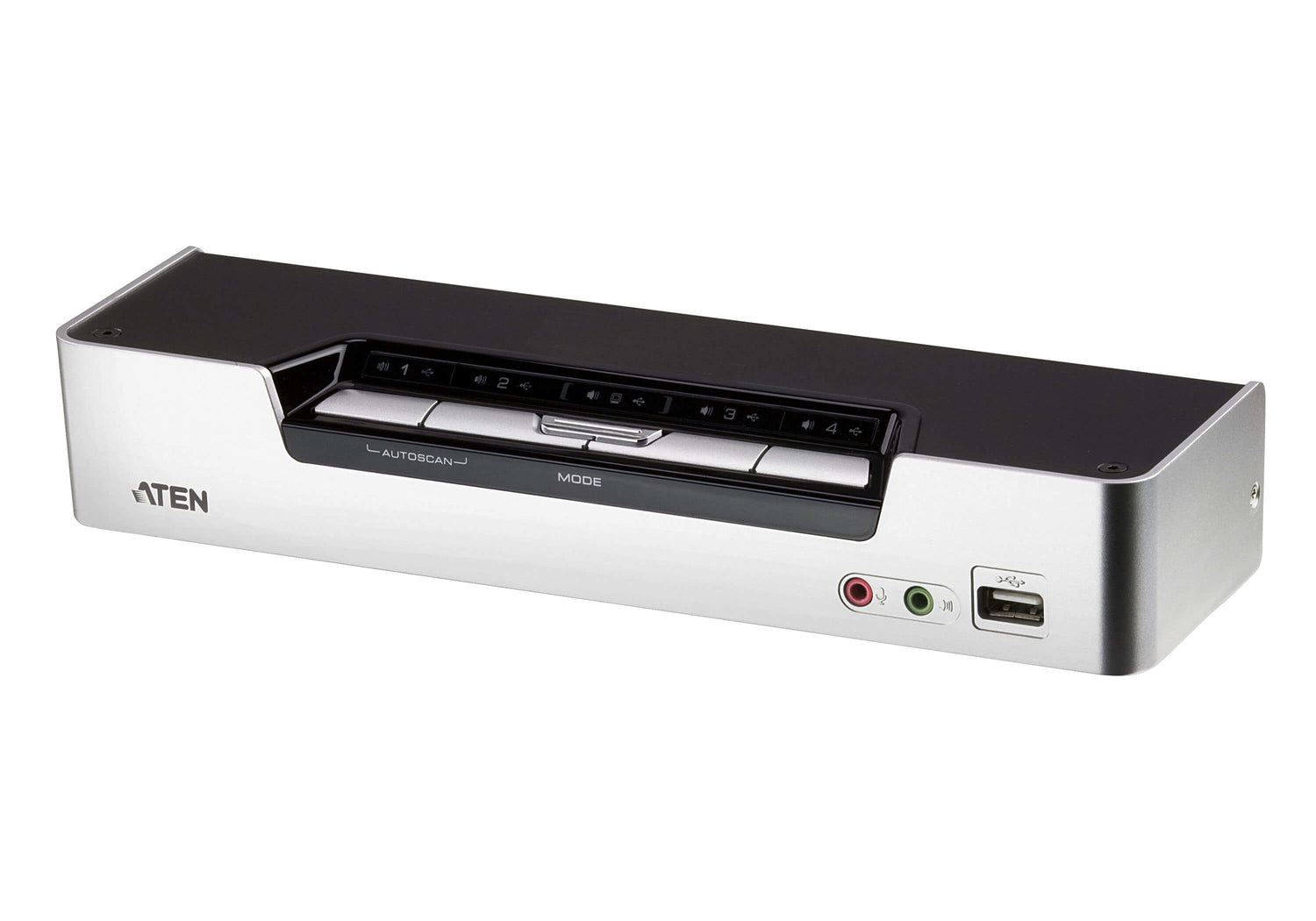

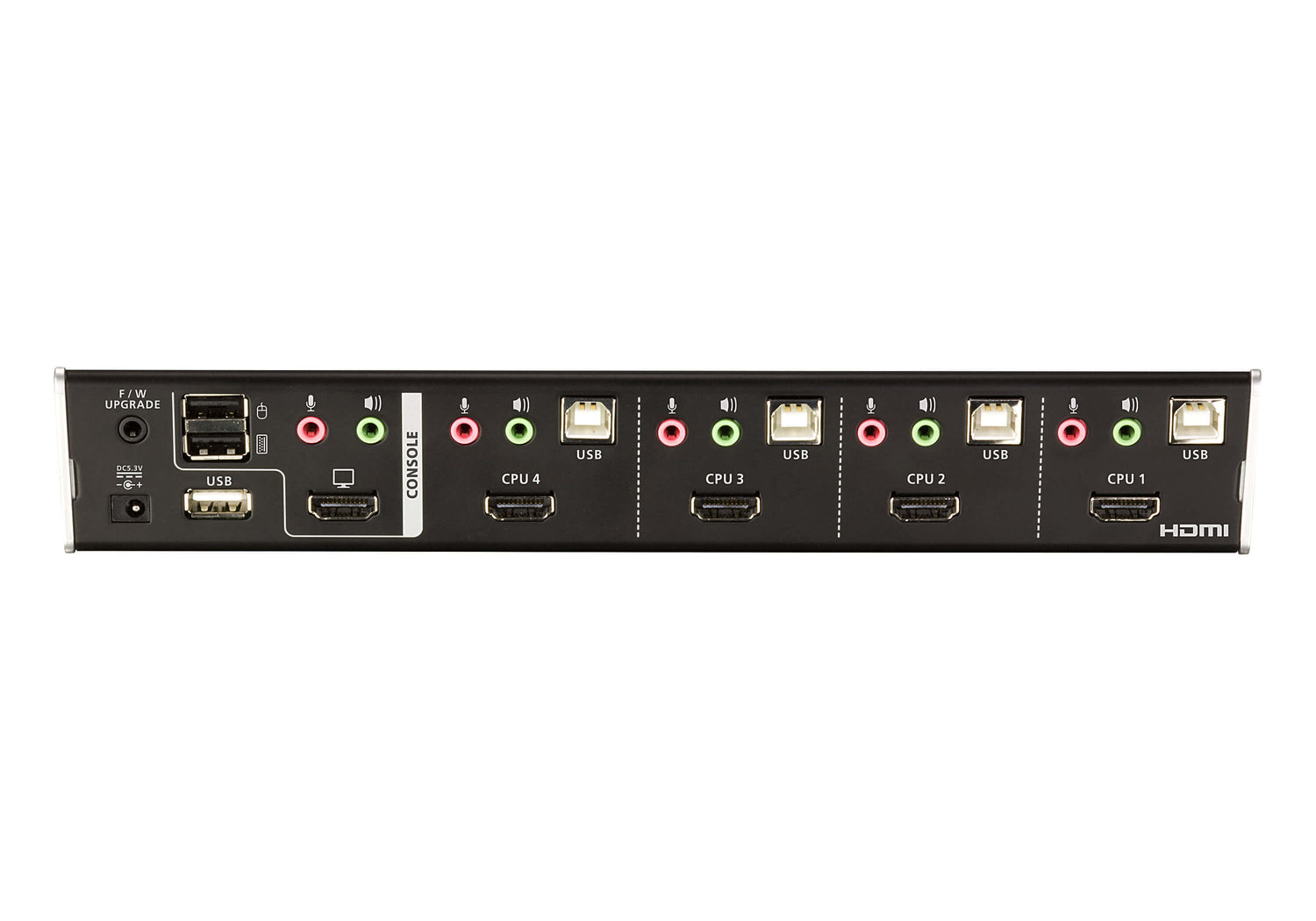

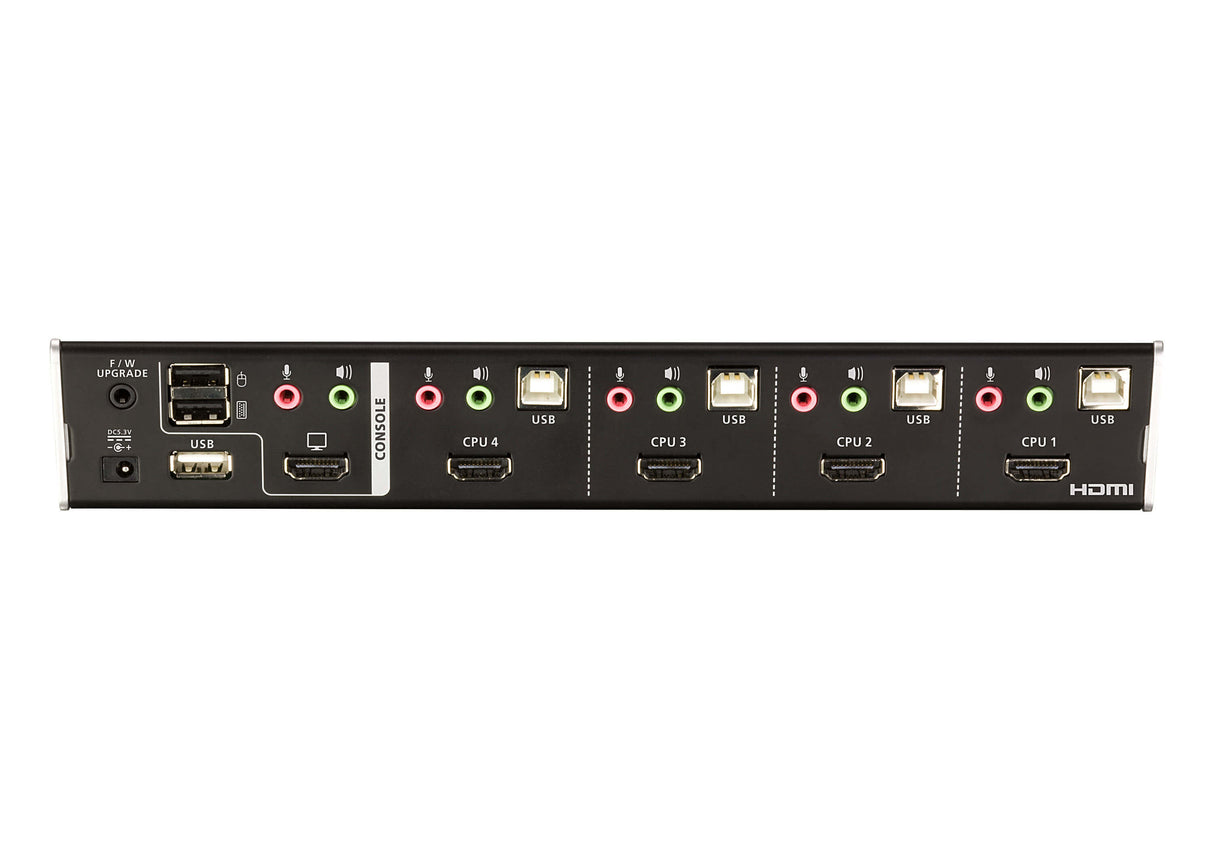

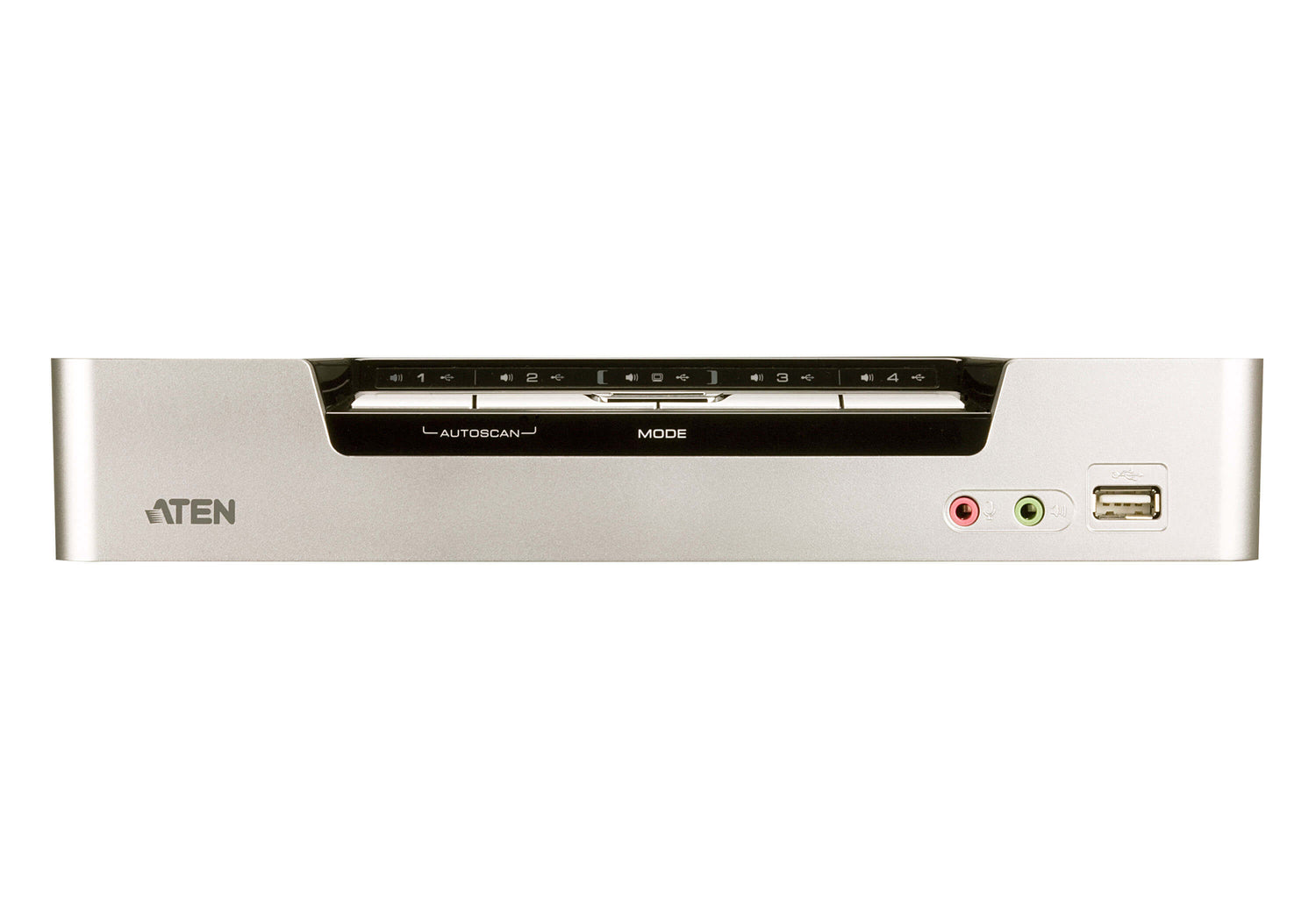

ATEN CS1794 KVM switch Rack mounting Black, Stainless steel

Name: ATEN CS1794 KVM switch Rack mounting Black, Stainless steel
Brand: ATEN
SKU: CS1794
Price: 342.31 CAD
Availability: InStock

Shop ATEN | SKU: CS1794

Fast 24 to 72 hour delivery across Canada Get it between Tue 25 and Thu 27 Aug

Stock: 5 units

List price: $388.99 | You save: -$0.00

Volume discount when you add 3+ units

$342.31 1 – 2 units

$338.88 3 – 5 units

$335.46 6 – 10 units

Best price

$332.04 11+ units

AI assistant for technical questions about office products

Ask any technical question about this product

Ask the genie a question

FullOffice AI Technical Assistant Technical product consulting FullOffice.com

Download PDF spec sheet

Description

Product overview

With the unique design and innovative features, the CS1794 USB 2.0 HDMI KVMP™ Switch provides both style and functionality for today's multimedia SOHO environment. Combining a 4-port switch with a 2-port USB 2.0 hub, the CS1794 provides seamless HDMI signal switching between 4 PCs or other HDMI-enabled devices, such as gaming consoles, and allows users to share USB peripherals from a single console. The CS1794 provides enhanced independent switching via front panel pushbuttons and keyboard hotkeys, and features Video DynaSync™ technology to ensure that HDMI display resolution is always optimized. With integrated digital audio, the CS1794 also allows users to experience high-definition sound, such as Dolby True HD and DTS HD Master Audio. Ideal for multimedia applications in the office, the CS1794 offers the ultimate in space-saving, streamlined KVM technology for the desktop.

Why choose the ATEN CS1794 KVM switch Rack mounting Black, Stainless steel?

The ATEN CS1794 KVM switch Rack mounting Black, Stainless steel is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 4; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.

Highlights

4-port HDMI USB 2.0 KVMP™ Switch

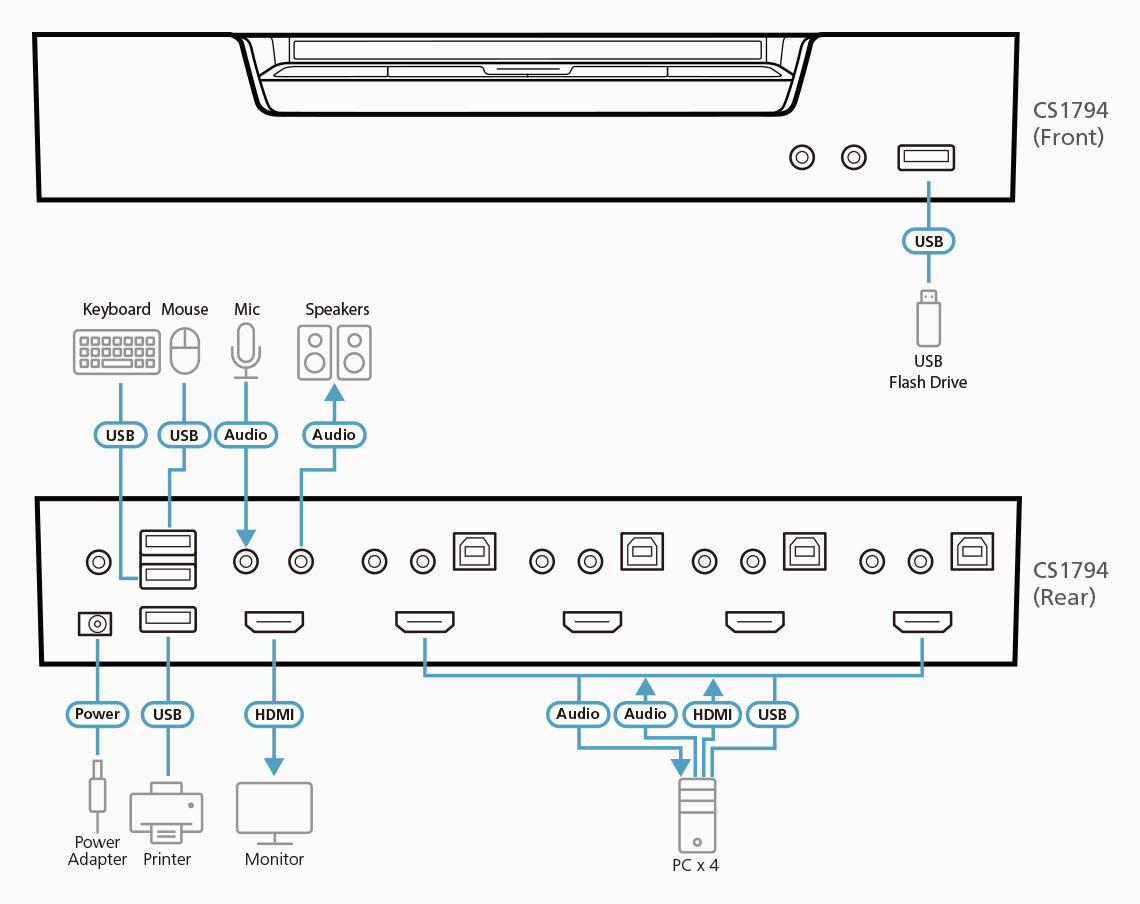

One USB console controls four HDMI-interface computers and two additional USB devices

2-port USB 2.0 hub built in; fully compliant with the USB 2.0 specification

Independent switching of KVM, USB peripheral, and audio focus via front panel pushbuttons and hotkeys

HDMI digital monitor support - fully compliant with HDMI; also HDCP compliant

Dolby True HD and DTS HD Master Audio support

Superior video quality - supports 480i, 480p, 720p, 1080i, and 1080p(HDTV)/1920 x 1200(DVI)

Power on detection - If one of the computers is powered off, the CS1794 will automatically switch to the next powered-on computer

Key benefits

✔ Verified manufacturer specifications — no guesswork before you buy
✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
✔ Volume pricing available for business and reseller accounts
✔ Support by phone, WhatsApp or email before and after your purchase

Recommended use cases

Structured cabling and network closets
Data centre and server room links
Branch office connectivity
Campus and building-to-building runs

Recommended industries

IT & MSPEducationHealthcareGovernmentManufacturing

Specifications

Specification	Detail
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	5
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity	2
USB 2.0 ports quantity	4
USB connector type	USB Type-A, USB Type-B
Audio connections	Yes
Headphone outputs	6
Number of microphone inputs	6
DC-in jack	Yes
HD type	WUXGA
Maximum resolution	1920 x 1200 pixels
Scan interval	1,99 s
HDCP	Yes
Power on detection	Yes
Firmware upgradeable	Yes
Rack mounting	Yes
Rack capacity	1U
Product colour	Black, Stainless steel
Housing material	Metal, Plastic
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Power source	DC
Input voltage	5.3 V
Power consumption (typical)	4.8 W
Windows operating systems supported	Yes
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Compliance certificates	RoHS
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Width	262.3 mm
Depth	76.8 mm
Height	44 mm
Weight	530 g
Brand	ATEN
Manufacturer part number	CS1794
GTIN / UPC	['0672792100260', '672792100260', '4016032914020', '0999992485509', '999992485509', '0163121389833', '163121389833', '6727921002602', '5055309615580']
