ATEN 4-Port 3G-SDI Input Board for VM1600 / VM3200
Stock: 0 units
Description
Description
Product overview

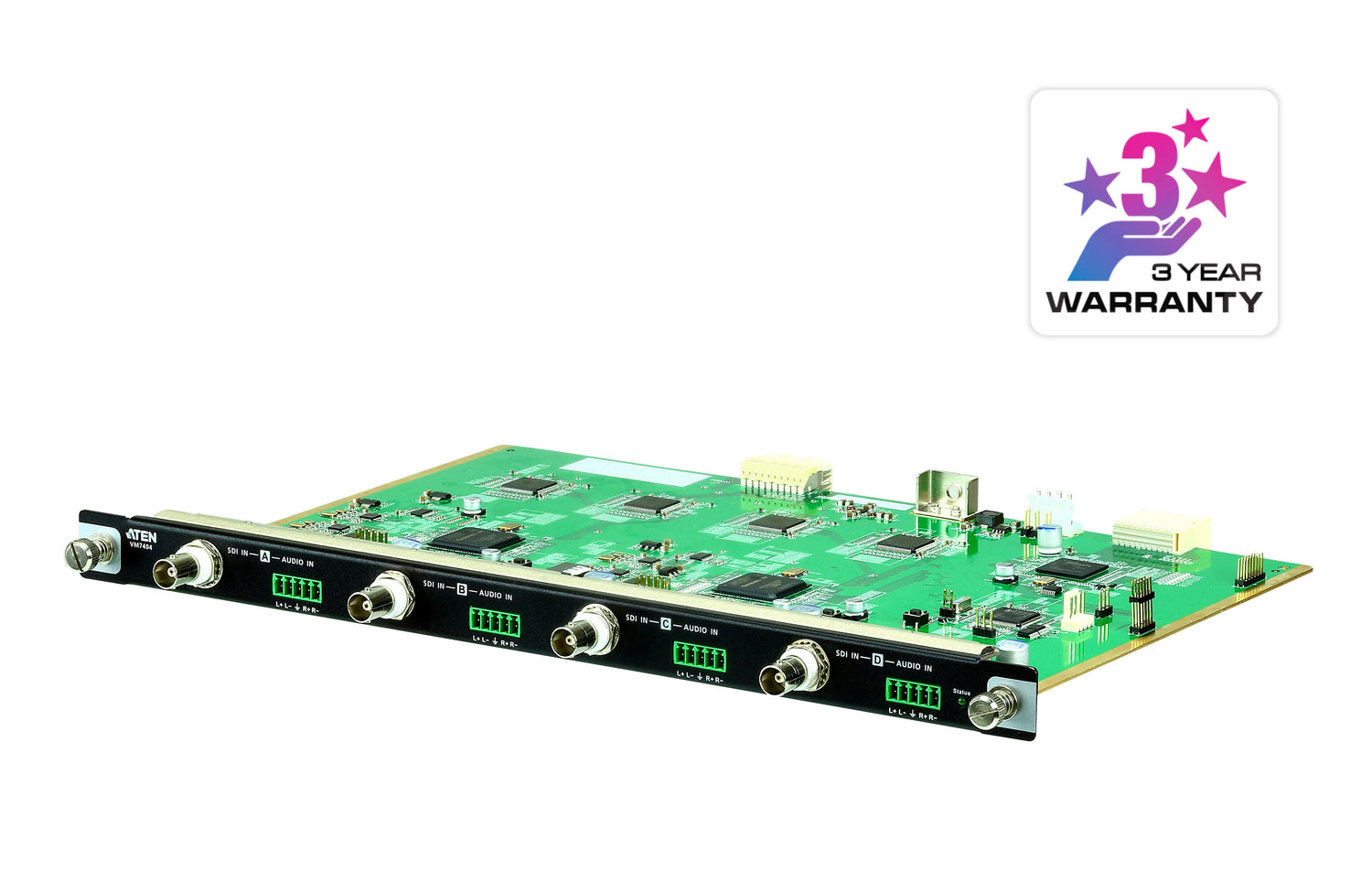

The VM7404 4-Port 3G-SDI Input Board offers an easy way to route any 4 SDI video and audio sources to multiple displays when used in combination with an ATEN Modular Matrix Switch. This input board provides the capability to connect to SDI sources, including 3G-SDI, HD-SDI and SD-SDI, and supports high quality video resolutions up to 1080p @ 60 Hz. The VM7404 also supports separate analog stereo audio signals that can be routed independently. Furthermore, the board is based on a hot-swappable design, allowing the ATEN Modular Matrix Switch to remain on while the board is changed. Ideal for surveillance systems and numerous other broadcast-grade A/V applications, the VM7404 allows you to effectively centralize routing for all your 3G / HD / SD-SDI devices. 1x VM7404 4-Port 3G-SDI Input Board 4x Terminal Block Connectors 1x User Instructions
Why choose the ATEN 4-Port 3G-SDI Input Board for VM1600 / VM3200?
The ATEN 4-Port 3G-SDI Input Board for VM1600 / VM3200 is a matrix switch accessories from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product type: Input board; Product colour: Black, Green; Material: Metal. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product type | Input board |
| Product colour | Black, Green |
| Material | Metal |
| BNC ports quantity | 4 |
| Power consumption (typical) | 16 W |
| Width | 352 mm |
| Depth | 242 mm |
| Height | 22 mm |
| Weight | 600 g |
| Package width | 285 mm |
| Package depth | 426 mm |
| Package height | 57 mm |
| Package weight | 960 g |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case gross weight | 2.4 kg |
| Master (outer) case length | 440 mm |
| Master (outer) case width | 300 mm |
| Master (outer) case height | 138 mm |
| Master (outer) case net weight | 1.2 kg |
| Brand | ATEN |
| Manufacturer part number | VM7404-AT |
| GTIN / UPC | ['0672792006814', '672792006814', '4719264643767'] |
