ATEN 4-Port USB KM Switch
Stock: 62 units
ATEN 4-Port USB KM Switch
Description
Description
Product overview

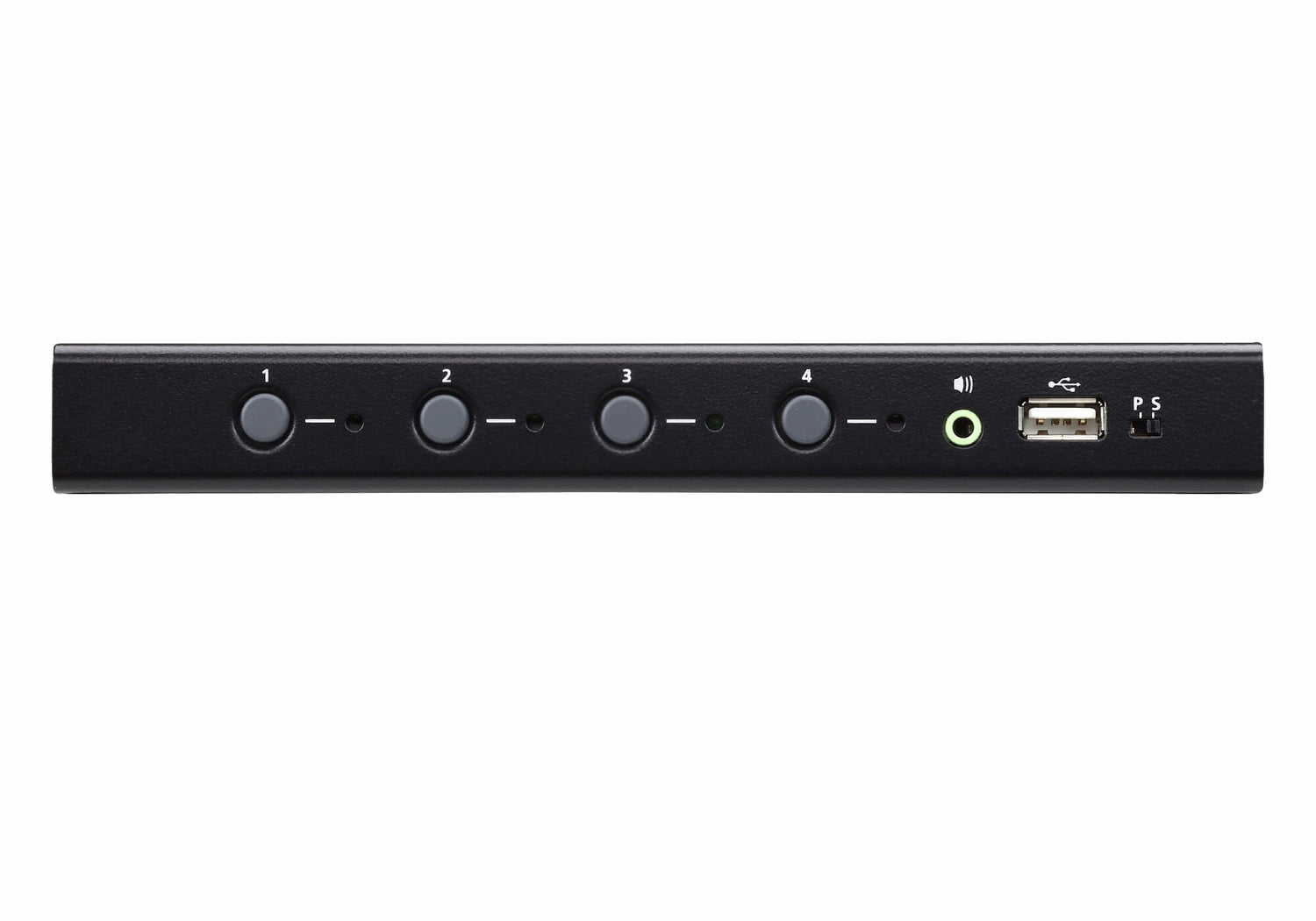

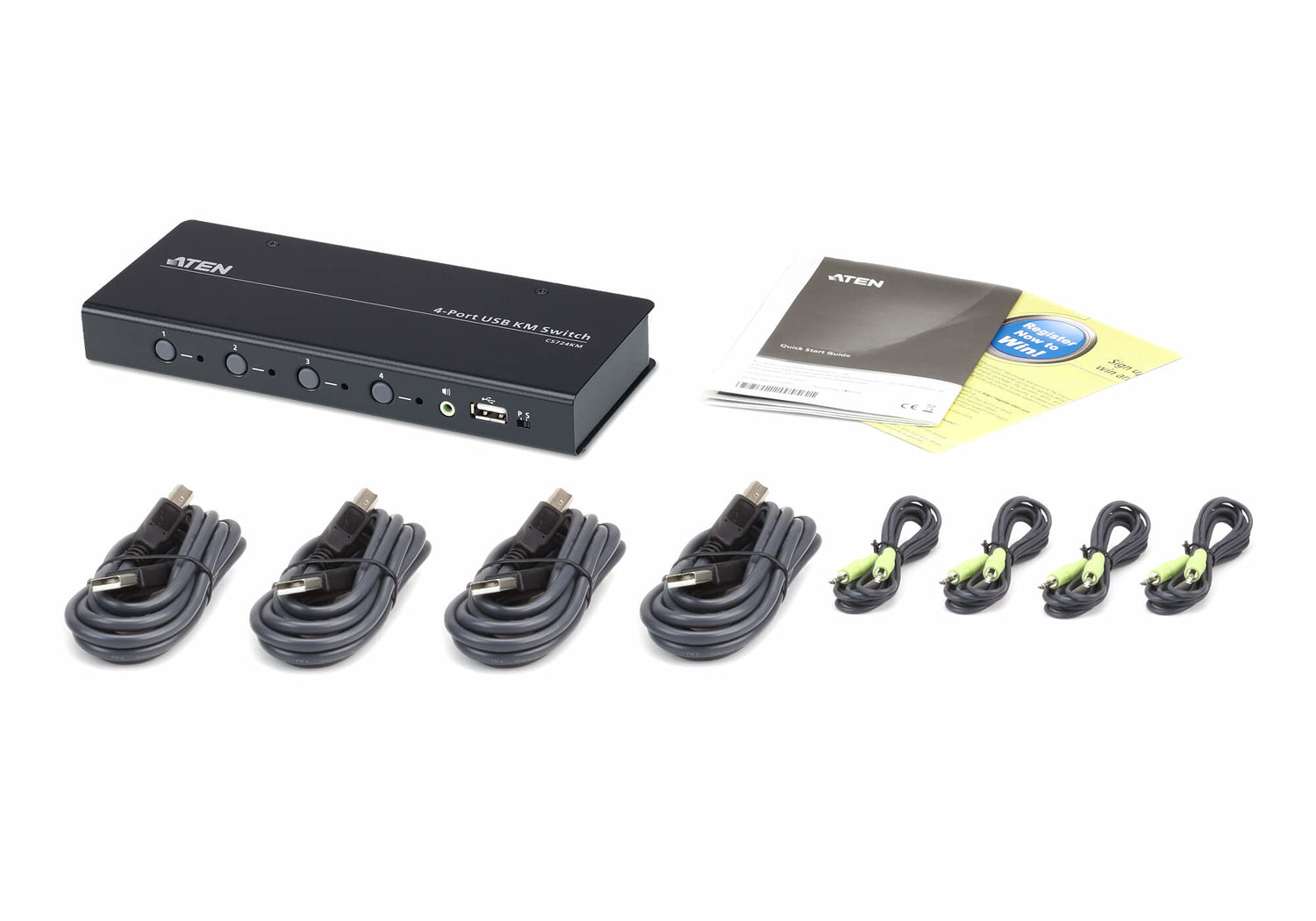

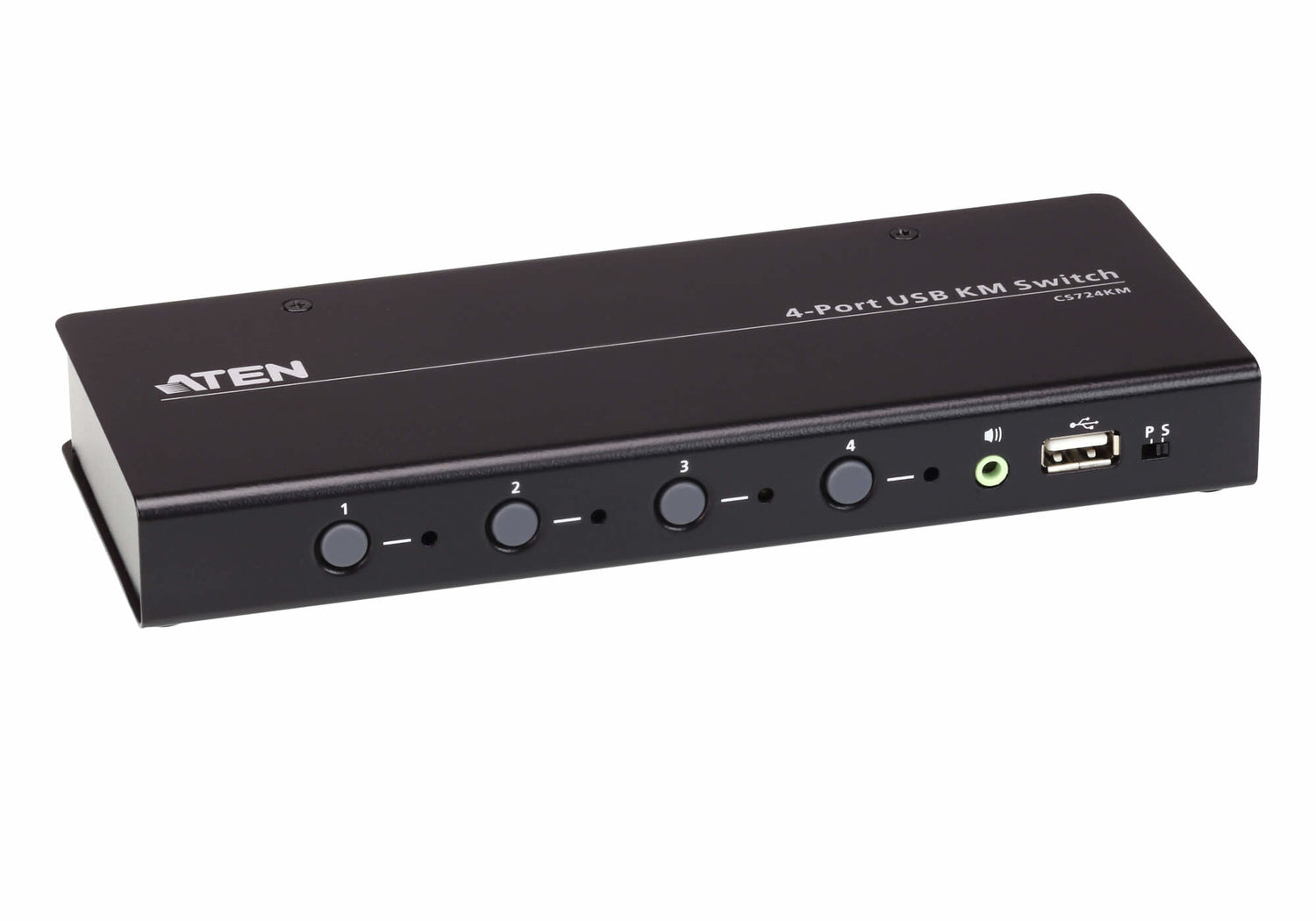

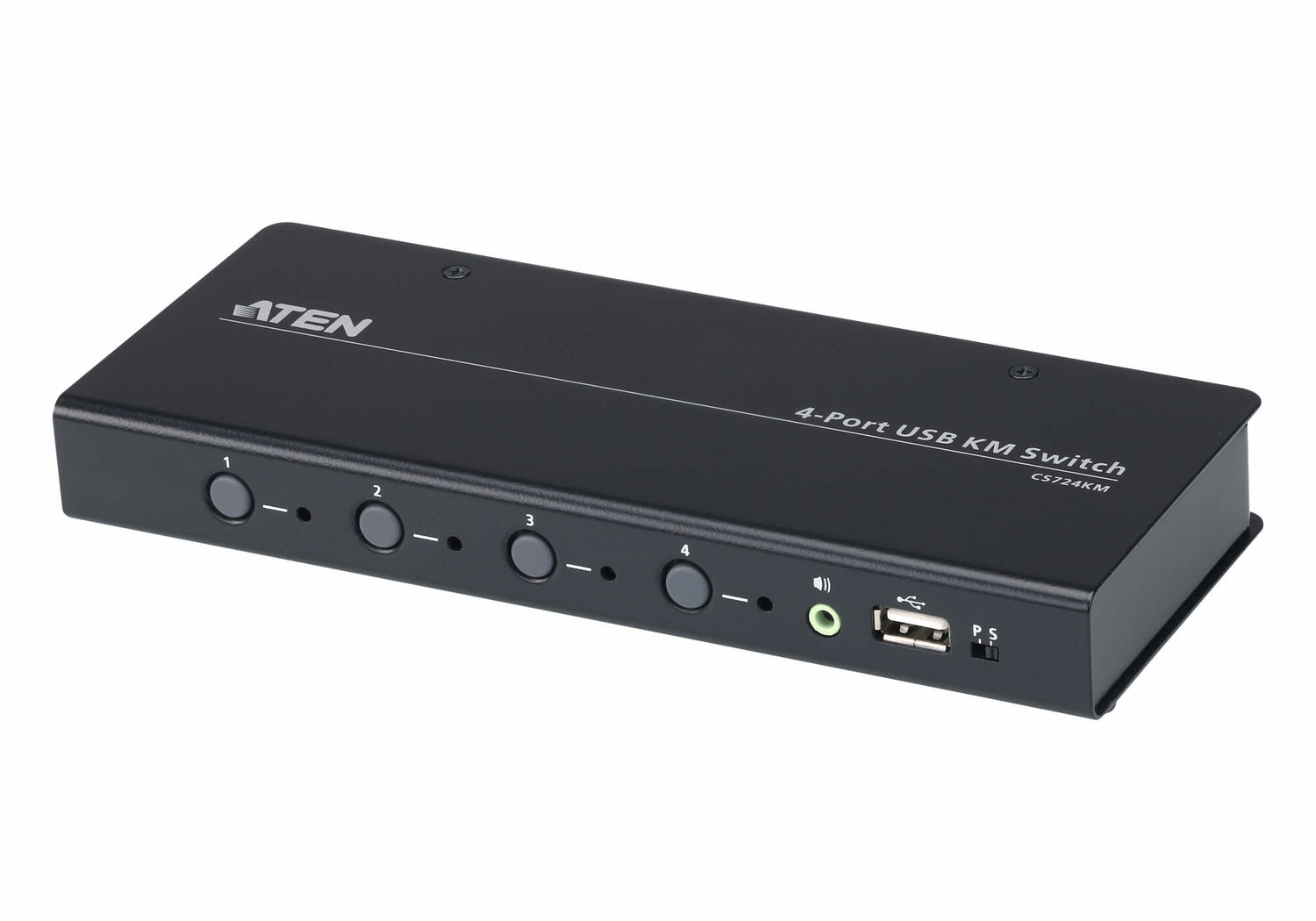

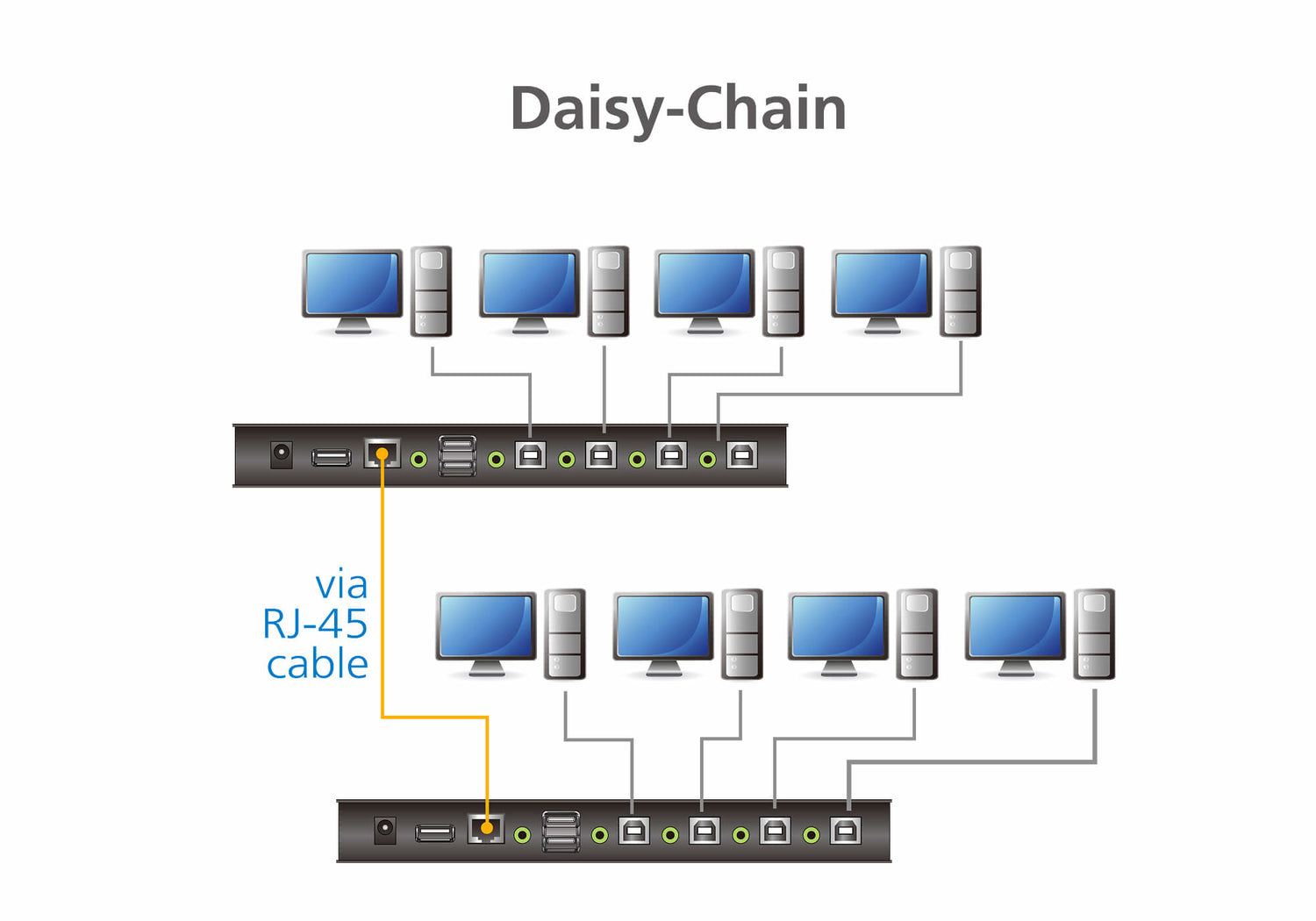

The CS724KM is a 4-Port USB KM Switch that enables users to control up to 4 computers with a single keyboard and mouse. Two switches can be daisy-chained to enable control of up to 8 computers from a single console. 1x 4-port USB Boundless KM Switch 4x LIN6-04U1-V1BG USB Cables (USB 2.0-A to USB 2.0-B; 1.8m/6ft) 4x LIN5-0205-21CG Audio Cables (1.8m/6ft) 1x User Instructions
Why choose the ATEN 4-Port USB KM Switch?
The ATEN 4-Port USB KM Switch is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 4; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| USB 2.0 Type-B ports quantity | 4 |

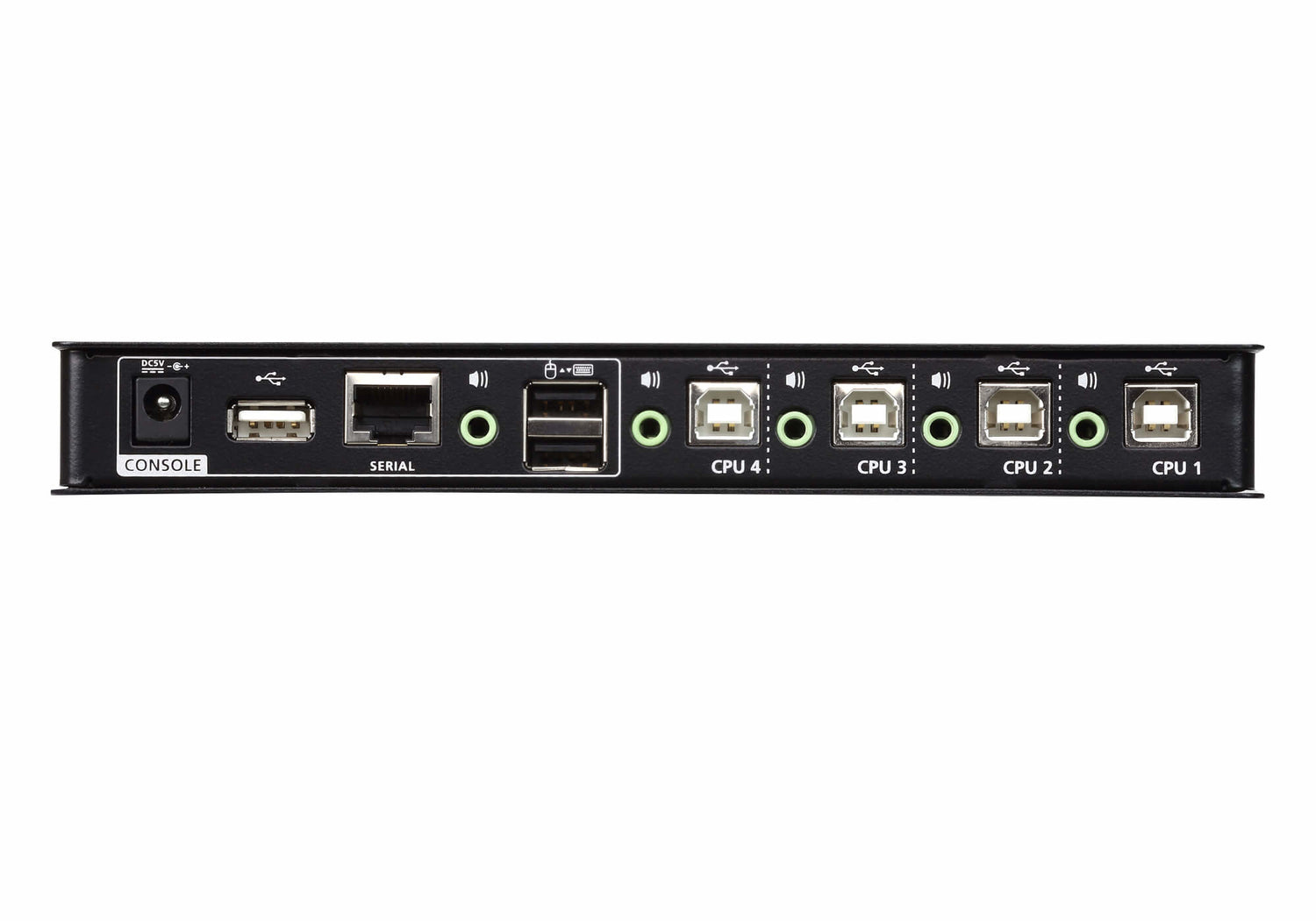

| Console ports | 3.5mm headphone, RJ–45, USB A |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB 2.0 Type-A hub ports quantity | 2 |
| DC-in jack | Yes |
| Daisy chain | Yes |
| Product colour | Black |
| Housing material | Metal, Plastic |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Power source | DC |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 200 mm |
| Depth | 80.6 mm |
| Height | 25 mm |
| Weight | 899 g |
| Package width | 62 mm |
| Package depth | 283 mm |
| Package height | 173 mm |
| Package weight | 1.07 kg |
| Cables included | Audio (3.5mm), USB |
| Manual | Yes |
| Master (outer) case net weight | 4.5 kg |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 300 mm |
| Master (outer) case length | 336 mm |
| Master (outer) case height | 194 mm |
| Master (outer) case gross weight | 5.73 kg |
| Products per master (outer) case | 5 pc(s) |
| Brand | ATEN |
| Manufacturer part number | CS724KM-AT |
| GTIN / UPC | ['5706998424013', '4719264646232', '0672792008184', '672792008184'] |
