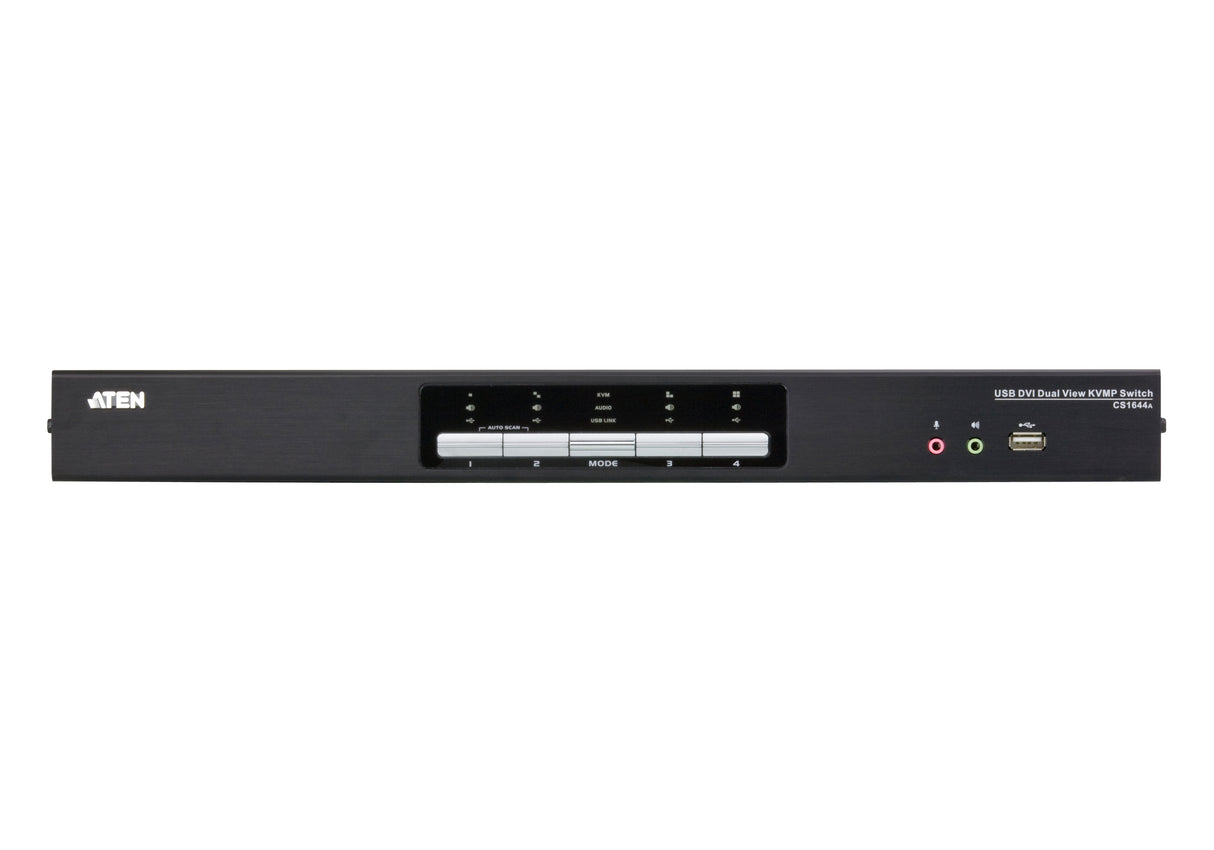

ATEN CS1644A KVM switch Rack mounting Black
Stock: 0 units
Description
Description
Product overview
The CS1644A 4-Port USB DVI Dual View KVMP™ Switch is a multi-application device that integrates a 4-port KVM switch with 2-port USB hub. The newest version now supports Quad-View functionality with two Dual View KVM Switches connected. The new CS1644A features multi-view capabilities, which allow two switches to be daisy chained for a dual, triple, or quadview display across multi-monitor installations. The CS1644A supports advanced nVidia 3D Vision ready 120Hz 3D displaying,allowing you to manage various 3D visual effects. It allows you to manipulate all connected computers from a single console to save resources and work space. It enables each computer to access connected peripherals on a one-computer-at-a-time basis, making it ideal for users who need delicate visual effects and multi-tasking on several computers. The CS1644A is perfect for graphic designers, banking and financial consultants, gamers and medical professionals- demanding a high quality switch that provides stunning color, clarity and functionality.
Why choose the ATEN CS1644A KVM switch Rack mounting Black?
The ATEN CS1644A KVM switch Rack mounting Black is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 4; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 10 |

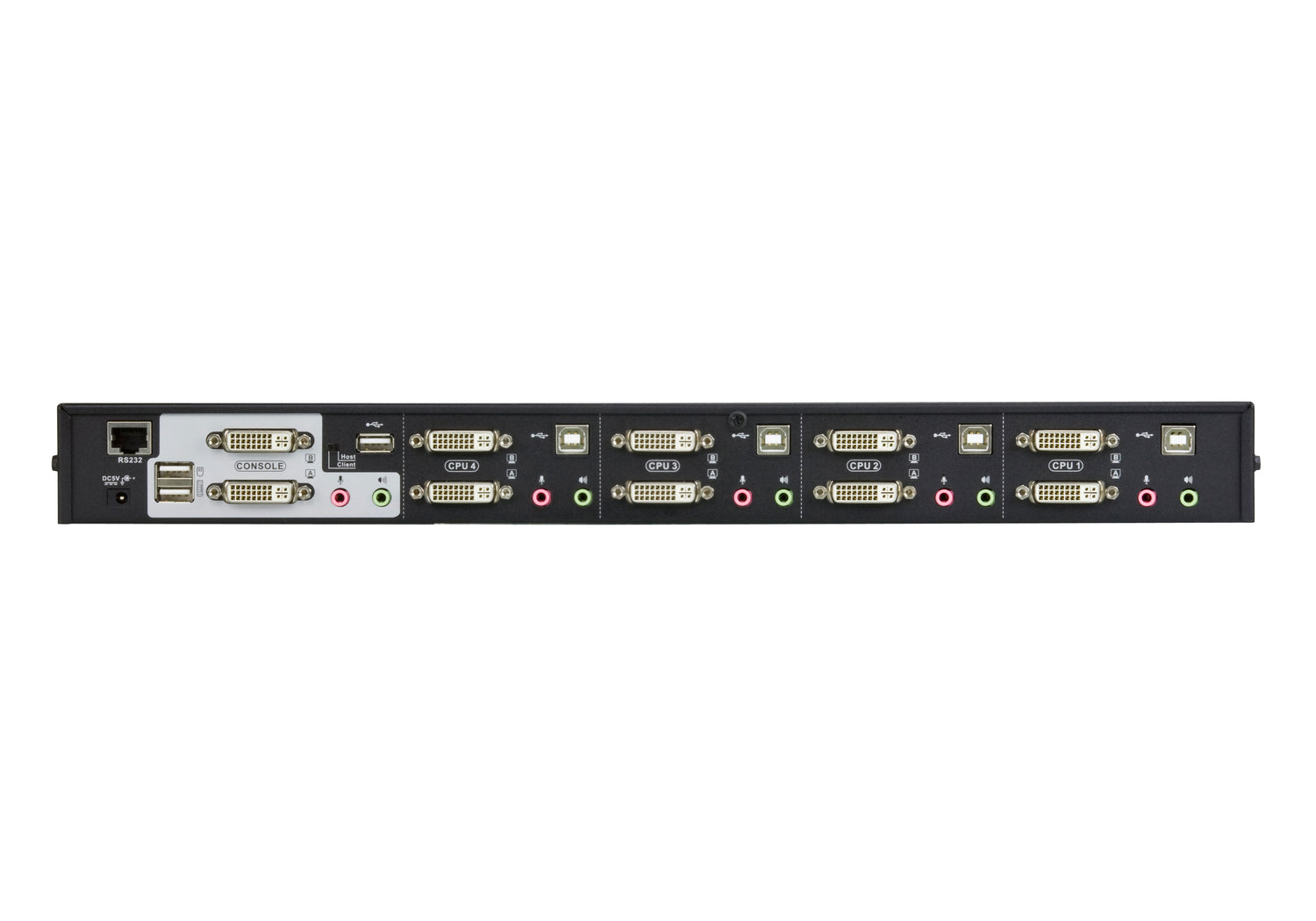

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum resolution | 2560 x 1600 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,99 s |
| HDCP | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal, Plastic |
| Push button | Yes |
| Hot keys | Yes |
| Power source | DC |
| Input voltage | 5.3 V |
| Power consumption (typical) | 12.19 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | FreeBSD |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 437.2 mm |
| Depth | 159.8 mm |
| Height | 44 mm |
| Weight | 2.32 kg |
| Cables included | KVM |
| Manual | Yes |
| Brand | ATEN |
| Manufacturer part number | CS1644A |
| GTIN / UPC | ['0672792004278', '672792004278', '5712505205716', '6727920042784', '0672792100680', '672792100680', '5057103057573'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
