StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows Only - TAA
Stock: 10 units
StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS2...
Description
Description
Product overview

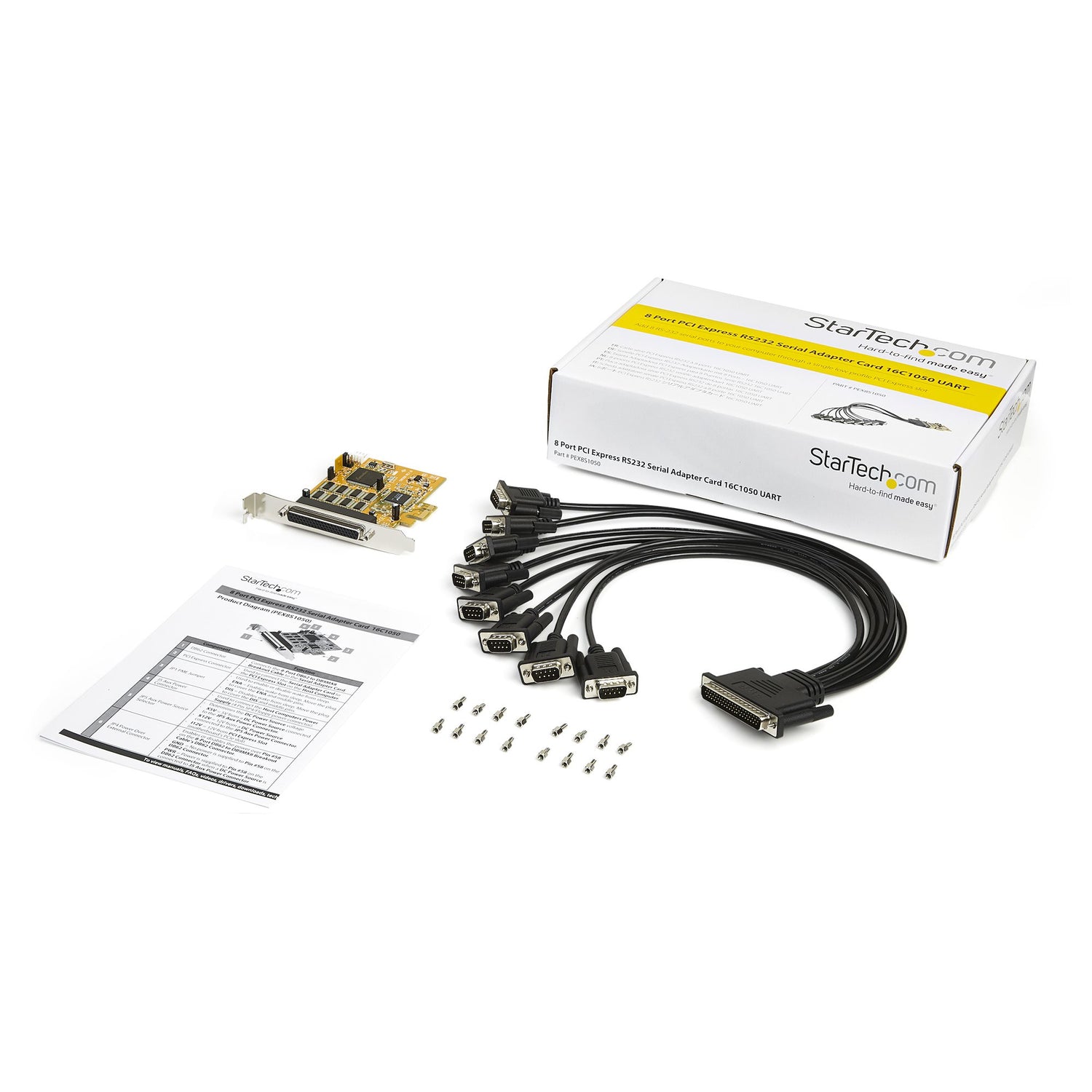

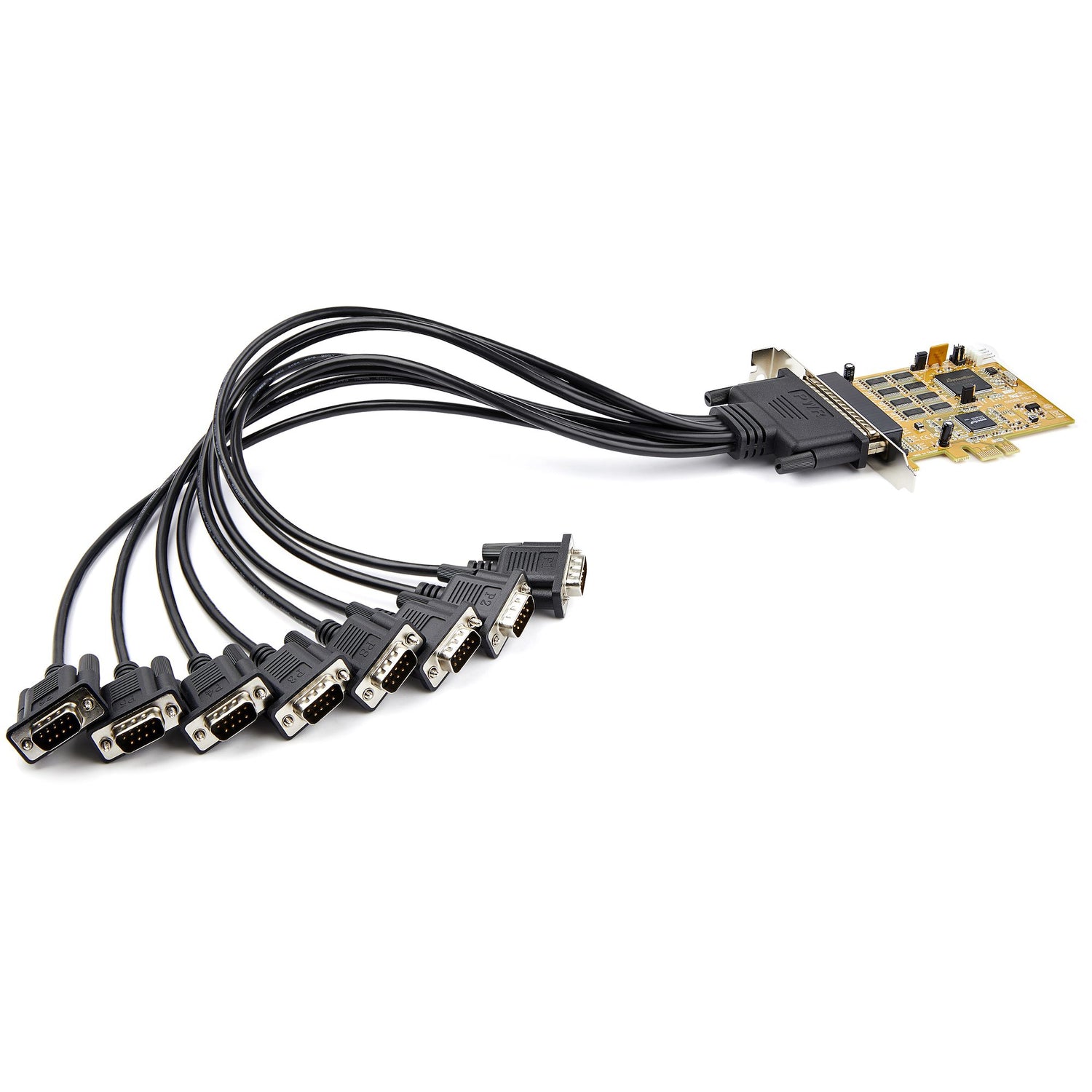

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Full Profile Serial Card Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors. Windows Only This PCI Express card is only compatible with Windows and Windows server.
Why choose the StarTech.com 8-Port PCI Express RS232 Serial Adapter Card...?
The StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: Serial; Serial ports quantity: 8. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
| Internal | Yes |
| Product colour | Yellow |
| Maximum cable length | 0.5 m |
| Mean time between failures (MTBF) | 160013 h |

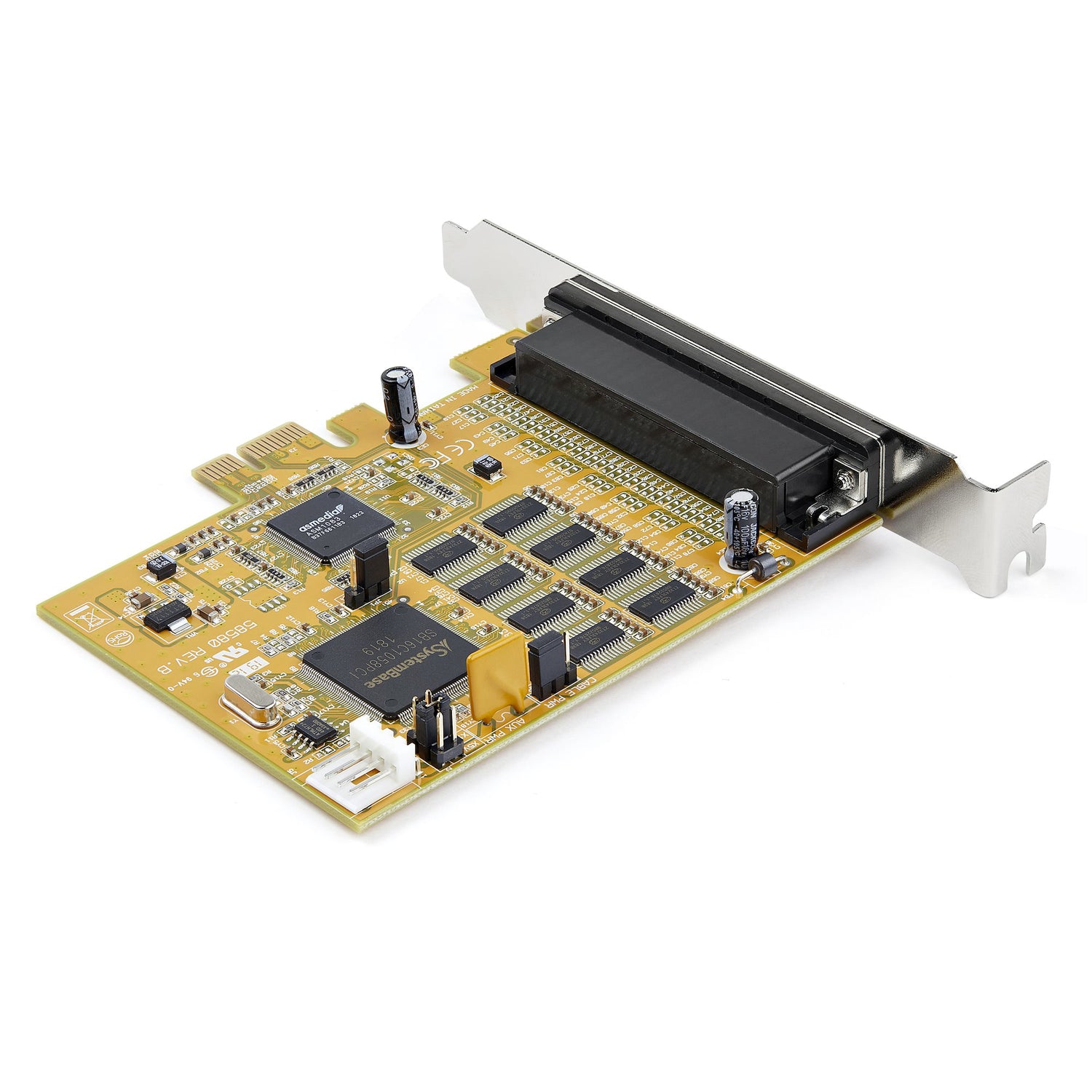

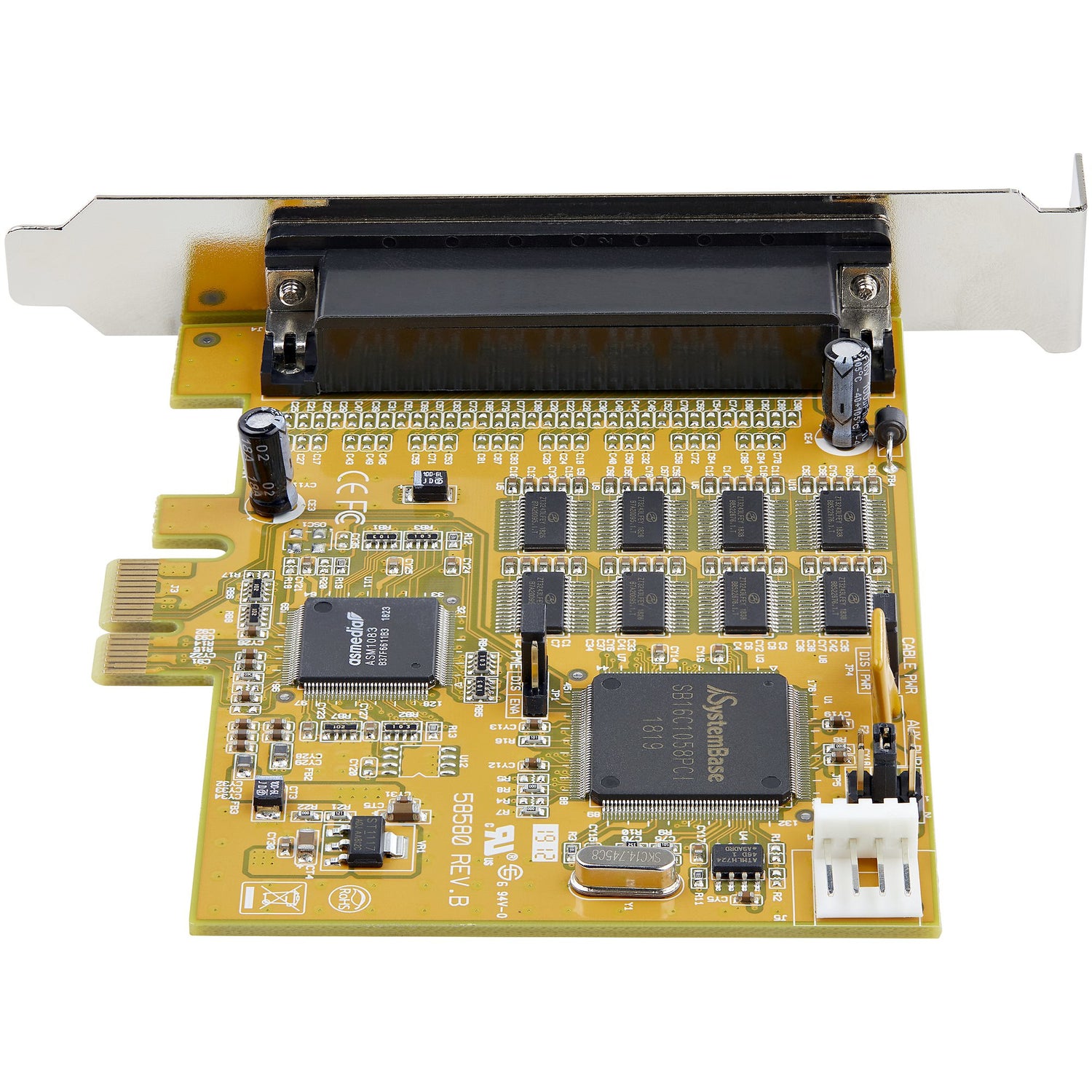

| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | RoHS |
| Width | 16 mm |
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 74 g |
| Cables included | Serial |
| Quick installation guide | Yes |
| Package width | 192 mm |
| Package depth | 294 mm |
| Package height | 70 mm |
| Package weight | 672 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case width | 519 mm |
| Master (outer) case length | 404 mm |
| Master (outer) case height | 330 mm |
| Compliance industry standards | 16C1050 UART |
| Brand | StarTech.com |
| Manufacturer part number | PEX8S1050 |
| GTIN / UPC | ['0065030888295', '065030888295'] |
