Product overview

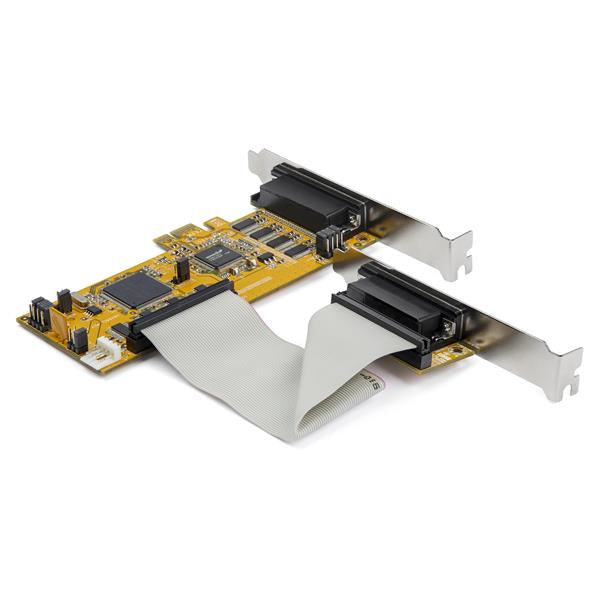

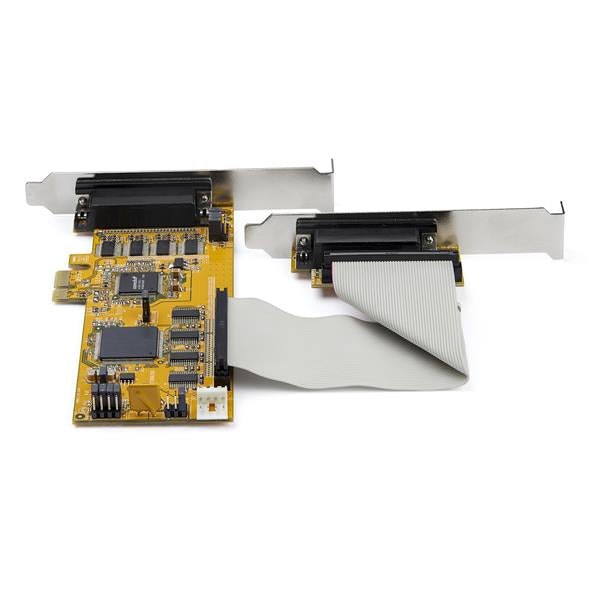

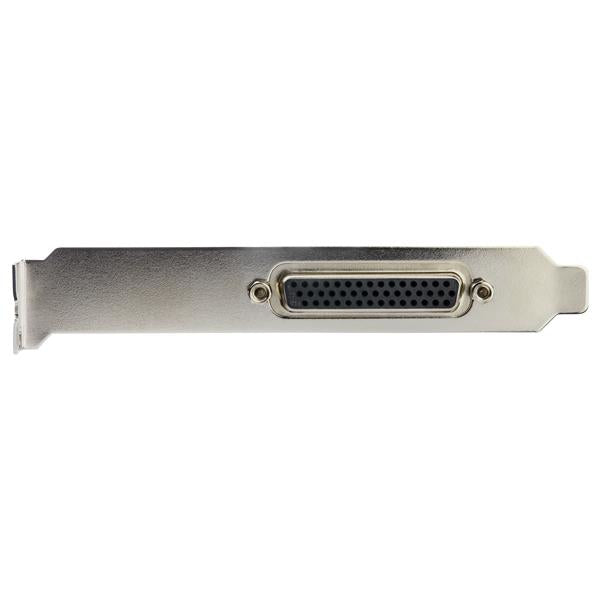

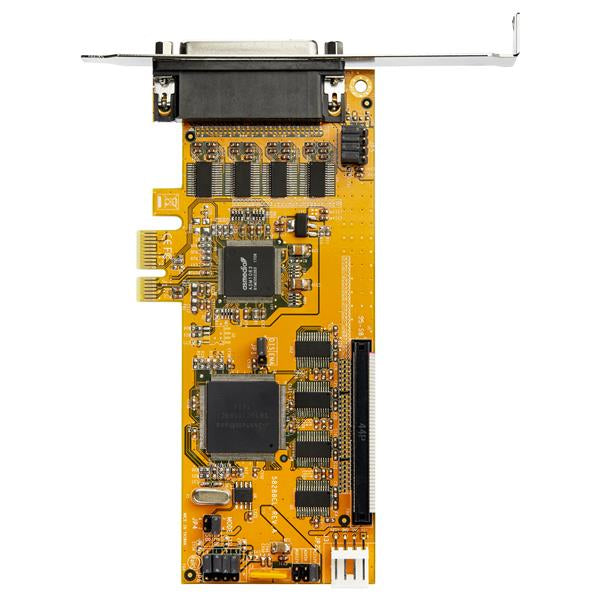

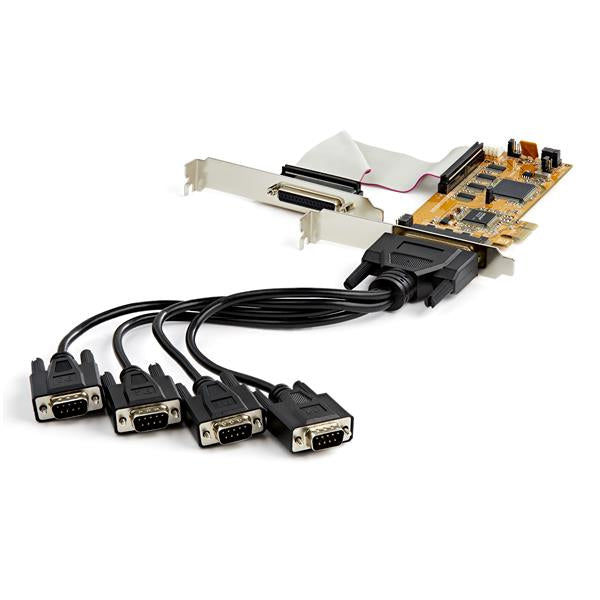

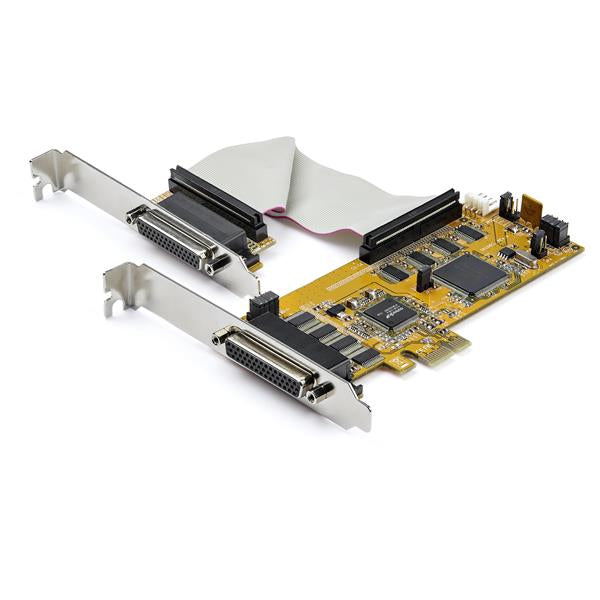

Add eight RS-232 capable DB9 Serial Ports to a desktop computer via PCIe x1 Expansion Card - Low Profile Serial Card (Full Profile Brackets Incl.) Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps. Connect your Peripherals with 8 Serial Ports The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors. Versatile Use The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor. Windows Only This PCI Express card is only compatible with Windows and Windows server.
Why choose the StarTech.com 8-Port PCI Express RS232 Serial Adapter Card...?
The StarTech.com 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232... is a interface cards/adapters from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Host interface: PCIe; Output interface: Serial; Expansion card form factor: Full-height / Low-profile. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Serial ports quantity | 8 |
| Serial interface type | RS-232 |
| Internal | Yes |
| Product colour | Yellow |
| Certification | CE, FCC, TAA |
| Chipset | ASMEDIA - ASM1083, SYSTEMBASE - SB16C1058PCI |
| Baud rate | 926.1 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5, 6, 7, 8 |
| Stop bits | 1, 1.5, 2 |
| Flow control support | Yes |
| Parity bit | Even, No, Odd |
| Flow Control type | RTS/CTS, XON/XOFF |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000... |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019 |
| Compliance certificates | RoHS |
| Width | 22 mm |
| Depth | 145 mm |
| Height | 60 mm |
| Weight | 116 g |
| Quantity | 1 |
| Cables included | Serial |
| Mounting brackets included | Yes |
| User guide | Yes |
| Package width | 192 mm |
| Package depth | 293 mm |
| Package height | 70 mm |
| Package weight | 750 g |
| Harmonized System (HS) code | 84733020 |
| Products per master (outer) case | 14 pc(s) |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 510 mm |
| Master (outer) case height | 328 mm |
| Brand | StarTech.com |
| Manufacturer part number | PEX8S1050LP |
| GTIN / UPC | ['0065030886574', '065030886574'] |
