StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC Card - TAA
Stock: 0 units
Description
Description
Product overview
Add a Gigabit RJ45 port through a Mini PCI Express slot The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards. Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios. Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Why choose the StarTech.com Mini PCI Express Gigabit Ethernet Network...?
The StarTech.com Mini PCI Express Gigabit Ethernet Network Adapter NIC... is a network cards from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Host interface: Mini PCI Express; Interface: Ethernet. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Host interface | Mini PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| VLAN tagging | Yes |
| Internal | Yes |

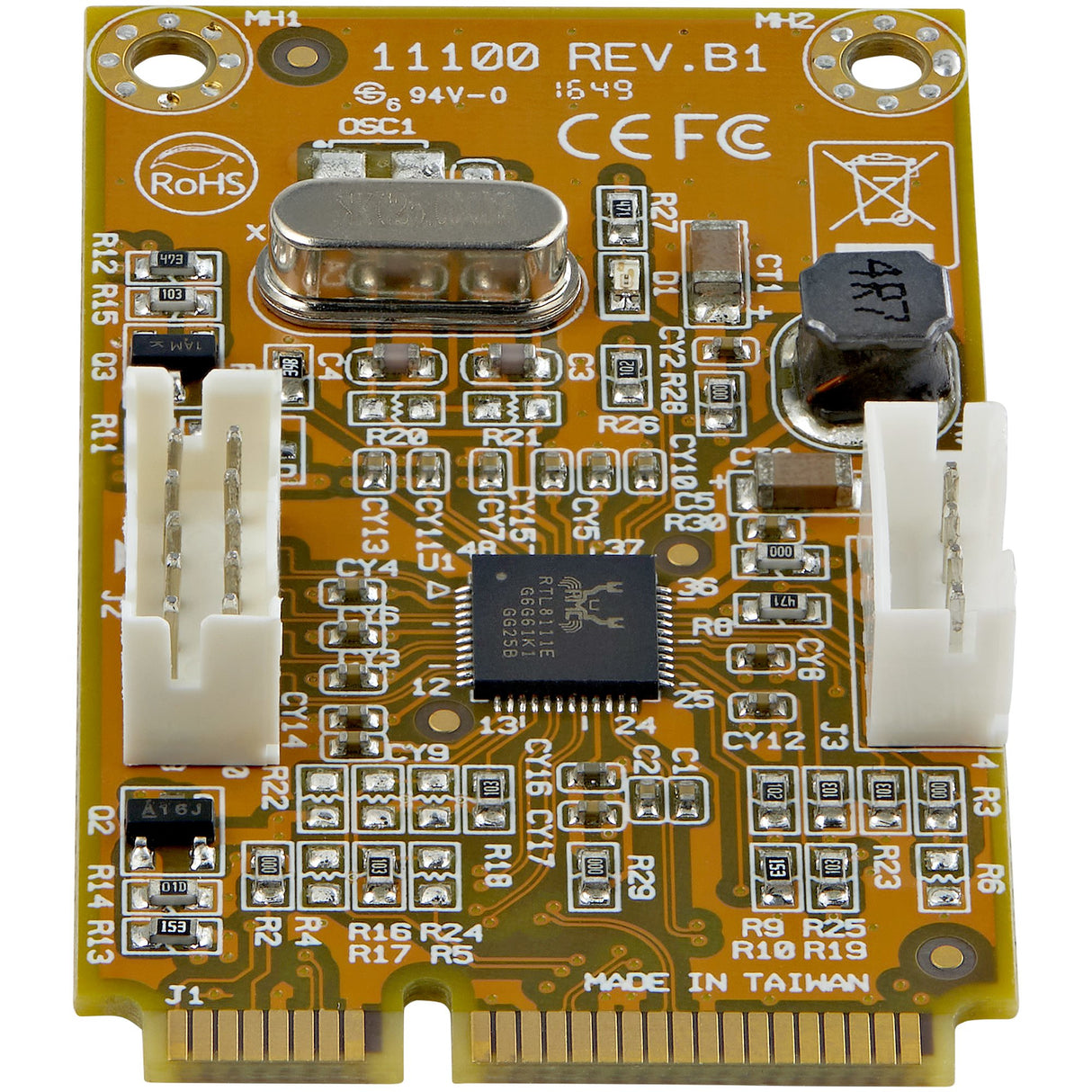

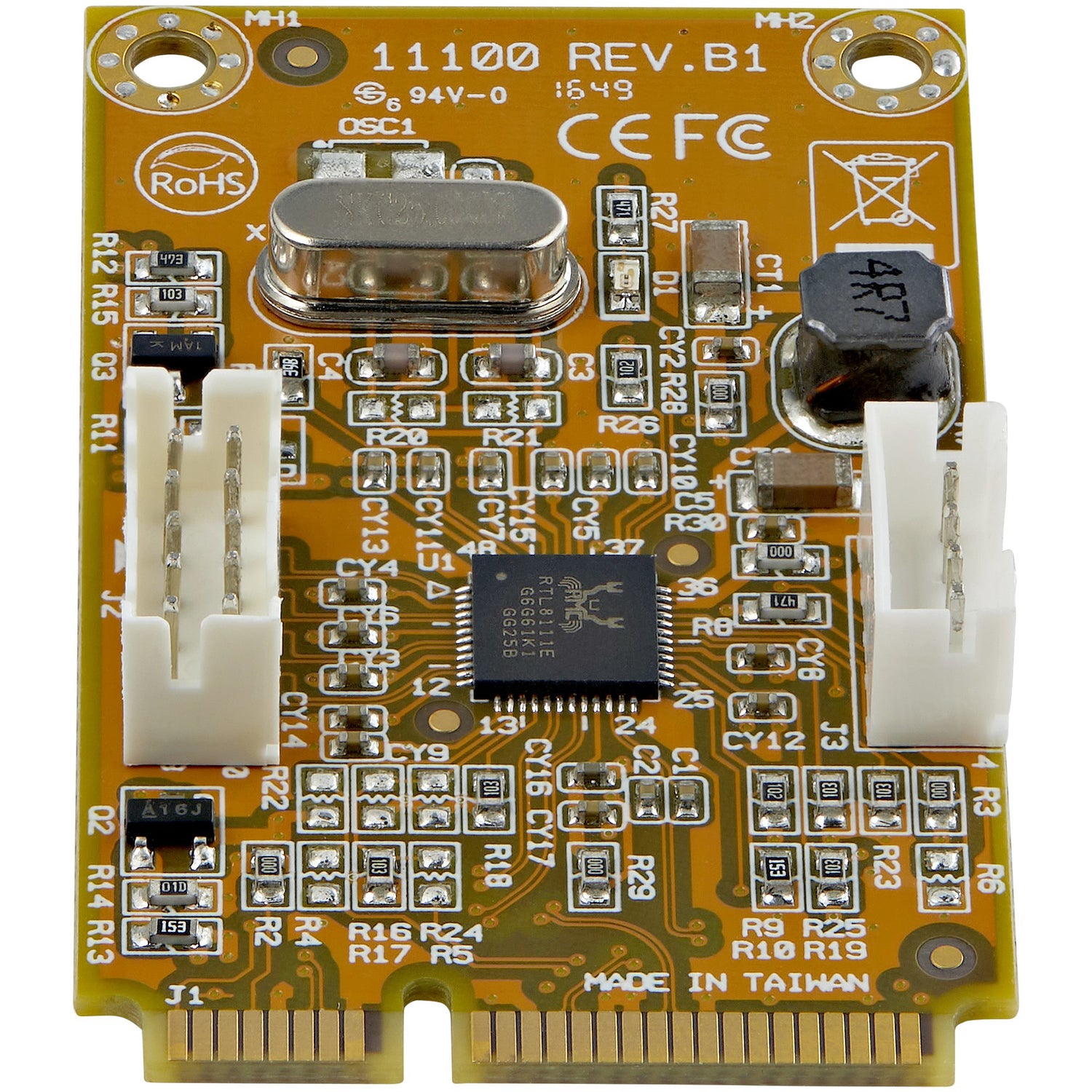

| Chipset | Realtek - RTL8111E |
| LED indicators | Activity, Link |
| Mean time between failures (MTBF) | 482765 h |
| Certification | CE, FCC |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000... |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 30 mm |
| Depth | 51 mm |
| Height | 8 mm |
| Weight | 6 g |
| Drivers included | Yes |

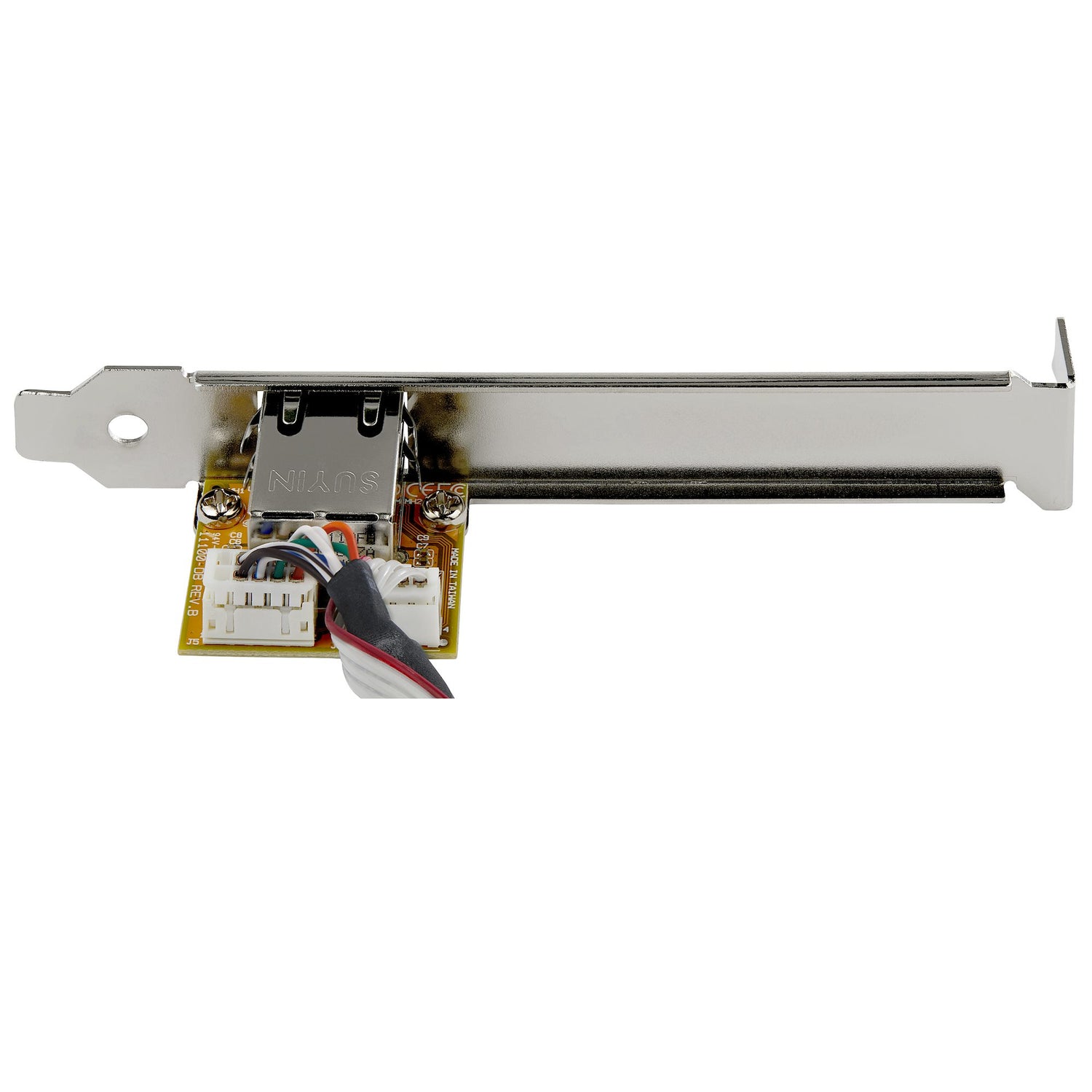

| Low-profile bracket | Yes |
| Quantity per pack | 1 pc(s) |
| Package width | 144 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 150 g |
| Manual | Yes |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Brand | StarTech.com |
| Manufacturer part number | ST1000SMPEX |
| GTIN / UPC | ['0065030846554', '065030846554', '0650308465546', '650308465546', '0012300424660', '012300424660'] |
