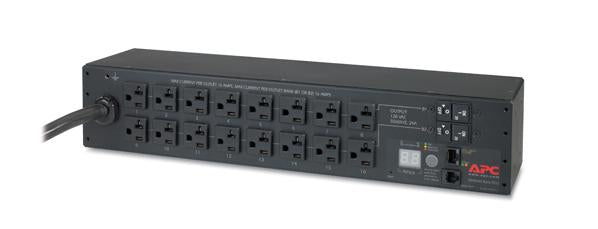

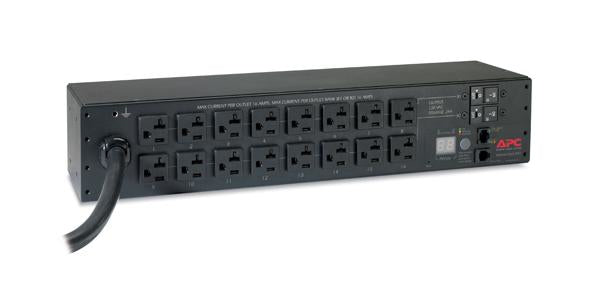

APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black
Stock: 0 units
Description
Description
Product overview
AP7802BFeatures. Rack PDU, Metered, 2U, 30A, 120V, (16) 5-20. Resettable circuit breakers. Enables a quick recovery from overload events. Marketing Features. Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Alarm Thresholds. Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. Load indicator LED. Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. Local Current Monitoring Display. The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. Local and web-based monitoring. Status available to customers both in the data center and remotely. Agility. Wide range of input and output connections. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip. Single input power source. Supply power from one branch whip...
Why choose the APC AP7802B power distribution unit (PDU) 16 AC outlet(s)...?
The APC AP7802B power distribution unit (PDU) 16 AC outlet(s) 2U Black is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Metered; Rack capacity: 2U; Product colour: Black. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Metered |
| Rack capacity | 2U |
| Product colour | Black |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | NEMA 5–20R |
| Input connection type | NEMA L5-30P |
| LED indicators | Alarm |
| Cable length | 3.66 m |
| Monitoring | Current |
| Nominal input voltage | 100 - 120 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Nominal output voltage | 120 V |
| Load capacity | 2880 VA |
| Maximum total current draw per phase | 24 A |
| Power protection features | Overload |
| Maximum power | 14400 W |
| Compliance certificates | RoHS |
| Certification | cUL Listed, CSA, FCC Part 15 Class A, ICES-003, UL 60950, UL Listed |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Width | 444 mm |
| Depth | 112 mm |
| Height | 88 mm |
| Weight | 3.36 kg |
| Package weight | 4.44 kg |
| Package width | 508 mm |
| Package depth | 368 mm |
| Package height | 140 mm |
| Brand | APC |
| Manufacturer part number | AP7802B |
| GTIN / UPC | ['0731304331476', '731304331476'] |
