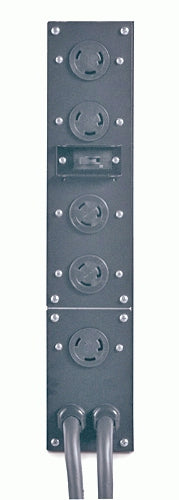

APC Service Bypass Panel - 200/208/240V power distribution unit (PDU) Black
Stock: 0 units
Description
Description
Product overview
19 inch Rack-Mountable. Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source. Quick Transfer Rate. Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance. Wrap Around System Bypass. (3) Breaker maintenance bypass panel to isolate the UPS from the critical load. Meets UL Requirements
Why choose the APC Service Bypass Panel - 200/208/240V power distribution...?
The APC Service Bypass Panel - 200/208/240V power distribution unit (PDU)... is a power distribution units (pdus) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product colour: Black; Input connection type: NEMA L6-30P; Output connections: 2x NEMA L6-20R 2x NEMA L6-30R. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Workstation and mobile device charging
- Point-of-sale and kiosk equipment
- Network closets and edge devices
- Field and remote work kits
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product colour | Black |
| Input connection type | NEMA L6-30P |
| Output connections | 2x NEMA L6-20R 2x NEMA L6-30R |
| Cable length | 3.05 m |
| AC input frequency | 50 - 60 Hz |
| Load capacity | 5000 VA |
| Maximum input current per phase | 24 A |
| Maximum total current draw per phase | 24 A |
| Certification | CSA,EN 60950,GOST,IEC 60950,IEC 60950,UL 1778 |
| Operating temperature (T-T) | -20 - 50 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 432 mm |
| Depth | 660 mm |
| Height | 89 mm |
| Weight | 13.6 kg |
| Package weight | 24.5 kg |
| Package width | 610 mm |
| Package depth | 991 mm |
| Package height | 203 mm |
| Brand | APC |
| Manufacturer part number | SBP5000RMT2U |
| GTIN / UPC | ['0731304212584', '731304212584'] |
