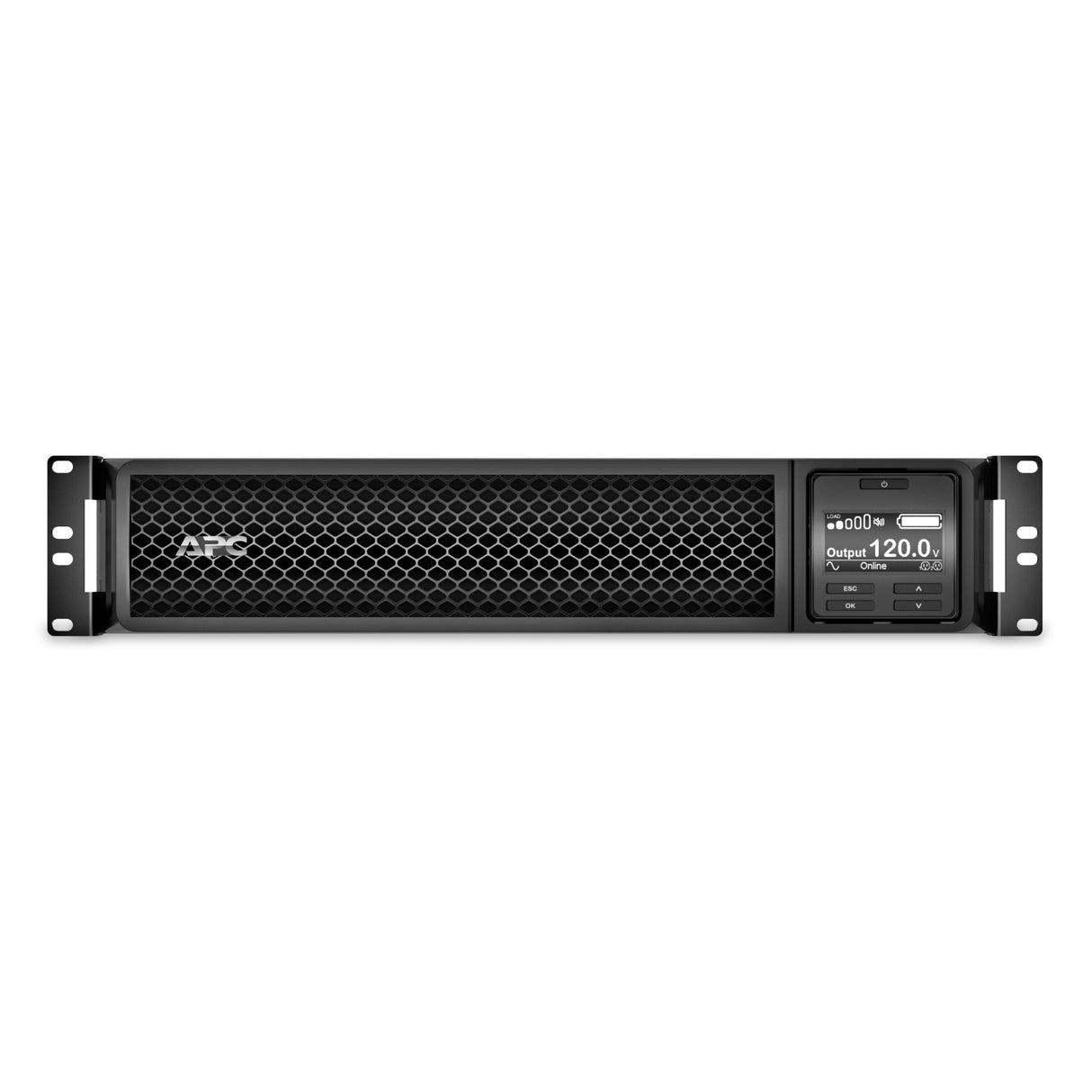

APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R NEMA outlets, Network Card, Extended runtime, W/ rail kit
Stock: 7 units
APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-2...
Description
Description
Product overview
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 2200VA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6x NEMA 5-15R and 1x NEMA L5-20R outlets. The UPS has a preinstalled Network Management Card for UPS network-based monitoring and management. This On-Line UPS features Unity Power Factor for best-in-class power density. With 7 outlets and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. This UPS includes a pre-installed Network Management Card (model AP9631) via the SmartSlot, to remotely monitor and control the UPS by connecting it directly to the network. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. Use the intuitive LCD interface and PowerChute Business software to configure settings and monitor usage. Audible alarms also provide notification of changing utility power and UPS conditions. The SRT2200RMXLA-NC converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. This 1800 watt UPS offers a green mode to ensure you are operating at the highest level of efficiency while it’s smart battery management maximizes performance. Two switchable outlet groups are included for individual load management. Predictive...
Why choose the APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x...?
The APC Smart-UPS On-Line, 2200VA, Rackmount 2U, 120V, 6x 5-20R+1x L5-20R... is a uninterruptible power supplies (upss) from APC, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — UPS topology: Double-conversion (Online); Output power capacity: 2.2 kVA; Output power: 1800 W. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 kVA |
| Output power | 1800 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 120 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 50/60 Hz |
| Surge energy rating | 340 J |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 120 V |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 55 dB |
| Surge protection | Yes |
| Audible alarm(s) | Yes |
| Auto-restart | Yes |
| AC outlet types | NEMA 5–20R, NEMA L5-20R |
| Power plug | NEMA 5-20P |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| SmartSlot | Yes |
| Battery replacement accessibility | End-user |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 306 Ah |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Automatic battery test | Yes |
| Cold start | Yes |
| Replacement battery cartridge | APCRBC141 |
| Form factor | Rackmount/Tower |
| Rack capacity | 2U |
| Cable length | 1.8 m |
| Product colour | Black |
| Brand | APC |
| Manufacturer part number | SRT2200RMXLA-NC |
| GTIN / UPC | ['0731304325154', '731304325154'] |
