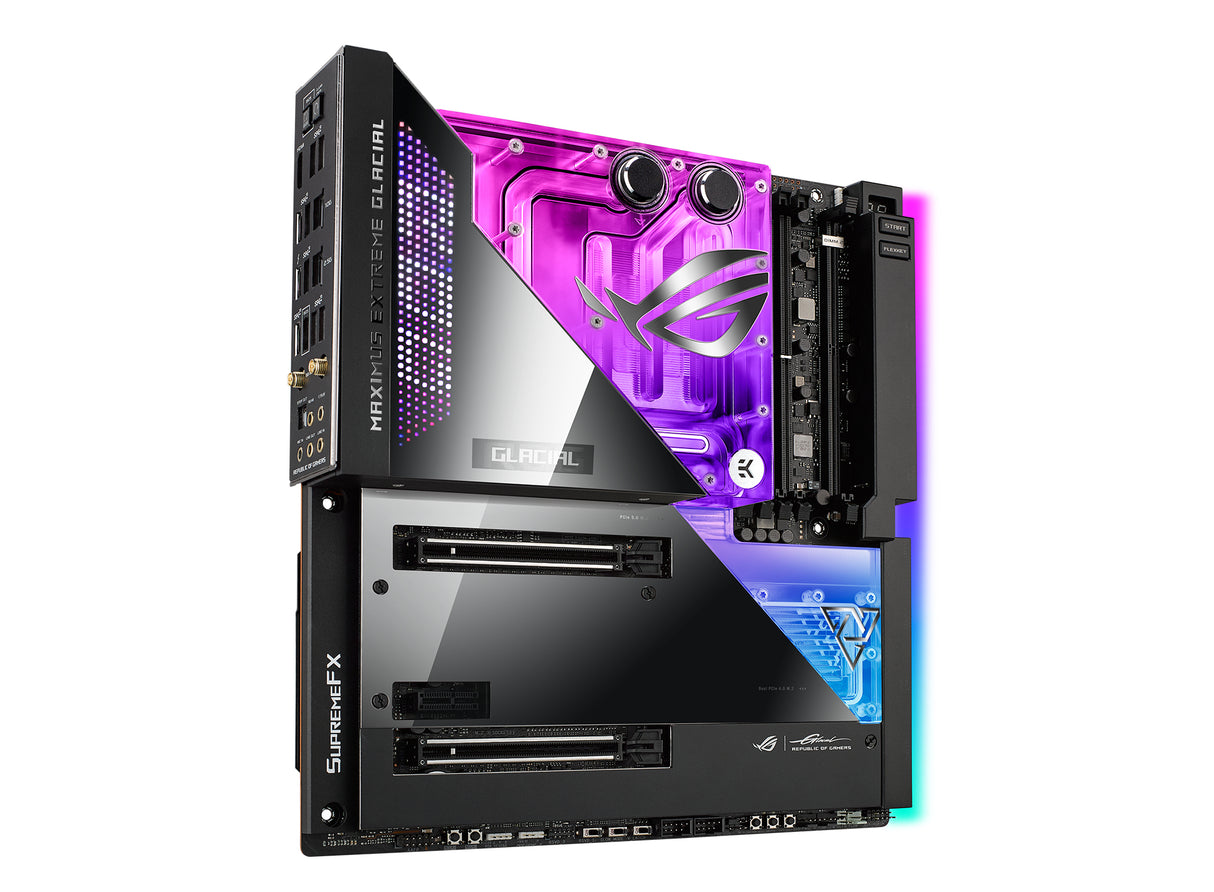

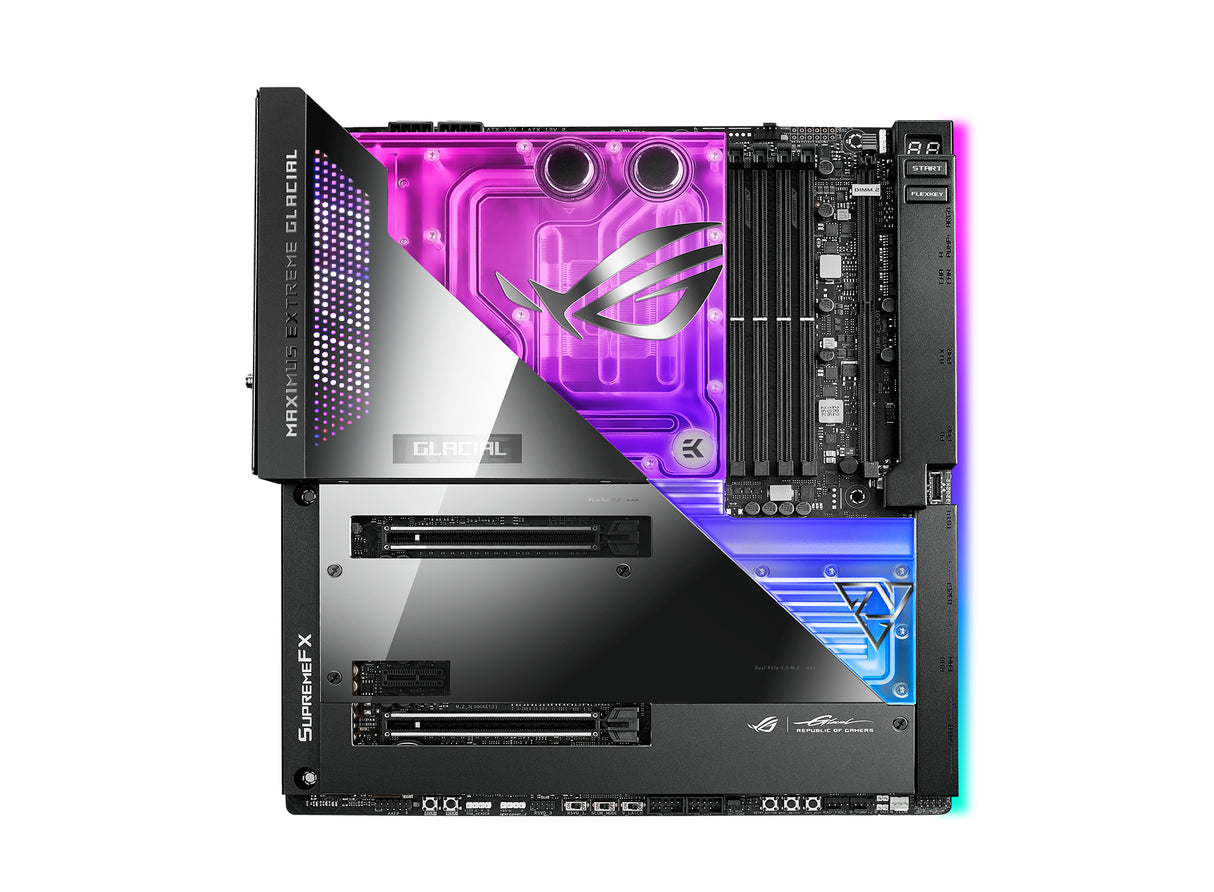

ASUS ROG MAXIMUS Z690 EXTREME GLACIAL Intel Z690 LGA 1700 Extended ATX
Stock: 0 units
Description
Description
Product overview
ROG Maximus Z690 Extreme Glacial. ROG Maximus Z690 Extreme Glacial is the pinnacle of liquid-cooled engineering. It features an eye-catching monolithic cooling system known simply as the EK UltraBlock, which can effortlessly chill the entire motherboard with a carefully engineered labyrinth of water channels, sensors, and heatsinks. The Z690 Extreme Glacial also builds upon knowledge gained from engineering the previous generation to ambitiously expand an already ample landscape of heatsinks and coolant circulation. Two additional M.2 slots now benefit from UltraBlock magic, and VRM cooling has been boosted even further to support the power stages that 12th Gen Intel Core processors can take advantage of. ROG X EK® ULTRABLOCK. The Z690 Extreme Glacial UltraBlock is far more than a heatsink with water channels. This product of a close collaboration with industry leader EK Water Blocks is a complete solution for custom-loop motherboard cooling, covering the CPU, VRMs, onboard M.2 slots, PCH, and even the integrated LAN. EK Active Contact Cooling can keep M.2 drives at optimal temperatures, while 57 microfins swiftly channel water over the central processor. The ROG Water-Cooling Zone offers a sensor array that continually monitors coolant flow, temperatures, and seal integrity, and the PCH cooling block features a fin stack to enhance heat dissipation. Meanwhile, the UltraBlock has an aesthetic to match its performance, thanks to the industry-first AniMe Matrix display and a 2-inch OLED LiveDash that can display live system stats. COOLING. The ROG Maximus Z690 Extreme...
Why choose the ASUS ROG MAXIMUS Z690 EXTREME GLACIAL Intel Z690 LGA 1700...?
The ASUS ROG MAXIMUS Z690 EXTREME GLACIAL Intel Z690 LGA 1700 Extended ATX is a motherboards from ASUS, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Processor manufacturer: Intel; Processor socket: LGA 1700; Supported memory types: DDR5-SDRAM. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Number of storage drives supported | 11 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| Thunderbolt headers | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Thunderbolt ports quantity | 1 |
| Brand | ASUS |
| Manufacturer part number | 90MB1A60-M0EAY0 |
| GTIN / UPC | ['4711081463405'] |
