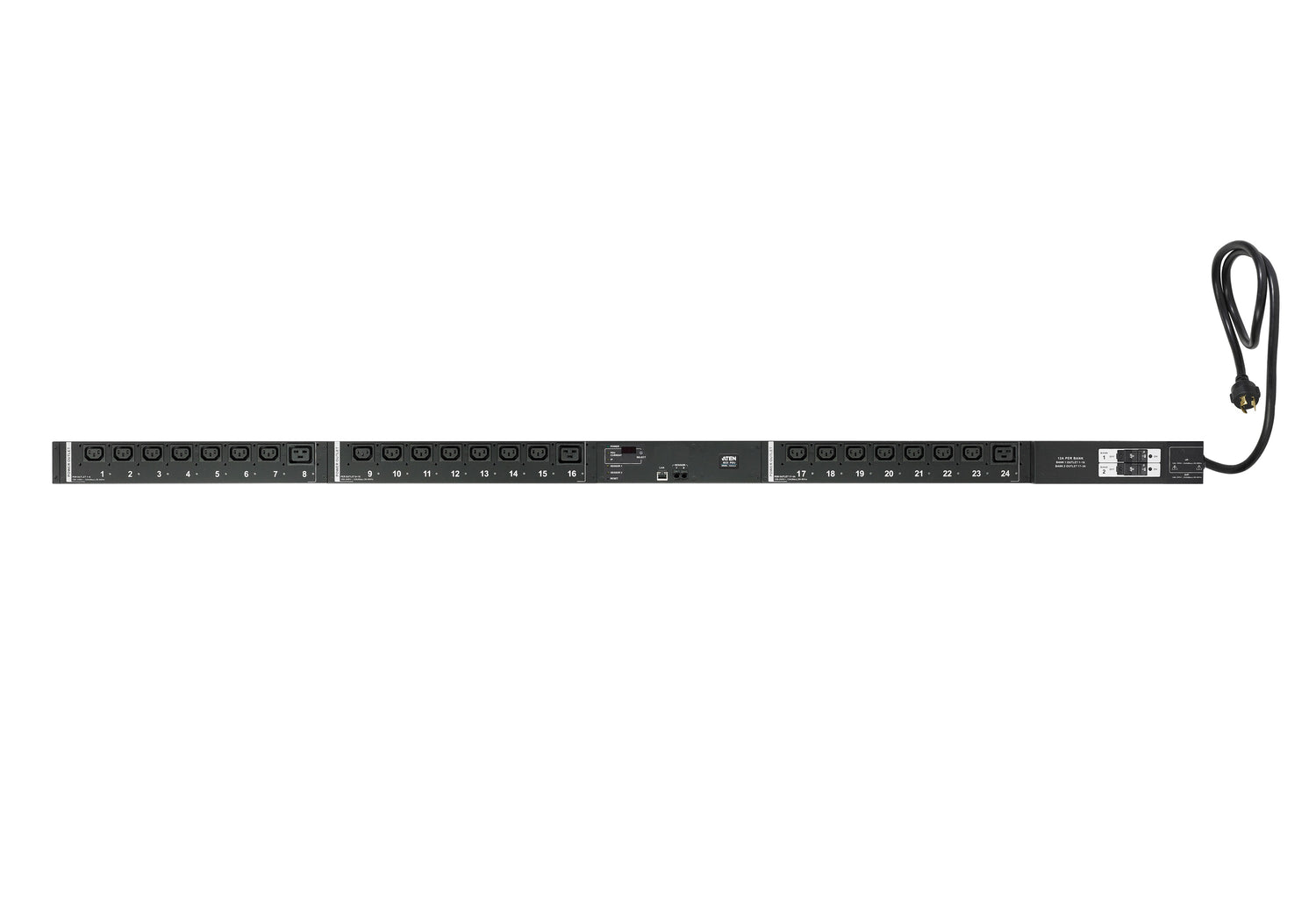

ATEN 30A/32A 24-Outlet Metered & Switched Low Profile eco PDU
Stock: 0 units
Description
Description
Product overview
The NRGence PE6324L eco PDUs are low profile intelligent PDUs that contain 24 AC outlets and are available in various IEC or NEMA socket configurations. The low profile series has a smaller input region on the PDU to provide more installation space for data centers. The PE6324L eco PDUs offers remote power control with real-time power measurement - allowing you to monitor the power status of devices attached to the PDUs, either at the PDU device or Bank level, from practically any location via a TCP/IP connection. The power status of each outlet can be set individually, allowing users to switch each device On/Off. NRGence eco PDU supports any 3rd party v1, v2 & v3 SNMP Manager Software and ATEN ecoDC (Energy Management Web GUI). eco DC provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly Graphical User Interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.
Why choose the ATEN 30A/32A 24-Outlet Metered & Switched Low Profile eco...?
The ATEN 30A/32A 24-Outlet Metered & Switched Low Profile eco PDU is a power distribution units (pdus) from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — PDU types: Metered, Monitored; Product colour: Black; AC outlets quantity: 24 AC outlet(s). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| PDU types | Metered, Monitored |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C19 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Cable length | 1.6 m |
| Security algorithms | 128-bit SSL |
| Password protection | Yes |
| Monitoring | Current, Power, Voltage |
| Supported network protocols | TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, Telnet, and SNMP V1,V2&V3 |
| Nominal input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 30 A |
| Block 1 output current | 15 A |
| Block 2 output current | 15 A |
| Nominal output voltage | 100 - 240 V |
| Load capacity | 6240 VA |
| Power protection features | Overload |
| Circuit breaker | Yes |
| Compliance certificates | Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 66 mm |
| Depth | 1775 mm |
| Height | 44 mm |
| Weight | 5.76 kg |
| Manual | Yes |
| Rack mount kit | Yes |
| Brand | ATEN |
| Manufacturer part number | PE6324LB |
| GTIN / UPC | ['0672792402739', '672792402739'] |
