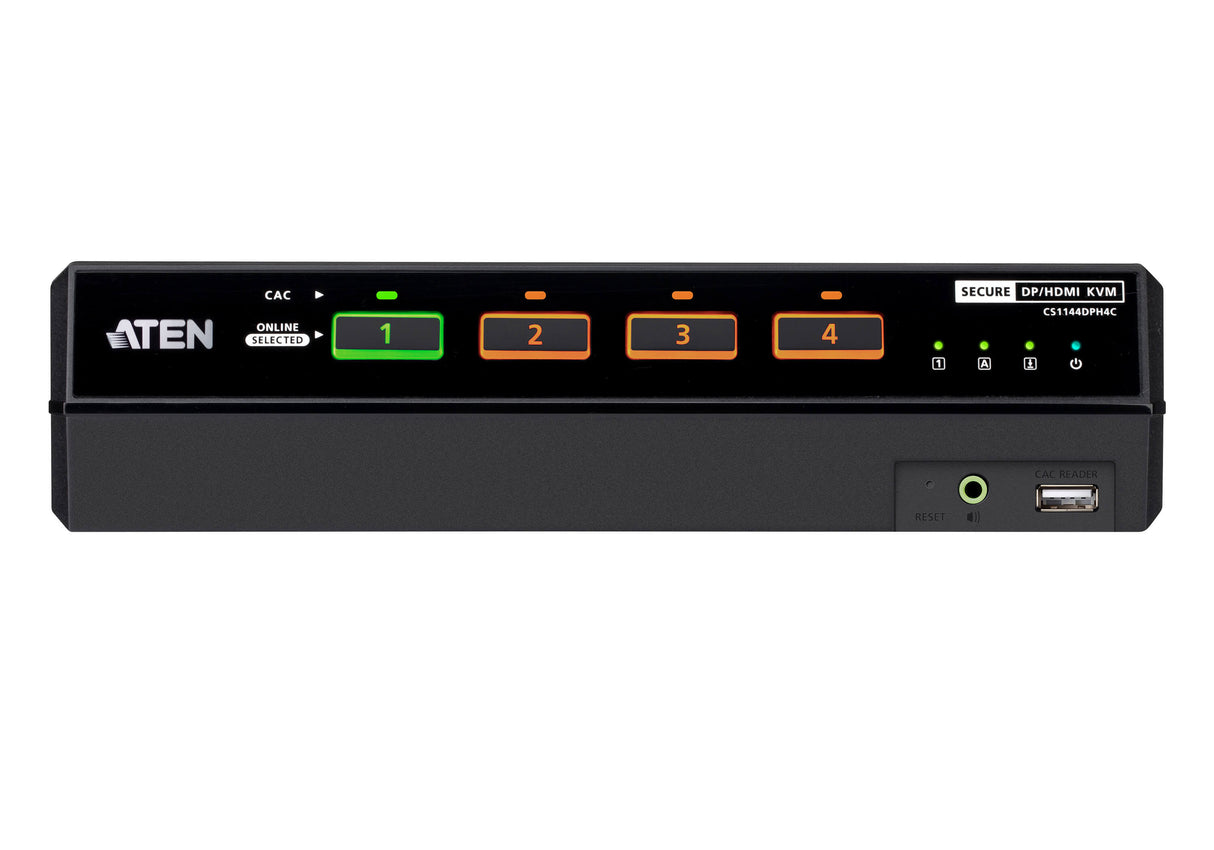

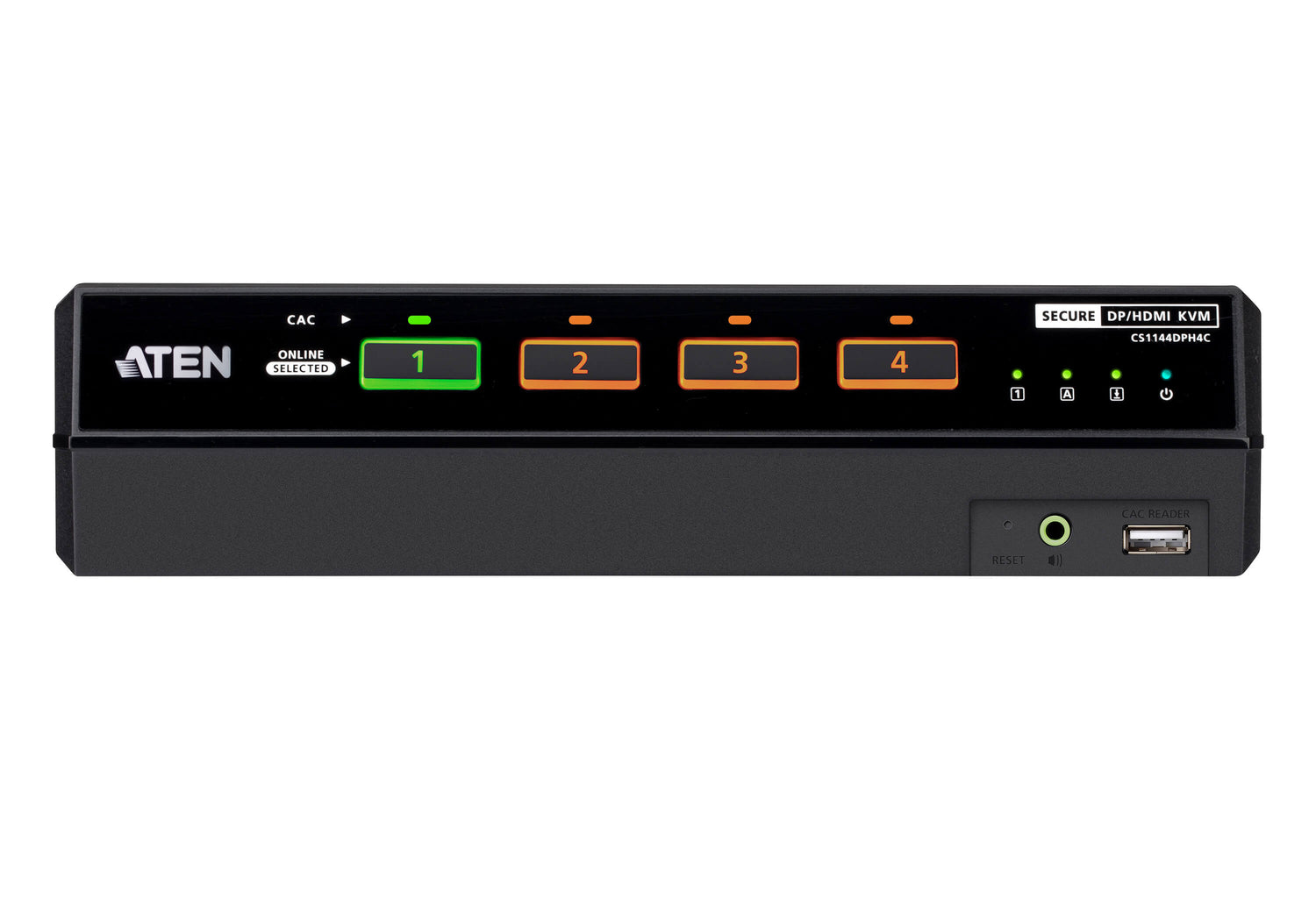

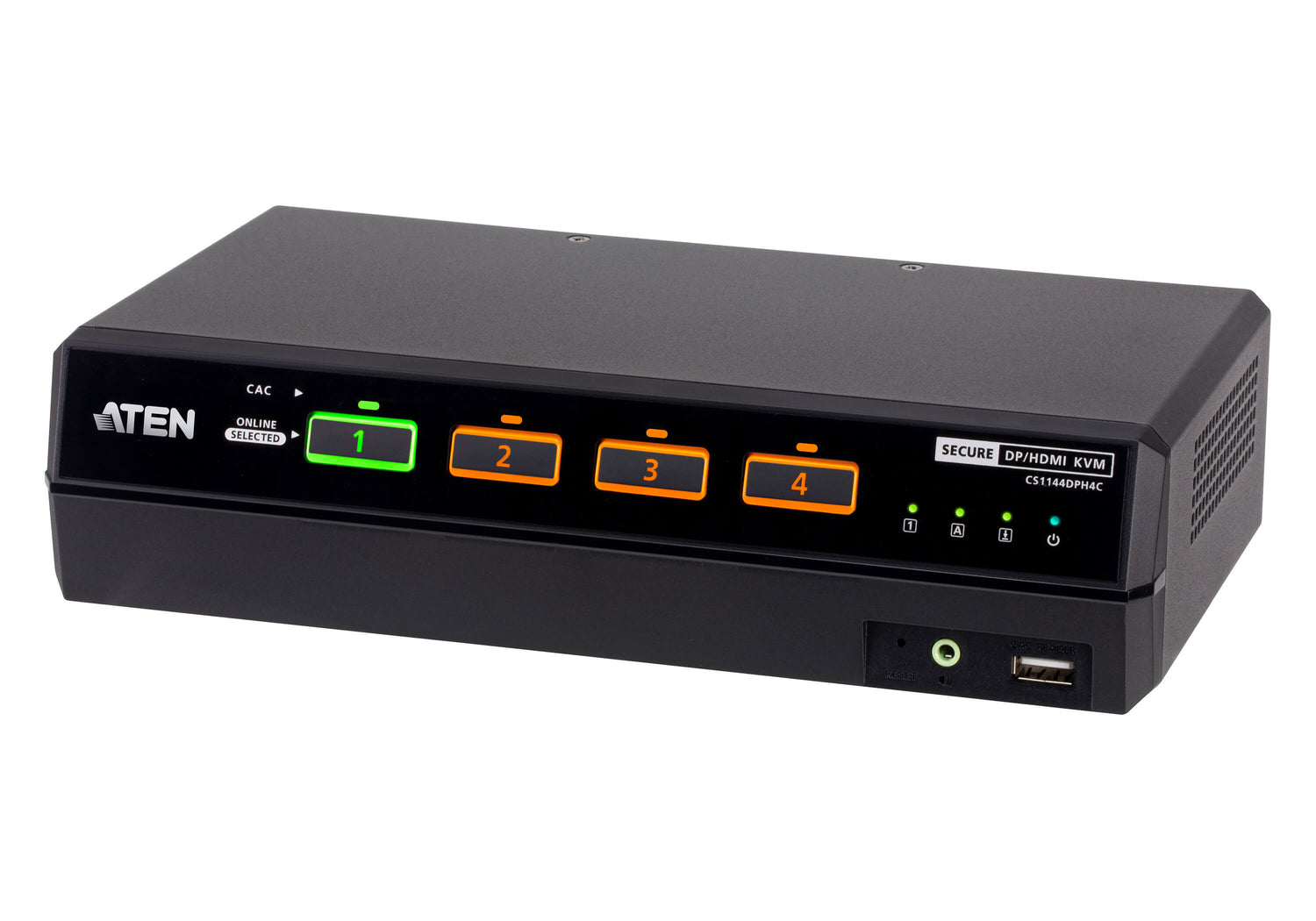

ATEN 4-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM Switch with CAC (PSD PP v4.0 Compliant)
Stock: 0 units
Description
Description
Product overview

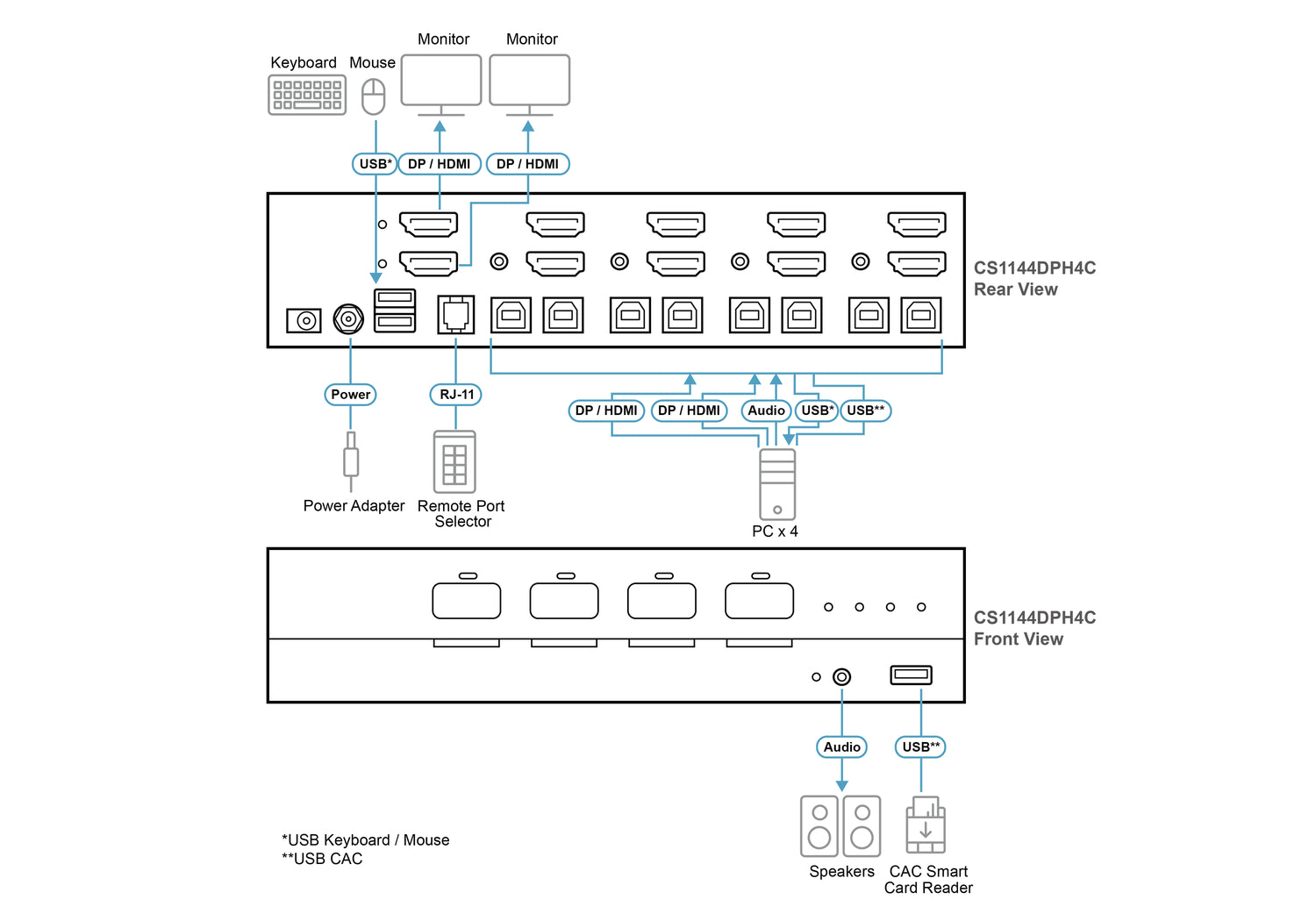

ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C is compliant with PSD PP v4.0 (Protection Profile for Peripheral Sharing Device, Version 4.0) standard certified by the National Information Assurance Partnership (NIAP). ATEN PSD PP v4.0 Universal Secure KVM Switch CS1144DPH4C provides isolation between computer sources and peripherals while sharing a single keyboard, mouse, monitor, speaker set, and Common Access Card (CAC) reader between connected computers of various security classifications. Compliance with PSD PP v4.0 ensures peripheral sharing capabilities provide maximum user data security when switching port focus, preventing unauthorized data flows or leakage between connected sources. Key protections include isolation and unidirectional data flow, restricted peripheral connectivity and filtering, user data protection, configurable device filtration and management, strict audio filtration, and always-on tamper-proof design, keeping sensitive assets isolated and providing advanced security and a user friendly design for instantly secure deployment. To fulfill different customer demands, ATEN PSD PP v4.0 Universal Secure KVM Switches offer a wide range of options, including 2-port and 4-port, CAC and Non-CAC models, and support for DisplayPort or HDMI interfaces through a single combo connector. ATEN PSD PP v4.0 Universal Secure KVM Switches also provide customers with the flexibility to...
Why choose the ATEN 4-Port USB 5K DisplayPort/HDMI Dual Display Universal...?
The ATEN 4-Port USB 5K DisplayPort/HDMI Dual Display Universal Secure KVM... is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 4; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI/DisplayPort |
| HDMI ports quantity | 8 |
| DisplayPorts quantity | 8 |
| USB 2.0 Type-B ports quantity | 8 |

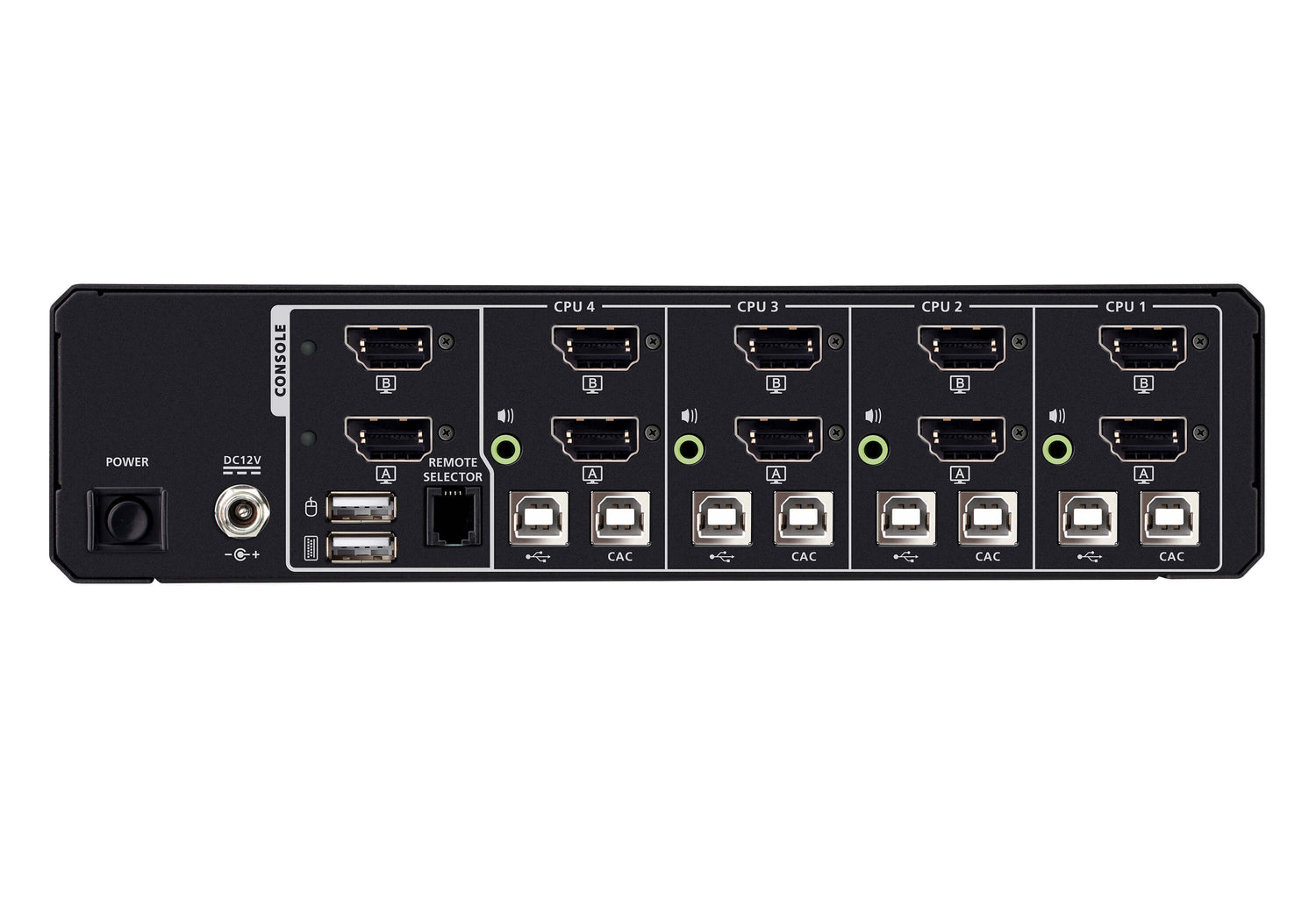

| Console ports | DisplayPort, HDMI, USB A |
| Console USB ports quantity | 2 |
| Console DisplayPorts ports quantity | 2 |
| Console HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| RJ-11 ports quantity | 1 |
| DC-in jack | Yes |
| HD type | 5K Ultra HD |
| Maximum resolution | 5120 x 2880 pixels |
| Maximum refresh rate | 144 Hz |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power, Key lock |
| Push button | Yes |
| Power source | DC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.2 A |
| Power consumption (typical) | 29.16 W |
| External power adapter | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 144.9 mm |
| Depth | 245 mm |
| Height | 60 mm |
| Weight | 1.57 kg |
| Manual | Yes |
| AC adapter included | Yes |
| Rubber feet | Yes |
| Brand | ATEN |
| Manufacturer part number | CS1144DPH4C-AT-U |
| GTIN / UPC | ['0672792016677', '672792016677'] |
