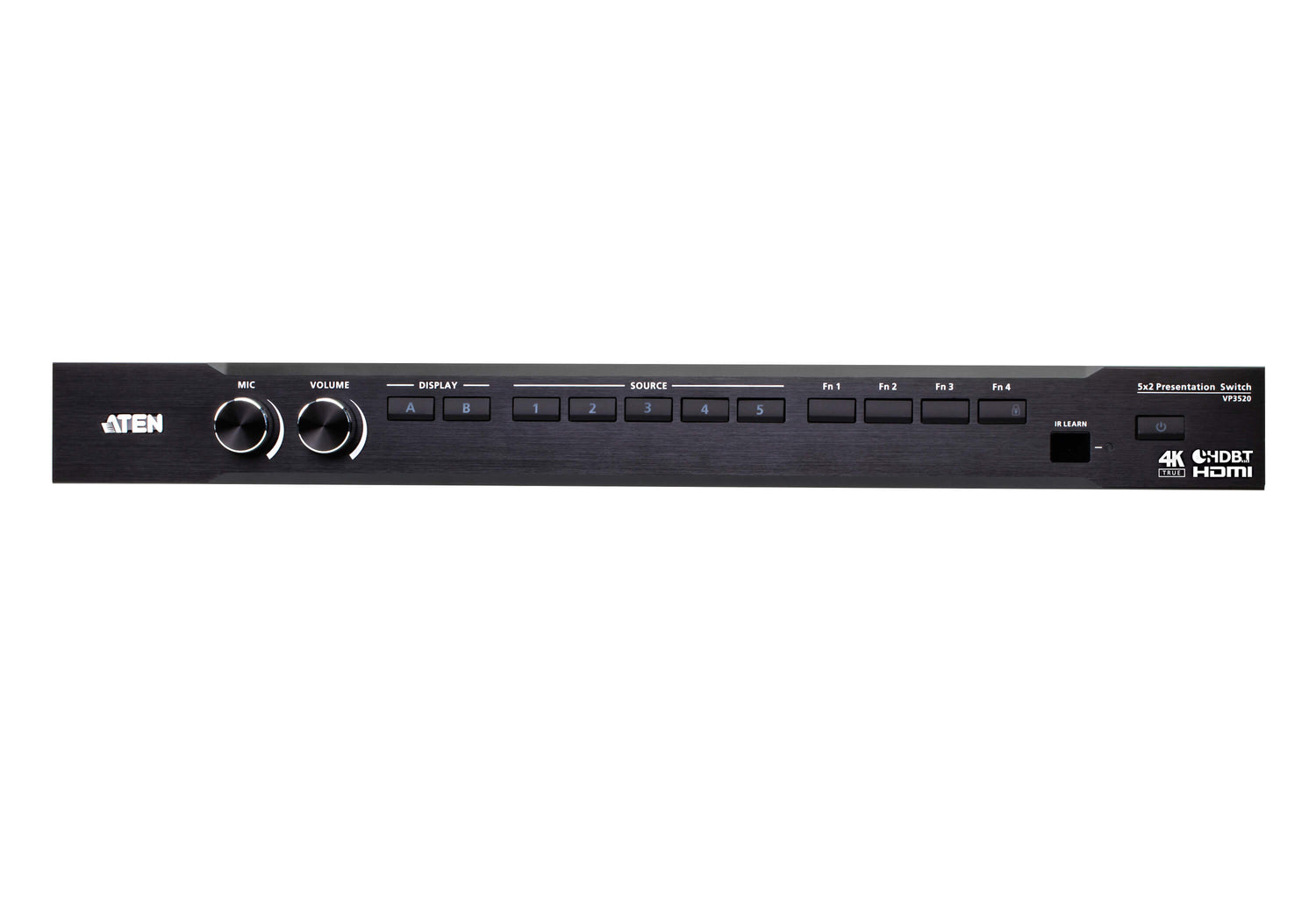

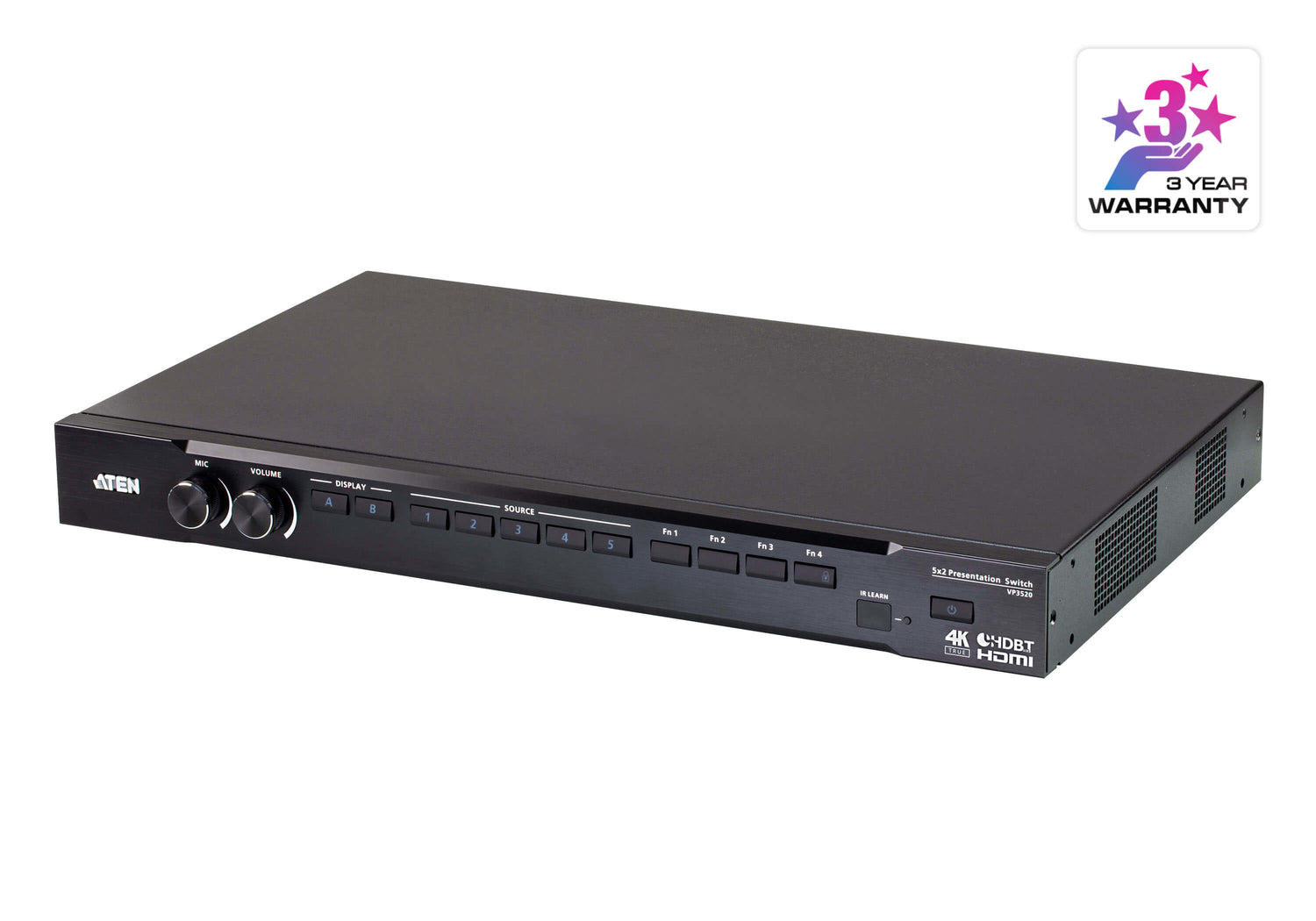

ATEN VP3520 matrix switcher Media presentation matrix switcher 46.7 W
Stock: 0 units
Description
Description
Product overview
The ATEN VP3520 is a multi-in-one presentation matrix switch that integrates a video matrix switch, 4K scaler, HDBaseT extender, and audio DSP functions into one compact device that easily mounts under a table or in a rack. The VP3520 seamless presentation matrix switch with control features the True 4K video resolutions of 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:4:4) and HDR technology, guaranteeing crystal-clear images across two displays. The VP3520 supporting 4K @ 60 Hz, HDMI, and HDCP 2.2 features Seamless Switch™ that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance 4K scaler, the VP3520 easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across the two displays. With flexible audio de-embedding, the VP3520 is designed with the audio routing flexibility to meet different application requirements. In a simple setup, HDMI audio can be connected and switched directly to display audio. For a more complex setup, the HDMI audio can be de-embedded to Audio Line Out in order to connect to your preferred in-room audio equipment. Equipped with 5 digital inputs to one HDBaseT and one HDMI True 4K separate outputs, the VP3520 enables users to control 2 displays at the same time and is designed to boost the efficiency and impact of professional presentations. The VP3520 provides users with the flexibility of using both active and passive speakers with its stereo line out port, coaxial port, and...
Why choose the ATEN VP3520 matrix switcher Media presentation matrix...?
The ATEN VP3520 matrix switcher Media presentation matrix switcher 46.7 W is a matrix switchers from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product type: Media presentation matrix switcher; Maximum resolution (HDMI): 4096 x 2160 pixels; HDCP: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product type | Media presentation matrix switcher |
| Maximum resolution (HDMI) | 4096 x 2160 pixels |
| HDCP | Yes |
| HDCP version | 2.2 |
| High Dynamic Range (HDR) supported | Yes |
| Extended display identification data (EDID) | Yes |
| Supported resolutions | 4096 x 2160, 3840 x 2160, 1920 x 1080, 1920 x 1200, 1680 x 1050, 1600 x 1200, 1440 x 900, 1400 x 1050, 1280 x 1024, 1280 x 800, 1024 x 768, 800 x 600, 720 x 400, 640 x 480 |
| Housing colour | Black |
| Remote control included | Yes |
| Rubber feet | Yes |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 1 |
| RS-232 ports | 2 |
| Analog audio output terminal ports | 1 |
| Relay outputs | 2 |
| Power consumption (max) | 46.7 W |
| Power consumption (typical) | 45.8 W |
| AC input voltage | 110 - 220 V |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Heat dissipation | 310 BTU/h |
| Heat dissipation (max) | 314 BTU/h |
| Width | 272.3 mm |
| Depth | 432.4 mm |
| Height | 44 mm |
| Package width | 338 mm |
| Package depth | 515 mm |
| Package height | 155 mm |
| Cables included | AC |
| Rack mount kit | Yes |
| Manual | Yes |
| IR receiver included | Yes |
| Brand | ATEN |
| Manufacturer part number | VP3520 |
| GTIN / UPC | ['0672792013034', '672792013034'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
