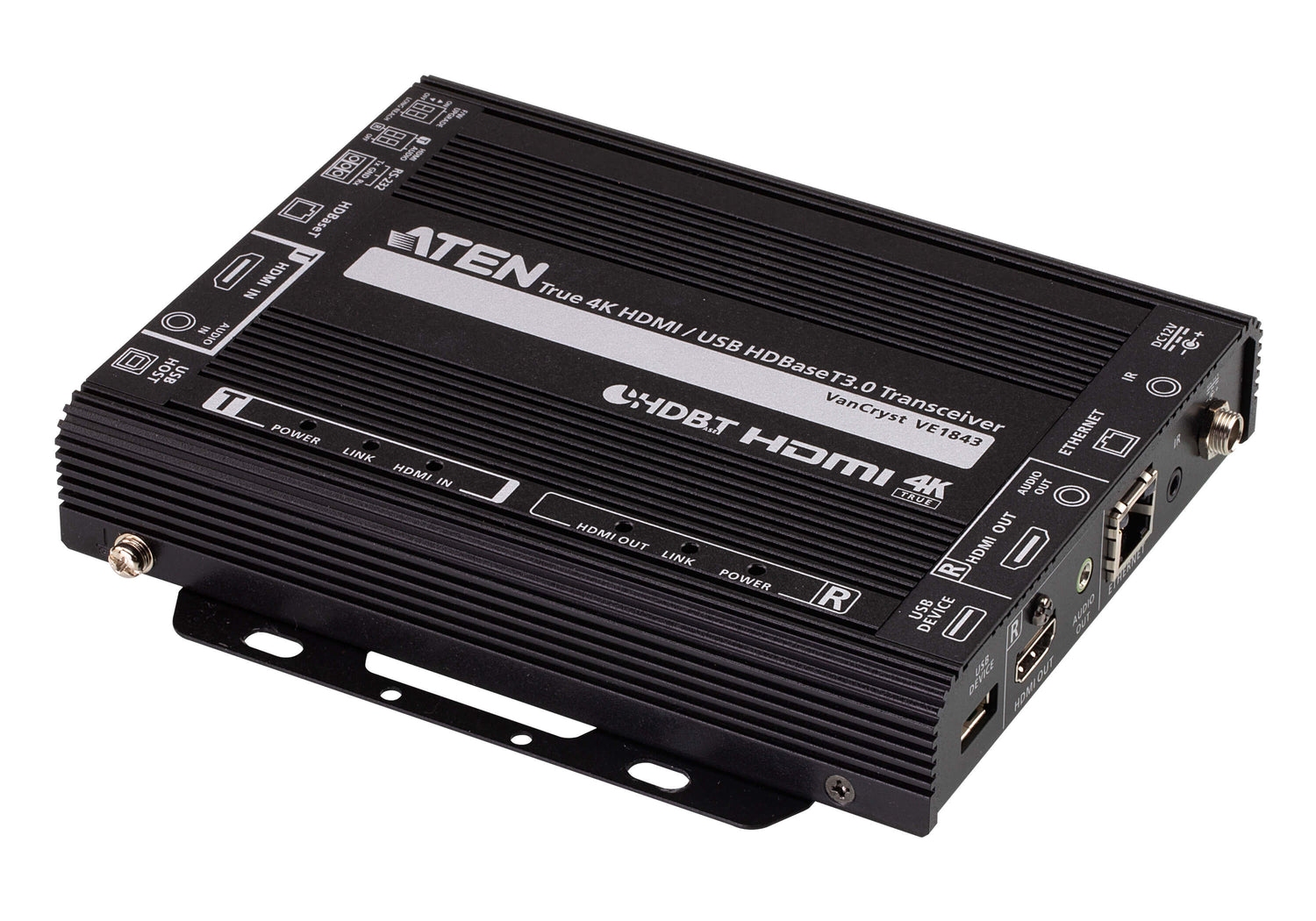

ATEN VE1843 AV extender AV transmitter & receiver Black
Stock: 0 units
Description
Description
Product overview

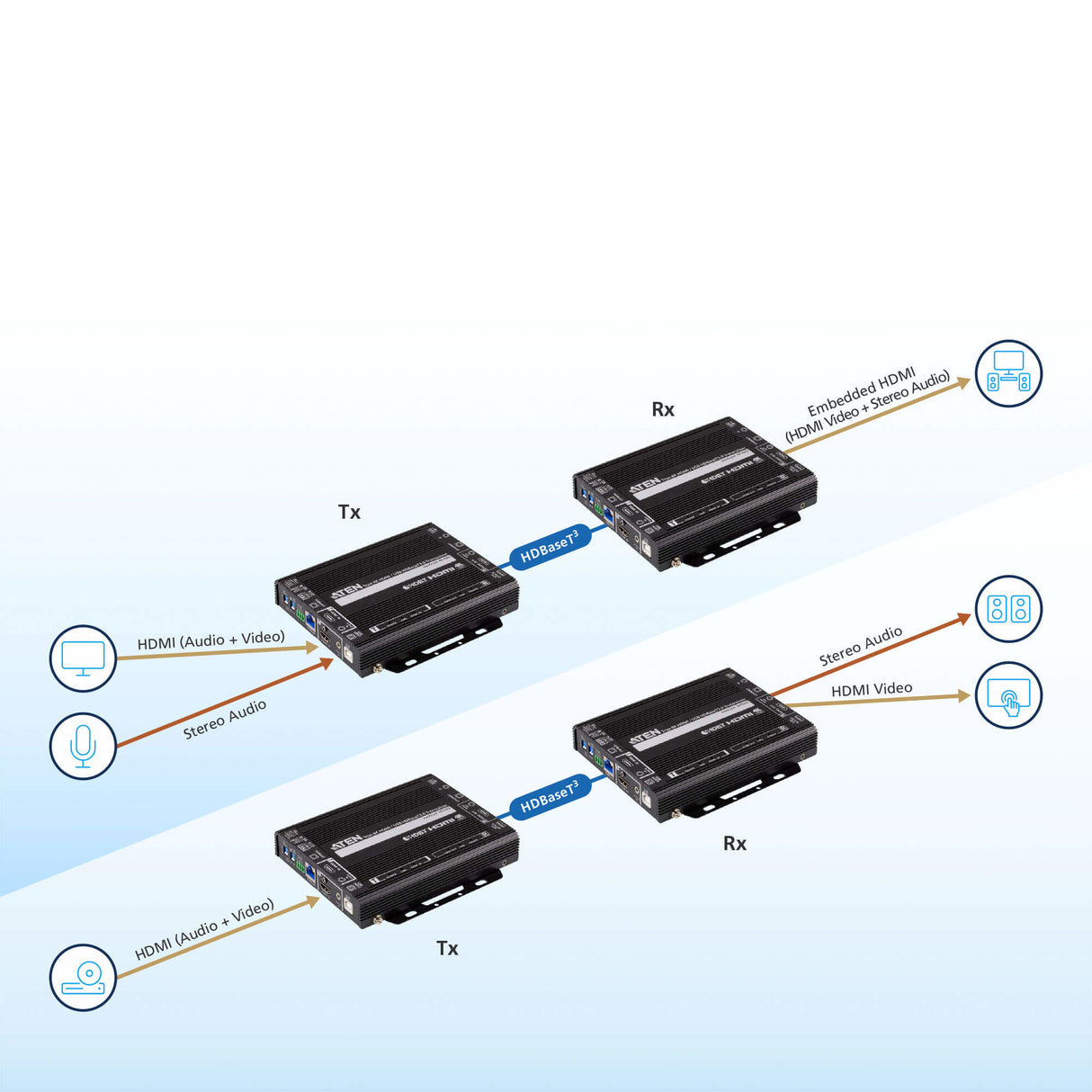

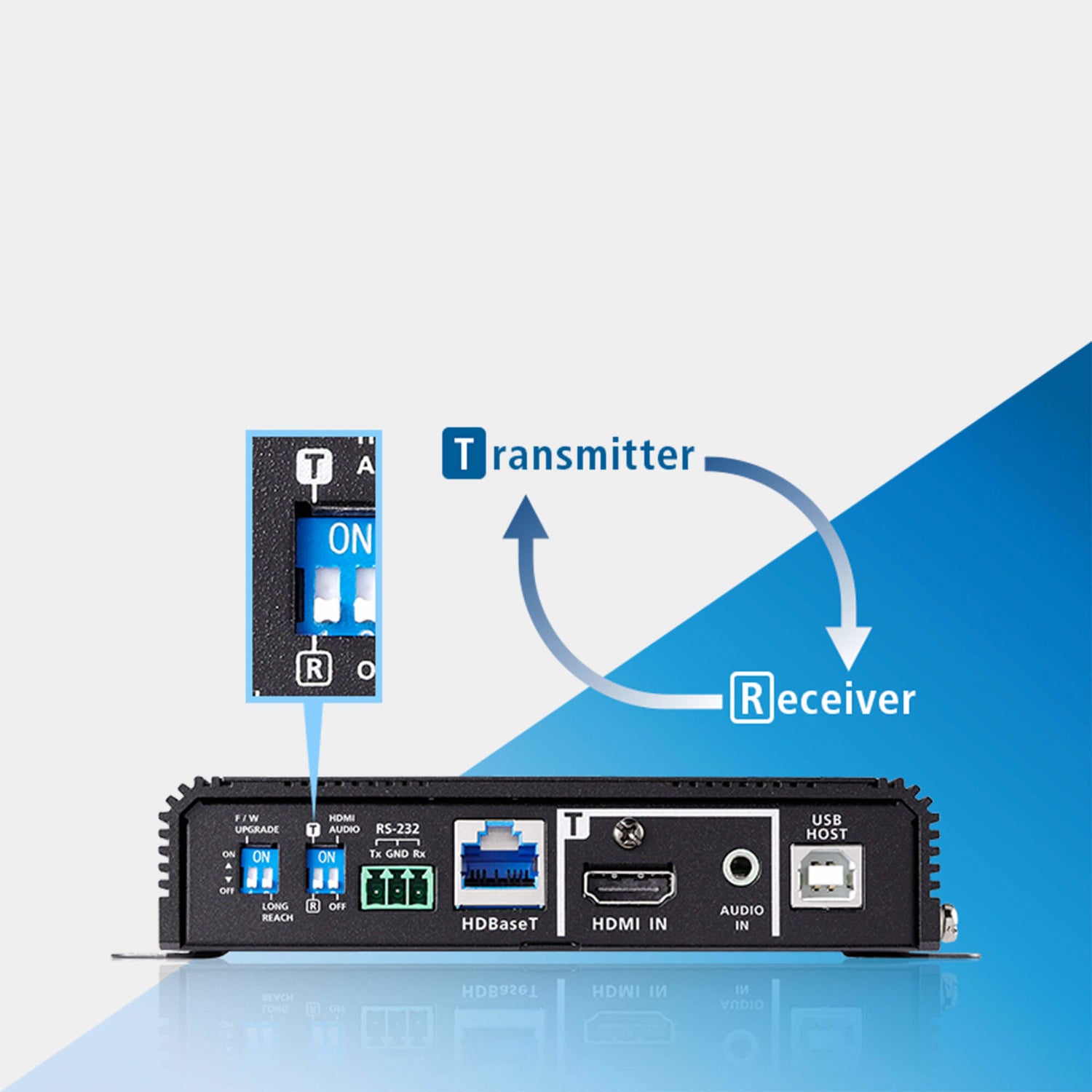

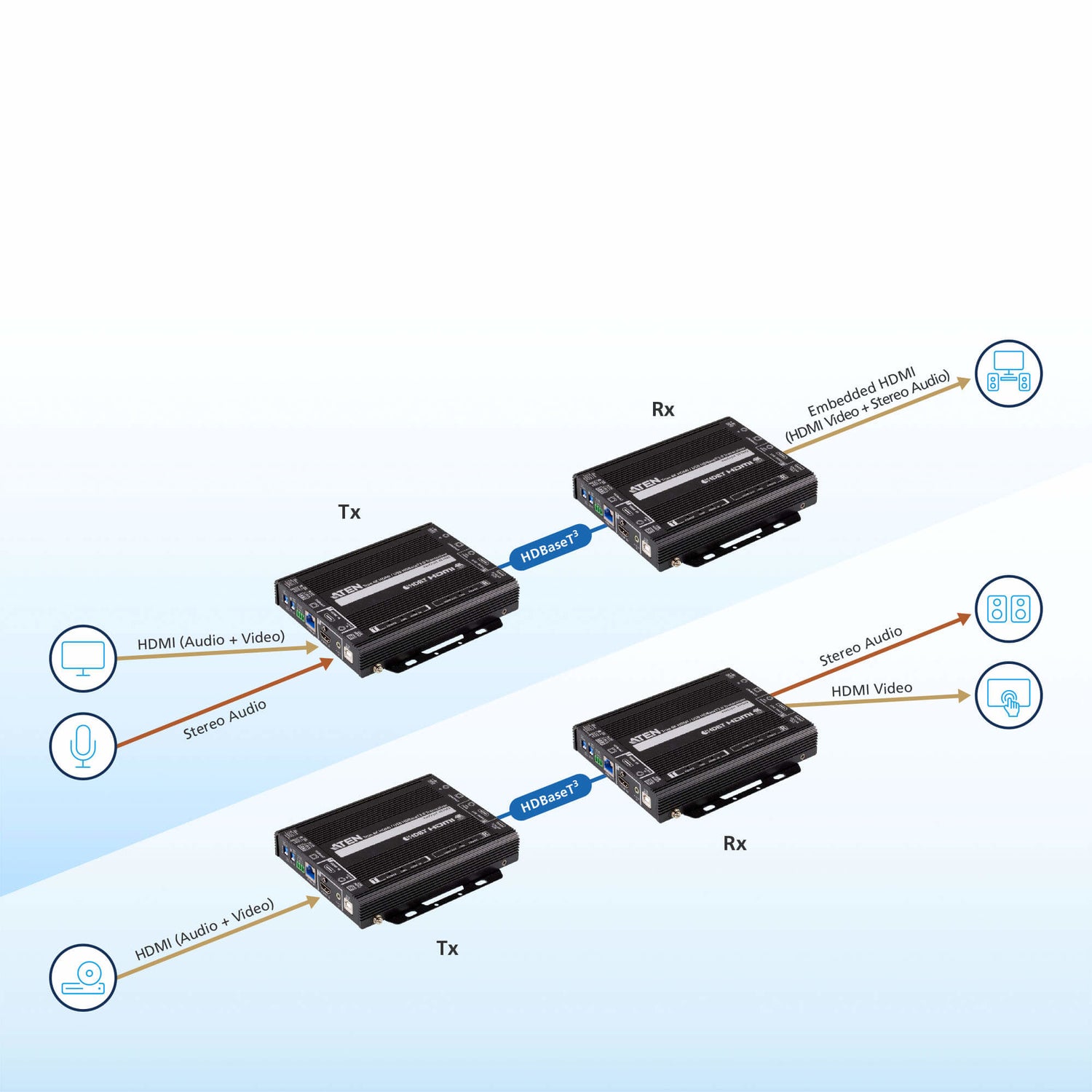

The VE1843 is ATEN’s first video transceiver and integrates the functions of a transmitter and a receiver into one unit. This combination allows users to easily configure the unit to be a transmitter or receiver depending on their AV solution, and to enjoy more flexible deployment and effective use with video matrix switches, video splitters, etc. Designed with HDBaseT 3.0 technology, the VE1843 not only extends True 4K uncompressed signals up to 100 m over a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP cable* / ATEN 2L-2920 Cat 6a cable) with zero latency, but also transmits IR, RS-232, Ethernet, independent audio, and USB signals with the latest HDBaseT standards. For stable HDMI signal transmission, the VE1843 ensures high-quality visuals and reliable extension by supporting HDCP 2.3, 3D, Deep Color, HDR, HDR 10+, and Dolby Vision. In addition, the VE1843 is equipped with HDMI audio embedding / de-embedding functions, enabling users to flexibly adapt suitable audio / video combinations based on different environments. To ensure non-stop operations, the fanless fin heat sink design prevents overheating and thus elevates its reliability. Empowered by the above benefits, the VE1843 increases the potential of AV applications while also streamlining complex installations. This makes the VE1843 an ideal solution for conference halls, auditoriums, lecture halls, museums, exhibition rooms, and anywhere else that requires high-quality transmission and easy-to-use application.
Why choose the ATEN VE1843 AV extender AV transmitter & receiver Black?
The ATEN VE1843 AV extender AV transmitter & receiver Black is a av extenders from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 4096 x 2160 pixels; Cable types supported: Cat6a. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat6a |
| Maximum transfer distance | 5 m |
| Maximum refresh rate | 60 Hz |
| Bandwidth | 18 Gbit/s |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2 |
| Product colour | Black |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| Audio input | 1 |
| Audio output | 1 |
| DC-in jack | Yes |
| Operating voltage | 12 V |
| Power consumption (typical) | 6.45 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Width | 171.5 mm |
| Depth | 150.9 mm |
| Height | 30 mm |
| Weight | 640 g |
| Quantity per pack | 1 pc(s) |
| Brand | ATEN |
| Manufacturer part number | VE1843 |
| GTIN / UPC | ['0672792013072', '672792013072'] |
