ATEN True 4K HDMI/USB HDBT3.0-Lite
Stock: 0 units
Description
Description
Product overview

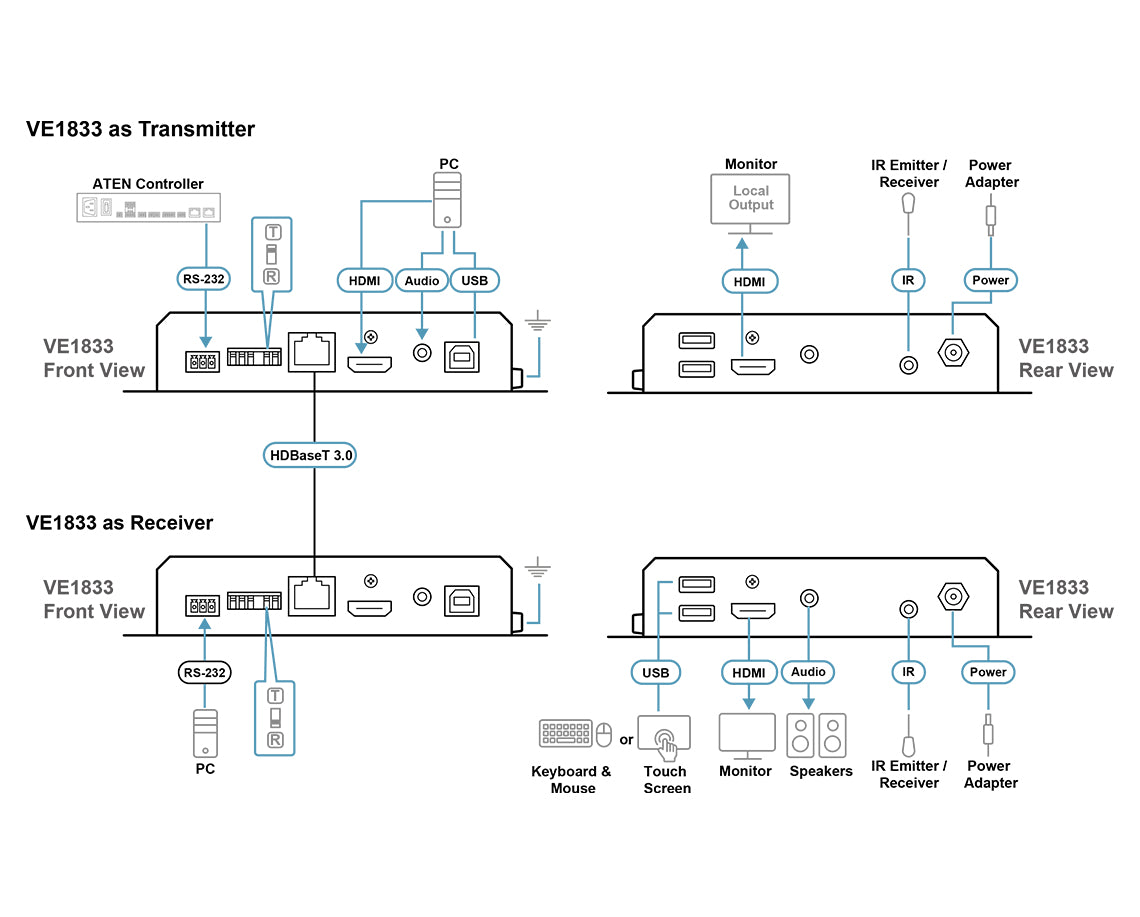

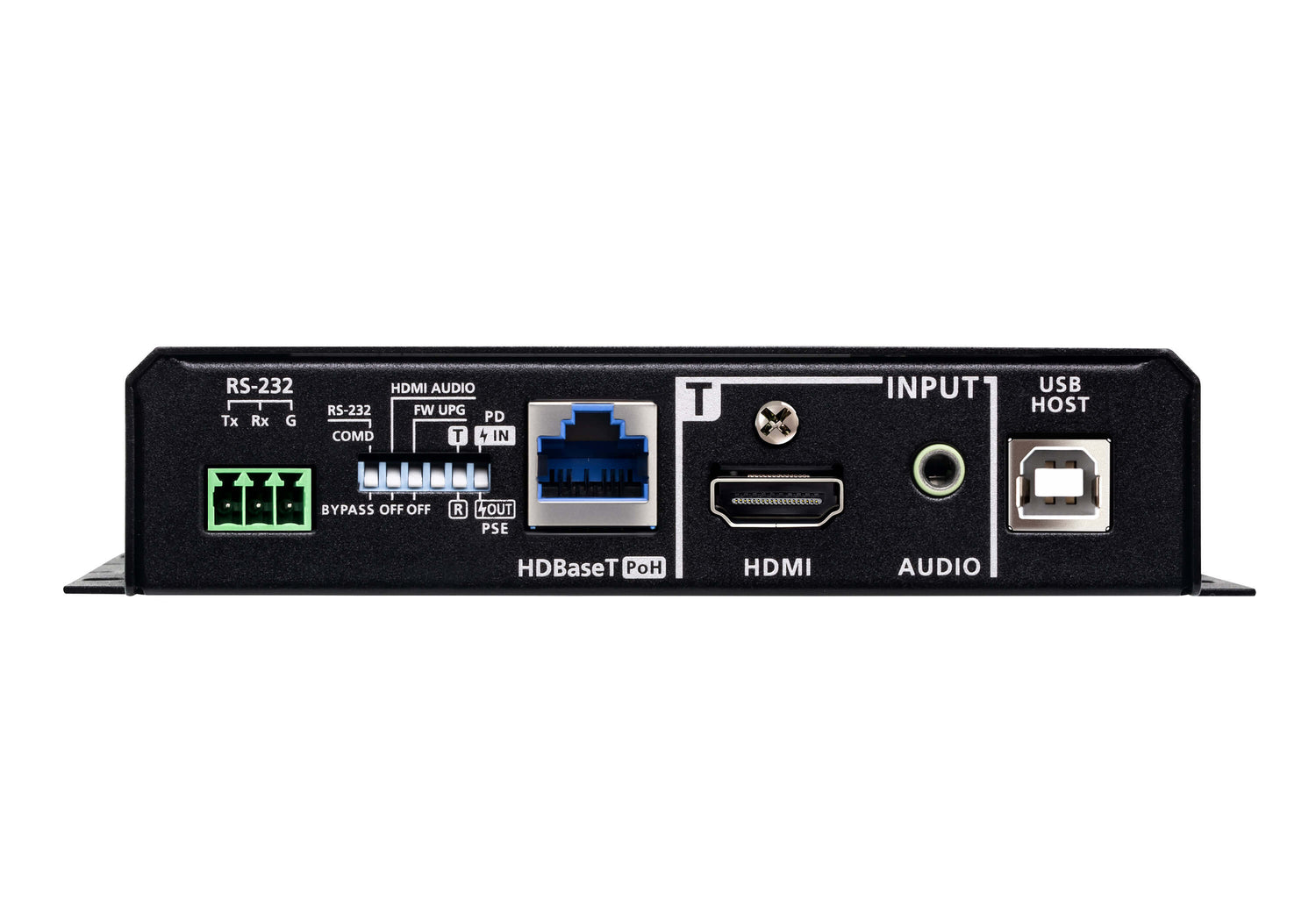

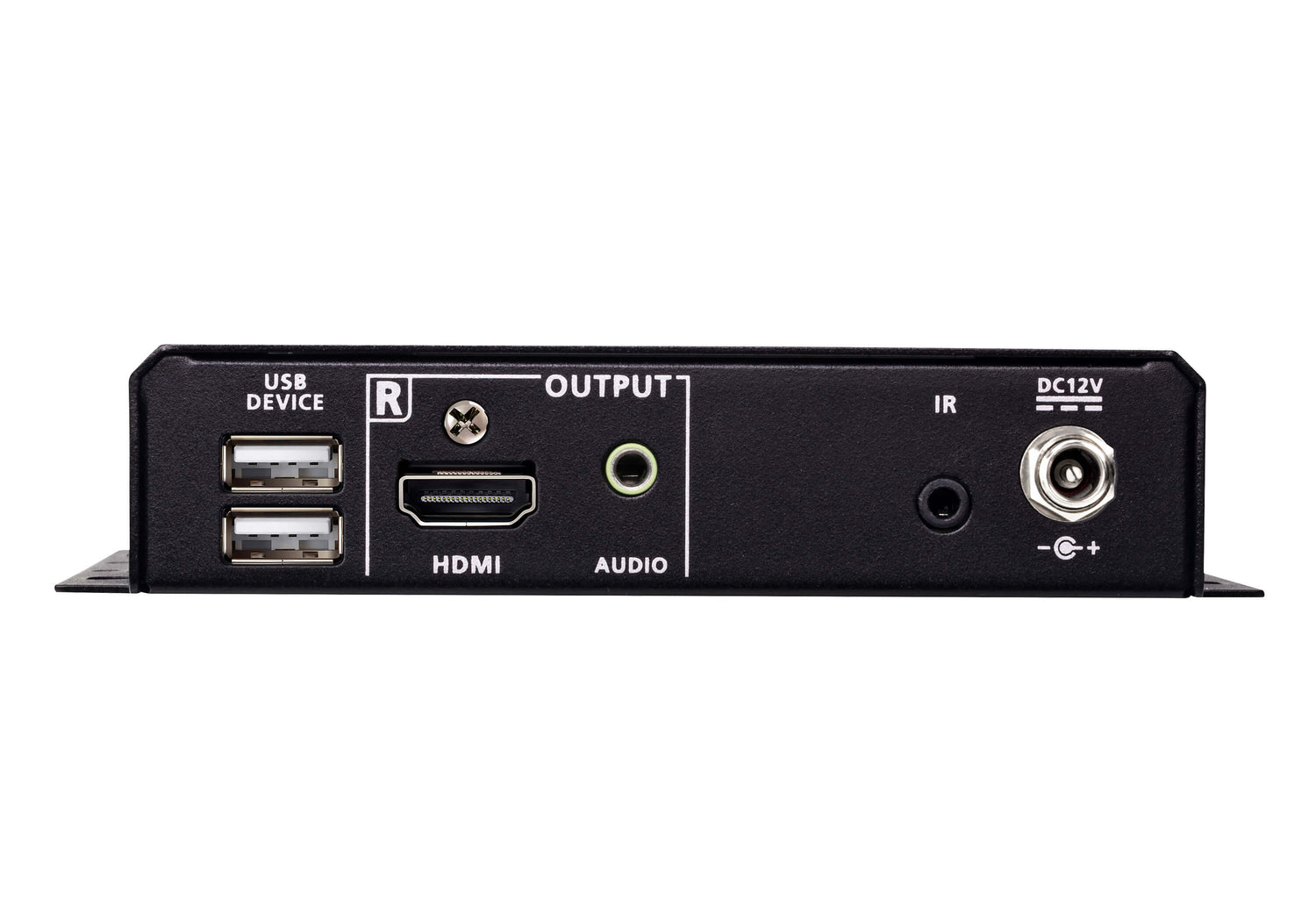

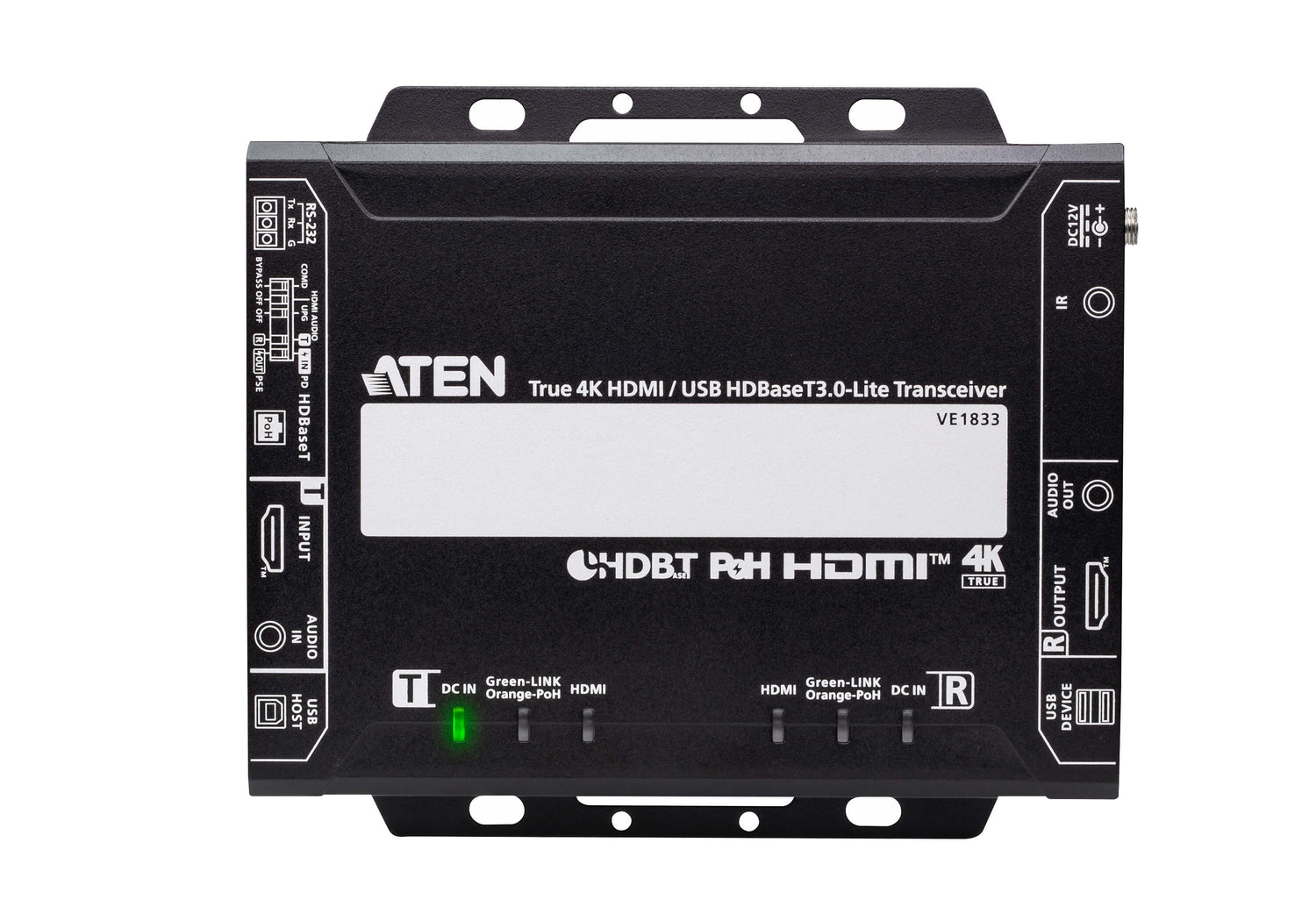

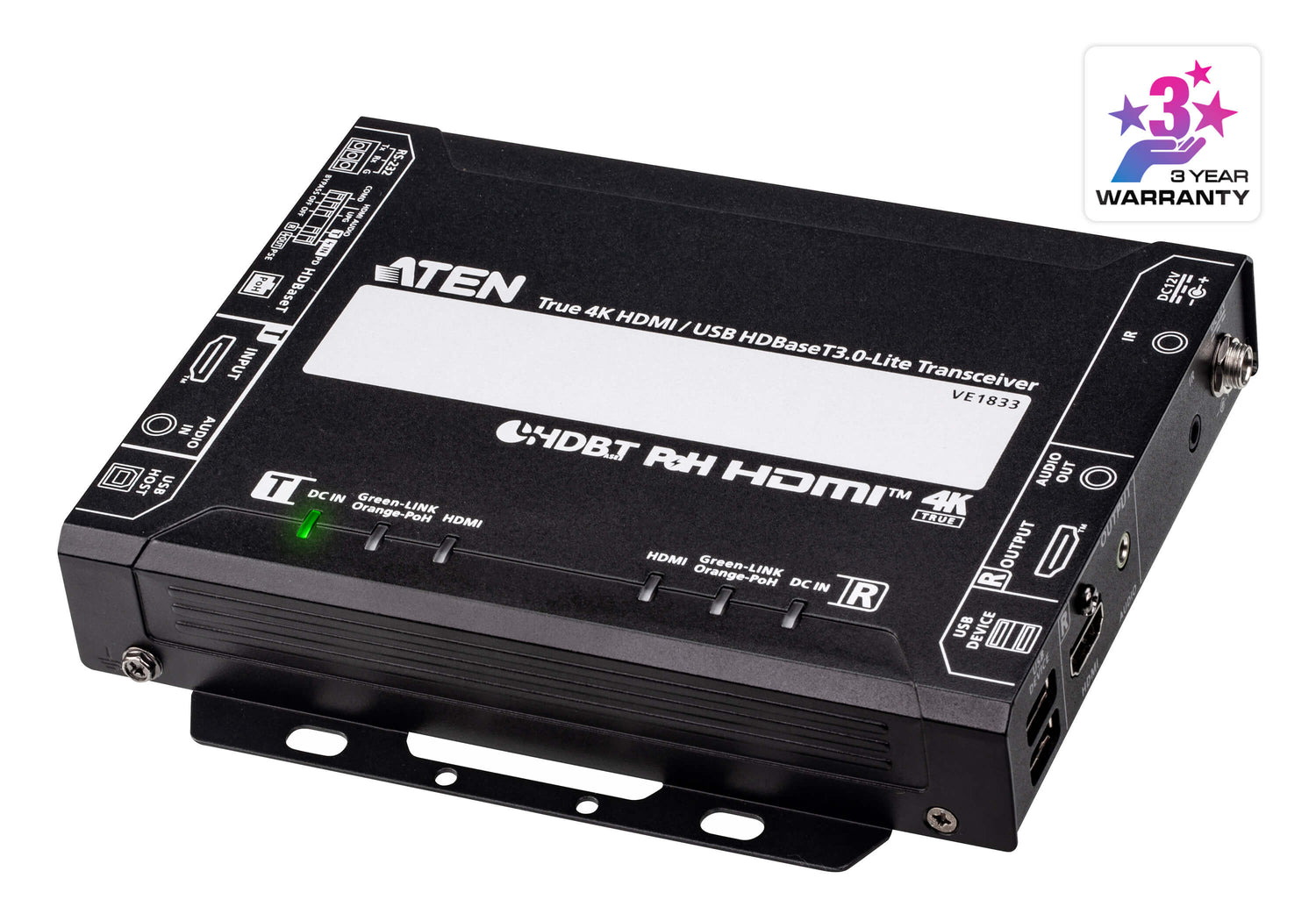

The ATEN VE1833 True 4K HDMI / USB HDBaseT 3.0 - Lite Transceiver with PoH integrates both transmitter and receiver functions in one compact unit, allowing users to flexibly configure it through a DIP switch according to diverse AV setup. Leveraging HDBaseT 3.0 technology, the VE1833 delivers uncompressed True 4K HDMI signals over distances up to 40 m via a single Cat 6a cable (HDBaseT 3 Certified Cat 6a U/FTP / ATEN's tailor-made HDBaseT cable*), with zero. Designed for professional AV environments, the VE1833 supports resolutions up to 4096 x 2160 @ 60Hz (4:4:4) and advanced video formats including HDR, HDR10+, and Dolby Vision, along with HDCP 2.2/2.3, 3D, and Deep Color, ensuring superior video quality. The VE1833 features bi-directional PoH with power redundancy, ensuring continuous operation for critical missions. The VE1833 extends not only HDMI video but also independent stereo audio, USB 2.0, IR, and bi-directional RS-232 signals all over a Cat 6a cable. It also provides HDMI audio embedding and de-embedding, making it easy to route audio separately when needed, and ideal for setups involving external speakers or audio processors. This all-in-one design streamlines complex installations and allows for seamless integration with video matrix switches, splitters, and more. Empowered by its versatile feature set and flexible deployment options, the VE1833 is an ideal solution for conference halls, auditoriums, lecture theaters, museums, exhibition spaces, and any environment that demands high-performance AV transmission with simplified setup. Note: Please refer to the...
Why choose the ATEN True 4K HDMI/USB HDBT3.0-Lite?
The ATEN True 4K HDMI/USB HDBT3.0-Lite is a av extenders from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 4096 x 2160 pixels; Maximum transfer distance: 5 m. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Maximum transfer distance | 5 m |
| High Dynamic Range (HDR) supported | Yes |
| Maximum refresh rate | 60 Hz |
| LED indicators | Yes |
| Bandwidth | 18 Gbit/s |
| Bandwidth | 600 MHz |
| HDCP | Yes |
| Material | Metal |
| 3D | Yes |
| Firmware upgradeable | Yes |
| Consumer Electronics Control (CEC) support | Yes |
| Impedance | 100 Ω |
| HDCP version | 2.2/2.3 |
| Product colour | Black |
| Connectivity technology | Wired |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| USB ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| 3.5 mm (1/8-inch) in | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| Power source type | DC |
| Power consumption (TX) | 6.01 W |
| Power consumption (RX) | 7.09 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 146.9 mm |
| Depth | 169.4 mm |
| Height | 30 mm |
| Weight | 640 g |
| Package width | 95 mm |
| Package depth | 265 mm |
| Package height | 220 mm |
| Brand | ATEN |
| Manufacturer part number | VE1833-AT-E |
| GTIN / UPC | ['0672792016707', '672792016707'] |
