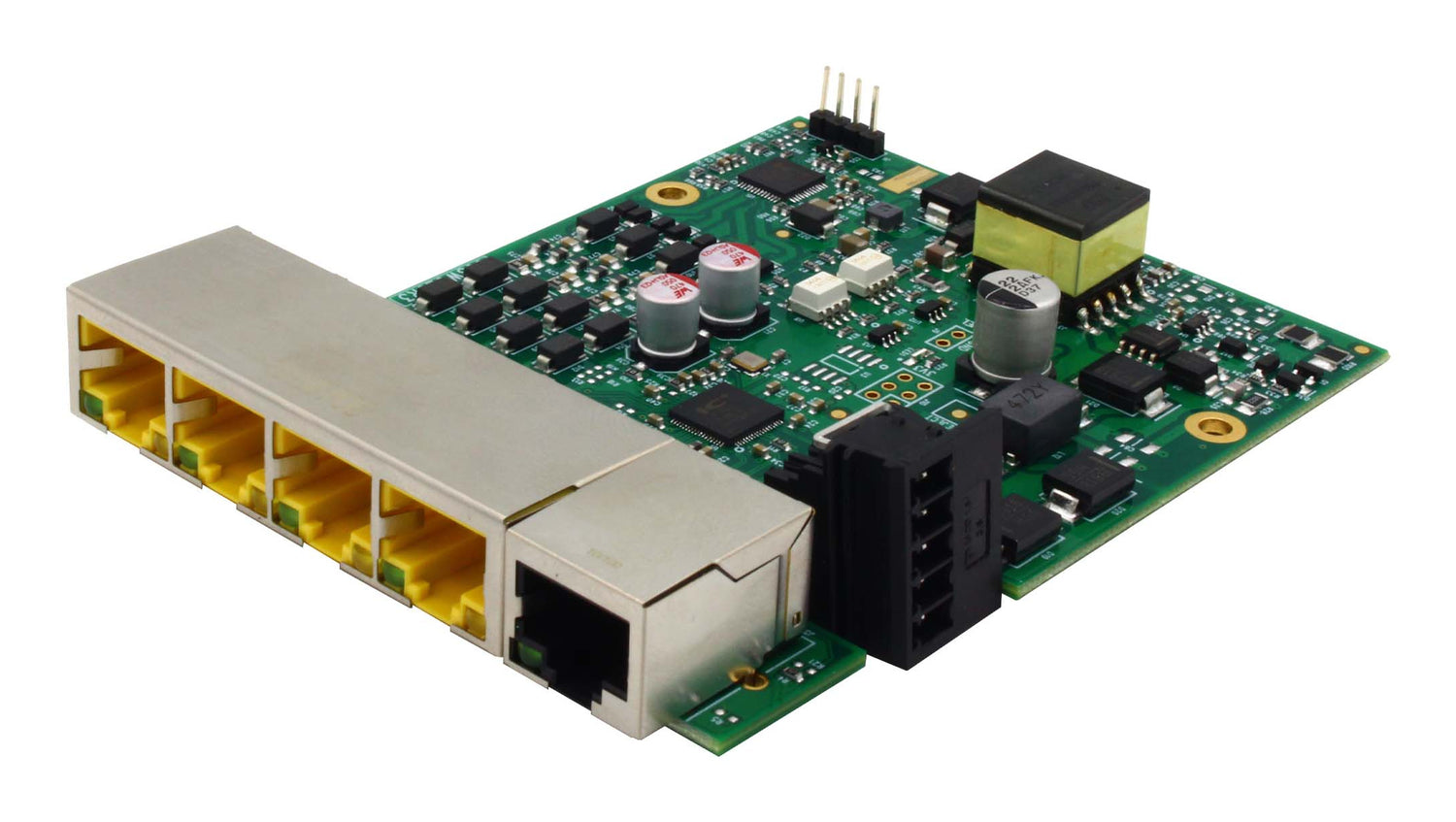

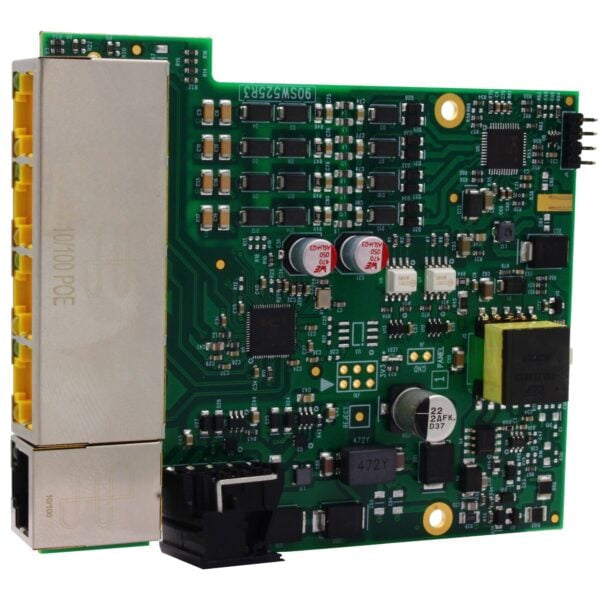

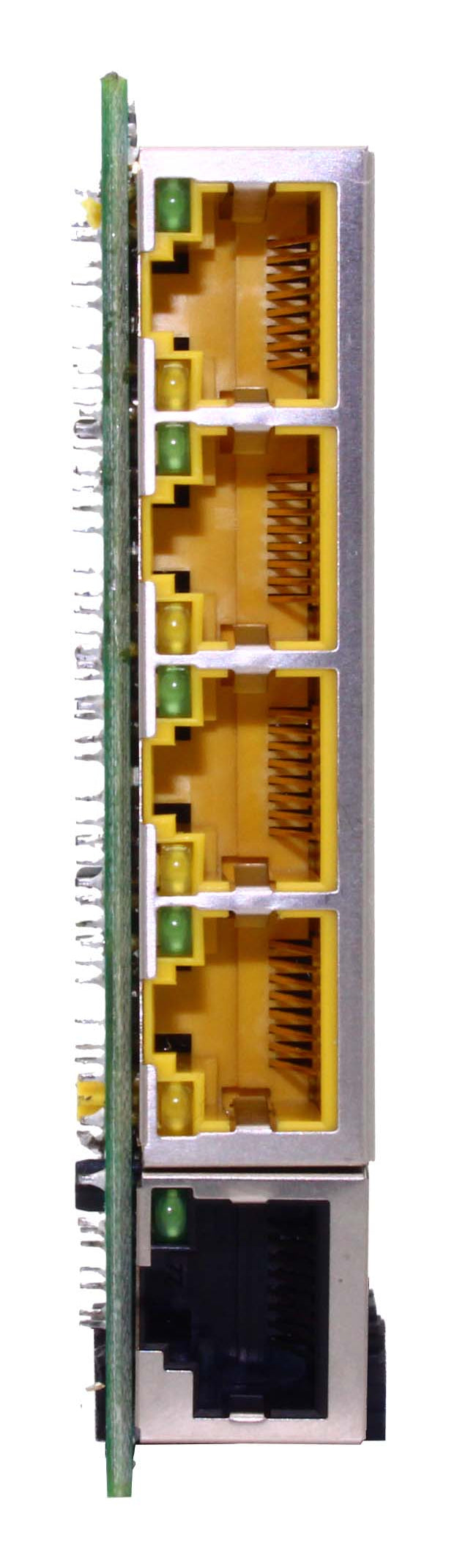

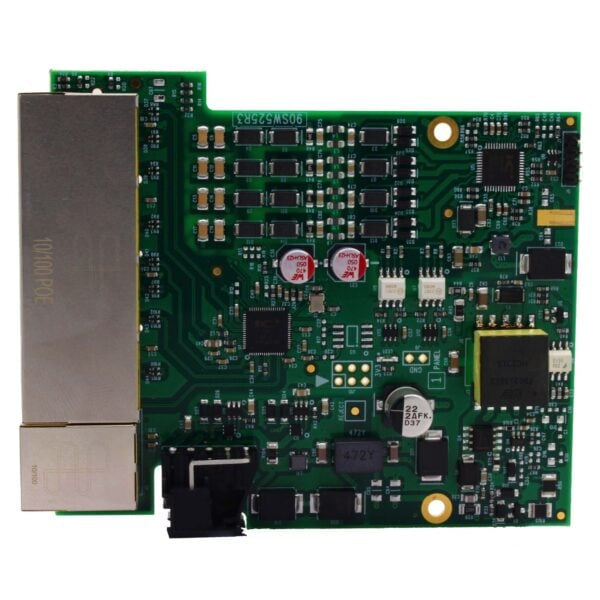

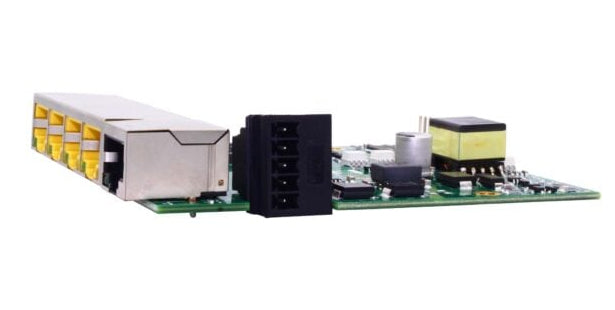

Brainboxes SW-125 network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) Green
Stock: 0 units
Description
Description
Product overview
Compact embeddable 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet brainboxes-ed-593-front-panel-ethernet-port-status-leds capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 158°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more
Why choose the Brainboxes SW-125 network switch Unmanaged Fast Ethernet...?
The Brainboxes SW-125 network switch Unmanaged Fast Ethernet (10/100)... is a network switches from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Basic switching RJ-45 Ethernet ports quantity: 5; Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Product colour | Green |
| Power source | DC |
| DC input voltage | 44 - 57 V |
| Power consumption (max) | 4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Total Power over Ethernet (PoE) budget | 90 W |
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Width | 90 mm |
| Depth | 100 mm |
| Height | 60 mm |
| Weight | 76 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 182 g |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), Trade Agreements Act (TAA), UKCA, cMETus |
| Brand | Brainboxes |
| Manufacturer part number | SW-125 |
| GTIN / UPC | ['0837324004588', '837324004588'] |
