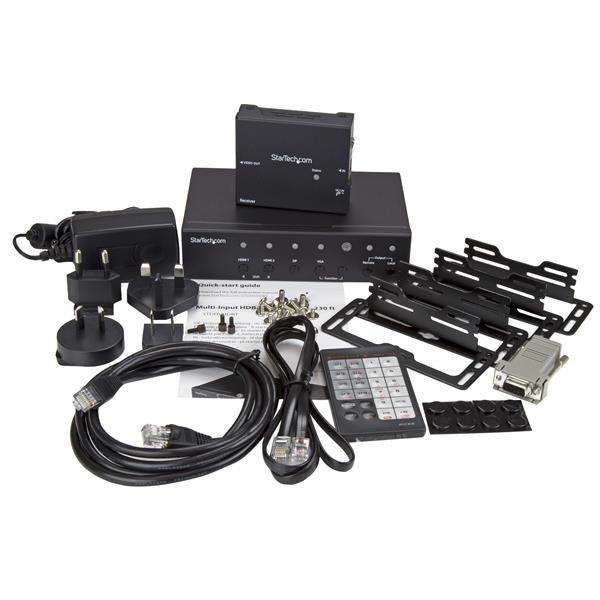

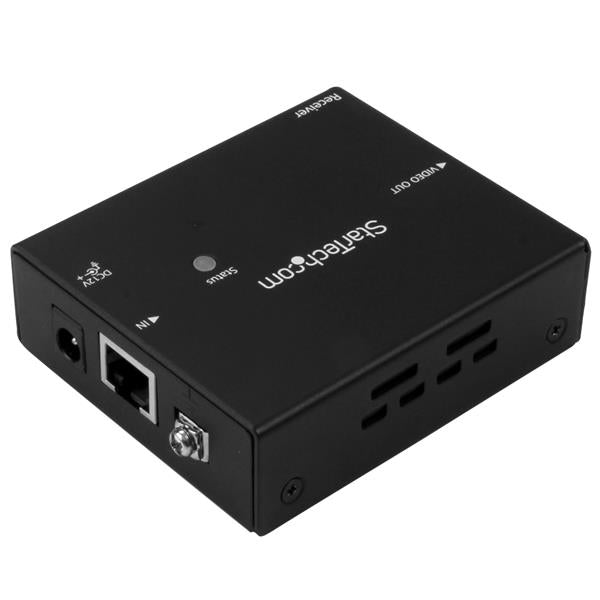

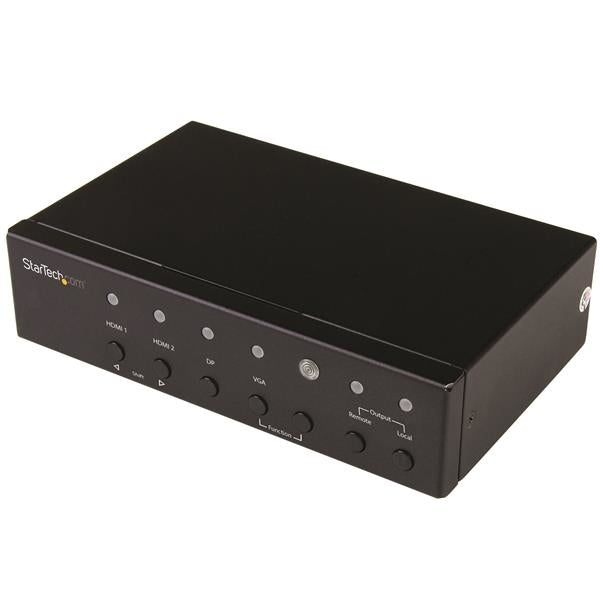

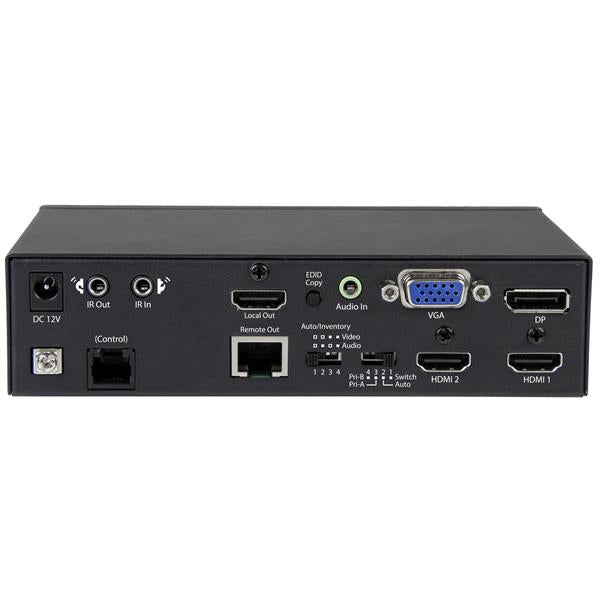

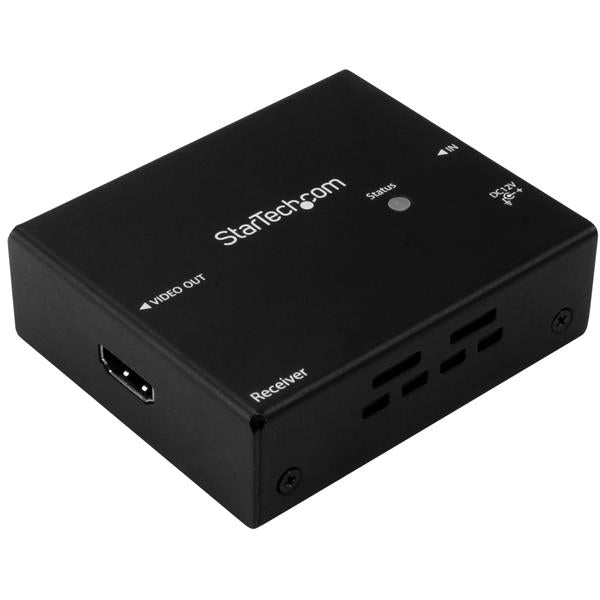

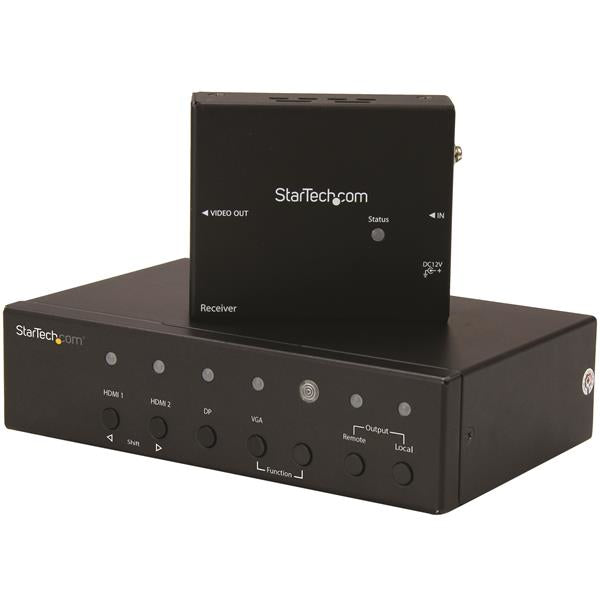

StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - DisplayPort, VGA and HDMI Over CAT5e or CAT6 - Up to 4K - TAA
Stock: 9 units
StarTech.com Multi-Input HDBaseT Extender with Built-in Switch - Di...
Description
Description
Product overview
Connect your laptop to a remote display over standard CAT5e or CAT6 cabling, and easily swap between HDMI, DP or VGA video sources This multi-input video extender kit uses HDBaseT™ technology to extend your video signals up to 230 feet (70 meters) over a single CAT5e or CAT6 cable. It features a built-in video switch that enables you to choose which video source is outputted from four independent video sources (2 x HDMI, 1 x VGA and 1 x DisplayPort).The video extender supports Ultra HD 4K and Full HD 1080p video resolutions, with support for the accompanying digital 7.1 audio. Seamless multi-interface operation, with a switch and extender in one This HDBaseT extender features a built-in converter switch, so you can connect two HDMI sources as well as a VGA and a DisplayPort video source to the same remote HDMI display, without having to use additional adapters or scalers or a separate video switch. With support for multiple video sources and HDBaseT, this extender is the perfect solution for adding a large display to your boardroom or classroom, enabling BYOD laptops with HDMI, DisplayPort or VGA outputs to share their display with the room. Effortless control with automatic or priority switching The extender switch ensures hassle-free operation, with two different auto-switching modes: auto-detect switching, which detects and selects a newly connected device, or priority selection, which lets you choose which port should be activated by default for automatic switching. The multi-input video extender kit is perfect for digital signage applications, where an automatic...
Why choose the StarTech.com Multi-Input HDBaseT Extender with Built-in...?
The StarTech.com Multi-Input HDBaseT Extender with Built-in Switch... is a av extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 4096 x 2160 pixels; Cable types supported: Cat5e, Cat6. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Yes |
| Supported video modes | 720p, 1080p, 2160p |
| Remote control type | IrDA |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Rubber feet | Yes |
| Product colour | Black |
| HDBaseT certified | Yes |
| Certification | CE, FCC, REACH, TAA |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| VGA (D-Sub) input ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| DisplayPorts in | 1 |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Yes |
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 160 mm |
| Depth | 100 mm |
| Height | 40 mm |
| Weight | 918 g |
| Brand | StarTech.com |
| Manufacturer part number | STDHVHDBT |
| GTIN / UPC | ['0065030864572', '065030864572'] |
