ATEN CS17916 KVM switch Rack mounting Black
Stock: 0 units
Description
Description
Product overview

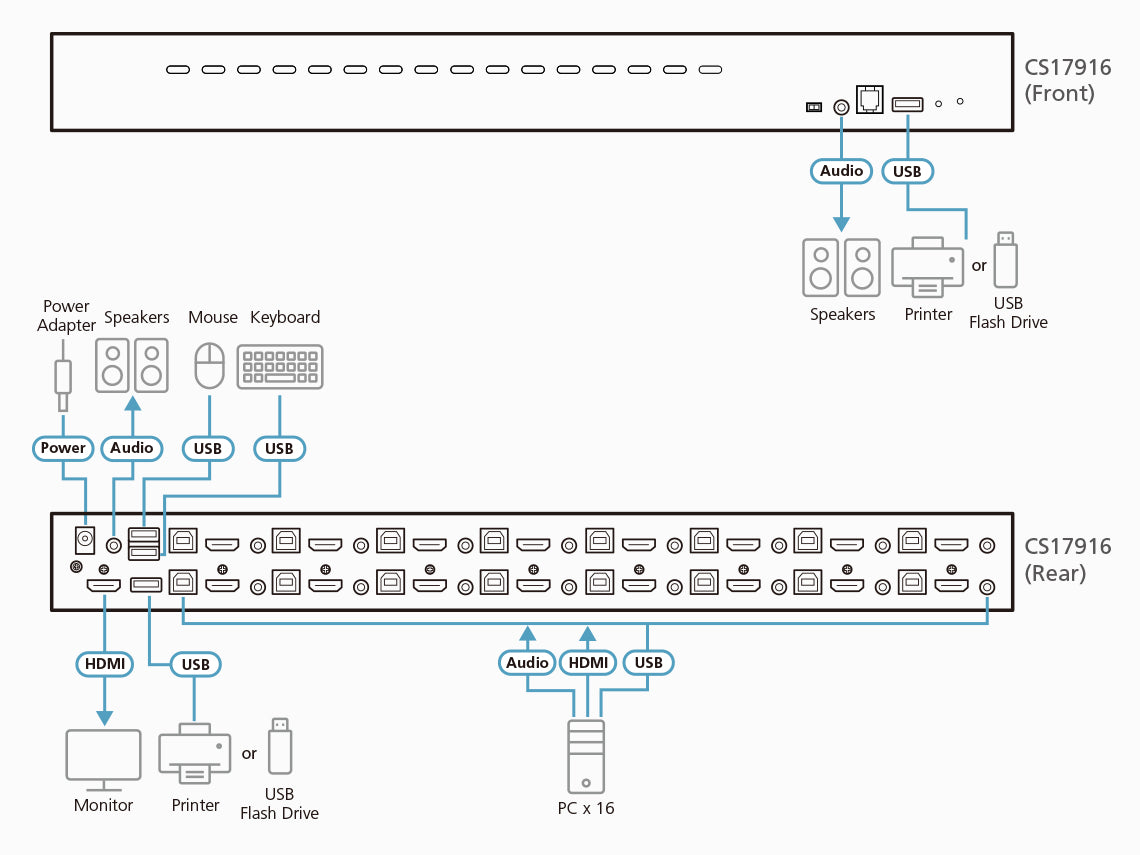

The CS17916 16-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 16 HDMI computers from a single USB keyboard, USB mouse, and monitor console. The CS17916 can be cascaded up to two levels – up to 256 computers – all from a single console. In addition, the CS17916 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment. The CS17916 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS17916 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
Why choose the ATEN CS17916 KVM switch Rack mounting Black?
The ATEN CS17916 KVM switch Rack mounting Black is a kvm switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Number of computers controlled: 256; Keyboard port type: USB; Mouse port type: USB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Number of computers controlled | 256 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 2 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 2 |
| USB connector type | USB Type-A |
| Audio connections | Yes |
| DC-in jack | Yes |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 pixels |
| Video bandwidth | 60 Hz |
| Scan interval | 1,255 s |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional, English, French, German, Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish, Swiss, UK English, US English |
| On Screen Display (OSD) | Yes |
| Power source | DC |
| Input voltage | 5 V |
| Power consumption (typical) | 12.2 W |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 432.4 mm |
| Depth | 257.2 mm |
| Brand | ATEN |
| Manufacturer part number | CS17916 |
| GTIN / UPC | ['0672792005572', '672792005572'] |
