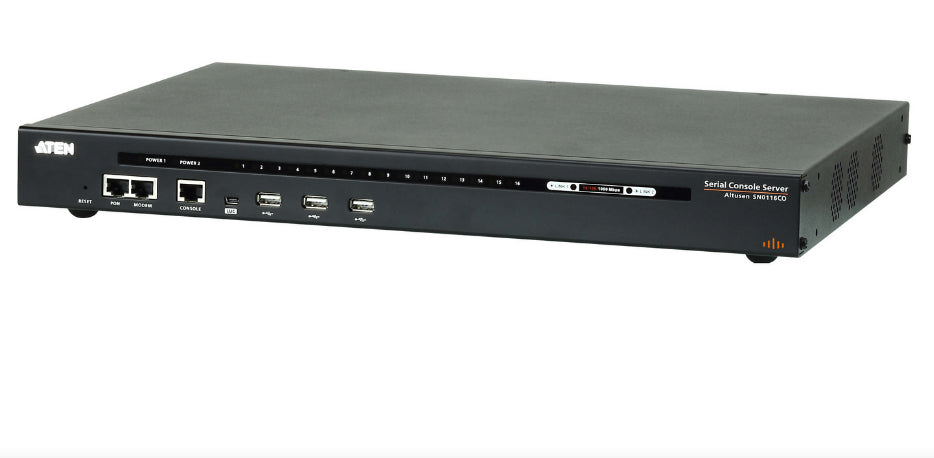

ATEN SN0116COD serial server
Stock: 0 units
Description
Description
Product overview
ATEN launches a new generation of Serial Console Servers, the SN01xxCO Series (SN0108CO / SN0116CO / SN0132CO / SN0148CO). With dual power / LAN in SN01xxCO models, they integrate cutting edge technologies to provide convenient installation, secure serial device access, easy management and comprehensive control for data centers. The SN01xxCO Series features Cisco pin-outs and auto-sensing DTE/DCE function, providing a direct connection to Cisco network switches (and other compatible devices) without rollover cables for even more time-saving IT infrastructure deployment. In addition, the SN01xxCO models support online detection of connected serial devices (including terminal blocks) for device status monitoring. A notification email alert will be sent to the administrator when connected devices are offline. With dual Ethernet ports and power supplies, the SN01xxCO supports power redundancy as well as failover, or dual IP addresses access, ensuring 24/7 availability of access to serial devices. The SN01xxCO Series also offers dual DC* options for more flexible implementation. Available in 8-, 16-, 32- and 48-port models, the SN01xxCO serial console servers offer both in-band and out-of-band (OOB) remote serial console access to servers and network devices via a direct Telnet/SSH client and Java viewer. The OOB management enables IT administrators to manage network devices (e.g. router, switch, UPS) in server rooms using management networks that are separated from the main/production networks. Where access difficulty occurs in the production network, the administrators can...
Why choose the ATEN SN0116COD serial server?
The ATEN SN0116COD serial server is a serial servers from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Serial ports quantity: 16; Ethernet LAN data rates: 10,100,1000 Mbit/s; Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day office productivity
- Hybrid and remote work
- Field and mobile teams
- Fleet deployments and refresh cycles
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Serial ports quantity | 16 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Compliance certificates | RoHS |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
| Power source type | AC |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1 A |
| Security algorithms | 802.1x RADIUS, FIPS 140-2, RSA, SSH, SSL/TLS |
| LED indicators | Yes |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 |
| Weight | 4.48 kg |
| Dimensions (WxDxH) | 437.2 x 329.8 x 44 mm |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Housing material | Metal |
| Wall mounting kit | Yes |
| Brand | ATEN |
| Manufacturer part number | SN0116COD |
| GTIN / UPC | ['0672792009655', '672792009655'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
