Brainboxes ES-246 network card Ethernet 100 Mbit/s
Stock: 0 units
Description
Description
Product overview

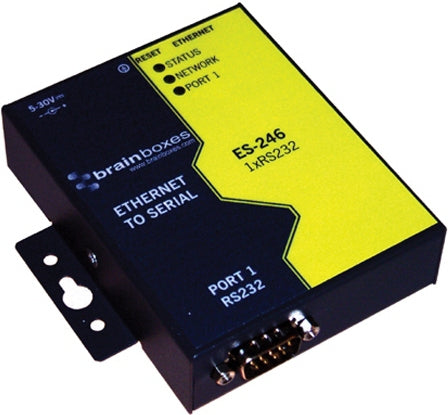

Ethernet to Serial device server providing access to one RS232 serial port. Up to 230,400 data transfer rates, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides a simple, instant cable replacement providing network integration. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32bit and 64bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.
Why choose the Brainboxes ES-246 network card Ethernet 100 Mbit/s?
The Brainboxes ES-246 network card Ethernet 100 Mbit/s is a network cards from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Connectivity technology: Wired; Host interface: RS-232; Interface: Ethernet. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Connectivity technology | Wired |
| Host interface | RS-232 |
| Interface | Ethernet |
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN | Yes |
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
| Component for | PC/Laptop |
| Product colour | Multicolour |
| Plug and Play | Yes |
| Certification | Microsoft Certified Gold Partner, CE, ROHS, WEEE, TAA |
| Power consumption (typical) | 1 W |
| Compatible operating systems | Windows 7 32bit & 64bit, Windows Server 2008 32bit & 64bit, Windows Vista 32bit & 64bit, Windows Server 2003 32bit & 64bit, Windows XP 32bit & 64bit, Windows 2000 |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Width | 102 mm |
| Depth | 101 mm |
| Height | 26 mm |
| Weight | 235 g |
| Package width | 170 mm |
| Package height | 62 mm |
| Package weight | 509 g |
| Harmonized System (HS) code | 85176990 |
| Flow control support | Yes |
| Dimensions (WxDxH) | 102 x 101 x 26 mm |
| Supported data transfer rates | 10/100 Mbps |
| Non-operating relative humidity (non-condensing) | 5 - 95% |
| Ports quantity | 1 |
| Package dimensions (WxDxH) | 170 x 235 x 62 mm |
| Link/Act LED | Yes |
| Power supply type | DC |
| Brand | Brainboxes |
| Manufacturer part number | ES-246 |
| GTIN / UPC | ['0837324002287', '837324002287', '9786095013989'] |
