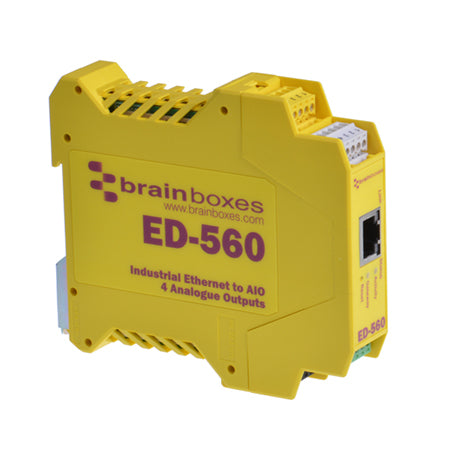

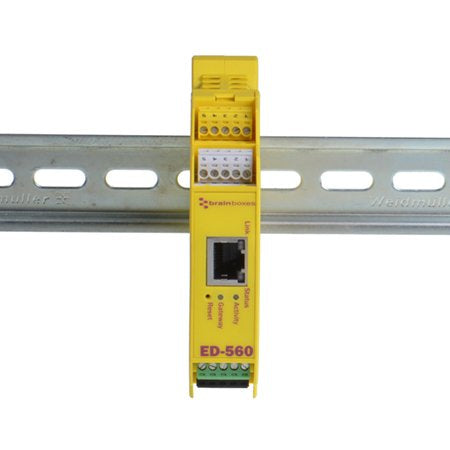

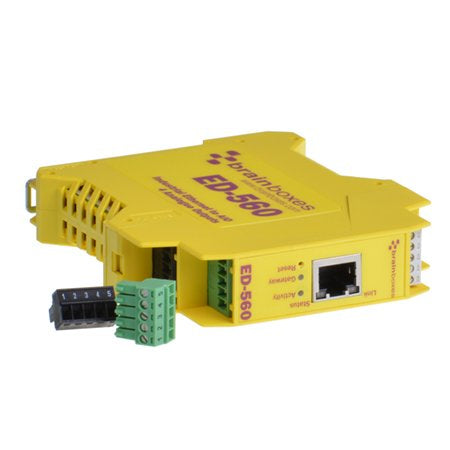

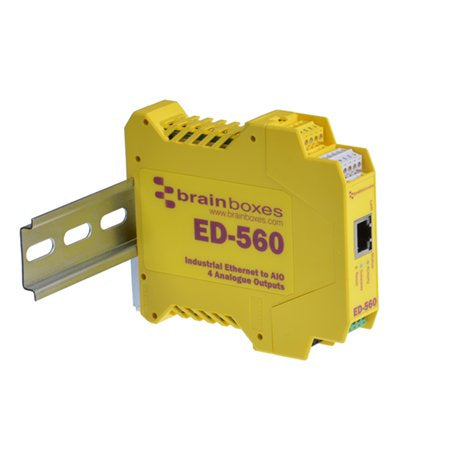

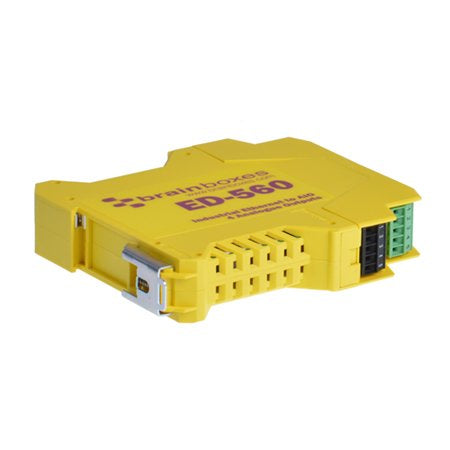

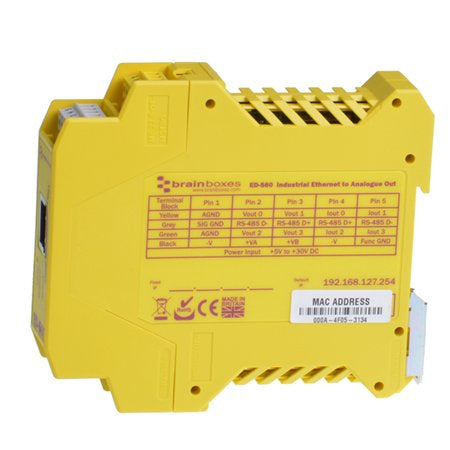

Brainboxes ED-560 digital/analogue I/O module Analog
Stock: 0 units
Description
Description
Product overview
The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents. As well as the popular 0-10V and 4-20mA input devices, allowing full scale signals as small as ±75mV to be resolved to 12 bit accuracy across 4 analogue outputs. Each channel is individually configurable for voltage or current output with its own programmable gain. The device installs as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. From other platforms and operating systems the device can be controlled over TCP/IP. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the ED device using Microsoft .NET framework, C++, Java, Javascript, PHP and more. The device and be configured and secured from a web browser. The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
Why choose the Brainboxes ED-560 digital/analogue I/O module Analog?
The Brainboxes ED-560 digital/analogue I/O module Analog is a digital & analog i/o modules from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Module type: Analog; Signal direction: Output; Channels quantity: 4 channels. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Day-to-day business operations
- IT deployments and refresh projects
- Hybrid and remote work setups
- Fleet and multi-site rollouts
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Module type | Analog |
| Signal direction | Output |
| Channels quantity | 4 channels |
| Digital output channels quantity | 4 channels |
| Serial interface type | RS-485 |
| Ethernet LAN (RJ-45) ports | 1 |
| I/O protocols | Modbus TCP, DCON ASCII |
| Supported network protocols | ICMP, IP, TCP, DHCP, HTTP |
| Maximum output voltage | 30 V |
| Isolation | 1.5 kV |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64 |
| Mobile operating systems supported | Android, iOS |
| Product colour | Yellow |
| Certification | Microsoft Certified Gold Partner, WEEE, RoHS, AEO (C-TPAT), CE |
| Power consumption | 100 mA |
| DC input voltage | +5 - +30 V |
| Maximum input voltage | 35 V |
| Power supply type | PW-600/PW-650 |
| Operating temperature (T-T) | -30 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Relative humidity | 5 - 95% |
| Width | 114 mm |
| Depth | 99 mm |
| Height | 23 mm |
| Weight | 124 g |
| Package width | 160 mm |
| Package depth | 135 mm |
| Package height | 49 mm |
| Package weight | 197 g |
| Brand | Brainboxes |
| Manufacturer part number | ED-560 |
| GTIN / UPC | ['0837324003505', '837324003505'] |
