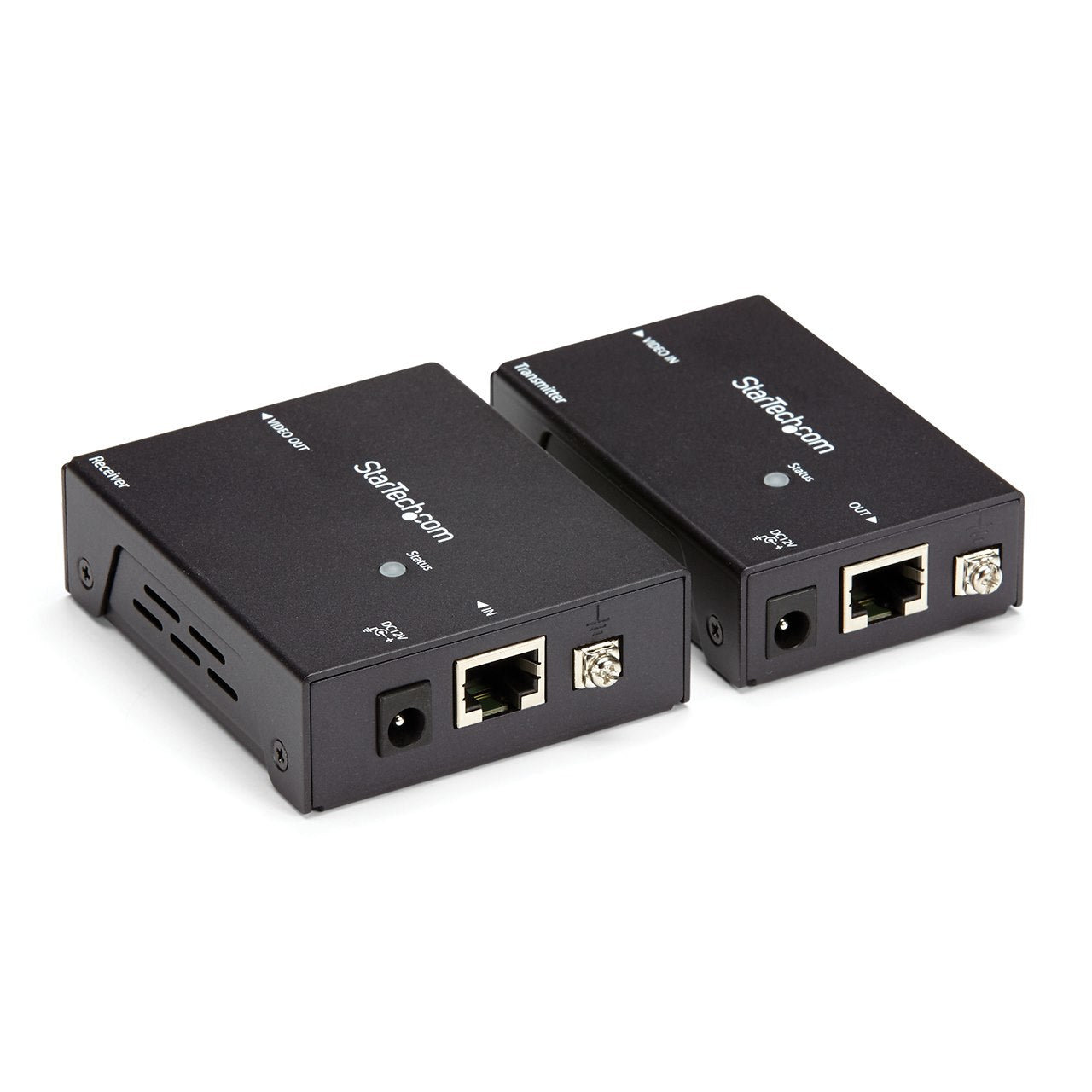

StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - Ultra HD 4K - TAA
Stock: 228 units
StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable - ...
Description
Description
Product overview
Extend HDMI® up to 230ft (70m) over a single CAT5e/6 cable with Power over Cable to Receiver The StarTech.com HDBaseT extender kit, extends HDMI up to 230 feet (70 Meters) over a single CAT5e or CAT6 cable. The extender supports Ultra HD and Full HD resolutions (4K / 1080p) with support for 3D and the accompanying digital audio. For added versatility, both the transmitter and receiver can be powered by the same single power source using Power Over Cable (POC). The versatility of this video extender makes it an ideal solution for digital signage applications in large buildings such as commercial shopping centers, stadiums, schools, and hospitals. What is HDBaseT? HDBaseT is a standardized, zero latency, video distribution technology that’s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video along with additional signals such as 100BaseT Ethernet, IR, RS-232 serial and power over cable. Extend more with HDBaseT The extender offers HDBaseT technology with HDMI and Power in a single extender kit, for complete end-to-end solution. Offering greater versatility than traditional HDMI extenders or HDMI cabling alone HDBaseT is the clear choice for every integrator and system designer. The added benefit of power over cable means you’ll only need one power source at either side of your extension, great for extending video to areas where power outlets may be limited, such as industrial sites. Astonishing 4K picture quality from an impressive distance With the A/V industry quickly adopting 4K...
Why choose the StarTech.com HDMI over CAT5e HDBaseT Extender - Power over...?
The StarTech.com HDMI over CAT5e HDBaseT Extender - Power over Cable... is a av extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: AV transmitter & receiver; Maximum resolution: 4096 x 2160 pixels; Cable types supported: Cat5e, Cat6. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | AV transmitter & receiver |
| Maximum resolution | 4096 x 2160 pixels |
| Cable types supported | Cat5e, Cat6 |
| Maximum transfer distance | 70 m |
| Maximum refresh rate | 60 Hz |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Status |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 4096 x 2160 |
| Cable length | 0.1 m |
| Material | Aluminium |
| Mean time between failures (MTBF) | 52000 h |
| Product colour | Black |
| Certification | CE, FCC, HDBT, TAA |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| AC input voltage | 110 - 240 V |
| Operating voltage | 12 V |
| Input current | 0.5 A |
| Output current | 1.5 A |
| Power consumption (typical) | 3 W |
| Power plug type | Type M |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 67 mm |
| Depth | 80 mm |
| Height | 25 mm |
| Weight | 428 g |
| Package width | 158 mm |
| Package depth | 234 mm |
| Package height | 70 mm |
| Package weight | 1.1 kg |
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Brand | StarTech.com |
| Manufacturer part number | ST121HDBTE |
| GTIN / UPC | ['0065030851107', '065030851107', '0102213458064', '102213458064'] |
