StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power 90W - 802.3bt PoE++ 52V-56VDC DIN Rail UPoE/Ultra Power Over Ethernet Injector Adapter -40C to +75C Rugged - TAA
Stock: 0 units
Description
Description
Product overview

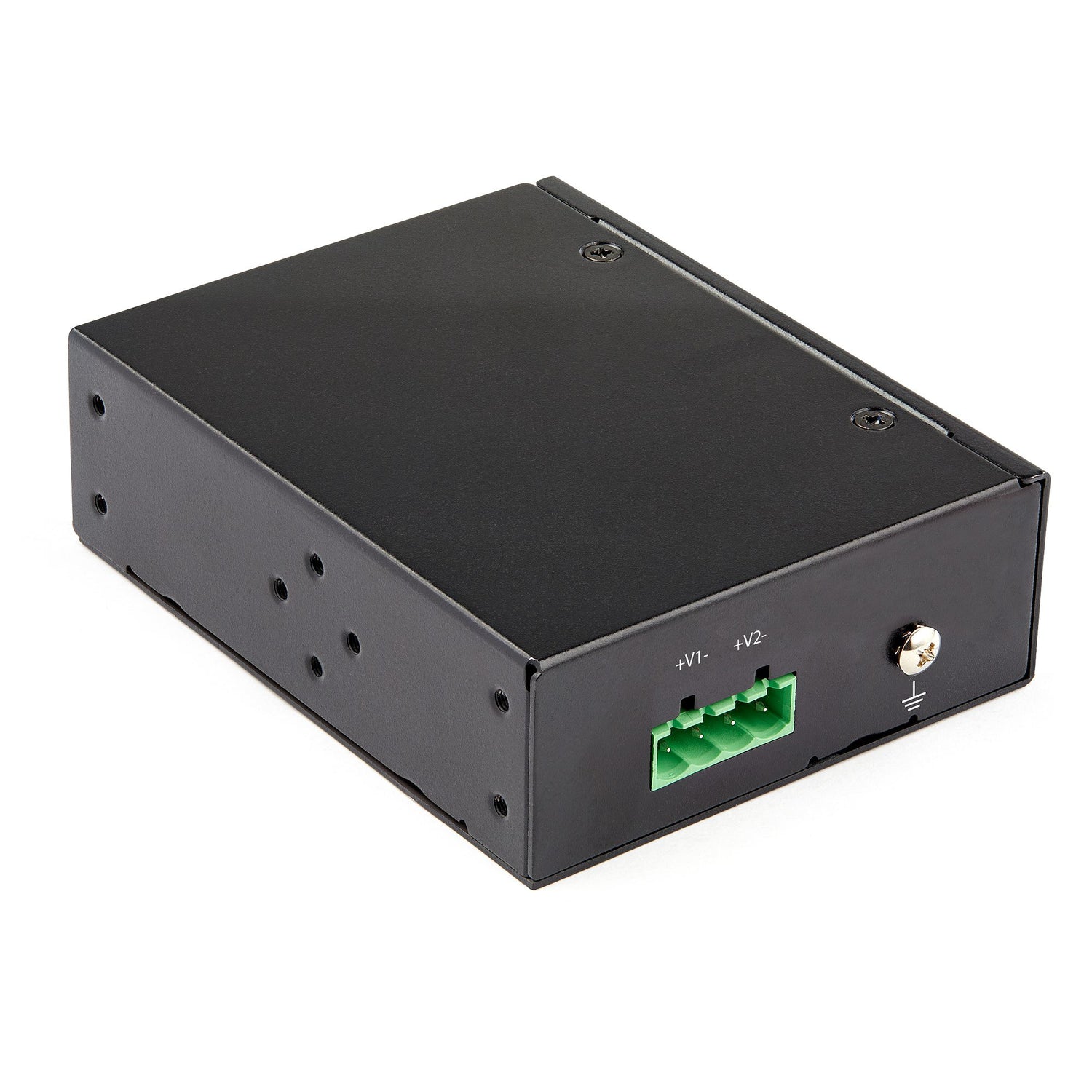

Rugged PoE Injector | 90 Watts Max | IP-30 Aluminum Housing | 52V-56V DC This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. Flexible Configurations for a Variety of Applications Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications. 90 Watt Power Budget As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. • Vibration: EN 60068-2-6 • Shock: EN 60068-2-27 • Free-fall: EN 60068-2-32 500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
Why choose the StarTech.com Industrial Gigabit PoE Injector - High...?
The StarTech.com Industrial Gigabit PoE Injector - High Speed/High Power... is a network extenders from StarTech.com, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Network repeater; Maximum transfer distance: 100 m; Data transfer rate: 1000 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Network repeater |
| Maximum transfer distance | 100 m |
| Data transfer rate | 1000 Mbit/s |
| Chipset | Microsemi PD69204 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| Auto-negotiation | Yes |
| Duplex system | Full |
| International Protection (IP) code | IP30 |
| Mean time between failures (MTBF) | 540891 h |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u |
| Power over Ethernet (PoE) ports quantity | 2 |
| Terminal block port | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Supported network protocols (IPv4) | CSMA/CD |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 90 W |
| Power plug type | Type N |
| Power over Ethernet (PoE) voltage range | 48 - 56 V |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 32 mm |
| Depth | 82 mm |
| Height | 104 mm |
| Weight | 174 g |
| Quick start guide | Yes |
| Package width | 169 mm |
| Package depth | 214 mm |
| Package height | 67 mm |
| Package weight | 416 g |
| Compliance certificates | CE, RoHS |
| Harmonized System (HS) code | 85176990 |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case height | 248 mm |
| Brand | StarTech.com |
| Manufacturer part number | POEINJ1G90W |
| GTIN / UPC | ['0065030889568', '065030889568'] |
