Brainboxes ES-446 PoE adapter Fast Ethernet
Stock: 0 units
Description
Description
Product overview

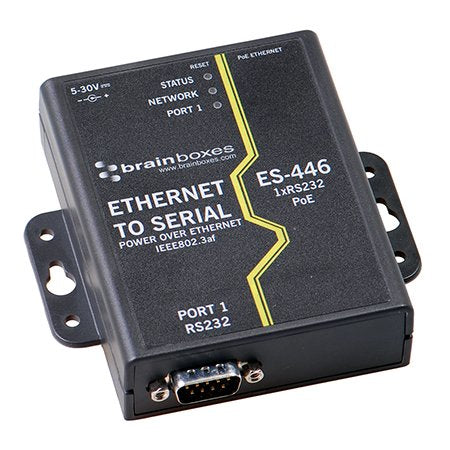

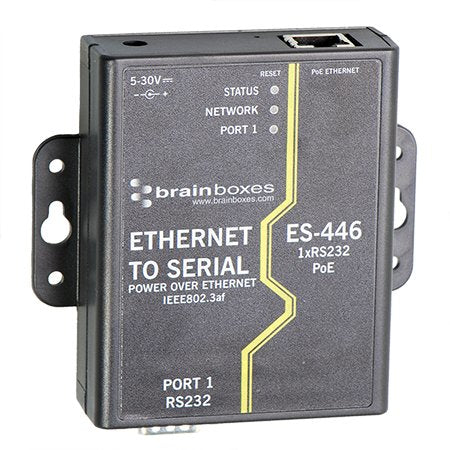

1 Port RS-232 with Power over Ethernet IEEE802.3af. Ethernet to Serial Device Server. Data rate from 110 to 1,000,000 baud. User friendly interface, simple to use, powerful in operation. Serial Port Tunnelling allows serial cable replacement over any distance, no software required. Optional DIN rail mounting kit. Ethernet to Serial device server with Power over Ethernet providing access to one RS232 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Power over Ethernet (PoE) uses IEEE 802.3af standard. Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Why choose the Brainboxes ES-446 PoE adapter Fast Ethernet?
The Brainboxes ES-446 PoE adapter Fast Ethernet is a poe adapters from Brainboxes, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Ethernet interface type: Fast Ethernet; Ethernet LAN data rates: 10,100 Mbit/s; Power over Ethernet (PoE): Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Input voltage | 5 - 30 V |
| Power consumption (typical) | 1.5 W |
| Operating temperature (T-T) | 0 - 60 °C |
| Operating temperature (T-T) | 32 - 131 °F |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight | 121 g |
| Dimensions (WxDxH) | 102 x 100 x 27 mm |
| Number of products included | 1 pc(s) |
| Package length | 13.5 cm mm |
| Package width | 160 mm |
| Package height | 45 mm |
| Brand | Brainboxes |
| Manufacturer part number | ES-446 |
| GTIN / UPC | ['0837324003710', '837324003710'] |
