Intellinet 5-Port Gigabit Ethernet PoE+ Switch, 4 x PSE Ports, IEEE 802.3at/af Power over Ethernet (PoE+/PoE) Compliant, 60 W, Desktop
Stock: 0 units
Description
Description
Product overview
Save installation time and money with PoE. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch passes both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with five Gigabit Ethernet ports - four of which are high-power PoE+ PSE ports - this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 1000 Mbps. Power over Ethernet 802.3at. The Intellinet Network Solutions 5-Port Gigabit Ethernet PoE+ Switch supports the IEEE 802.3at protocol and can inject up to 30 watts of power per port.* IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, which eliminates the time and expense of electrical rewiring and minimises the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well-protected. Green Ethernet Technology. More often than not, a network switch does not utilize all of its ports at all times. Normally, when a computer, notebook, network printer or other network device powers down, the switch continues to consume the same amount of power as if it were active. To overcome this waste of energy, the Intellinet Network Solutions 5-Port Gigabit PoE+ Switch employs the new energy-efficient IEEE 802.3az technology, which detects link status to all connected devices and reduces the...
Why choose the Intellinet 5-Port Gigabit Ethernet PoE+ Switch, 4 x PSE...?
The Intellinet 5-Port Gigabit Ethernet PoE+ Switch, 4 x PSE Ports, IEEE... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Basic switching RJ-45 Ethernet ports quantity: 5; Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |

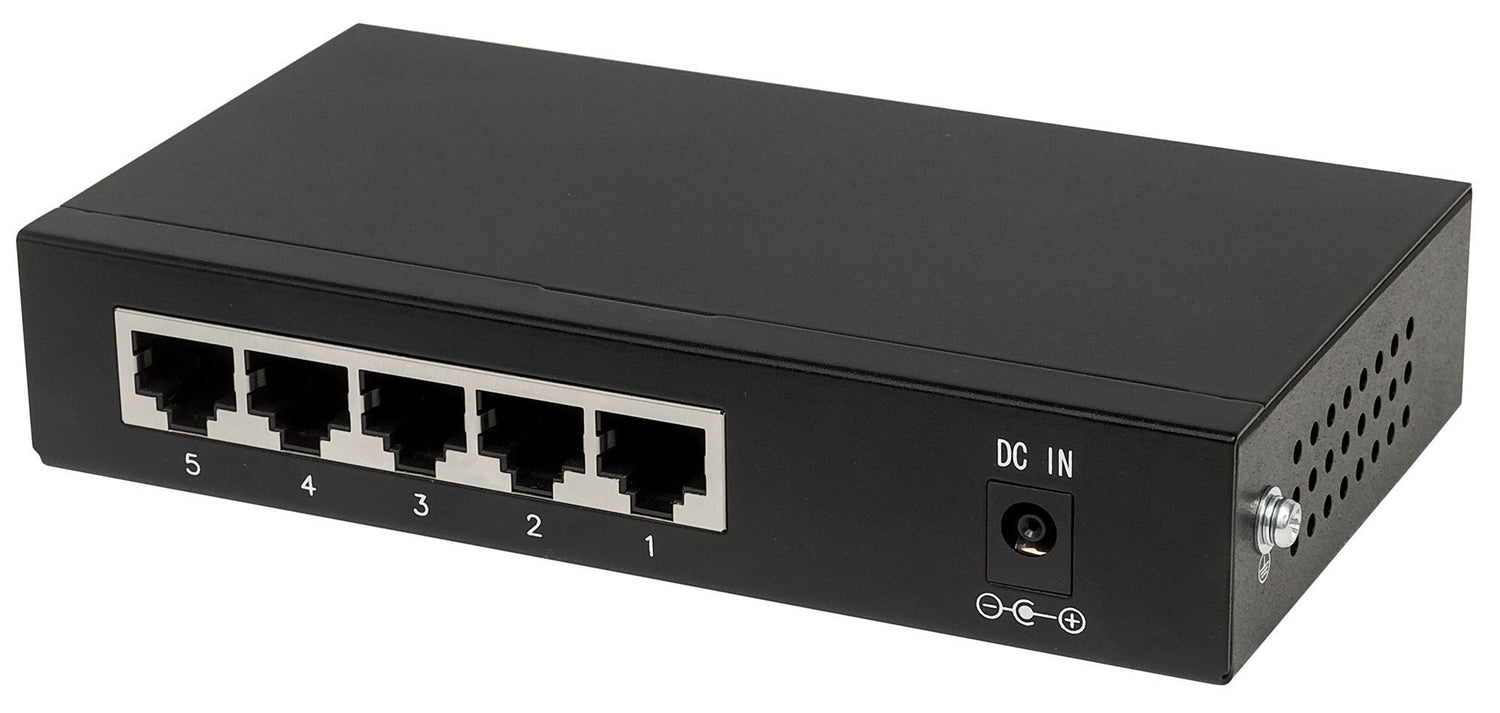

| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 0.192 MB |
| Product colour | Black |
| Housing material | Metal |

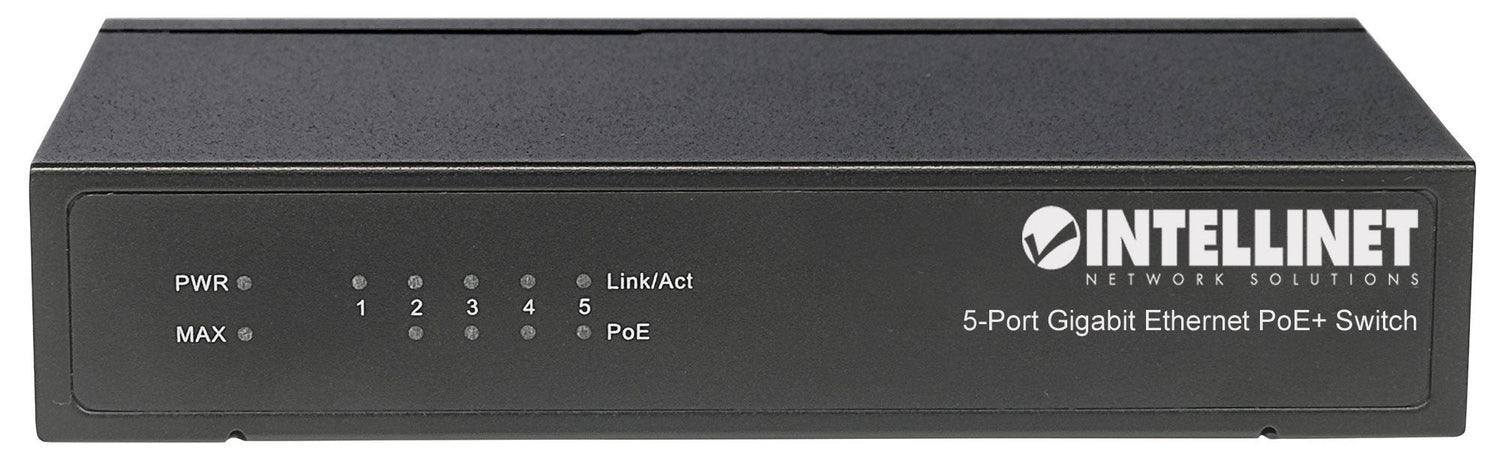

| LED indicators | Activity, Link, PoE, Power |

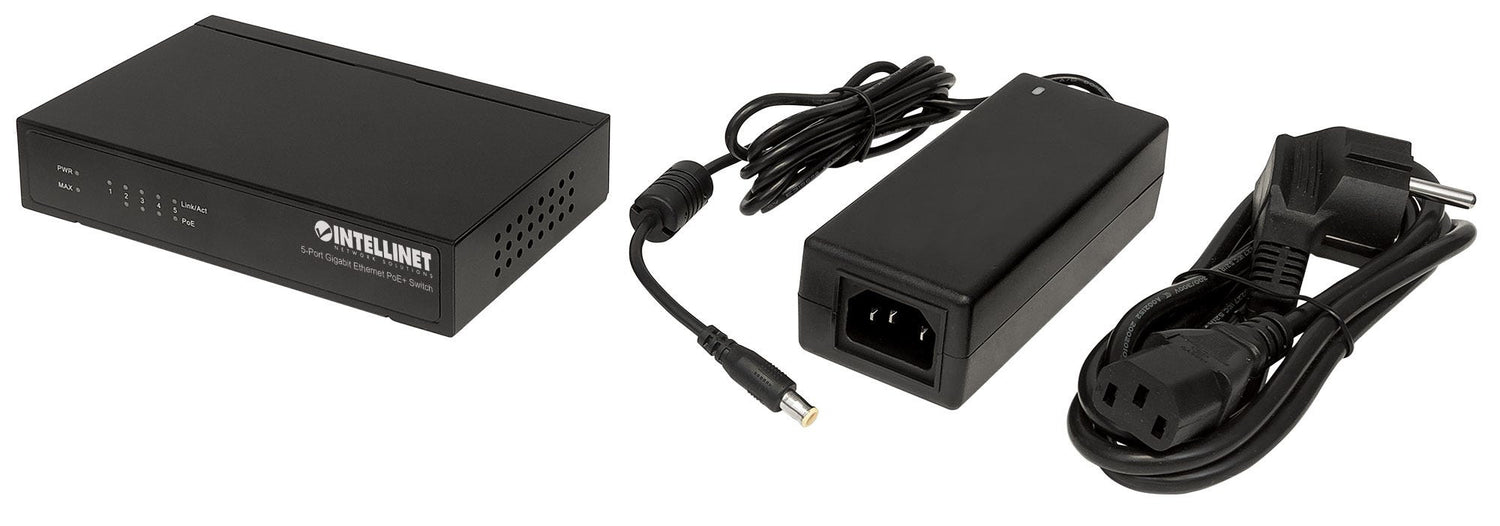

| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 70 W |
| Power protection features | Over voltage, Overload, Short circuit |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 5 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 60 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 140 mm |
| Depth | 76 mm |
| Height | 27 mm |
| Weight | 710 g |
| Cables included | AC |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Brand | Intellinet |
| Manufacturer part number | 561228 |
| GTIN / UPC | ['0766623561228', '766623561228'] |
