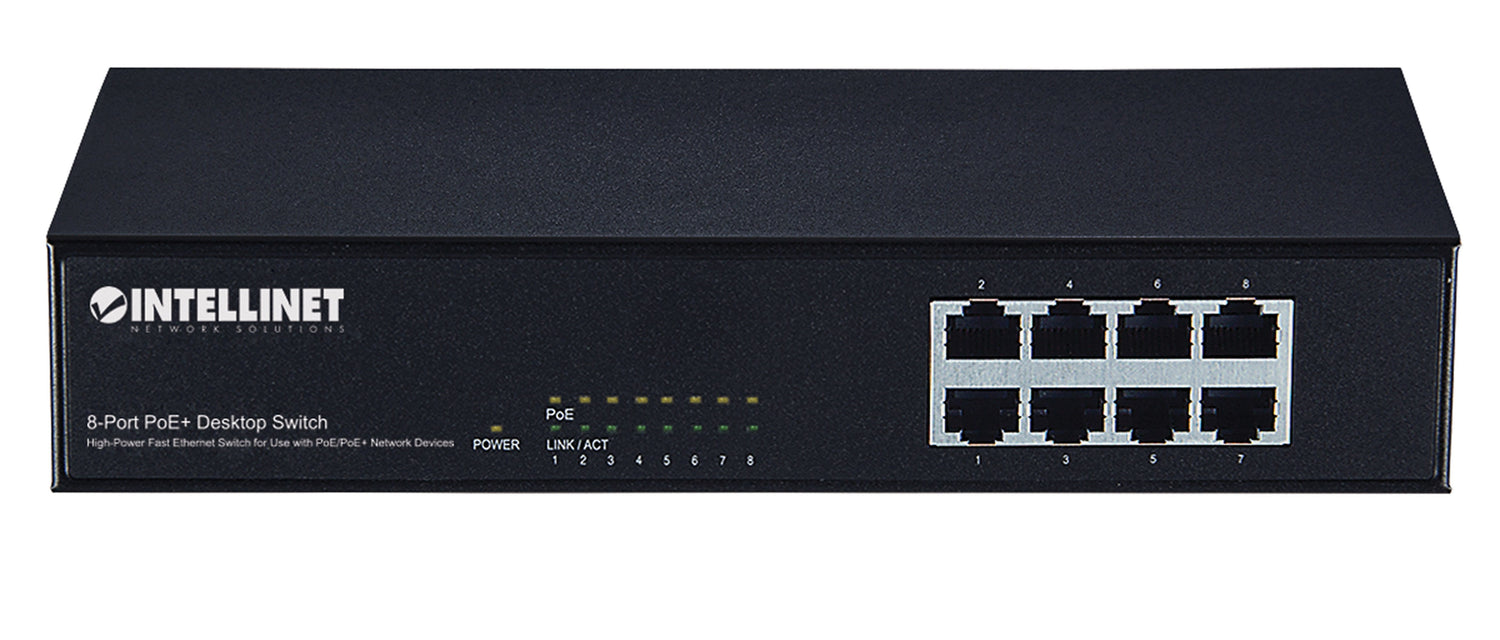

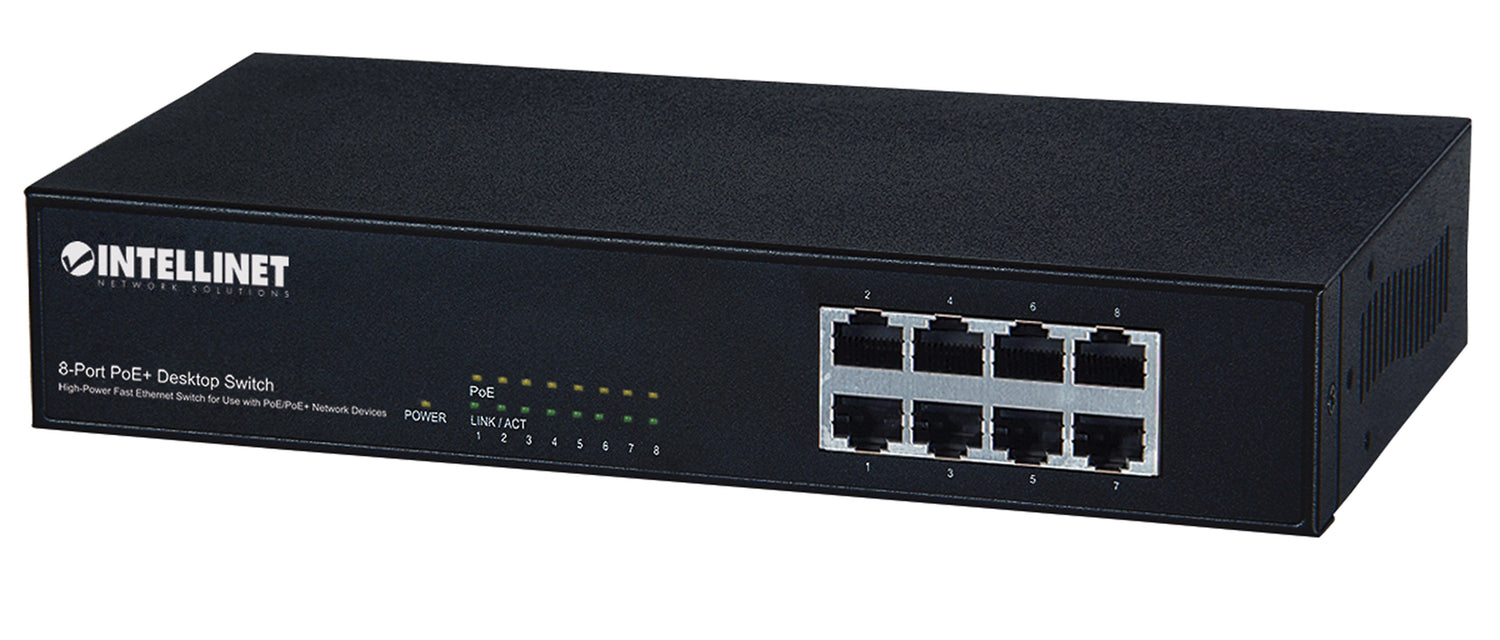

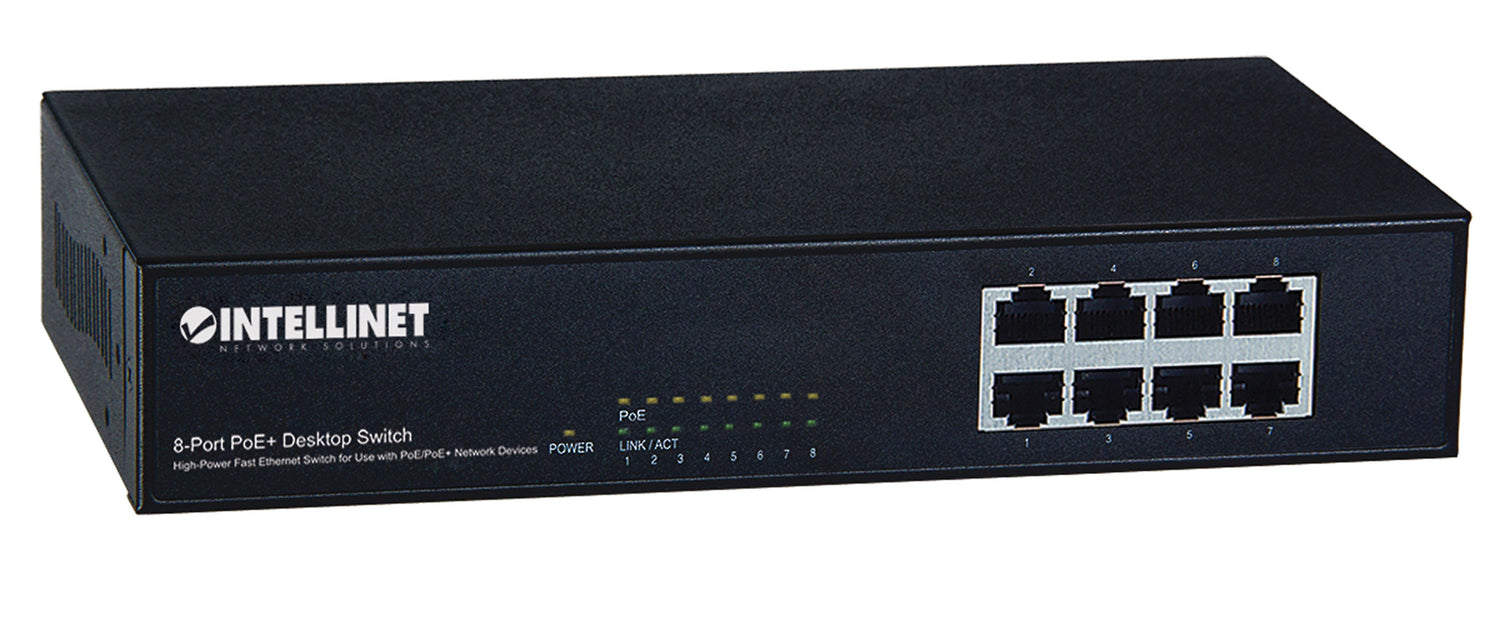

Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE 802.3at/af Power-over-Ethernet (PoE+/PoE), Endspan, Desktop, Box
Stock: 0 units
Description
Description
Product overview
Save installation time and money with PoE. _x000D_. _x000D_. The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch (560764) is designed to pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with eight Fast Ethernet ports (all of which support 802.3at/af PoE/PoE+), this switch can power wireless LAN access points and bridges, VoIP phones, IP video cameras and more while delivering network speeds of up to 100 Mbps. _x000D_. _x000D_. Power over Ethernet 802.3at _x000D_. The Intellinet Network Solutions 8-Port Fast Ethernet PoE+ Switch supports the IEEE 802.3at protocol and is designed to inject up to 30 watts of power per port*. IEEE802.3af- or IEEE802.3at-compliant devices attached to the switch require no additional power, thus eliminating the time and expense of electrical rewiring and minimising the unsightly clutter caused by power supplies and adapters in awkward places such as ceilings and walls. Any mix of PoE and non-PoE devices is supported, and thanks to its short circuit, overload and high-voltage protection function, your equipment is well protected. For devices that are not 802.3at/af compliant (legacy wireless access points or network cameras), we suggest use of an Intellinet Network Solutions PoE/PoE+ Splitter. _x000D_. _x000D_. _x000D_. * Total PoE budget for this switch is 140 watts. Per-port average power distribution is 17.5 watts; maximum per-port power usage cannot exceed 30 watts.
Why choose the Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports...?
The Intellinet 8-Port Fast Ethernet PoE+ Switch, 8 x PoE ports, IEEE... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Basic switching RJ-45 Ethernet ports quantity: 8; Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100); Power connector: DC-in jack. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |

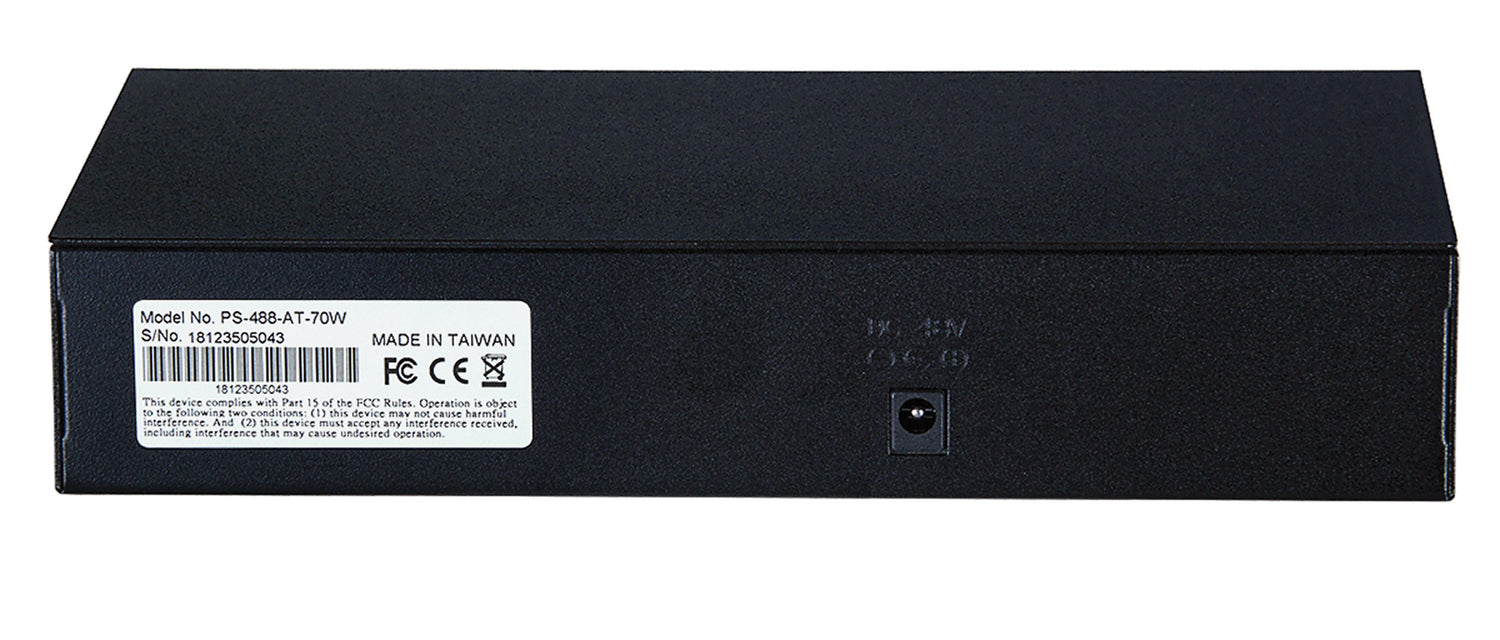

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1af, IEEE 802.3, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | 100BASE-TX, 10BASE-T |
| Full duplex | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Switching capacity | 1.6 Gbit/s |
| Forwarding rate | 0.1488 Mpps |
| MAC address table | 2048 entries |
| Store-and-forward | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Activity, Link, PoE, Power |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 150 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 280 mm |
| Depth | 179 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
| Cables included | AC |
| Manual | Yes |
| Certification | FCC Class A, CE |
| Harmonized System (HS) code | 85176990 |
| Brand | Intellinet |
| Manufacturer part number | 560764 |
| GTIN / UPC | ['7666235607648', '0163120831371', '163120831371', '0011411364636', '011411364636', '0766623560764', '766623560764', '0163120898800', '163120898800'] |
