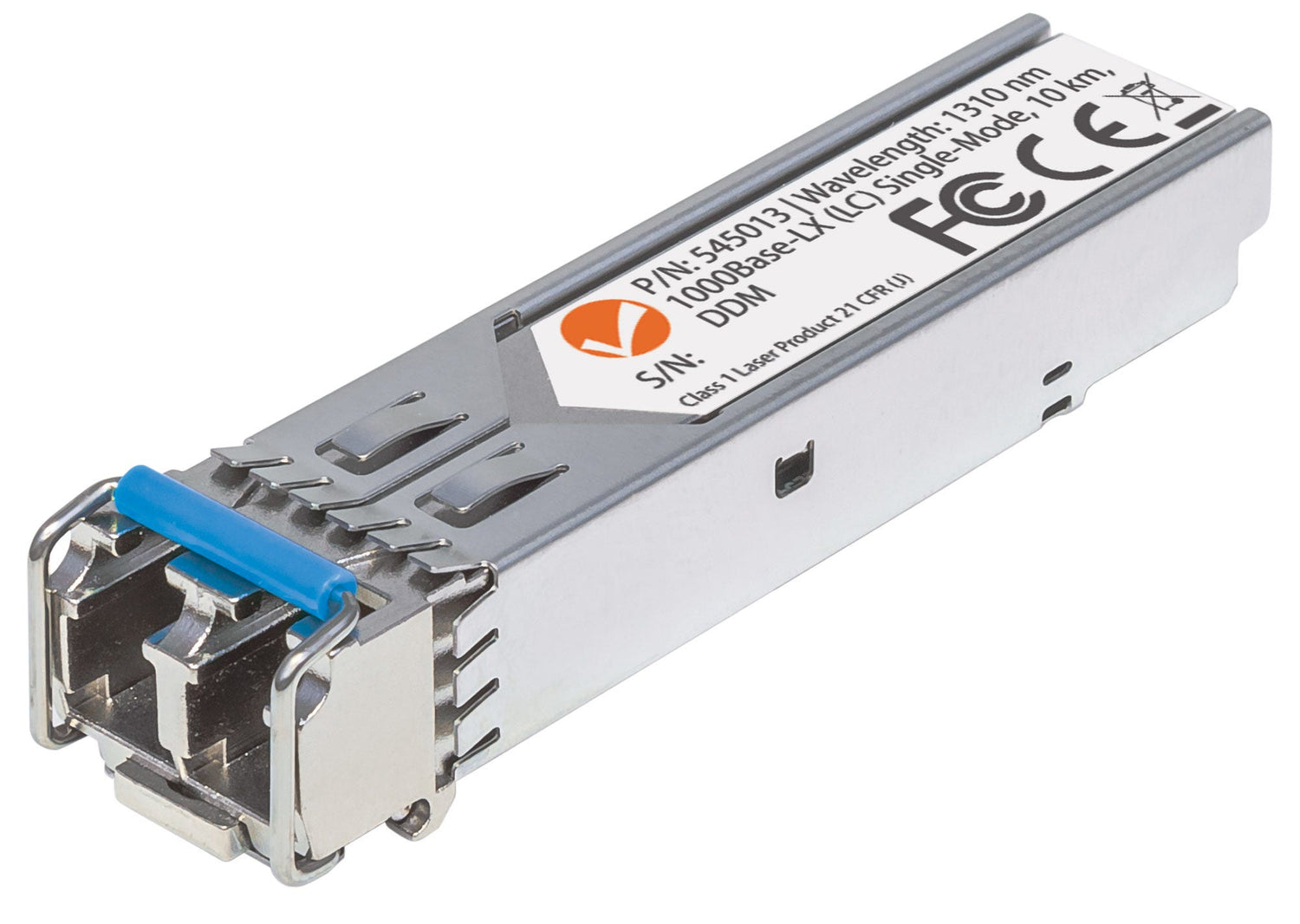

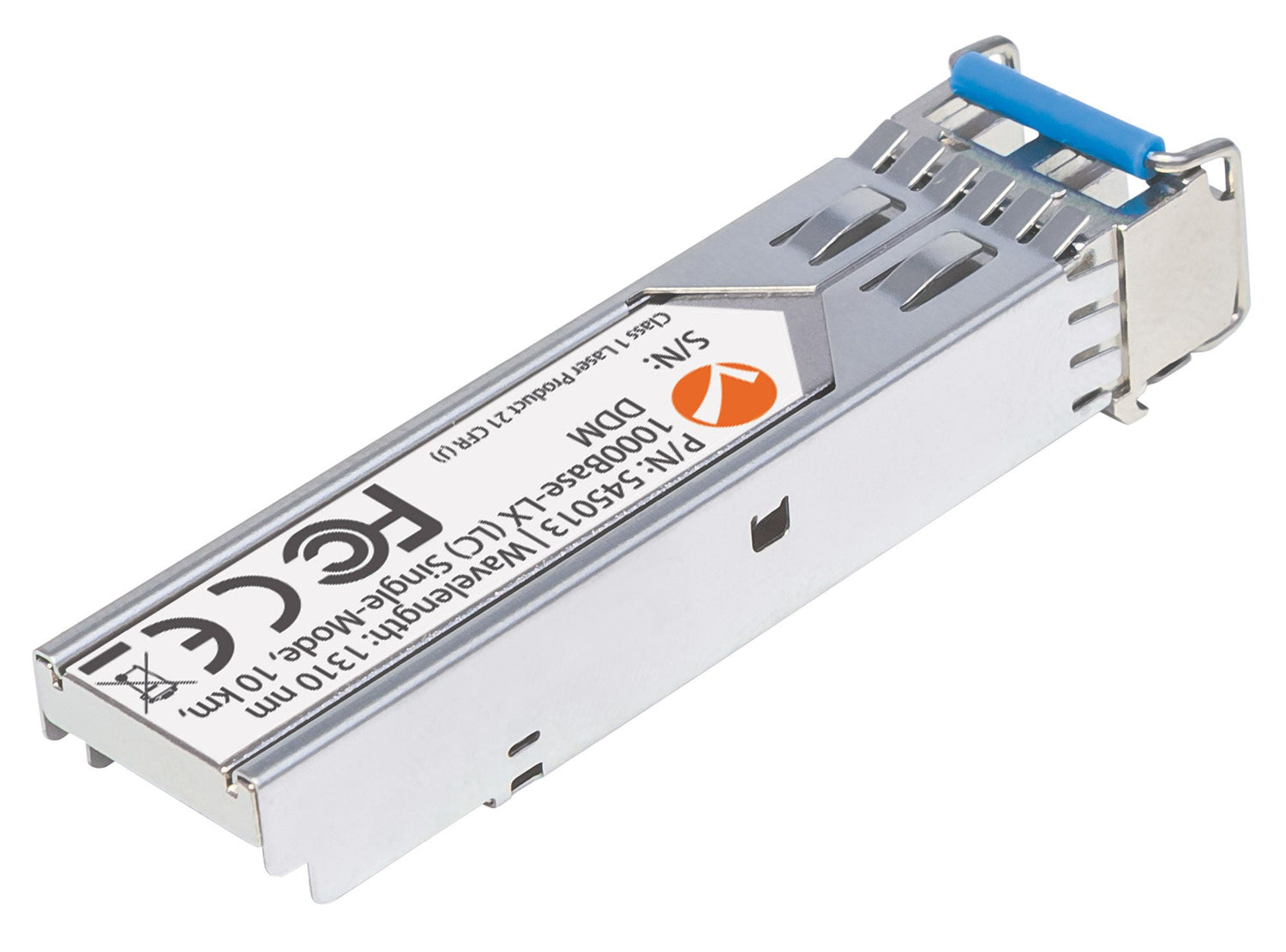

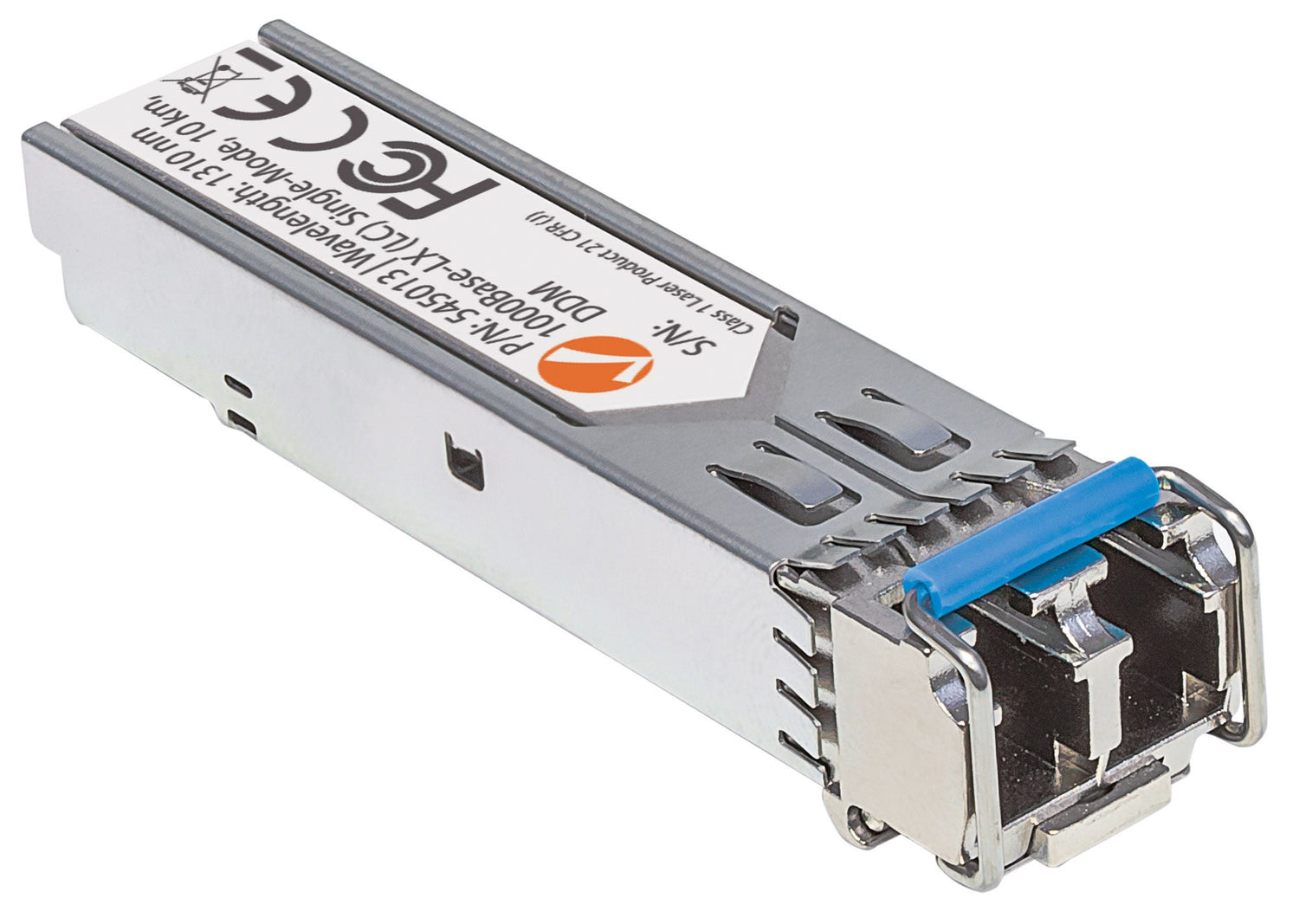

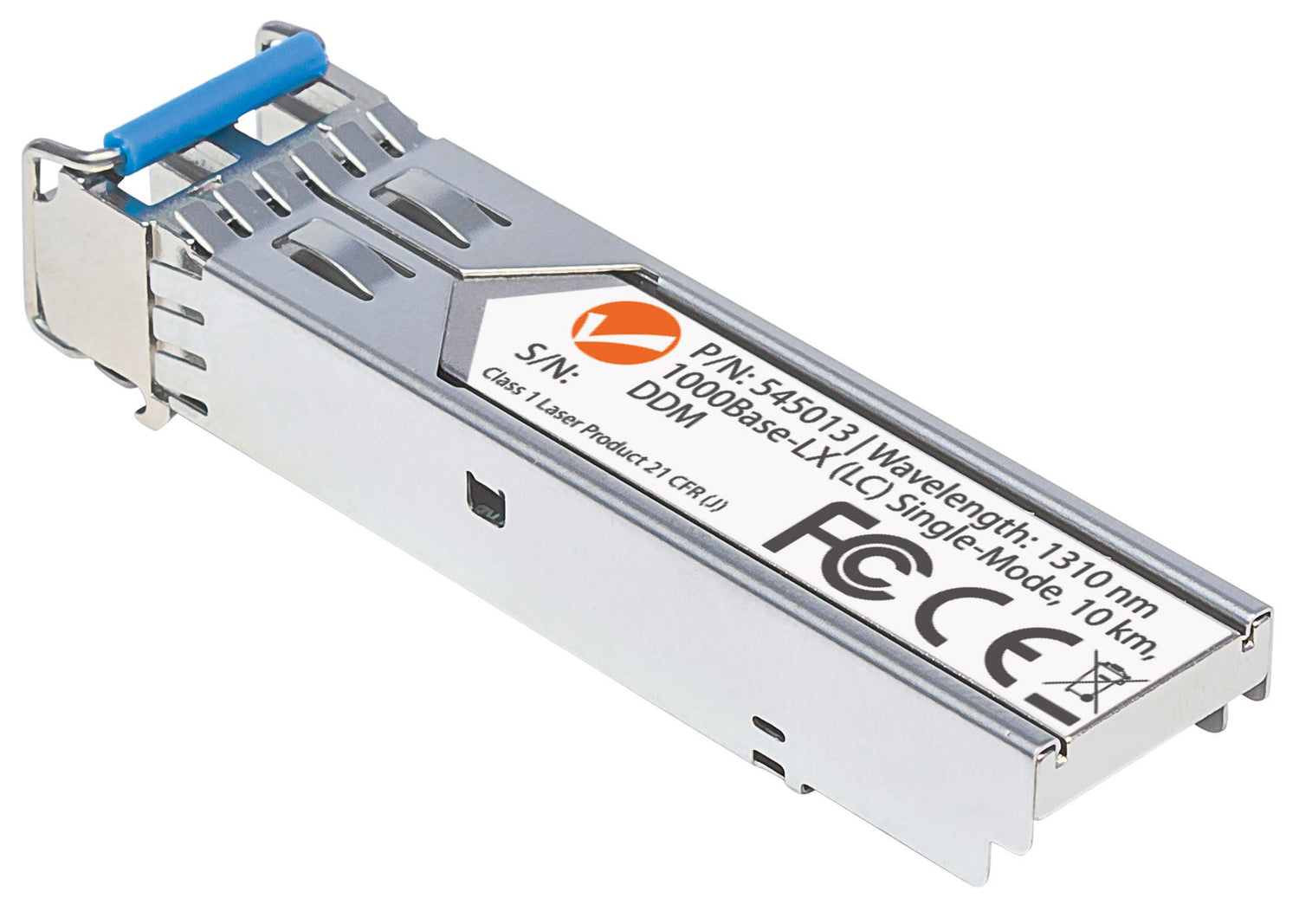

Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx (LC) Single-Mode Port, 10km, Wavelength 1310nm, MSA Compliant, Equivalent to Cisco GLC-LH-SM, Ethernet, Fibre, Three Year Warranty
Stock: 0 units
Description
Description
Product overview
Gigabit Fibre SFP Optical Transceiver Module. The new line of Intellinet Network Solutions Small Form Factor Pluggable (SFP) Transceivers provides customers with a combination of performance and affordability. These mini-GBIC (Gigabit Interface Converter) modules come in a metal housing that reduces electromagnetic interference and increases their durability. Small Size for High-Density Fibre Connections. The transceiver comes in a mini-GBIC form factor, making it ideal for environments that require many fibre connections by taking up less space in your cabinet and/or computer room. Compatibility. Compatibility in your network is everything, and the Intellinet Network Solutions SFP Transceiver Module (model 545013) delivers. Use it with any Intellinet Network Solutions SFP equipped network switch or any other MSA compliant SFP enabled switch. And since the Intellinet Network Solutions SFP transceiver module is set to broadcast the vendor pn GLC-LH-SM, compatibility to your Cisco gear is provided. Hot-Pluggable. The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) is fully hot-pluggable, and that allows you to install the module without rebooting your network switch for uninterrupted network traffic. Digital Diagnostics Monitoring (DDM). The Intellinet Network Solutions Gigabit Fibre SFP Optical Transceiver Module (model 545013) supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This gives the user the ability to monitor parameters of the SFP, such as optical output power...
Why choose the Intellinet Transceiver Module Optical, Gigabit Fiber SFP...?
The Intellinet Transceiver Module Optical, Gigabit Fiber SFP, 1000Base-Lx... is a network transceiver modules from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — SFP transceiver type: Fiber optic; Maximum data transfer rate: 1000 Mbit/s; Interface type: SFP. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Tx power (min) | -8 dBmW |
| Tx power (max) | -3 dBmW |
| Link budget | 14 dB |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Product colour | Aluminium |
| Hot-Plug support | Yes |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Compliance certificates | CE, RoHS, Federal Communications Commission (FCC) |
| Certification | FCC Class A, CE Mark |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 18 g |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85369010 |
| Brand | Intellinet |
| Manufacturer part number | 545013 |
| GTIN / UPC | ['0766623545013', '766623545013'] |
Frequently asked questions
How long does delivery take?
Orders are processed within 24 hours. Once your tracking number is issued, delivery takes 24 to 72 hours to major centres in the main provinces, and 3 to 8 business days to remote regions. We ship with FedEx, DHL, UPS, Canada Post and Purolator.
Is this product covered by a warranty?
Yes. This item carries the manufacturer's warranty. See our Refund Policy for return windows and conditions, or contact us and we will walk you through the process.
Can I get volume pricing?
Yes. Volume discounts apply automatically as quantity increases, and our team can quote larger projects directly — reach us by phone, WhatsApp or email.
Do the specifications on this page come from the manufacturer?
They do. Product data on this page is sourced from the manufacturer's own catalogue, not rewritten from a distributor summary.
