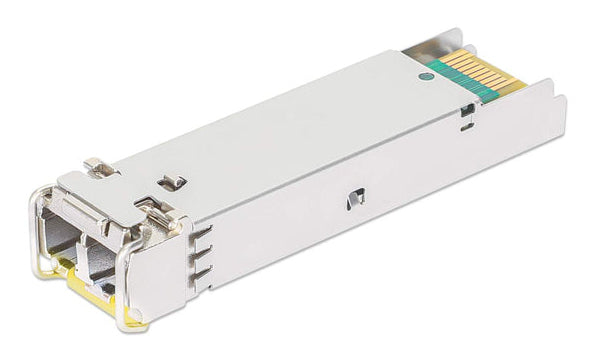

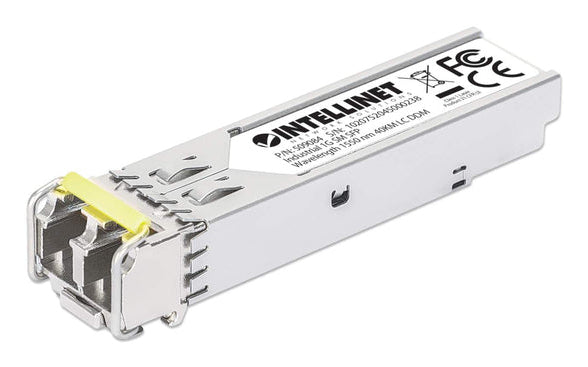

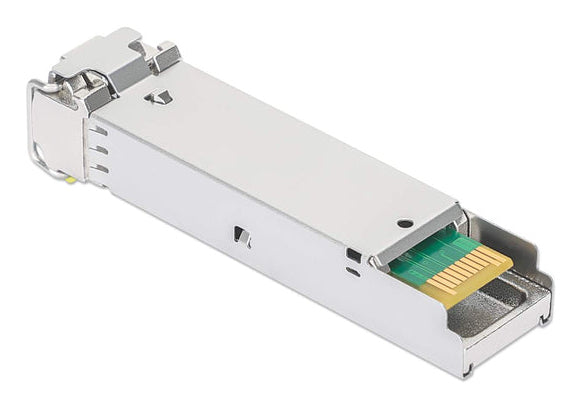

Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s SFP 1550 nm
Stock: 0 units
Description
Description
Product overview
Industrial SFP Module - able to handle extreme temps, MSA compatible. The Small Form Factor Pluggable (SFP) Transceiver from Intellinet Network Solutions provides a great combination of performance and affordability. Also known as a mini-Gigabit Interface Converter (GBIC), this industrial SFP module's metal housing offers increased durability while reducing electromagnetic interference. Small Size for High-Density Fiber Connections. The transceiver's mini-GBIC form factor helps it take up less space on the equipment it plugs into. It's ideal in environments that require many fiber connections. Multi-vendor Compatible. Compatibility in your network is everything, and this industrial SFP Transceiver Module delivers. Use it with any Intellinet SFP equipped network switch or any other Multi Source Agreement (MSA) compliant SFP-enabled switch. It is designed, programmed and tested to work with compatible switches and routers from Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10, Riverstone, Fortinet and more. Hot-pluggable. There's no need to power down your LAN switch in order to install or remove the transceiver. This makes it very convenient and easy to make adjustments to your network that allow your business to keep pace with changing demands. Digital Diagnostics Monitoring (DDM). This transceiver supports standard digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM)...
Why choose the Intellinet 509084 network transceiver module Fiber optic...?
The Intellinet 509084 network transceiver module Fiber optic 1000 Mbit/s... is a network transceiver modules from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — SFP transceiver type: Fiber optic; Maximum data transfer rate: 1000 Mbit/s; Interface type: SFP. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LX |
| Maximum transfer distance | 40000 m |
| Wavelength | 1550 nm |
| Tx power (min) | -5 dBmW |
| Tx power (max) | 0 dBmW |
| Link budget | 19 dB |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3z |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Product colour | Silver |
| Housing material | Metal |
| Form factor | SFP |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Brand compatibility | MSA Compliant |
| Compatible products | Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti, D-Link, Edimax, Allnet, Allied Telesis, Digitus, KTI Networks, LevelOne, PLANET, Tenda, TRENDnet, ZTE, Avaya, Mikrotik, Enterasys, Finisar, Dell Force10... |
| Input voltage | 3.3 V |
| Power consumption (typical) | 1 W |
| Compliance certificates | CE, Federal Communications Commission (FCC), National Defense Authorization Act (NDAA), RoHS, UKCA |
| Doesn't contain | Cadmium, Lead, Mercury |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 12 mm |
| Weight | 20 g |
| Quantity per pack | 1 pc(s) |
| Package weight | 30 g |
| RX sensitivity | -24 dB |
| Brand | Intellinet |
| Manufacturer part number | 509084 |
| GTIN / UPC | ['0766623509084', '766623509084'] |
