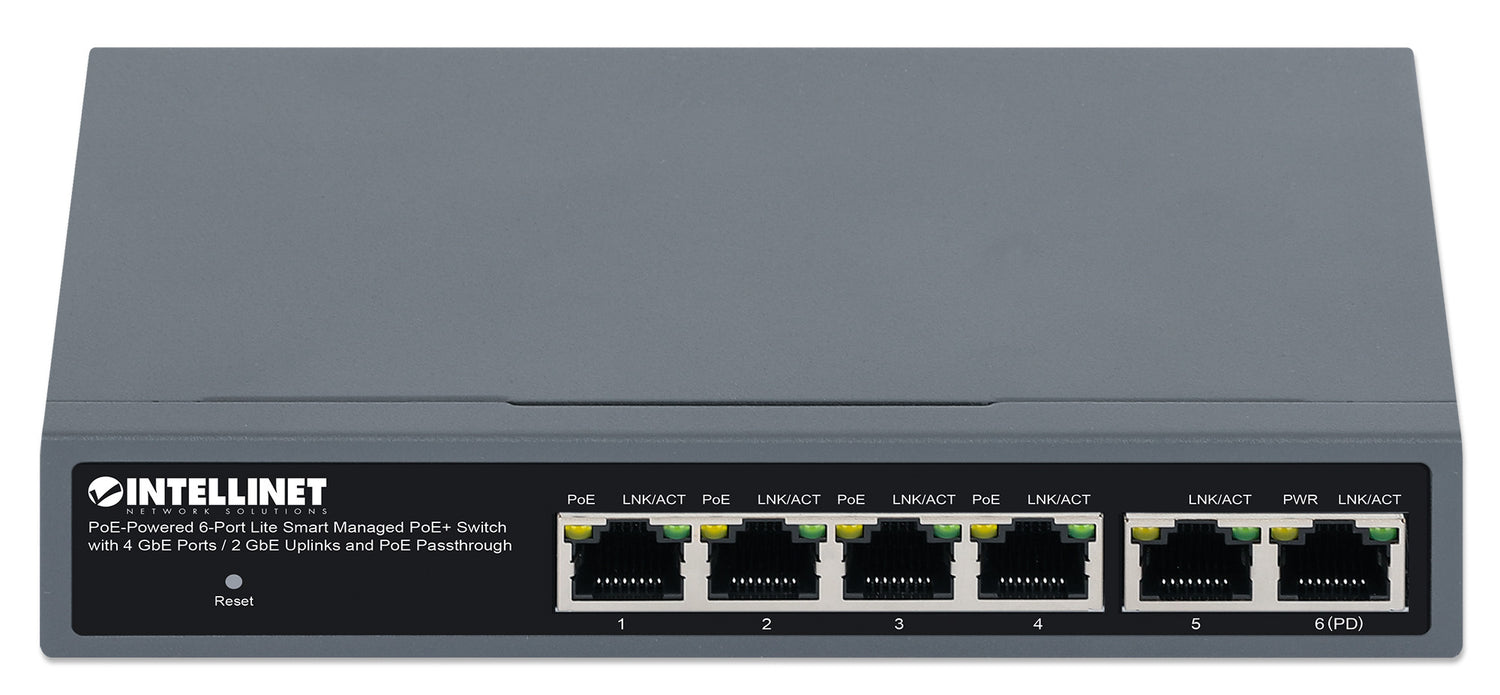

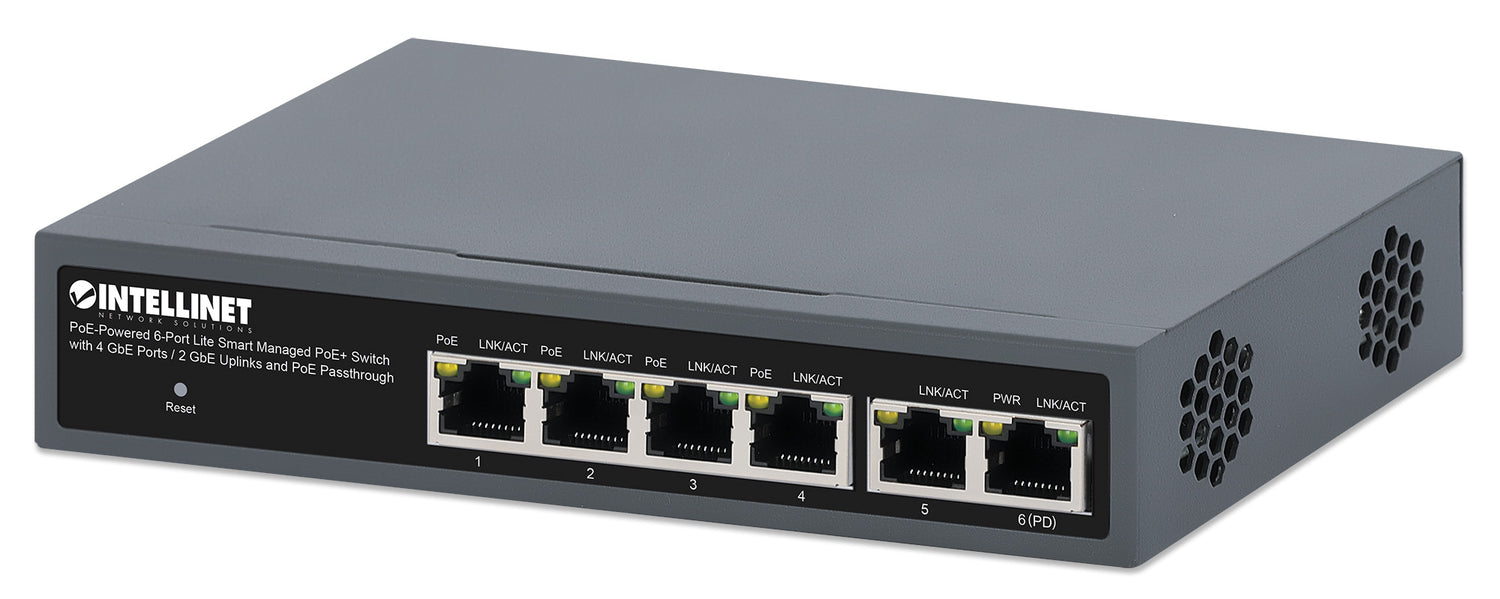

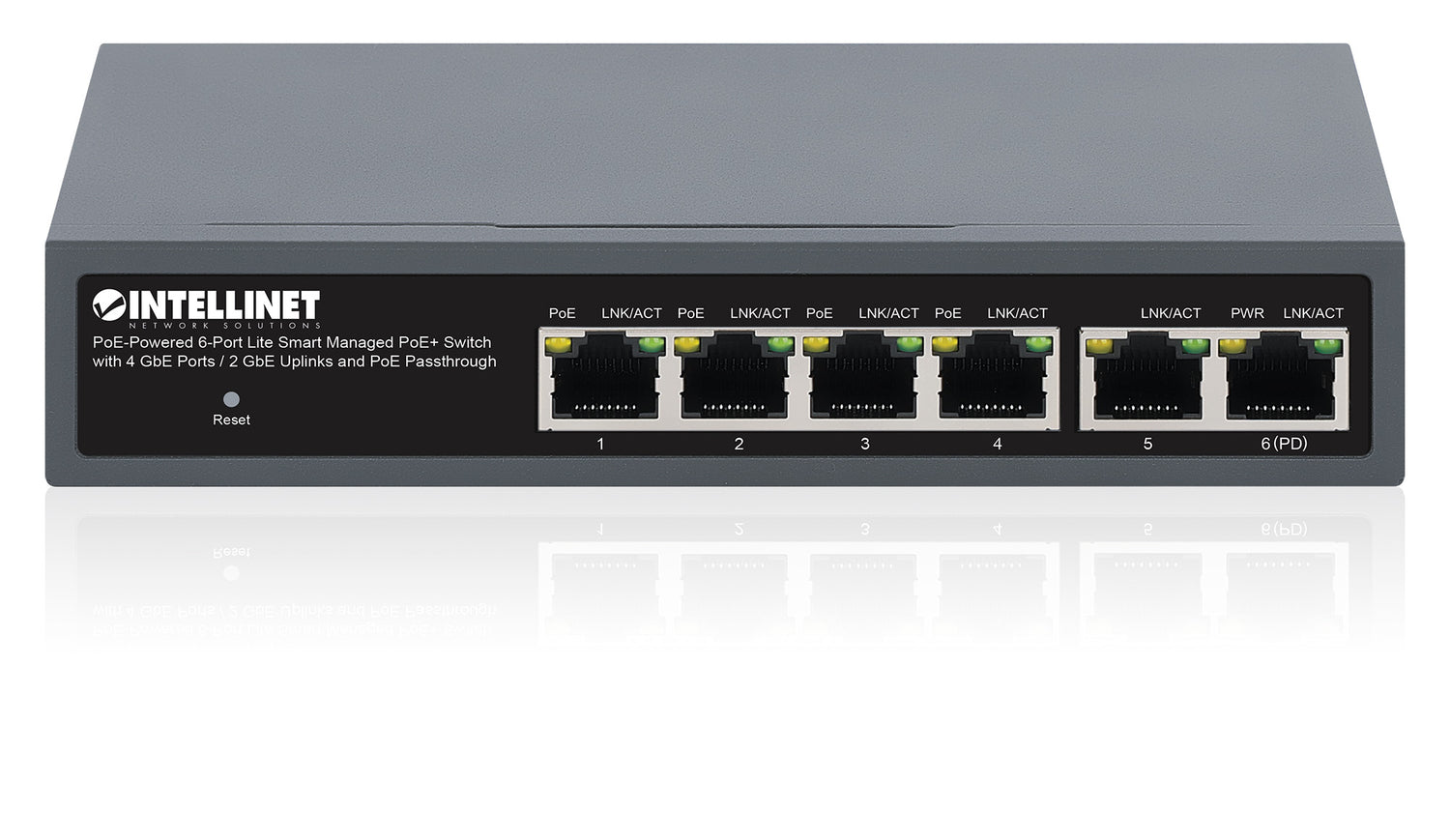

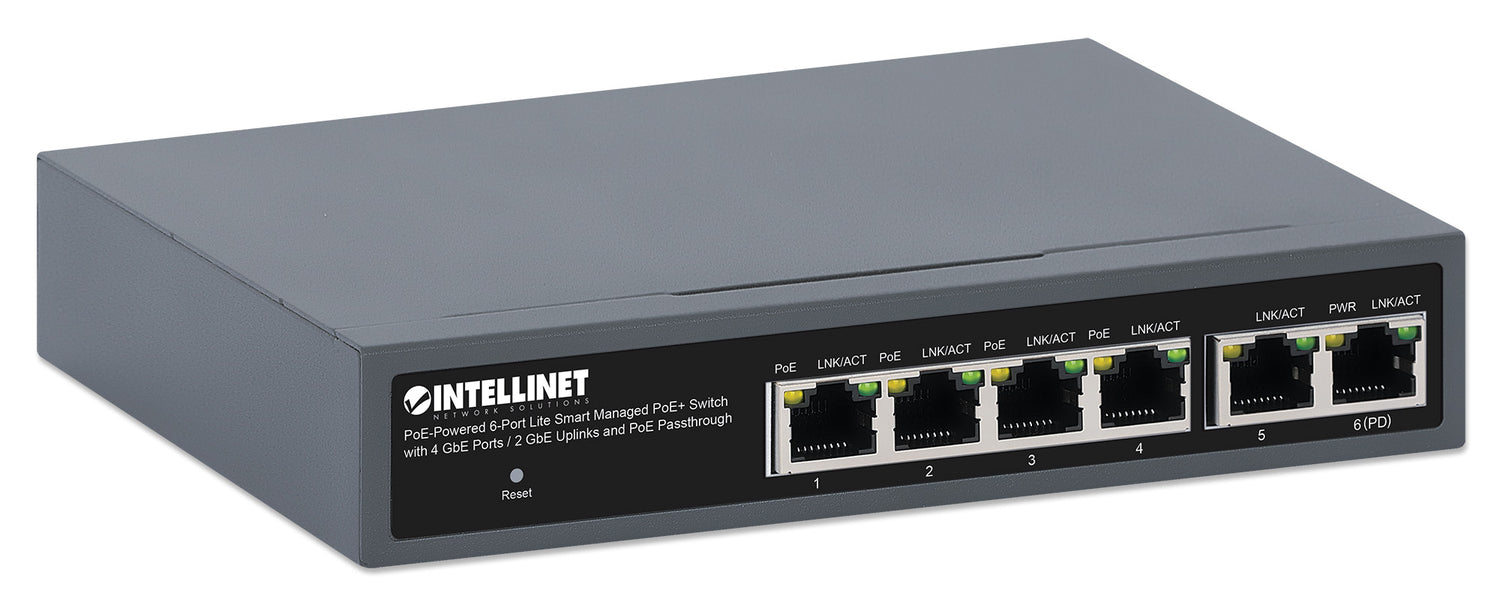

Intellinet PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough
Stock: 0 units
Description
Description
Product overview
A managed PoE passthrough switch to get the most out of each Power over Ethernet connection. The PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4 GbE Ports / 2 GbE Uplinks and PoE Passthrough from Intellinet Network Solutions is designed to take power from a PoE switch or injector and pass both data and electrical power to a number of PoE-compatible devices via standard Cat5e or Cat6 network cables. Equipped with six Gigabit Ethernet ports, this switch can power up to four wireless LAN access points and bridges, VoIP phones or IP video cameras, draw its own power from the PoE switch it is connected to, and deliver network speeds up to 1,000 Mbps. Usable as a PoE extender. Thanks to its PoE passthrough technology that extends a PoE connection, this versatile unit doubles the range between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.). Using it this way also eliminates the time and expense of electrical rewiring, which minimizes the unsightly clutter of power cables in awkward places such as ceilings and walls while providing up to 30 W to compatible devices. Lite and smart network management. With a simplified web interface and the most common configuration options, this switch is reduced to the essentials for a user-friendly installation. The Perfect Workgroup Switch. When you connect the PD port (port 6) to a PoE injector or switch, this product uses some of the electric current to power itself. It then passes the available surplus power to four or fewer PoE edge devices, such as VoIP phones, allowing you to realize the full potential of each of...
Why choose the Intellinet PoE-Powered 6-Port Lite Smart Managed PoE+...?
The Intellinet PoE-Powered 6-Port Lite Smart Managed PoE+ Switch with 4... is a network switches from Intellinet, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Managed; Quality of Service (QoS) support: Yes; Basic switching RJ-45 Ethernet ports quantity: 6. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-sensing | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, Tagged VLAN |
| Switching capacity | 12 Gbit/s |
| Forwarding rate | 8.93 Mpps |
| MAC address table | 8000 entries |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9216 |
| Packet buffer memory | 4.1 MB |
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| LED indicators | Activity, Link, PoE, Power |
| Wall mountable | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power source | AC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 65 W |
| Power protection features | Over voltage, Overload, Short circuit, Surge protection |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 1 |
| Brand | Intellinet |
| Manufacturer part number | 562034 |
| GTIN / UPC | ['0766623562034', '766623562034'] |
