Vaddio DocCAM 20 HDBT OneLINK HDMI System
Stock: 0 units
Description
Description
Product overview

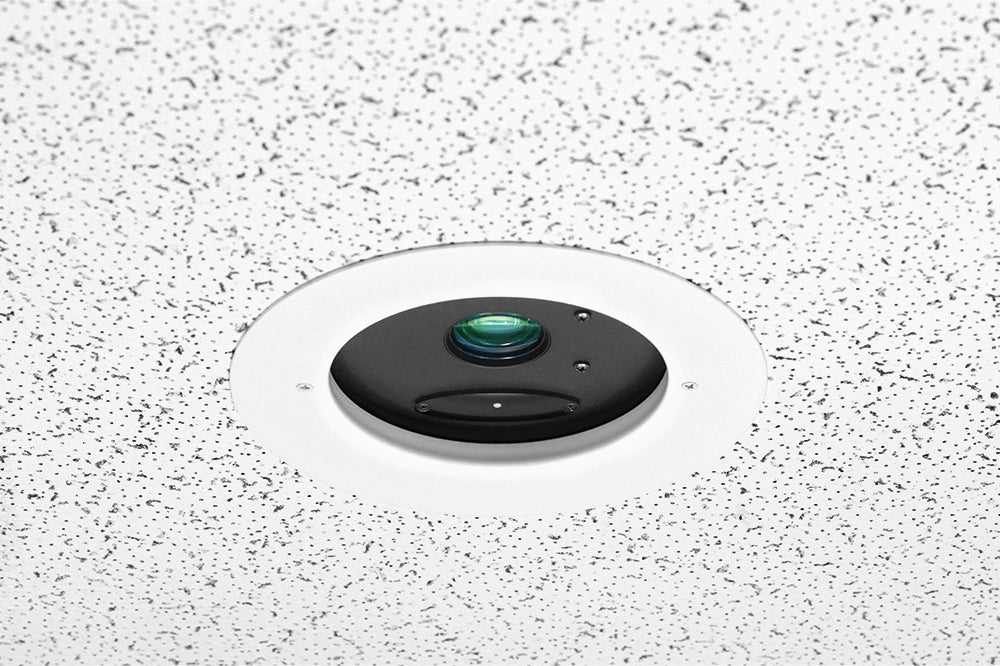

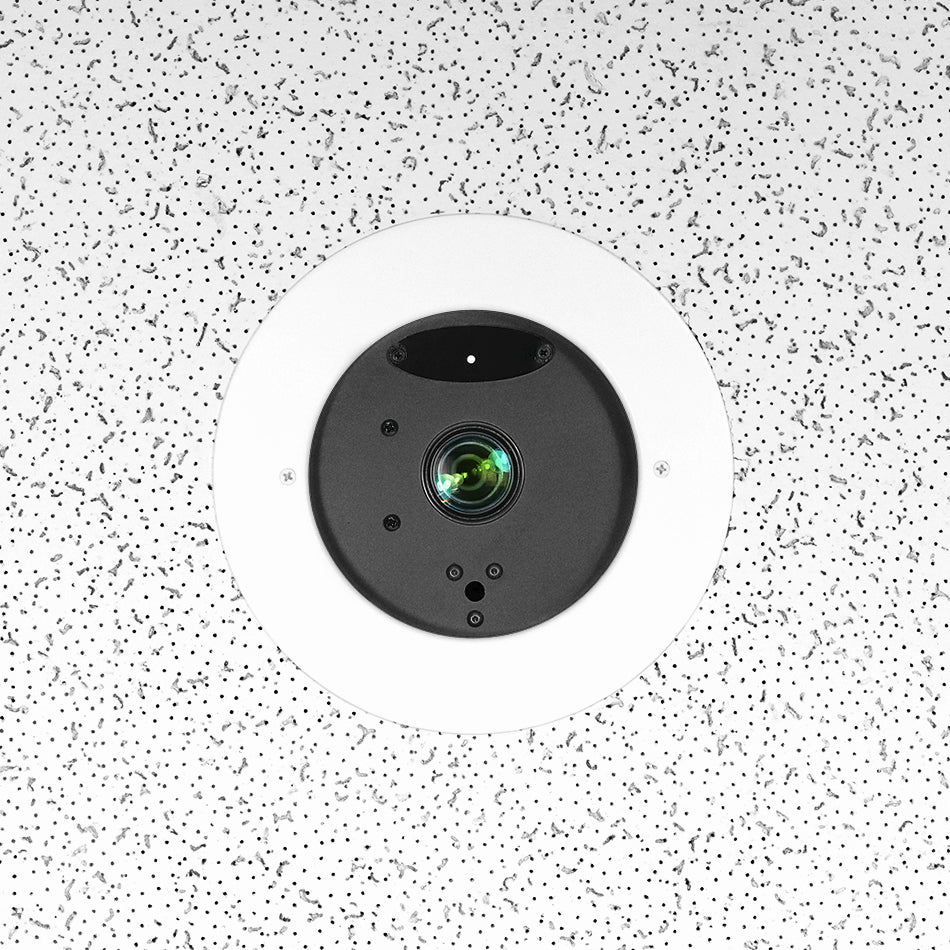

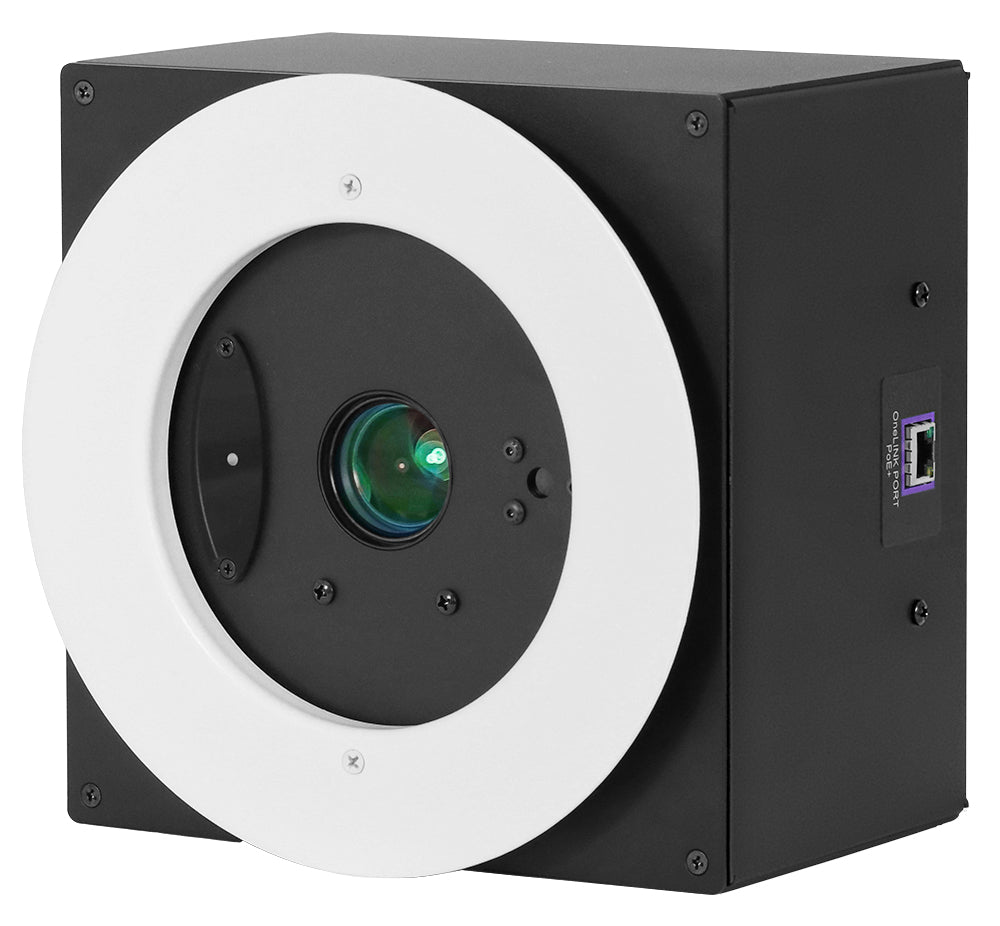

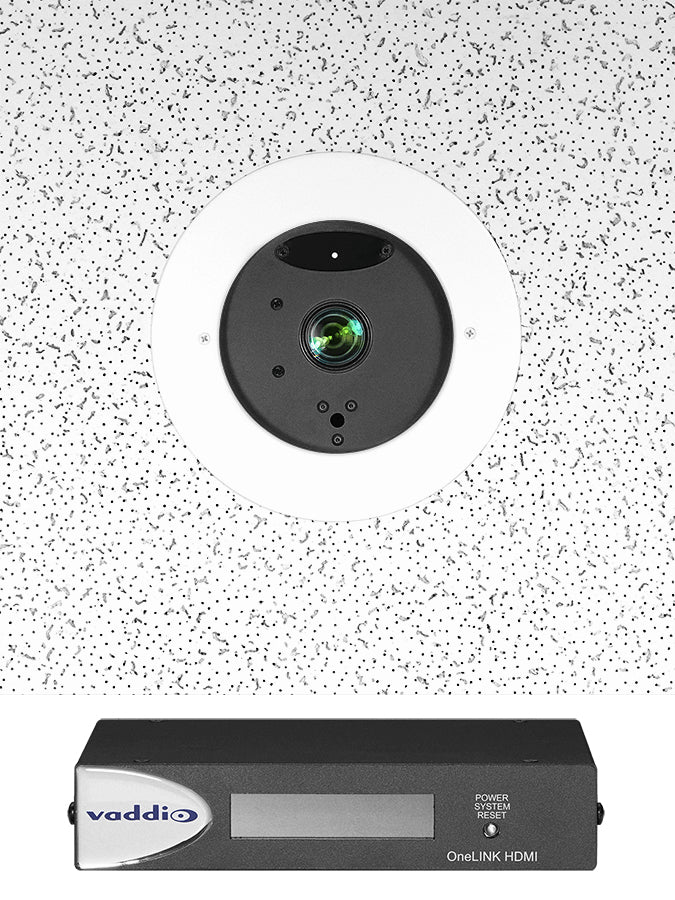

Don’t disrupt the moment - enhance it with the ceiling mounted, HD quality document camera. Experience seamless video, remote management, and flexible installation with the Vaddio DocCAM 20 HDBT. The DocCAM 20 HDBT is a high definition, recessed in-ceiling document camera. Engage the audience like never before with 20x optical zoom and high-definition 1080p/60fps resolution. Capture more of the table with nearly 60° horizontal field of view. The DocCAM 20 HDBT has an in-ceiling, recessed design allowing it to blend into nearly any environment. Equipped with our popular OneLINK HDBaseT port, the DocCAM 20 HDBT easily connects to the Vaddio OneLINK HDMI extension system to reduce cabling and extend video, power, and control up to an installation distance of 328 ft (100M). Remote network management of the DocCAM 20 HDBT allows the presenter to transmit a live image and control all the functions remotely making it an effective and efficient distance learning tool.
Why choose the Vaddio DocCAM 20 HDBT OneLINK HDMI System?
The Vaddio DocCAM 20 HDBT OneLINK HDMI System is a video conferencing systems from Vaddio, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Product colour: Black; Product type: Group video conferencing system; Signal-to-Noise Ratio (SNR): 50 dB. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Shared office and workgroup printing
- Front-desk and retail counters
- Warehouse labelling and logistics
- High-volume document production
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Product colour | Black |
| Product type | Group video conferencing system |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Rack capacity | 1U |
| HD type | Full HD |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 1920x1080@60fps |
| Power over Ethernet (PoE) ports quantity | 1 |

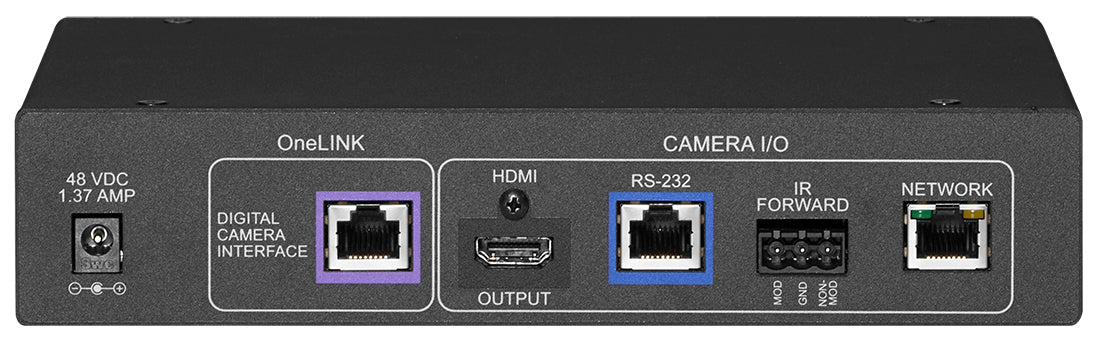

| Interface module HDMI ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 2 |
| Interface module IR output port | Yes |
| Interface module DC input port | Yes |
| Ethernet LAN | Yes |
| Cable standard | Cat5e |
| Megapixel (approx.) | 2.38 MP |
| Optical zoom | 20x |
| Effective sensor resolution | 2.14 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Focal length range | 4.7 - 94 mm |
| Wide end viewing angle (normal mode) | 60° |
| Tele end viewing angle (normal mode) | 3.3° |
| Noise reduction number of steps | 6 |
| Focus adjustment | Auto/Manual |
| Remote control interface | IR Wireless |
| Recommended luminance | 100 lx |
| Aperture range (F-F) | 1.6 - 3.5 |
| Minimum illumination | 0.4 lx |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
| Back Light Compensation (BLC) | Yes |
| Sync system | Internal |
| Gain control type | Auto/Manual |
| Gain number of steps | 28 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 40 °C |
| Brand | Vaddio |
| Manufacturer part number | 999-9968-200 |
| GTIN / UPC | ['0840077504748', '840077504748'] |
