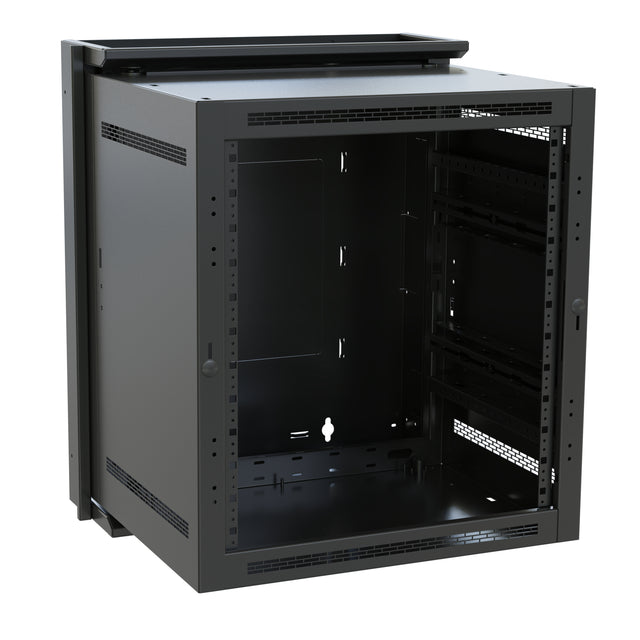

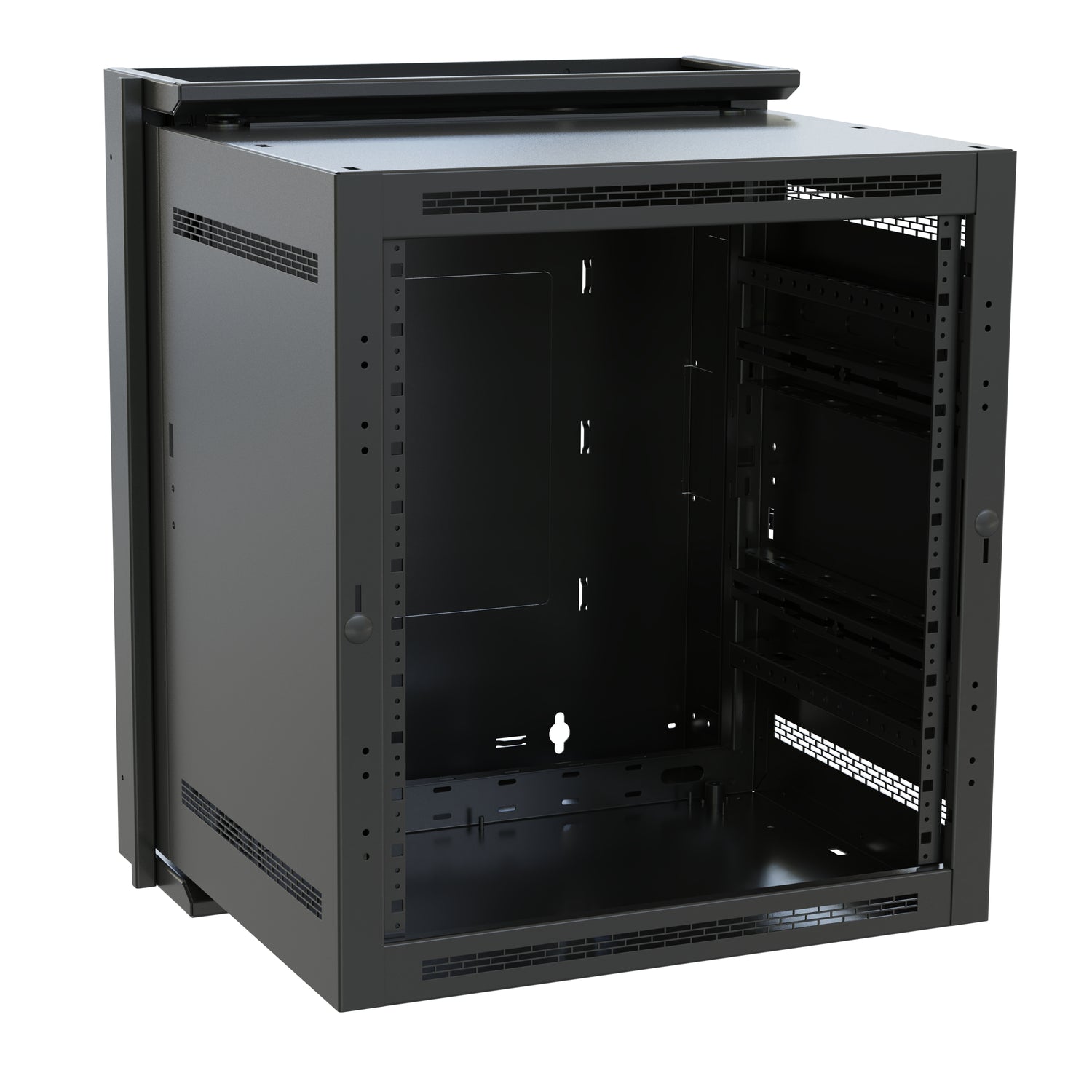

Middle Atlantic DWR Series Pivoting Wall Rack - DWR-10-22

Product overview

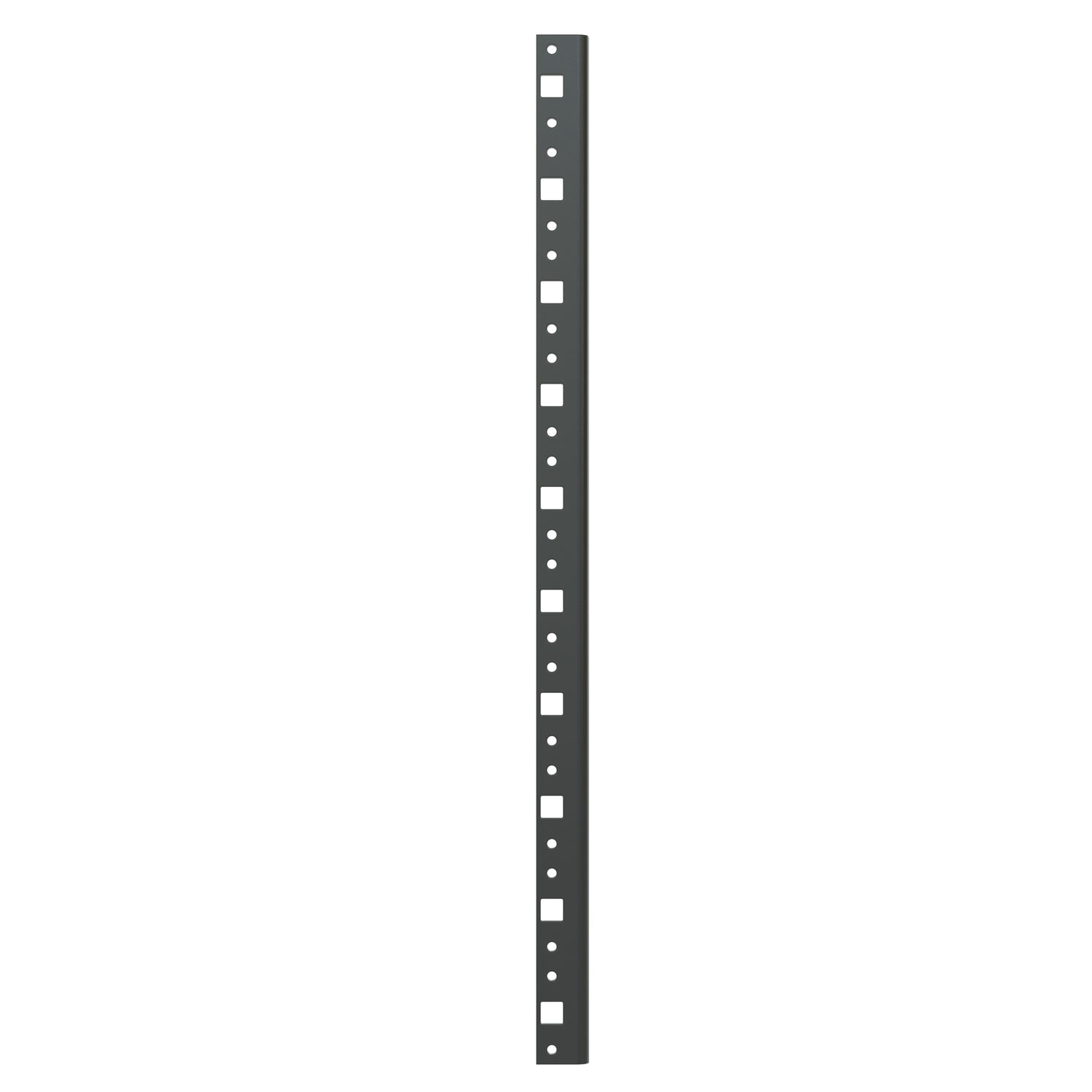

EIA compliant 19” wall mount rack shall be Middle Atlantic Products model # DWR-10-22. Overall dimensions shall be 23.4" W x 24-1/2" H x 22.3" D. Weight capacity shall be 200 lbs. Tool-Free Quick-Mount™ system enables one-person installation. Useable depth shall be 20” and shall extend into the back pan 3.5”. Center section and back pan shall be 16-gauge steel, phosphate pre-treated and finished in a black textured powder coat. Rackrail shall be constructed of 11-gauge steel with tapped 10-32 mounting holes in universal EIA spacing with black e-coat finish and marked rackspaces. Rack shall be constructed to swing open for component cabling access, center section shall pivot for either left or right opening. Rack shall have a rear knockout panel with 1/2”, 3/4”, 1", 1-1/2”, 2” and 3” electrical knockouts installed in base, and a rear knockout panel with 1/2”, 3/4”, 1”, 1-1/2”, 2” and 3” electrical knockouts, four Decora® cutouts, and BNC knockouts for UHF/VHF antennas installed in top. Large laser knockout on back pan shall have a 12-1/2” x 12-1/2” cutout for electrical pull-box. Fan knockouts on top and bottom shall allow for installation of up to four 4-1/2" fans. Rack shall have 2” knockouts, 4” knockouts for Wiremold 4000® Series raceways, and knockouts for UCP Series universal connector panels on the side. Top, bottom and sides shall feature vertical vent pattern. DWR Series enclosures shall satisfy the 2007 & 2010 CBC; 2006, 2009 & 2012 IBC; ASCE 7-05 (2005 Edition) & ASCE 7-10 (2010 Edition) and the 2006 & 2009 editions of NFPA 5000 for use in areas of high...

Why choose the Middle Atlantic DWR Series Pivoting Wall Rack - DWR-10-22?

The Middle Atlantic DWR Series Pivoting Wall Rack - DWR-10-22 is a rack cabinets from Middle Atlantic, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Rack capacity: 10U; Type: Wall mounted rack; Maximum weight capacity: 91 kg. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.

Highlights

Key benefits

• ✔ Verified manufacturer specifications — no guesswork before you buy
• ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
• ✔ Volume pricing available for business and reseller accounts
• ✔ Support by phone, WhatsApp or email before and after your purchase

Recommended use cases

• Conference and boardroom installs
• Classroom and training rooms
• Retail and hospitality displays
• Workstation ergonomics programs

Recommended industries

Specifications
