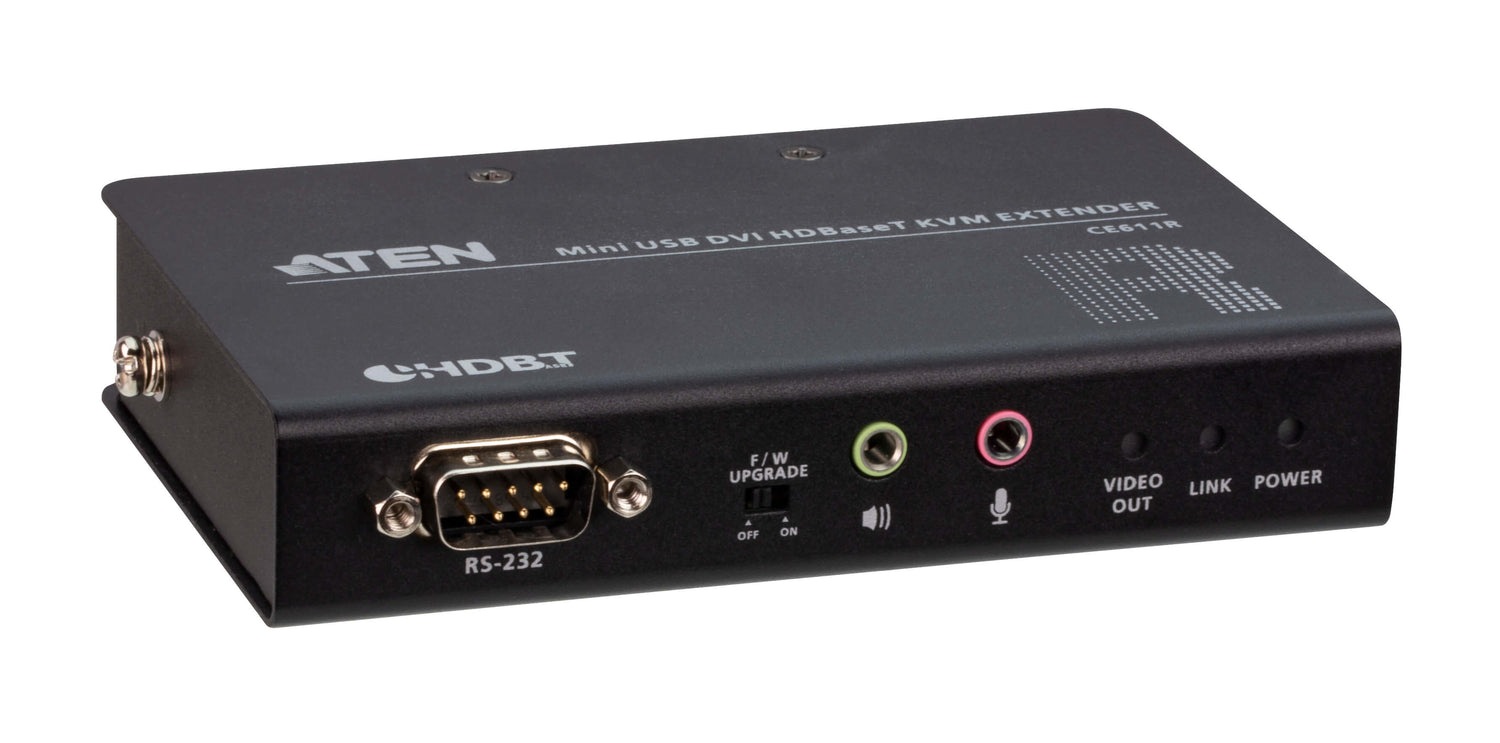

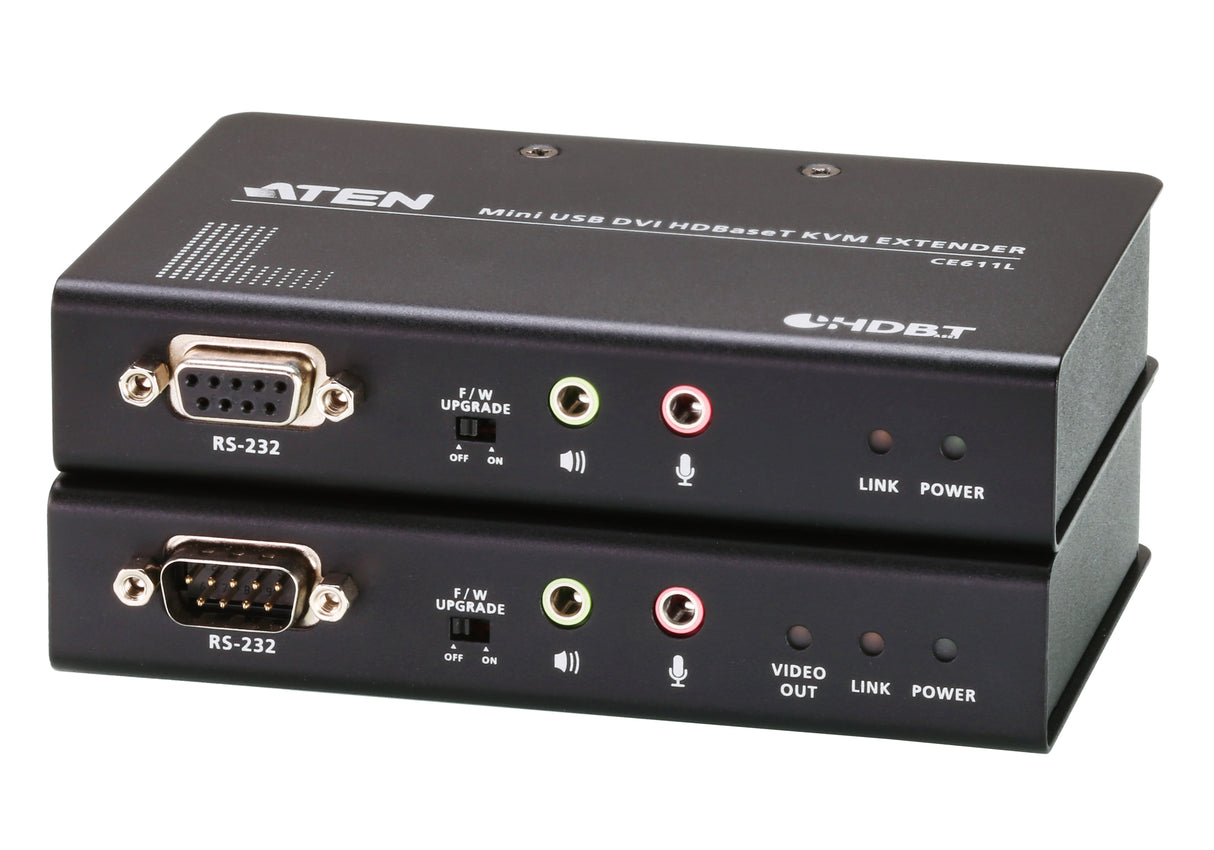

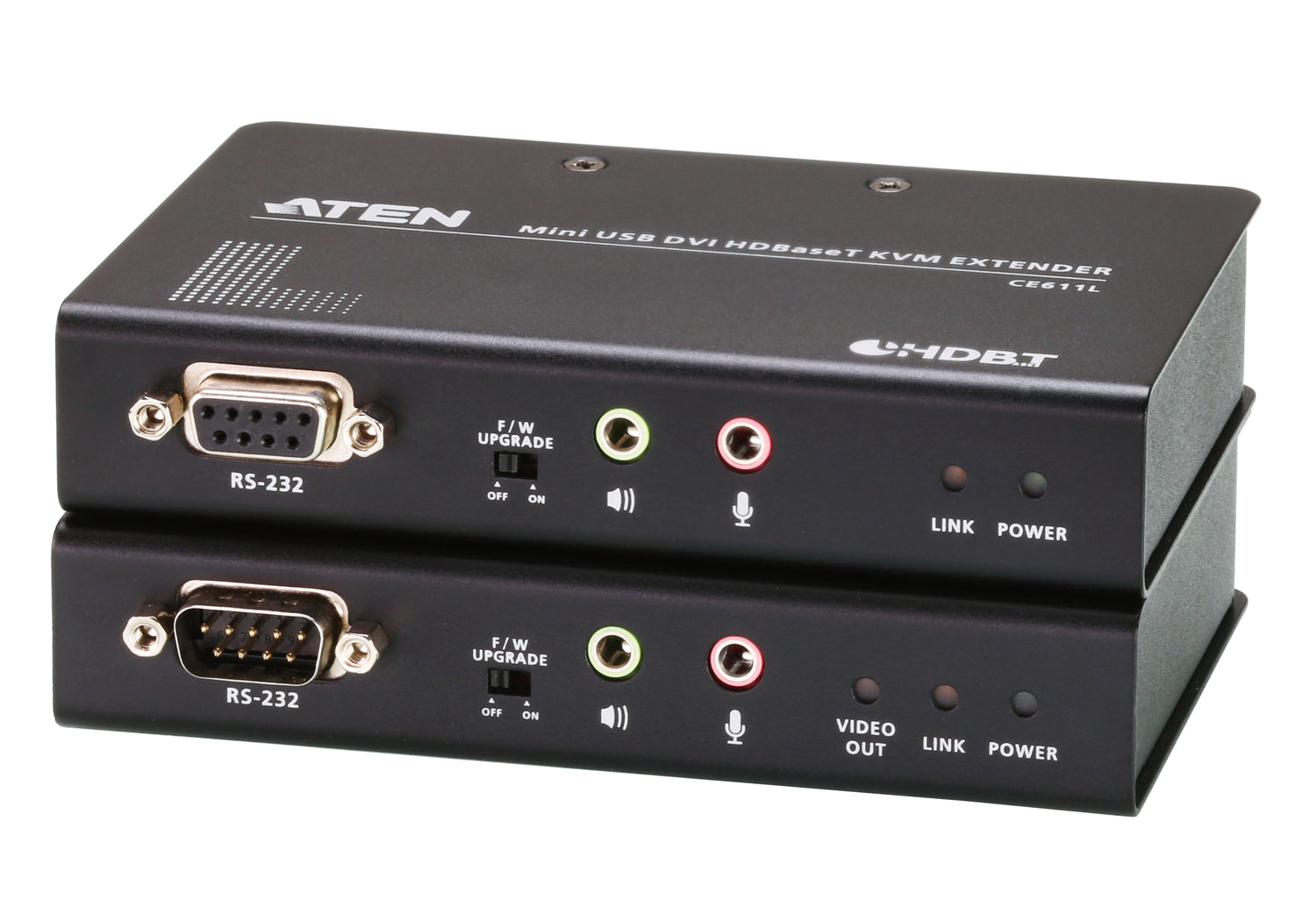

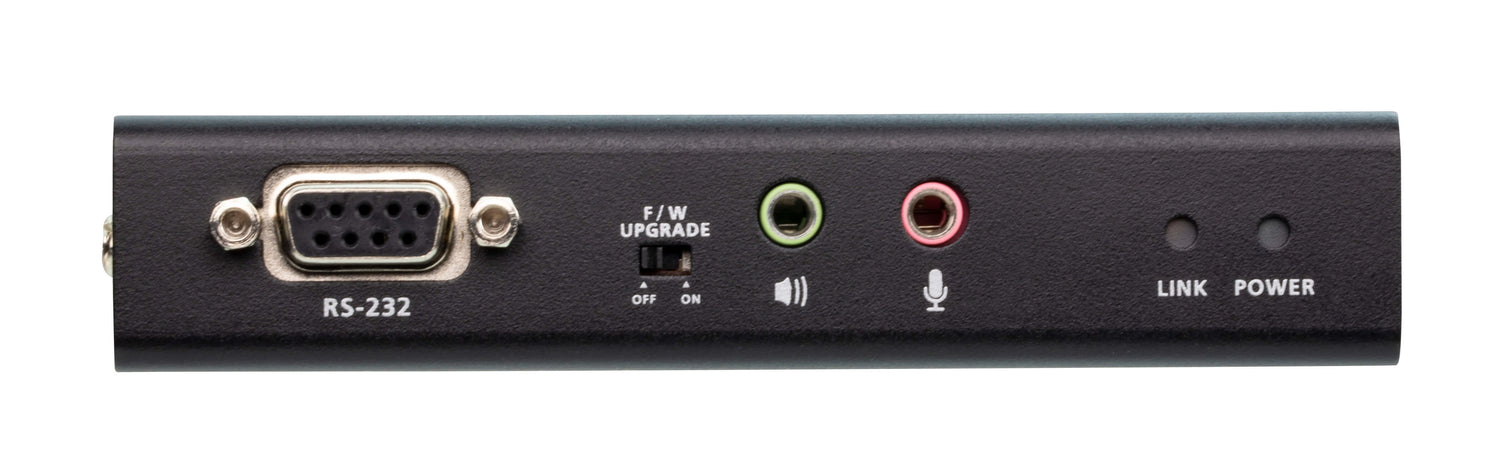

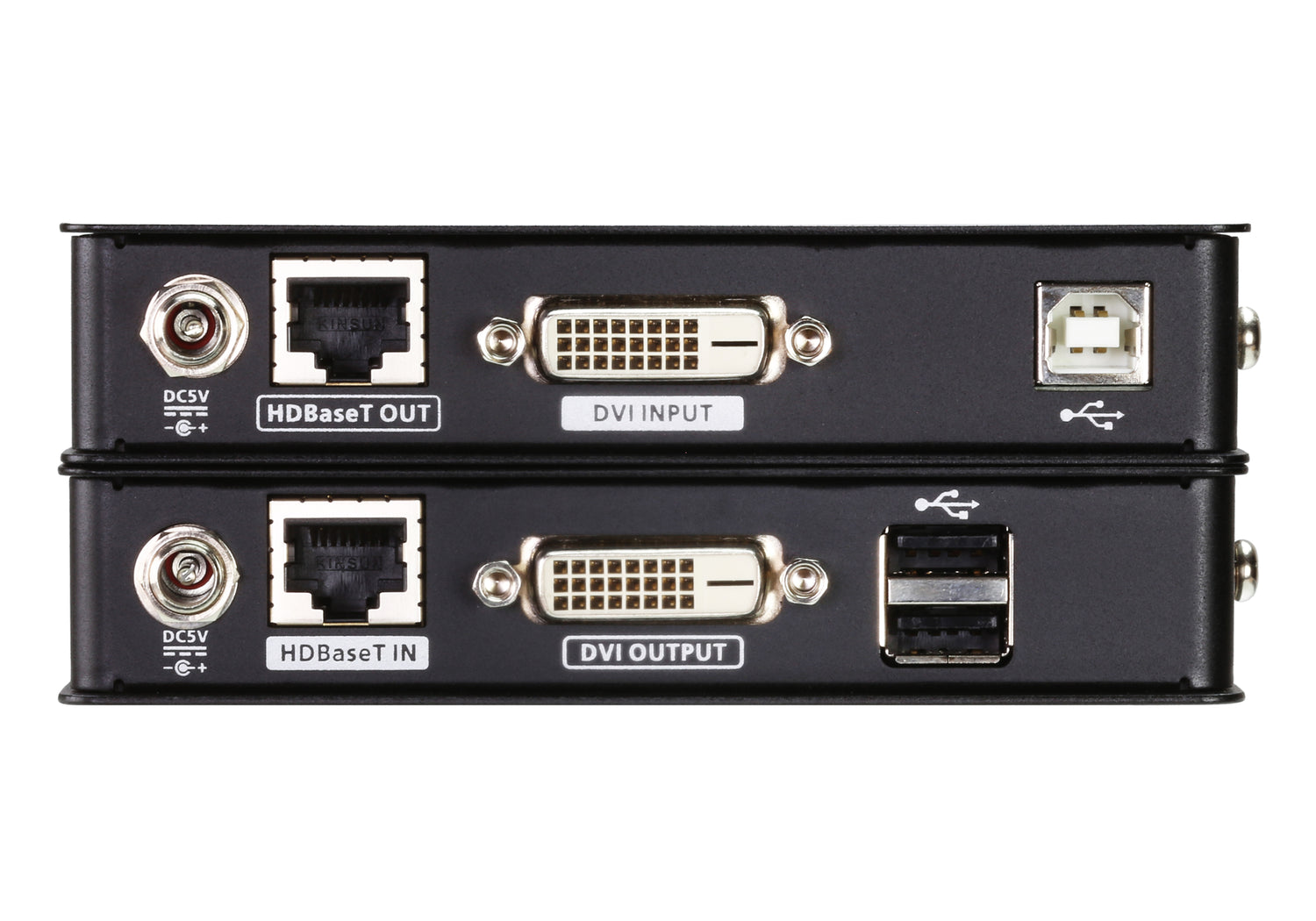

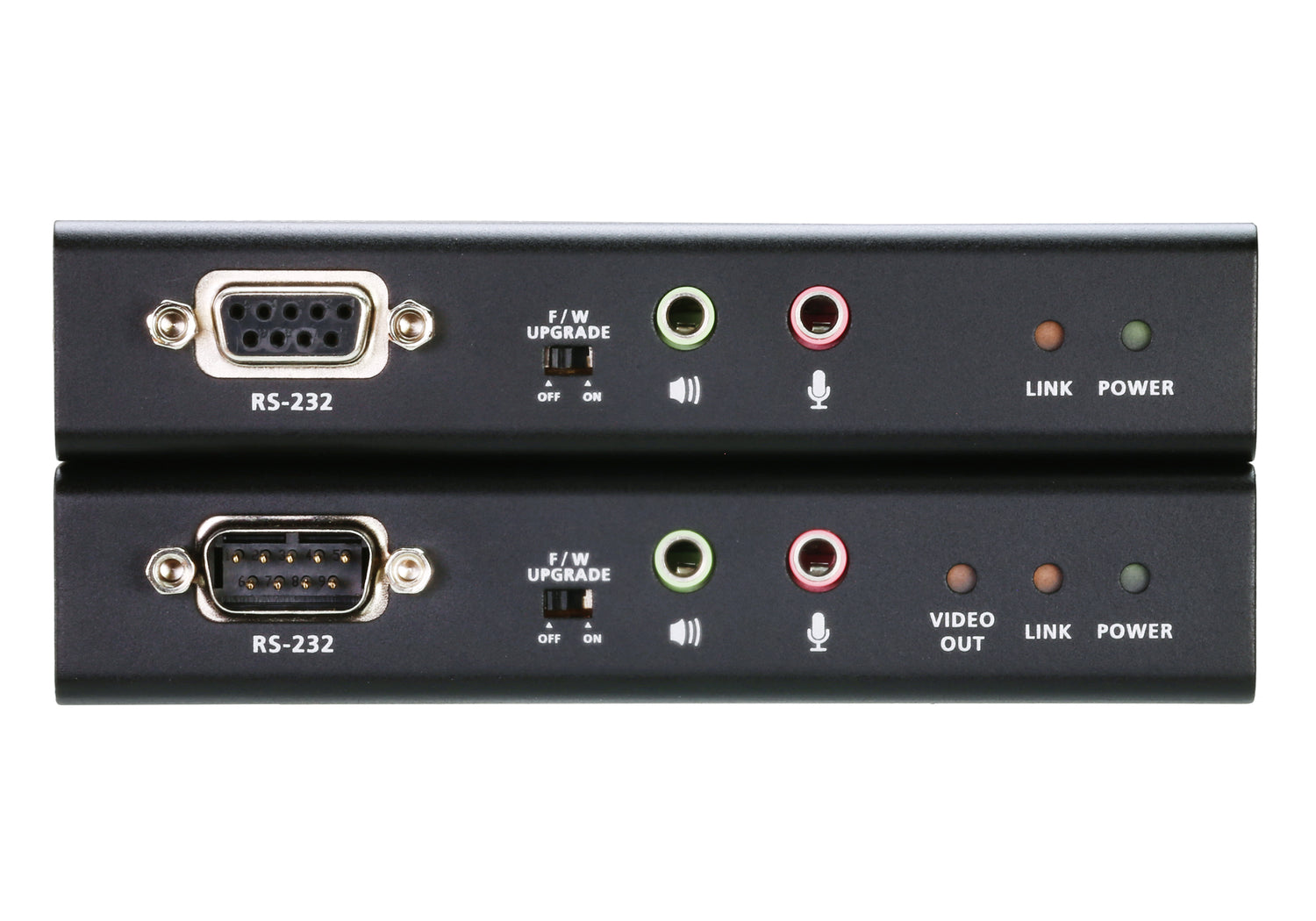

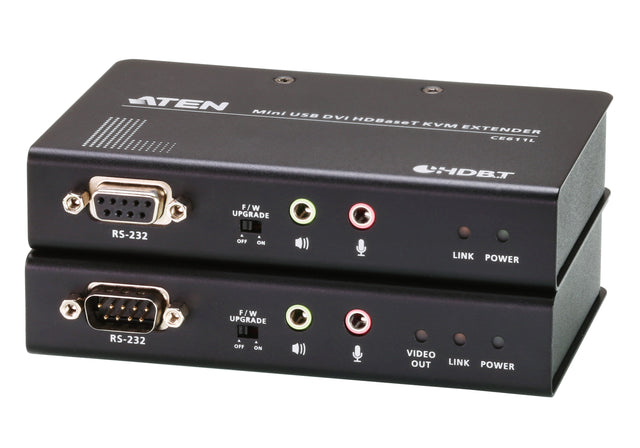

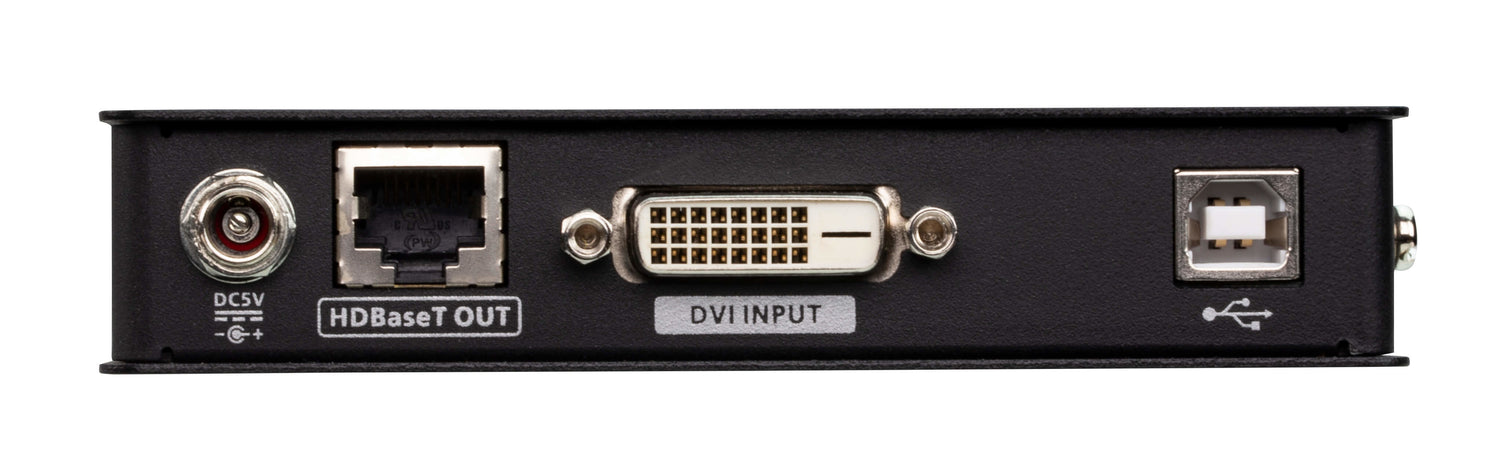

ATEN CE611 KVM extender Transmitter & receiver
Stock: 0 units
Description
Description
Product overview
The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.
Why choose the ATEN CE611 KVM extender Transmitter & receiver?
The ATEN CE611 KVM extender Transmitter & receiver is a kvm extenders from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Type: Transmitter & receiver; Connectivity technology: Wired; Maximum transfer distance: 100 m. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Desk setups and docking stations
- AV and presentation systems
- IT deployments and refresh projects
- Server room and rack cabling
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 100 m |
| Cable types supported | Cat6, Cat6a |
| Maximum digital resolution | 1920 x 1200 pixels |
| Supported resolutions | 1920x1200 1920x1080 1600x1200 |
| Product colour | Black |
| Material | Metal |
| LED indicators | Yes |
| Certification | RoHS |
| Transmitter video port type | DVI-D |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| USB data transfer rates | 480 Mbit/s |
| RS-232 ports | 2 |
| RJ-45 ports quantity | 2 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| Power consumption (transmitter) (max) | 2.494 W |
| Power consumption (receiver) (max) | 4.816 W |
| Transmitter width | 12.8 cm mm |
| Transmitter depth | 8.69 cm mm |
| Transmitter height | 2.5 cm mm |
| Transmitter weight | 350 g |
| Receiver width | 12.8 cm mm |
| Receiver depth | 8.69 cm mm |
| Receiver height | 2.5 cm mm |
| Receiver weight | 340 g |
| AC adapter included | Yes |
| Manual | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage relative humidity (H-H) | 0 - 80% |
| Firmware upgradeable | Yes |
| Power requirements | DC |
| Brand | ATEN |
| Manufacturer part number | CE611 |
| GTIN / UPC | ['0672792010408', '672792010408'] |
