ATEN VM1600A video switch
Stock: 1 units
ATEN VM1600A video switch
Description
Description
Product overview

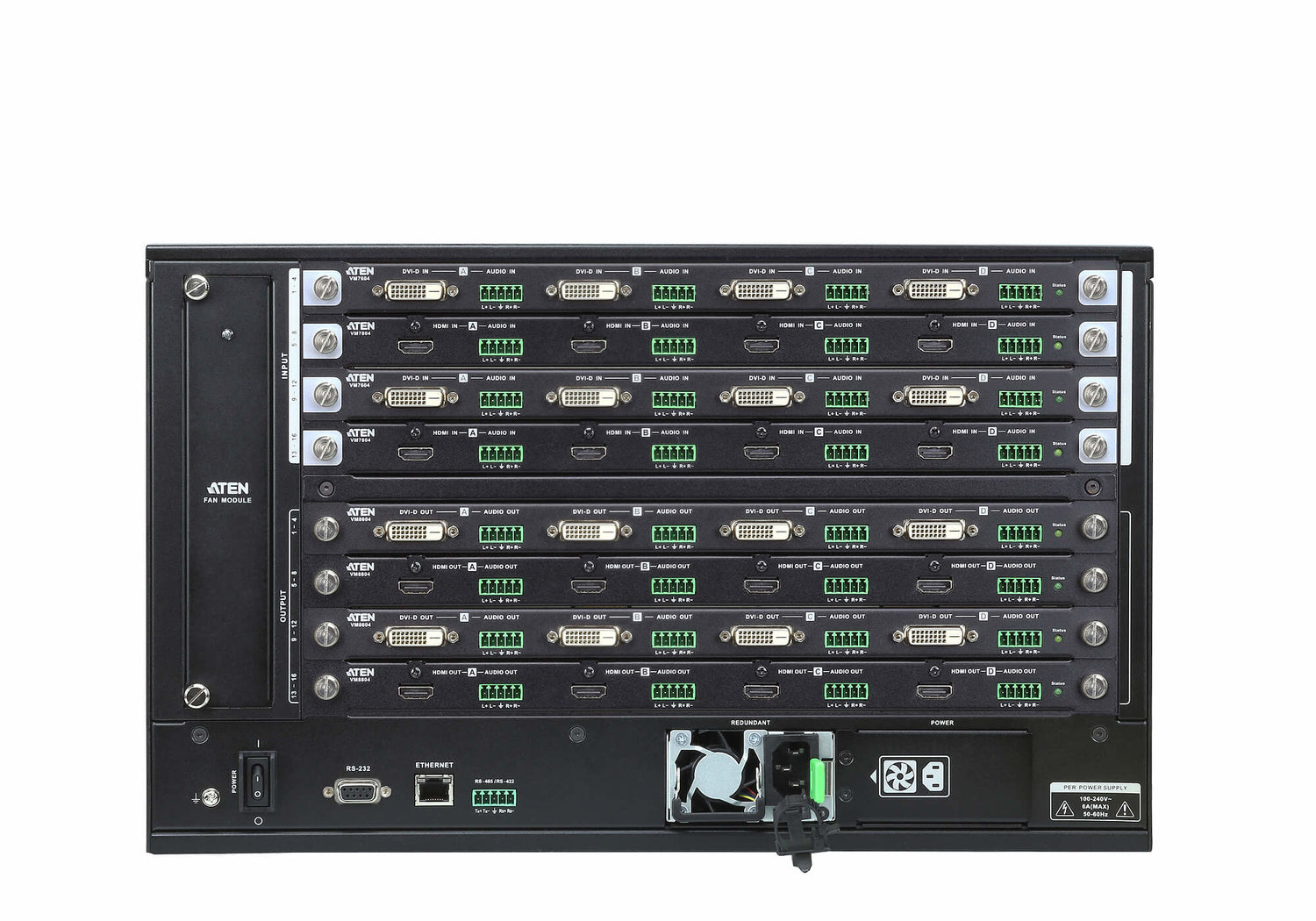

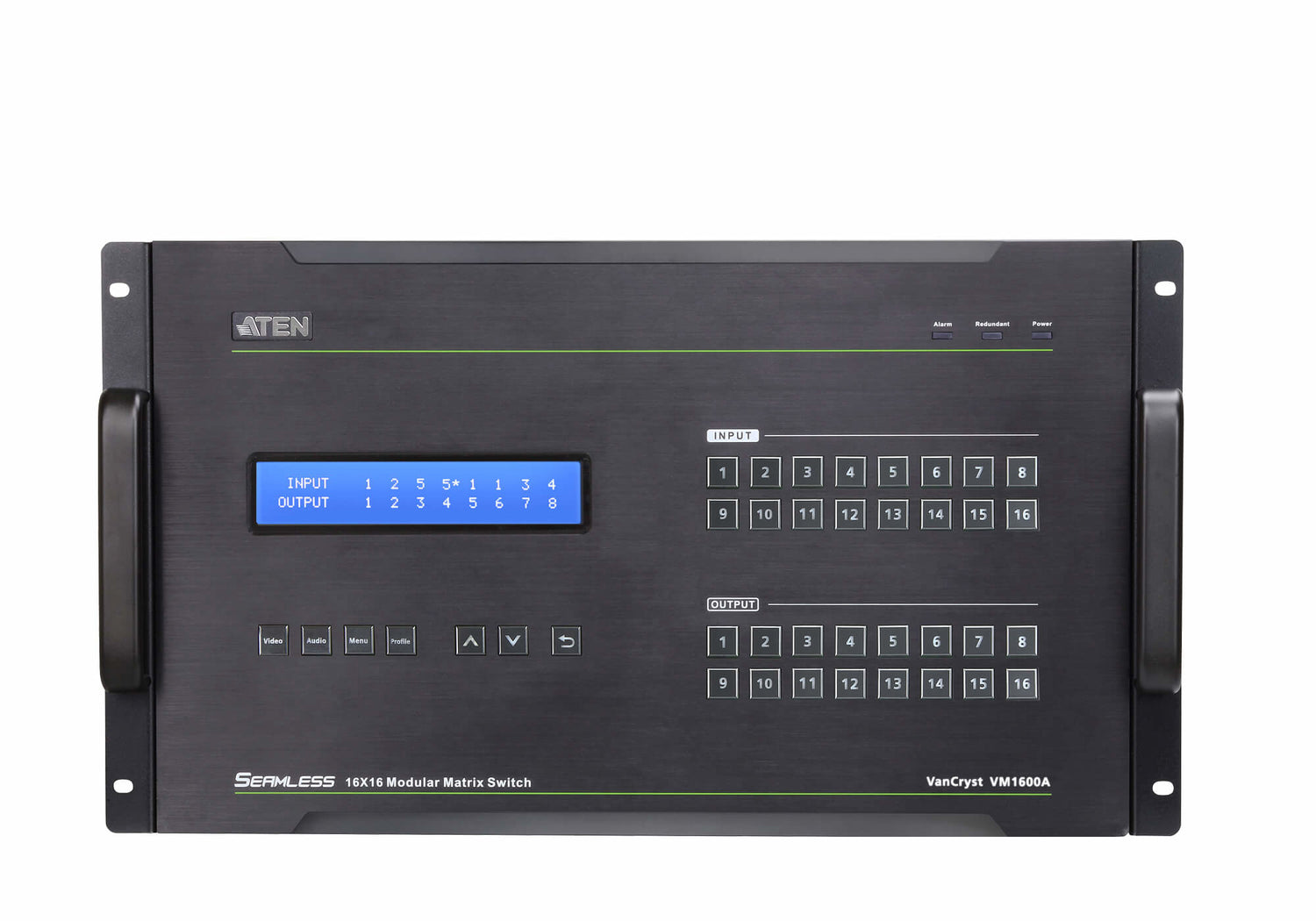

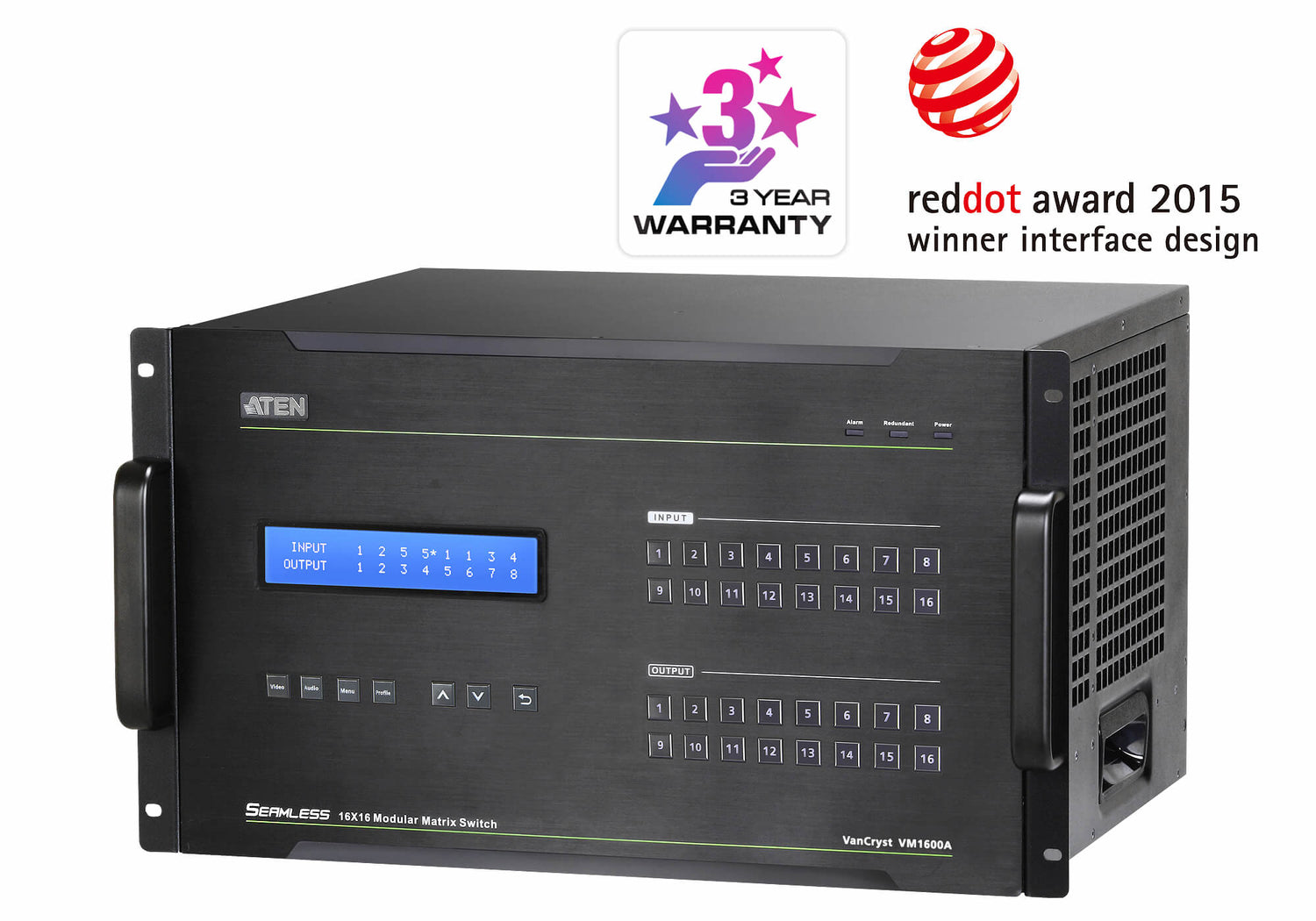

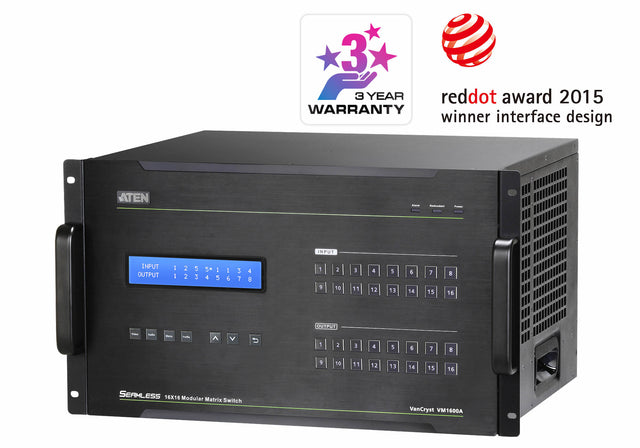

The ATEN Modular Matrix Solution Series comprises the VM1600A/VM3200 Modular Matrix Switch in tandem with a range of hot-swappable I/O boards. The solution offers real-time control and advanced access to manage 16/32 video sources and 16/32 displays simultaneously, through modular I/O boards in a single chassis. Empowered by ATEN Seamless Switch™ technology, the VM1600A/VM3200 video matrix switches incorporate a speed-progressive video switching function and a unique scaler that integrates seamlessly with video wall systems. The ATEN Modular Matrix Solution is easily expandable and ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing. Boasting a sophisticated and intuitive design to deliver the best audio/visual distribution and control, reliability and lowest maintenance costs, the solution also incorporates ATEN’s Red Dot Award-winning GUI that can be accessed from anywhere over a network or the internet. Configuring a video wall or digital signage installation has never been easier.
Why choose the ATEN VM1600A video switch?
The ATEN VM1600A video switch is a video switches from ATEN, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — HDMI ports quantity: 32; RJ-45 input ports: 1; RS-232 ports: 1. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| HDMI ports quantity | 32 |
| RJ-45 input ports | 1 |
| RS-232 ports | 1 |
| Material | Metal |
| Product colour | Black |
| HDCP | Yes |
| Supported graphics resolutions | 3840 x 2160, 4096 x 2160 |
| Bandwidth | 15.2 Gbit/s |
| LED indicators | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| 3D | Yes |
| HD type | 4K Ultra HD |
| Rack capacity | 6U |
| HDCP version | 2.2 |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Power consumption (typical) | 460 W |
| Width | 482 mm |
| Depth | 466.6 mm |
| Height | 265.9 mm |
| Weight | 15.1 kg |
| User guide | Yes |
| Cables included | AC |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Brand | ATEN |
| Manufacturer part number | VM1600A |
| GTIN / UPC | ['0672792008238', '672792008238'] |
