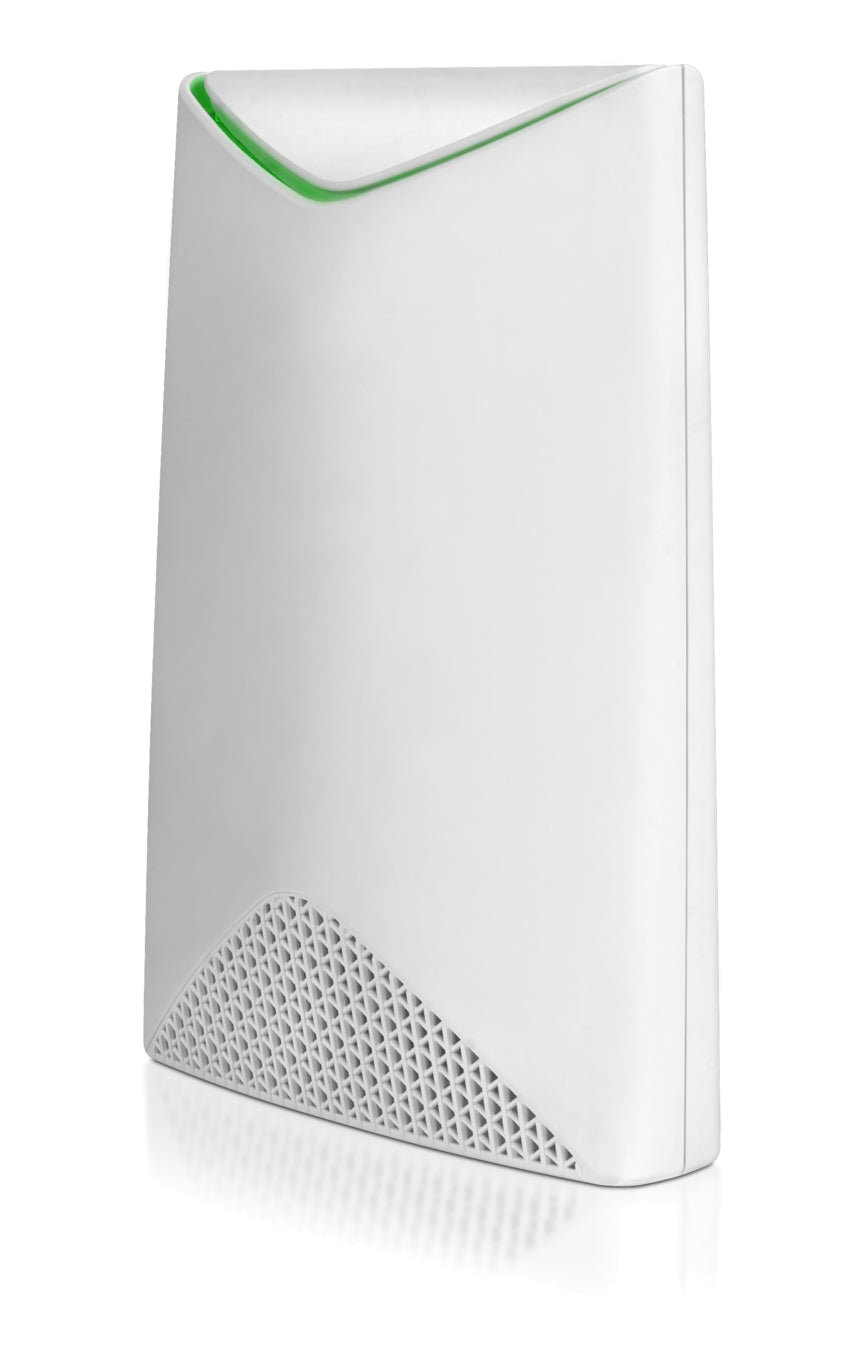

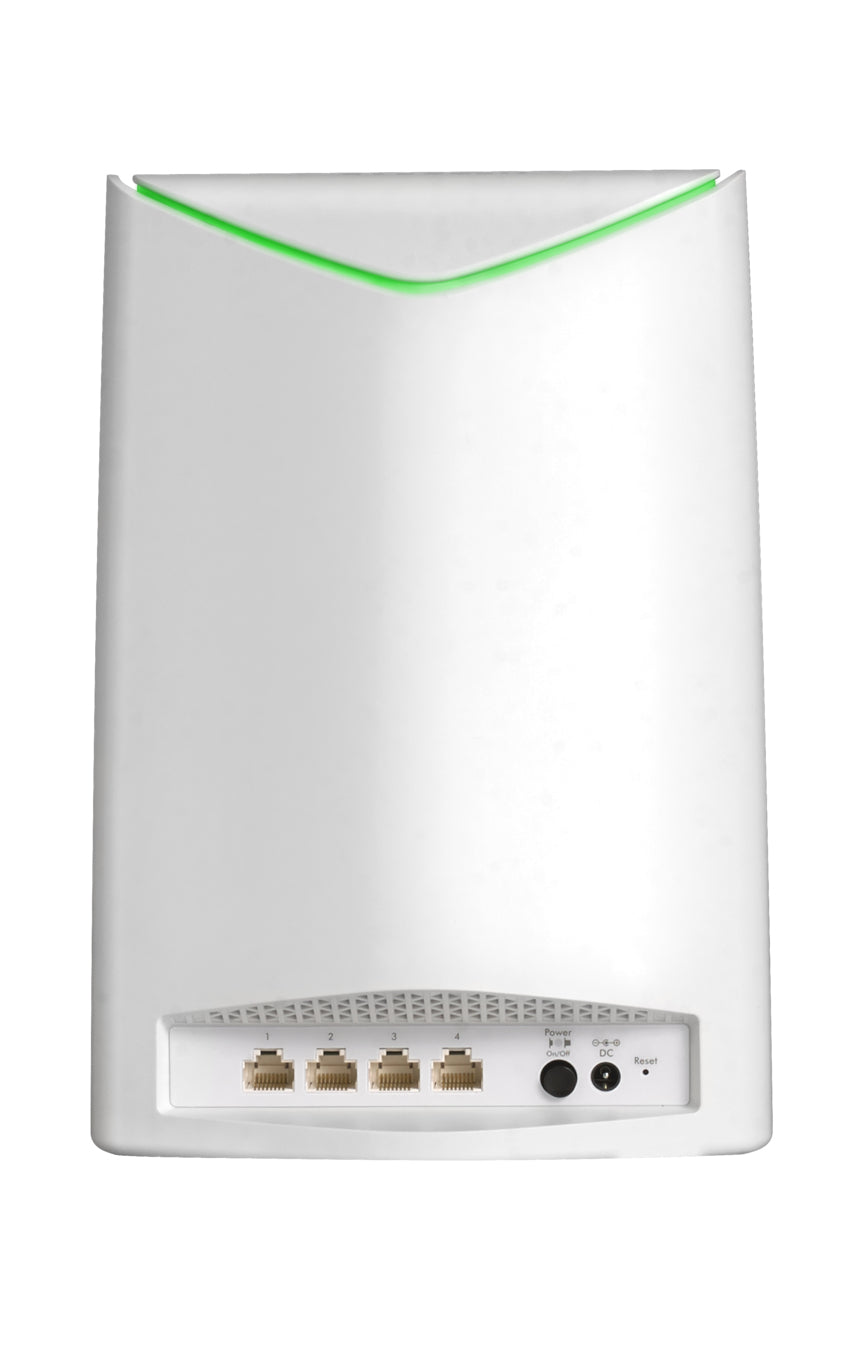

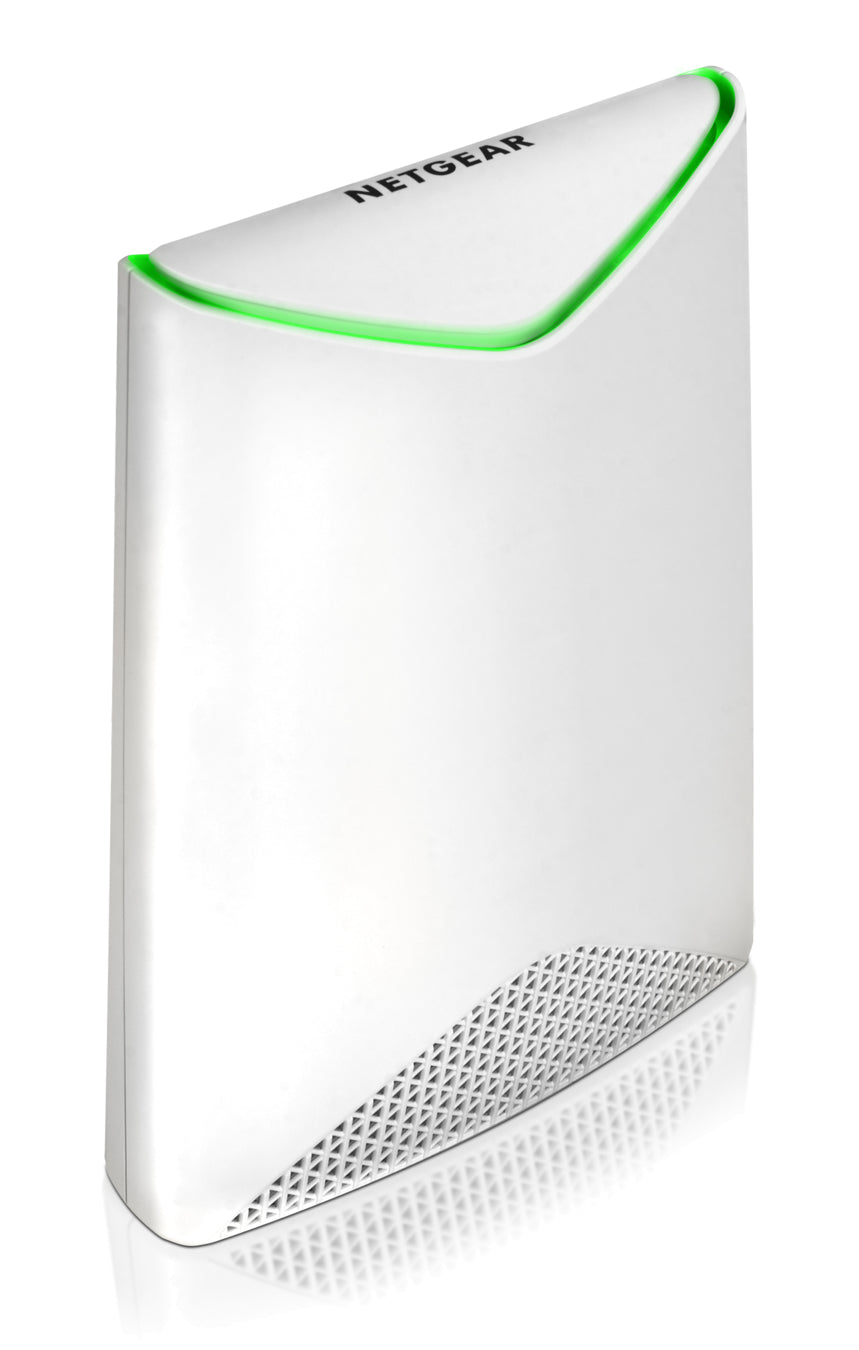

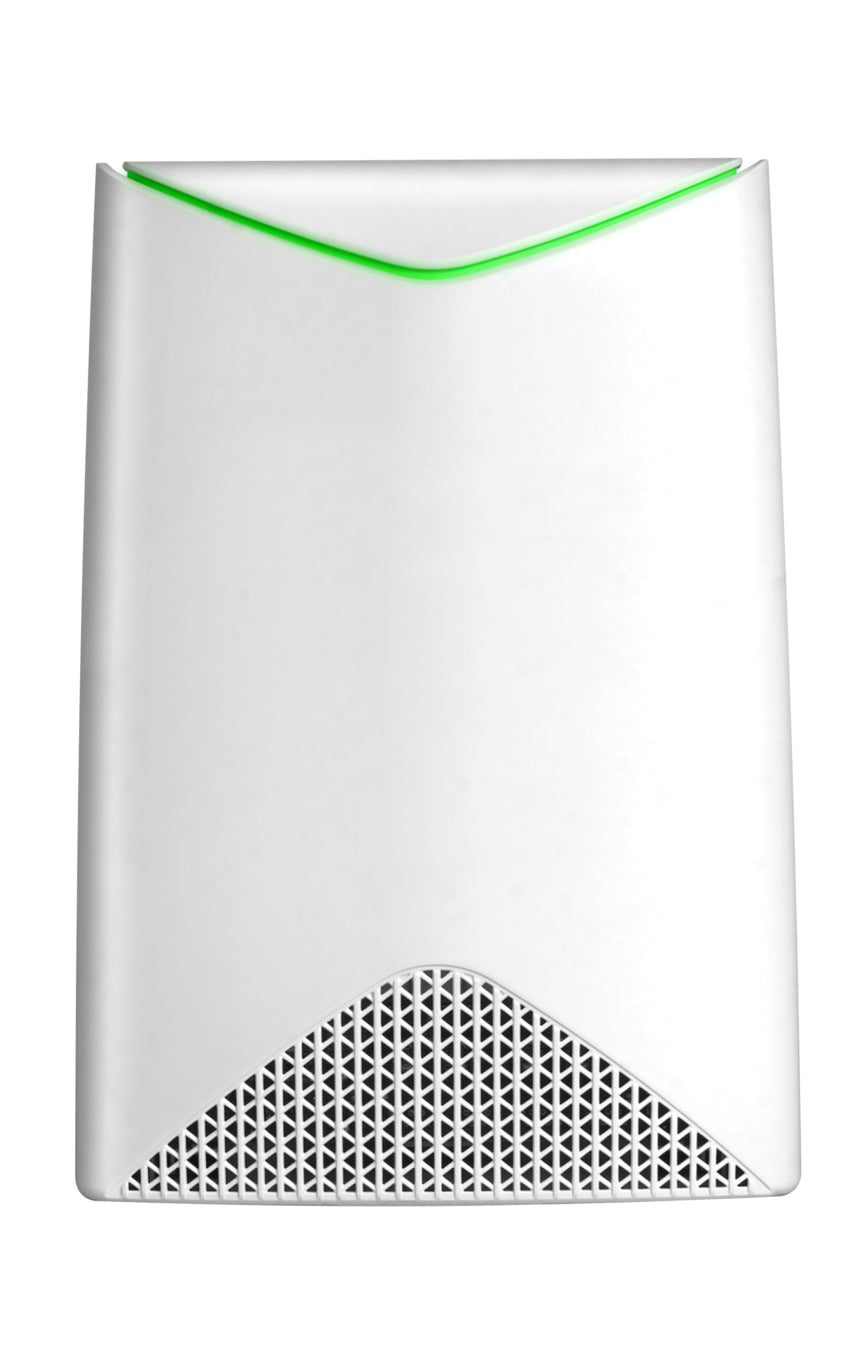

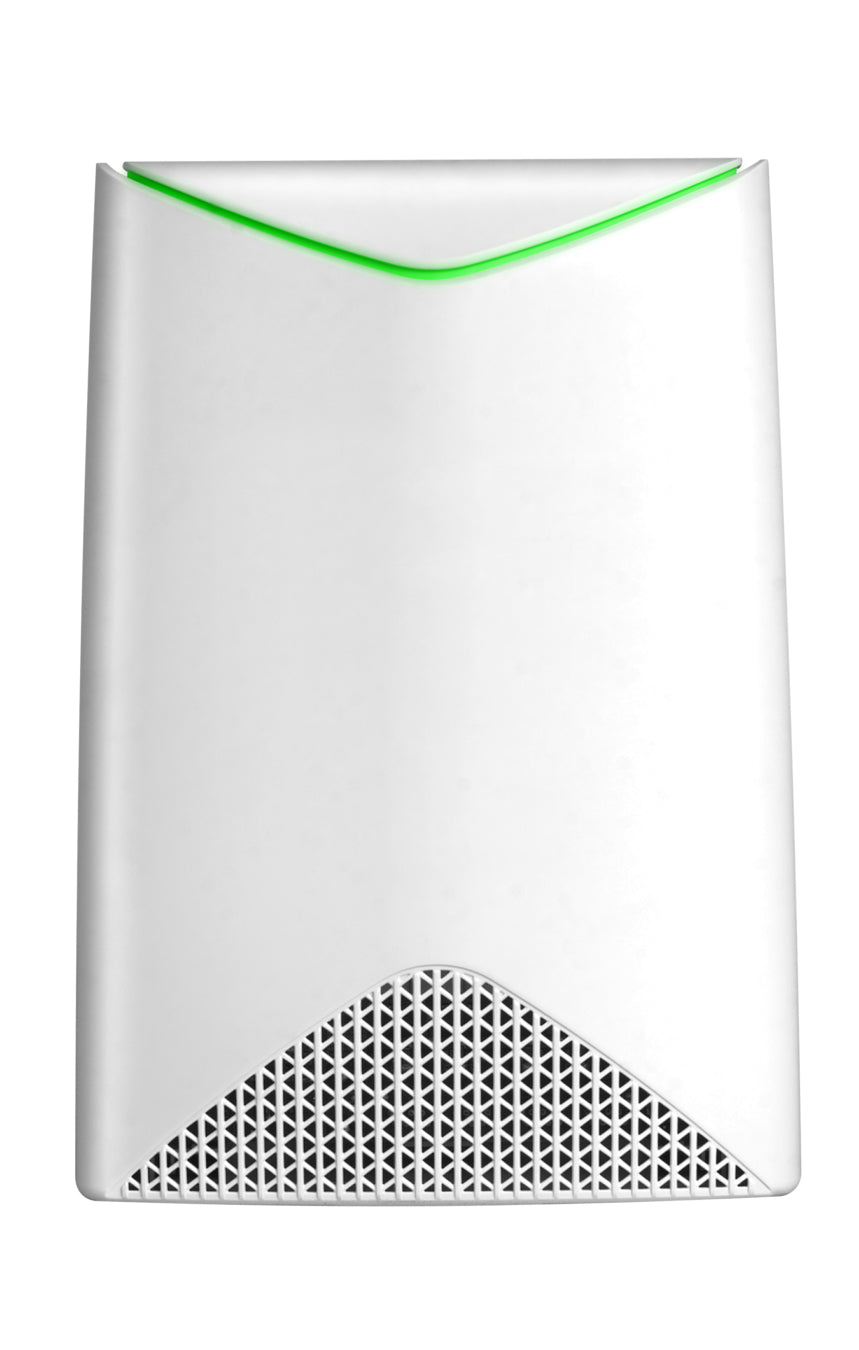

NETGEAR WAC564 1733 Mbit/s White Power over Ethernet (PoE)
Stock: 0 units
Description
Description
Product overview
One powerful Mesh WiFi network in a box. No cables. Maximum WiFi coverage and 3 modes of usage. Introducing the new WAC564 Instant Mesh Multi-mode Access Point with maximum WiFi performance and coverage with an integrated four-port Ethernet switch for optional wired connectivity. NETGEAR Business keeps on innovating with the new Multi-mode capability of the WAC564. WAC564 can be used as: A Mesh extender for existing WAC540 wireless networks or another WAC564. A powerful and feature-rich 11AC Wireless Access Point with VLAN management. A wireless 4-port switch for instant remote wired connectivity and VLAN carry-over. This new product is the best solution for any business that needs to expand their infrastructure wireless network without the use of cables. Those hard to reach areas can now have blazing fast WiFi with Instant. Mesh technology. The WAC564, like the WAC540, has three robust 802.11ac radios (NETGEAR’s patented FastLane3 Tri-band technology) to establish a strong wireless backhaul link to a nearby, compatible device such as WAC540. Instant Mesh is the wireless connection between two or more devices to expand WiFi coverage without the use of cables. and only works with WAC540s. Wire-free Installation. No need to run cables. Power up the WAC564 Multi-mode Access Point and it will automatically connect to the WAC540 or WAC564. Instant Mesh. Will automatically connect to your nearest WAC540 access point and cast a Wi-Fi umbrella with approximate 30ft/10m radius. Easy Instant Mesh conguration through NETGEAR Insight app or Cloud Portal. Rock-solid Backhaul. 802.11AC...
Why choose the NETGEAR WAC564 1733 Mbit/s White Power over Ethernet (PoE)?
The NETGEAR WAC564 1733 Mbit/s White Power over Ethernet (PoE) is a wireless access points from NETGEAR, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — 2.4 GHz: Yes; 5 GHz: Yes; Maximum data transfer rate: 1733 Mbit/s. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1733 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 400 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Throughput data rate | 3000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 600 user(s) |
| Auto MDI/MDI-X | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 256-QAM |
| Fit AP mode features | 802.11k & 802.11v smart roaming, Wireless distribution system (WDS) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi roaming | Yes |
| WLAN channel features | WLAN channel management |
| VLAN support | Yes |
| Adaptive bandwidth management | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Security algorithms | EAP-TLS, PEAP, SNMP, SSH, SSID, SSL/TLS, TTLS, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | SSID broadcast on/off |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
| Access Control List (ACL) | Yes |
| VPN support | ProSUPPORT |
| Web-based management | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Input current | 3.5 A |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | LAN, Power, WLAN |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Brand | NETGEAR |
| Manufacturer part number | WAC564-100NAS |
| GTIN / UPC | ['0606449142068', '606449142068'] |
