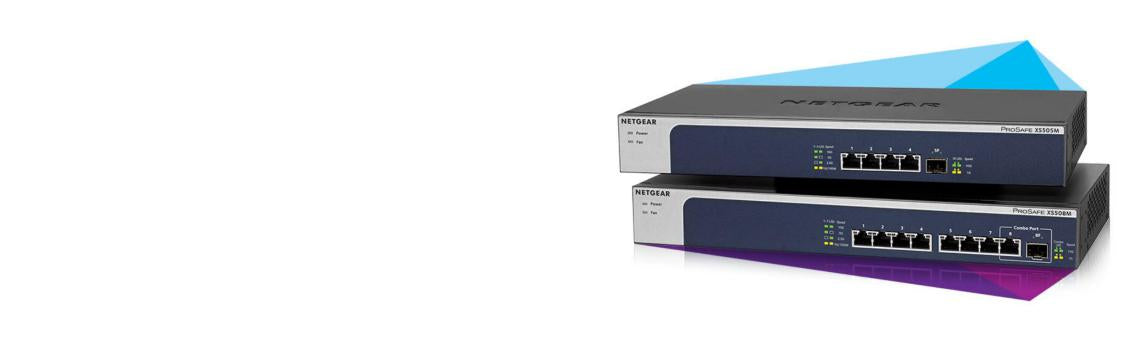

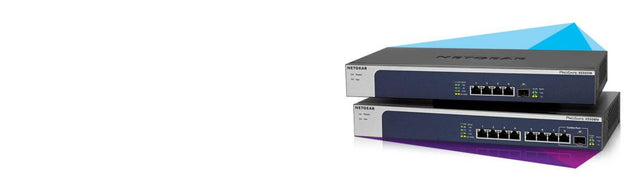

NETGEAR XS505M-100NAS network switch Unmanaged 10G Ethernet (100/1000/10000) Black, Silver
Stock: 0 units
Description
Description
Product overview
Unlock the Potential of your 10G/Multi-Gig devices. The XS505M and XS508M come with copper Ethernet 5-speed ports that provide either FastEthernet, 1-Gigabit, 2.5-Gigabit, 5-Gigabit or 10-Gigabit connectivity, as well as 1 SFP+ Fiber port with 1-Gigabit or 10-Gigabit connectivity. Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS505M or XS508M give the exact speed required, no downgrade. Also, the new NETGEAR 5-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6 wiring, therefore reducing wiring costs and hassle. Cables and Speed. The following paragraph describes the network cables that you can use for the switch connections and the speeds that these cables can support, up to 100 meters (328 feet). * 100Mbps with Category 5(Cat 5) or higher rated cables. * 1Gbps, 2.5Gbps or 5 Gbps with Category 5e(Cat 5e) or higher rated cables. * 10Gbps with Category 6A (Cat 6a) or higher rated cables. NETGEAR Warranty. This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Click here for coverage, availability and terms and conditions. ProSUPPORT 24x7 Advanced Technical Support via phone for 90 days (Remote diagnostics performed by our technical experts for prompt resolution of technical issues). ProSUPPORT coverage can be extended by purchasing one, three...
Why choose the NETGEAR XS505M-100NAS network switch Unmanaged 10G Ethernet...?
The NETGEAR XS505M-100NAS network switch Unmanaged 10G Ethernet... is a network switches from NETGEAR, selected for Canadian businesses that need reliable, specification-accurate hardware. Key figures at a glance — Switch type: Unmanaged; Quality of Service (QoS) support: Yes; Traffic classification: Yes. Every listing at FullOffice.ca is built from verified manufacturer data, so what you read here is what ships to you.
Highlights
Key benefits
- ✔ Verified manufacturer specifications — no guesswork before you buy
- ✔ Ships from Canada: 24 to 72 hours to major centres, 3 to 8 business days elsewhere
- ✔ Volume pricing available for business and reseller accounts
- ✔ Support by phone, WhatsApp or email before and after your purchase
Recommended use cases
- Structured cabling and network closets
- Data centre and server room links
- Branch office connectivity
- Campus and building-to-building runs
Recommended industries
Specifications
| Specification | Detail |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Traffic classification | Yes |
| System event log | Yes |
| User operation log | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 1 |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | Yes |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000,1200,2500,3000,5000,6000,10000 Mbit/s |
| Auto-negotiation | Yes |
| Switching capacity | 100 Gbit/s |
| MAC address table | 2000 entries |
| Latency (10-100 Mbps) | 6 µs |
| Latency (1 Gbps) | 4 µs |
| Latency (10 Gbps) | 4.845 µs |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Packet buffer memory | 0.128 MB |
| Rack mounting | Yes |
| Product colour | Black, Silver |
| LED indicators | Activity, Fan fail, Link, Power, Speed |
| Number of fans | 1 fan(s) |
| Safety | CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI |
| Noise level | 28.8 dB |
| Mean time between failures (MTBF) | 1093237 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 12.25 W |
| Power consumption (max) | 22.5 W |
| Power LED | Yes |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Brand | NETGEAR |
| Manufacturer part number | XS505M-100NAS |
| GTIN / UPC | ['0606449131147', '606449131147'] |
